Bosch ANGLE EXACT 12V-12-400

Bosch ANGLE EXACT 12V-12-400 pn-accu-screwdriver: exploded parts diagram, 1 sheet, 44 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ANGLE EXACT 12V-12-400: 44 positions on 1 sheet

Bosch ANGLE EXACT 12V-12-400 parts list (1 sheet)

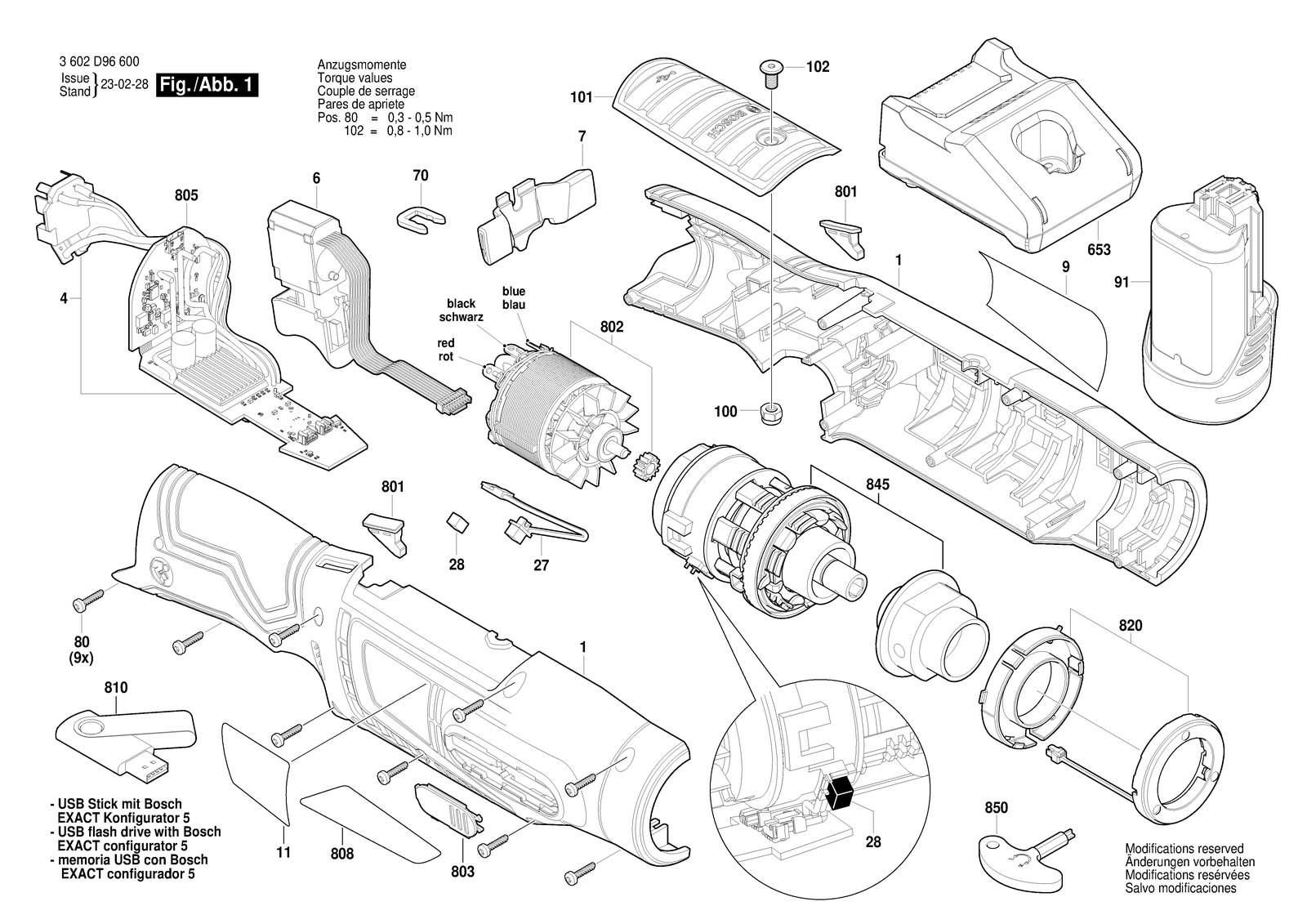

Bosch ANGLE EXACT 12V-12-400 parts diagram, sheet 1
No.Part numberPart name
13605105059Housing
1002609110835Nut
1013605105055Housing Cover
1021600A023EFScrew
111600A029WPSupplementary Plate
111600A029WRSupplementary Plate
111600A029WSSupplementary Plate
11160111649ASupplementary Plate
271600A02E6DPhotoelec. Light Barrier
271607504168Electronic Module
281607503944Foam Rubber
41607504034Electronic Module
62607202536Switch
6532607226219Fast Charger EU GAL 12V-40
6532607226221Fast Charger GAL 12V-40 220V-240V 10,8-12V 4A
71600A021C9Switch Slide
702609110537Clip
802609110883Screw
8011600A027T4Light Conductor
8023607031924Motor assembly
8031600A0219NPusher
8051607000EM2Electronics Module
8051607000EM3Electronics Module
8051607000EM4Electronics Module
808160111A7S3Nameplate
808160111A7S5Nameplate
808160111A7S7Nameplate
808160111A7S8Nameplate
808160111A7S9Nameplate
808160111A9KENameplate
808160111A9KFNameplate
808160111A9KGNameplate
8103607031931Usb stick
8201607000EM1LED lighting
84516070312EUPlanetary Gear Train
84516070312EVPlanetary Gear Train
84516070312EWPlanetary Gear Train
8503607950027Screwdriver
9160111C41AManufacturer's nameplate
9160111C41BManufacturer's nameplate
9160111C41CManufacturer's nameplate
911607A3506ABattery Pack GBA 12V 3,0 Ah LI
911607A3506FBattery Pack GBA 12V 6.0AH
911607A350C5Battery Pack GBA 12V 2.0AH LI Scm
