Makita AN943
Makita AN943: exploded parts diagram, 1 sheet, 93 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita AN943: 93 positions on 1 sheet

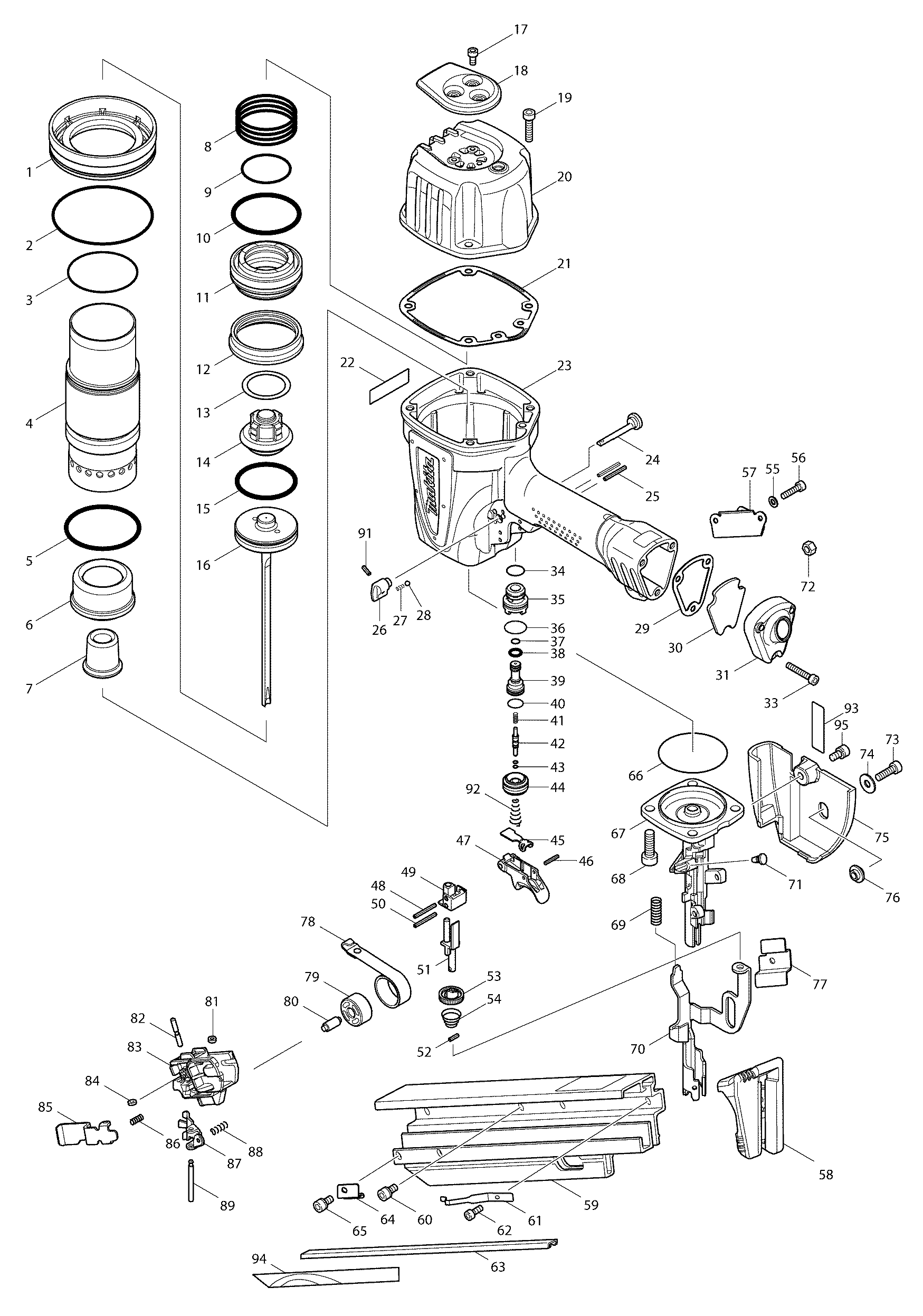

Sheet 1: Makita AN943 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 419115-6 | Makita 419115-6 CYLINDER SEPARATOR "AN943 |
| 2 | 213809-3 | Makita 213809-3 O-RING 86.5*2.4AN943 |
| 3 | 213668-5 | Makita 213668-5 O-RING 59.6*2.4AN943 |
| 4 | 331700-4 | Makita 331700-4 CYLINDERAN943 |
| 5 | 213667-7 | Makita 213667-7 O RING 60 |
| 6 | 421680-3 | Makita 421680-3 FRONT CUSHION "TPU"AN943 |
| 7 | 421687-9 | Makita 421687-9 CUSHION GUIDE "TPU"AN943 |
| 8 | 233243-1 | Makita 233243-1 COMPRESSION SPRINGAN943 |
| 9 | 213504-5 | Makita 213504-5 O RING 40 |
| 10 | 213669-3 | Makita 213669-3 O RING 56 |
| 11 | 419114-8 | Makita 419114-8 HEAD VALVEAN943 |
| 12 | 421925-9 | Makita 421925-9 VALVE SEAT "TPU"AN943 |
| 13 | 267742-1 | Makita 267742-1 WASHERAN943 |
| 14 | 421924-1 | Makita 421924-1 CUSHION REAR "TPU"AN943 |
| 15 | 213619-8 | Makita 213619-8 O-RING 48.7*3.5AN943 |
| 16 | 154652-0 | Makita 154652-0 DRIVER COMPLETE |
| 17 | 265499-8 | Makita 265499-8 NYLOK SCREW 5*10AN943 |
| 18 | 345618-3 | Makita 345618-3 EXHAUST COVERAN943 |
| 19 | 922342-1 | Makita 922342-1 HEX. SOCKET HEAD BOLT M6X |
| 20 | 317950-5 | Makita 317950-5 TOP CAPAN943 |
| 21 | 162238-6 | Makita 162238-6 TOP CAP GASKETAN943 |
| 22 | ||
| 23 | 154820-5 | |
| 24 | 324117-8 | Makita 324117-8 LOCK PINAN943 |
| 25 | 951075-1 | Makita 951075-1 SPRING PIN 3-28 |
| 26 | 417824-1 | Makita 417824-1 LEVERAN943 |
| 27 | 233368-1 | Makita 233368-1 SPRINGAN943 |
| 28 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 29 | 162239-4 | Makita 162239-4 INLET CAP GASKETAN943 |
| 30 | 419356-4 | Makita 419356-4 INLET FILTERAN943 |
| 31 | 318005-9 | Makita 318005-9 INLET CAPAN943 |
| 33 | 922252-2 | Makita 922252-2 HEX. SOCKET HEAD BOLAN621 |
| 34 | 213176-6 | Makita 213176-6 O-RING 14, M442 |
| 35 | 417695-6 | Makita 417695-6 TRIGGER VALVE GUIDEAN901 |
| 36 | 213262-3 | Makita 213262-3 O RING 18 |
| 37 | 213039-6 | Makita 213039-6 O Ring 6 for UC3020A |
| 38 | 213040-1 | Makita 213040-1 O RING 8AN901 |
| 39 | 317959-7 | Makita 317959-7 PILOT VALVEAN943 |
| 40 | 213122-9 | Makita 213122-9 O RING 12, HP2070 |
| 41 | 233239-2 | Makita 233239-2 COMPRESSION SPRING 3AN901 |
| 42 | 324591-0 | Makita 324591-0 TRIGGER VALVE STEMAN943 |
| 43 | 213044-3 | Makita 213044-3 O RING 3AN901 |
| 44 | 318010-6 | Makita 318010-6 TRIGGER VALVE CASEAN943 |
| 45 | 345687-4 | Makita 345687-4 IDLERAN943 |
| 46 | 258004-8 | Makita 258004-8 SPRING PIN 2.5-16 |
| 47 | 419418-8 | Makita 419418-8 TRIGGERAN943 |
| 48 | 951075-1 | Makita 951075-1 SPRING PIN 3-28 |
| 49 | 310165-3 | Makita 310165-3 HOLDERAN943 |
| 50 | 951075-1 | Makita 951075-1 SPRING PIN 3-28 |
| 51 | 310166-1 | Makita 310166-1 STOPPERAN943 |
| 52 | 951054-9 | Makita 951054-9 SPRING PIN 3-10 |
| 53 | 310163-7 | Makita 310163-7 ADJUSTERAN943 |
| 54 | 231978-8 | Makita 231978-8 CONICAL COMPRESSION SPRING9-16, AN611 |
| 55 | 267300-3 | Makita 267300-3 WASHER 10*5.3*1AN943 |
| 56 | 266369-4 | Makita 266369-4 NYLOK SCREW 5*20AN943 |
| 57 | 345626-4 | Makita 345626-4 JOINT |
| 58 | 419117-2 | Makita 419117-2 MAGAZINE CAP |
| 59 | 154823-9 | |
| 60 | 266370-9 | Makita 266370-9 SCREW SETAN943 |
| 61 | 345619-1 | Makita 345619-1 NAIL STOPPER |
| 62 | 922217-4 | Makita 922217-4 H.S.H.BOLT M5X14, MEM427 |
| 63 | 345620-6 | Makita 345620-6 MAGAZINE RAIL |
| 64 | 344765-7 | Makita 344765-7 HOLDERAN943 |
| 65 | 266370-9 | Makita 266370-9 SCREW SETAN943 |
| 66 | 213654-6 | Makita 213654-6 O RING 60 |
| 67 | 310164-5 | Makita 310164-5 DRIVER GUIDE |
| 68 | 266368-6 | Makita 266368-6 SCREW 8*25AN943 |
| 69 | 233463-7 | Makita 233463-7 COMPRESSION SPRINGAN943 |
| 70 | 345622-2 | Makita 345622-2 CONTACT ARM |
| 71 | 421418-6 | Makita 421418-6 RUBBER PIN 9.5AN901 |
| 72 | 931302-2 | Makita 931302-2 HEX NUT M6, 2414NB |
| 73 | 265498-0 | Makita 265498-0 HEX.SOCKET FEAD BOLT M6*20, PC5001C |
| 74 | 267314-2 | Makita 267314-2 FLAT WASHER 7 |
| 75 | 419118-0 | Makita 419118-0 COVERAN943 |
| 76 | 267743-9 | Makita 267743-9 SHOLDER WASHERAN943 |
| 77 | 344766-5 | Makita 344766-5 HOLDERAN943 |
| 78 | 163456-9 | Makita 163456-9 SPIRAL SPRING COMPLEAN943 |
| 79 | 419112-2 | Makita 419112-2 SPRING GUIDEAN943 |
| 80 | 256428-2 | Makita 256428-2 PINAN943 |
| 81 | 262054-7 | Makita 262054-7 URETHANE RING 3, AN611 |
| 82 | 256770-1 | Makita 256770-1 PINAN943 |
| 83 | 419116-4 | Makita 419116-4 PUSHER LEVER |
| 84 | 262054-7 | Makita 262054-7 URETHANE RING 3, AN611 |
| 85 | 345673-5 | Makita 345673-5 LOCK PLATEAN943 |
| 86 | 231309-1 | Makita 231309-1 COMPRESSION SPRING 5, JR307CT |
| 87 | 345621-4 | Makita 345621-4 PUSHER |
| 88 | 233038-2 | Makita 233038-2 COMPRESSION SPRING 5, JR307CT |
| 89 | 256490-7 | Makita 256490-7 PIN 4 |
| 91 | 951054-9 | Makita 951054-9 SPRING PIN 3-10 |
| 92 | 233908-5 | Makita 233908-5 COMPRESSION SPRING 5 |
| 93 | 810097-9 | Makita 810097-9 INDICATION LABEL |
| 94 | 819181-7 | Makita 819181-7 INDICATION LABEL |
| 95 | 266370-9 | Makita 266370-9 SCREW SETAN943 |
