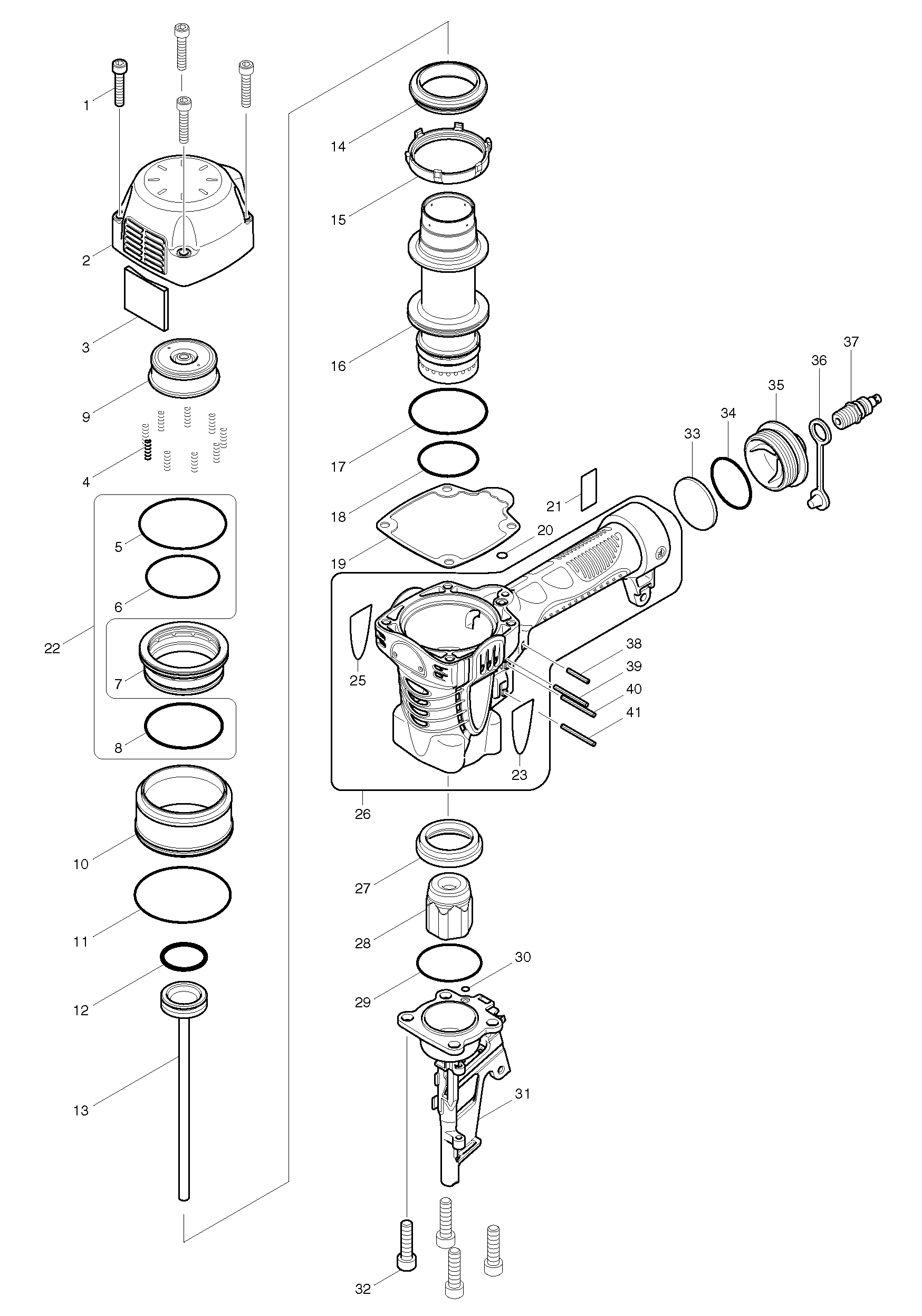

Sheet 1: Makita AN911H parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 265569-3 | Makita 265569-3 HEX SOCKET HEAD BOLTAN911H |
| 2 | 158222-7 | Makita 158222-7 TOP CAP COMPLETEAN911H |
| 3 | 413110-8 | Makita 413110-8 FILTERAN911H |
| 4 | 233484-9 | Makita 233484-9 COMPRESSION SPRING 4AN911H |
| 5 | 213668-5 | Makita 213668-5 O-RING 59.6*2.4AN943 |
| 6 | 213612-2 | Makita 213612-2 O RING 50AN911H |
| 7 | 419842-5 | Makita 419842-5 HEAD VALVEAN911H |
| 8 | 213657-0 | Makita 213657-0 O RING 53 |
| 9 | 424012-3 | Makita 424012-3 REAR CUSHIONAN911H |
| 10 | 331760-6 | Makita 331760-6 H.VALVE GUIDE, AN911H |
| 11 | 213720-9 | Makita 213720-9 O RING 67, GA9050 |
| 12 | 213982-9 | Makita 213982-9 O-RING 26AN911H |
| 13 | 168440-9 | Makita 168440-9 DRIVERAN911H |
| 14 | 424013-1 | Makita 424013-1 VALVE SEATAN911H |
| 15 | 331759-1 | Makita 331759-1 CYLINDER STAY, AN911H |
| 16 | 331757-5 | Makita 331757-5 CYLINDER, AN911N |
| 17 | 213657-0 | Makita 213657-0 O RING 53 |
| 18 | 213531-2 | Makita 213531-2 O-RING 39AN911H |
| 19 | 162254-8 | Makita 162254-8 TOP CAP GASKETAN911H |
| 20 | 213045-1 | Makita 213045-1 O RING 6, BO3710 |
| 21 | 866125-8 | |
| 23 | 819324-1 | Makita 819324-1 MAKITA ROGO LABEL LAN911H |
| 25 | 819323-3 | Makita 819323-3 MAKITA ROGO LABEL RAN911H |
| 27 | 331758-3 | Makita 331758-3 CYLINDER GUIDE, AN911H |
| 28 | 424011-5 | Makita 424011-5 FRONT CUSHIONAN911H |
| 29 | 213554-0 | Makita 213554-0 O RING 44 |
| 30 | 213023-1 | Makita 213023-1 O-RING 4 HR3000C |
| 31 | 310225-1 | Makita 310225-1 DRIVER GUIDEAN911H |
| 32 | 265565-1 | Makita 265565-1 HEX SOCKET HEAD BOLTAN911H |
| 33 | 413105-1 | Makita 413105-1 INLET FILTERAN911H |
| 34 | 213521-5 | Makita 213521-5 O RING 36, AN611 |
| 35 | 318108-9 | Makita 318108-9 INLET CAPAN450H |
| 36 | 286280-4 | Makita 286280-4 CAP 9, AN620H |
| 37 | 243105-5 | Makita 243105-5 ONE-TOUCH JOINT H22PAN450H |
| 38 | 951069-6 | Makita 951069-6 SPRING PIN 3-20 |
| 39 | 951078-5 | Makita 951078-5 SPRING PINGN900 |
| 40 | 951078-5 | Makita 951078-5 SPRING PINGN900 |
| 41 | 951078-5 | Makita 951078-5 SPRING PINGN900 |

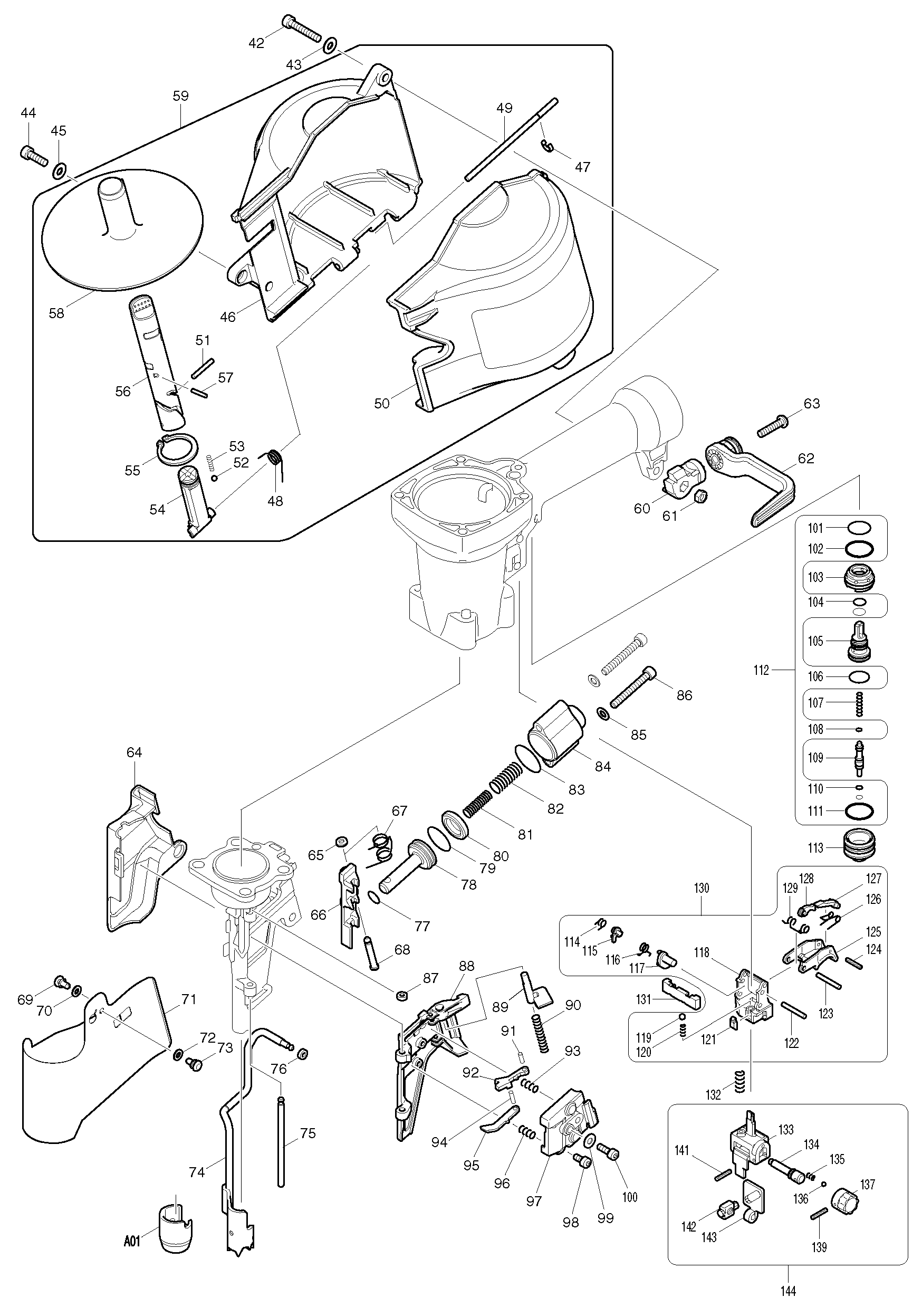

Sheet 2: Makita AN911H parts diagram
| No. | Part number | Part name |
|---|---|---|
| 42 | 265570-8 | Makita 265570-8 HEX.SOCKET HEAD BOLTAN911H |
| 43 | 267343-5 | Makita 267343-5 FLAT WASHER 5AN911H |
| 44 | 265563-5 | Makita 265563-5 HEX SOCKET HEAD BOLTAN911H |
| 45 | 267343-5 | Makita 267343-5 FLAT WASHER 5AN911H |
| 46 | 419846-7 | Makita 419846-7 MAGAZINE, |
| 47 | 259042-3 | Makita 259042-3 STOP RING E-3AN911H |
| 48 | 233505-7 | Makita 233505-7 TORSION SPRING 7AN911H |
| 49 | 256773-5 | Makita 256773-5 PIN 4, |
| 50 | 158922-9 | Makita 158922-9 MAGAZINE CAP COMPLETAN911H |
| 51 | 268168-0 | Makita 268168-0 PIN 3AN911H |
| 52 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 53 | 233492-0 | Makita 233492-0 COMPRESSION SPRING 2AN911H |
| 54 | 419858-0 | Makita 419858-0 ADJUST SHAFT, AN911H |
| 55 | 961105-0 | Makita 961105-0 RETAINING RING S-25 |
| 56 | 419859-8 | Makita 419859-8 ADJUST SLEEVE, AN911H |
| 57 | 268169-8 | Makita 268169-8 PIN 2.5, AN911H |
| 58 | 419860-3 | Makita 419860-3 CHANGE PLATE, AN911H |
| 60 | 162255-6 | Makita 162255-6 HOOK BASE, |
| 61 | 931202-6 | Makita 931202-6 HEX.NUT M5, 3612BR |
| 62 | 168499-6 | Makita 168499-6 HOOK, AN911H |
| 63 | 265176-2 | Makita 265176-2 PAN.HD.SCREW M5X22AN911H |
| 64 | 419845-9 | Makita 419845-9 CONTACT ARM COVER, AN911H |
| 65 | 262130-7 | Makita 262130-7 URETHANE RING 4AN911H |
| 66 | 310231-6 | Makita 310231-6 FEEDING CLAWAN911H |
| 67 | 233515-4 | Makita 233515-4 TORSION SPRING 9AN911H |
| 68 | 268180-0 | Makita 268180-0 PIN 4.5, AN911H |
| 69 | 255174-4 | Makita 255174-4 PUSH RIVETAN911H |
| 70 | 941052-1 | Makita 941052-1 FLAT WASHER 4 |
| 71 | 413111-6 | Makita 413111-6 COVERAN911H |
| 72 | 941052-1 | Makita 941052-1 FLAT WASHER 4 |
| 73 | 255174-4 | Makita 255174-4 PUSH RIVETAN911H |
| 74 | 165463-8 | Makita 165463-8 CONTACT ARMAN911H |
| 75 | 268178-7 | Makita 268178-7 PIN 4, AN911H |
| 76 | 262120-0 | Makita 262120-0 URETHANE RING 3AN450H |
| 77 | 213054-0 | Makita 213054-0 O-RING 9, M442 |
| 78 | 324766-1 | Makita 324766-1 PISTON, AN911H |
| 79 | 213154-6 | Makita 213154-6 O RING 14 |
| 80 | 262129-2 | Makita 262129-2 RUBBER RING 13, AN911H |
| 81 | 234007-6 | Makita 234007-6 COMPRESSION SPRING 6AN911H |
| 82 | 234008-4 | Makita 234008-4 COMPRESSION SPRING 9AN911H |
| 83 | 213008-7 | Makita 213008-7 O RING 22.4 |
| 84 | 419840-9 | Makita 419840-9 CYLINDER, AN911H |
| 85 | 267345-1 | Makita 267345-1 FLAT WASHER 5AN911H |
| 86 | 265562-7 | Makita 265562-7 HEX SOCKET HEAD BOLTAN911H |
| 87 | 262120-0 | Makita 262120-0 URETHANE RING 3AN450H |
| 88 | 310229-3 | |
| 89 | 310233-2 | Makita 310233-2 LOCK LEVERAN911H |
| 90 | 233486-5 | Makita 233486-5 COMPRESSION SPRING 5AN911H |
| 91 | 268177-9 | Makita 268177-9 PIN 2.5AN911H |
| 92 | 310232-4 | Makita 310232-4 NAIL HOLDERAN911H |
| 93 | 234009-2 | Makita 234009-2 COMPRESSION SPRING 4AN911H |
| 94 | 268177-9 | Makita 268177-9 PIN 2.5AN911H |
| 95 | 345802-0 | Makita 345802-0 CHECK CLAW, AN911H |
| 96 | 234010-7 | Makita 234010-7 COMPRESSION SPRING 5AN911H |
| 97 | 419861-1 | Makita 419861-1 DOOR COVER, AN911H |
| 98 | 265911-8 | Makita 265911-8 HEX. SOCKET HEAD BOLAN911H |
| 99 | 941051-3 | Makita 941051-3 FLAT WASHER, 2012NB |
| 100 | 266201-2 | Makita 266201-2 HEX.SOCKET HEAD BOLTAN911H |
| 101 | 213233-0 | Makita 213233-0 O-RING 15AN911H |
| 102 | 213275-4 | Makita 213275-4 O RING 18 |
| 103 | 419841-7 | Makita 419841-7 TRIGGER VALVE GUIDEAN911H |
| 104 | 213968-3 | Makita 213968-3 O-RING 7AN911H |
| 105 | 419958-6 | Makita 419958-6 PILOT VALVEAN911H |
| 106 | 213185-5 | Makita 213185-5 O-RING 12.5AN911H |
| 107 | 234014-9 | Makita 234014-9 COMPRESSION SPRING 3AN911H |
| 108 | 213034-6 | Makita 213034-6 O RING 3 DA3010F |
| 109 | 324743-3 | Makita 324743-3 TRIGGER VALVE STEMAN450H |
| 110 | 213979-8 | Makita 213979-8 O-RING 3AN450H |
| 111 | 213275-4 | Makita 213275-4 O RING 18 |
| 113 | 331741-0 | Makita 331741-0 TRIGGER VALVE CASEAN911H |
| 114 | 233501-5 | Makita 233501-5 TORSION SPRING 5AN911H |
| 115 | 310199-6 | Makita 310199-6 STOPPER PLATEAN450H |
| 116 | 233502-3 | Makita 233502-3 TORSION SPRING 6AN911H |
| 117 | 310197-0 | |
| 118 | 419844-1 | Makita 419844-1 TRIGGER BASEAN911H |
| 119 | 216024-8 | Makita 216024-8 STEEL BALL 4, LS1016 |
| 120 | 233490-4 | Makita 233490-4 COMPRESSION SPRING 2AN911H |
| 121 | 419743-7 | Makita 419743-7 SPRING COVER, AN620H |
| 122 | 268168-0 | Makita 268168-0 PIN 3AN911H |
| 123 | 268168-0 | Makita 268168-0 PIN 3AN911H |
| 124 | 951007-8 | Makita 951007-8 SPRING PIN 2-12AN911H |
| 125 | 310294-2 | Makita 310294-2 TRIGGERAN911H |
| 126 | 231699-2 | Makita 231699-2 TORSION SPRING 4AN911H |
| 127 | 310196-2 | Makita 310196-2 TRIP LEVERAN450H |
| 128 | 310198-8 | Makita 310198-8 LEVERAN911H |
| 129 | 233503-1 | Makita 233503-1 TORSION SPRING 4AN911H |
| 131 | 310293-4 | Makita 310293-4 CHANGE RODAN911H |
| 132 | 233489-9 | Makita 233489-9 COMPRESSION SPRING 6AN911H |
| 133 | 310227-7 | Makita 310227-7 UPPER YOKEAN911H |
| 134 | 324767-9 | Makita 324767-9 ADJUSTER SHAFT, AN911H |
| 135 | 233491-2 | Makita 233491-2 COMPRESSION SPRING 2AN911H |
| 136 | 216031-1 | Makita 216031-1 STEEL BALL 2.3AN911H |
| 137 | 158747-1 | Makita 158747-1 ADJUSTER COMPLETE, AT450H |
| 139 | 951010-9 | Makita 951010-9 SPRING PIN 2-14 |
| 141 | 951010-9 | Makita 951010-9 SPRING PIN 2-14 |
| 142 | 310201-5 | Makita 310201-5 ADJUSTER PIECEAN911H |
| 143 | 345801-2 | Makita 345801-2 SLIDE PLATE, AN911H |
