All parts of Makita AN760: 104 positions on 1 sheet

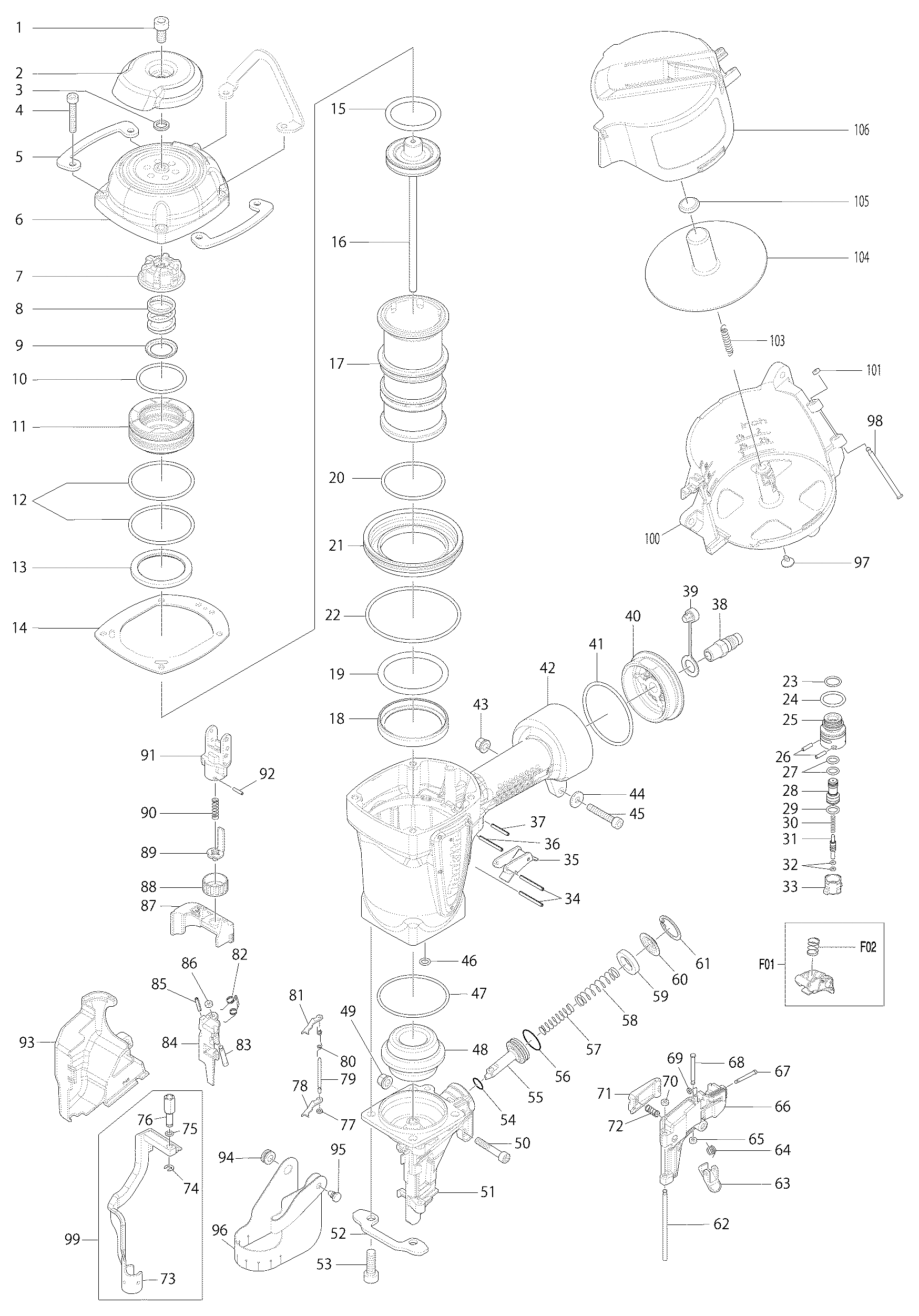

Sheet 1: Makita AN760 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | BA00000263 | Makita BA00000263 HEX.SOCKET HEAD BOLTM8X16 |
| 2 | BA00000264 | Makita BA00000264 EXHAUST COVER |
| 3 | BA00000005 | Makita BA00000005 RUBBER PADAF600 |
| 4 | BA00000265 | Makita BA00000265 HEX.SOCKET HEAD BOLTM6X35 |
| 5 | BA00000284 | Makita BA00000284 REAR HOUSING GUARD |
| 6 | BA00000266 | Makita BA00000266 TOP CAP COMPLETE |
| 7 | BA00000267 | Makita BA00000267 REAR CUSHION |
| 8 | BA00000268 | Makita BA00000268 COMPRESSION SPRING21 |
| 9 | BA00000269 | Makita BA00000269 CAP WASHER |
| 10 | BA00000271 | Makita BA00000271 O-RING 42 |
| 11 | BA00000282 | Makita BA00000282 HEAD VALVE |
| 12 | BA00000272 | Makita BA00000272 O-RING 57 |
| 13 | BA00000270 | Makita BA00000270 CYLINDER SEAL |
| 14 | BA00000273 | Makita BA00000273 TOP CAP GASKET |
| 15 | BA00000274 | Makita BA00000274 O-RING 43 |
| 16 | BA00000275 | Makita BA00000275 DRIVER COMPLETE |
| 17 | BA00000276 | Makita BA00000276 CYLINDER |
| 18 | BA00000283 | Makita BA00000283 SHEET RING |
| 19 | BA00000277 | Makita BA00000277 O-RING 56 |
| 20 | BA00000278 | Makita BA00000278 O-RING 55 |
| 21 | BA00000279 | Makita BA00000279 CYLINDER SEPARATOR |
| 22 | BA00000280 | Makita BA00000280 O-RING 85 |
| 23 | BA00000026 | Makita BA00000026 O - RINGAF600 |
| 24 | BA00000028 | Makita BA00000028 O - RINGAF600 |
| 25 | BA00000027 | Makita BA00000027 PLUNGER CAPAF600 |
| 26 | BA00000036 | Makita BA00000036 SPRING PINAF600 |
| 27 | BA00000030 | Makita BA00000030 O - RINGAF600 |
| 28 | BA00000029 | Makita BA00000029 VALVE PLUNGERAF600 |
| 29 | BA00000031 | Makita BA00000031 O - RINGAF600 |
| 30 | BA00000032 | Makita BA00000032 SPRINGAF600 |
| 31 | BA00000033 | Makita BA00000033 PLUNGERAF600 |
| 32 | BA00000034 | Makita BA00000034 O - RINGAF600 |
| 33 | BA00000035 | Makita BA00000035 TRIGGER VALVE HEADAF600 |
| 34 | BA00000038 | Makita BA00000038 SPRING PINAF600 |
| 35 | BA00000039 | Makita BA00000039 TRIGGER ASSY |
| 36 | BA00000038 | Makita BA00000038 SPRING PINAF600 |
| 37 | BA00000037 | Makita BA00000037 SPRING PINAF600 |
| 38 | BA00000045 | |
| 39 | BA00000044 | Makita BA00000044 DUSTY COVERAF600 |
| 40 | BA00000287 | Makita BA00000287 INLET CAP |
| 41 | BA00000288 | Makita BA00000288 O-RING 49 |
| 42 | BA00000286 | Makita BA00000286 HOUSING COMPLETE |
| 43 | BA00000250 | Makita BA00000250 HEX.LOCK NUT M6 |
| 44 | BA00000245 | Makita BA00000245 FLAT WASHER 6 |
| 45 | BA00000265 | Makita BA00000265 HEX.SOCKET HEAD BOLTM6X35 |
| 46 | BA00000344 | Makita BA00000344 O-RING 7 |
| 47 | BA00000290 | Makita BA00000290 O-RING 64 |
| 48 | BA00000281 | Makita BA00000281 FRONT CUSHION |
| 49 | BA00000250 | Makita BA00000250 HEX.LOCK NUT M6 |
| 50 | BA00000289 | Makita BA00000289 HEX SOCKET HEAD BOLTM6X38 |
| 51 | BA00000291 | Makita BA00000291 DRIVER GUIDE |
| 52 | BA00000312 | Makita BA00000312 FRONT HOUSING GUARD |
| 53 | BA00000292 | Makita BA00000292 HEX SOCKET HEAD BOLTM8X25 |
| 54 | BA00000293 | Makita BA00000293 O-RING 10 |
| 55 | BA00000294 | Makita BA00000294 PISTON |
| 56 | BA00000295 | Makita BA00000295 O-RING 21 |
| 57 | BA00000297 | Makita BA00000297 COMPRESSION SPRING 8 |
| 58 | BA00000296 | Makita BA00000296 COMPRESSION SPRING10 |
| 59 | BA00000298 | Makita BA00000298 RUBBER RING 16 |
| 60 | BA00000299 | Makita BA00000299 CUP WASHER 5 |
| 61 | BA00000300 | Makita BA00000300 RETAINING RING R-26 |
| 62 | BA00000309 | Makita BA00000309 PIN 4 |
| 63 | BA00000301 | Makita BA00000301 LOCK LEVER |
| 64 | BA00000302 | Makita BA00000302 TORSION SPRING 6 |
| 65 | BA00000306 | Makita BA00000306 URETHANE RING 3 |
| 66 | BA00000303 | Makita BA00000303 DOOR |
| 67 | BA00000304 | Makita BA00000304 PIN 3 |
| 68 | BA00000305 | Makita BA00000305 PIN 3.5 |
| 69 | BA00000060 | Makita BA00000060 URETHANE RETAINERAF600 |
| 70 | BA00000306 | Makita BA00000306 URETHANE RING 3 |
| 71 | BA00000308 | Makita BA00000308 NAIL HOLDER |
| 72 | BA00000307 | Makita BA00000307 COMPRESSION SPRING 5 |
| 73 | BA00000311 | Makita BA00000311 CONTACT ARM |
| 74 | BA00000083 | Makita BA00000083 STOP RING E-4 |
| 75 | BA00000081 | Makita BA00000081 O-RING 5 |
| 76 | BA00000317 | Makita BA00000317 ADJUSTER ROD |
| 77 | BA00000060 | Makita BA00000060 URETHANE RETAINERAF600 |
| 78 | BA00000333 | Makita BA00000333 CHECK CLAW |
| 79 | BA00000335 | Makita BA00000335 PIN 3 |
| 80 | BA00000334 | Makita BA00000334 TORSION SPRING 4 |
| 81 | BA00000333 | Makita BA00000333 CHECK CLAW |
| 82 | BA00000338 | Makita BA00000338 TORSION SPRING 6 |
| 83 | BA00000337 | Makita BA00000337 PIN 4.5 |
| 84 | BA00000336 | Makita BA00000336 FEEDING CLAW |
| 85 | BA00000339 | Makita BA00000339 SPRING PIN 3-16 |
| 86 | BA00000306 | Makita BA00000306 URETHANE RING 3 |
| 87 | BA00000316 | Makita BA00000316 ADJUSTER GUIDE |
| 88 | BA00000077 | Makita BA00000077 ADJUSTER |
| 89 | BA00000315 | Makita BA00000315 STOPPER |
| 90 | BA00000314 | Makita BA00000314 COMPRESSION SPRING 5 |
| 91 | BA00000313 | Makita BA00000313 HOLDER |
| 92 | BA00000074 | Makita BA00000074 SPRING PIN 2.5-10 |
| 93 | BA00000340 | Makita BA00000340 CONTACT ARM COVER |
| 94 | BA00000342 | Makita BA00000342 WASHER 6 |
| 95 | BA00000343 | Makita BA00000343 RUBBER PIN |
| 96 | BA00000341 | Makita BA00000341 COVER |
| 97 | BA00000325 | Makita BA00000325 HOLDER CAP B |
| 98 | BA00000326 | Makita BA00000326 PIN 4 |
| 100 | BA00000320 | Makita BA00000320 MAGAZINE COMPLETE |
| 101 | BA00000306 | Makita BA00000306 URETHANE RING 3 |
| 103 | BA00000327 | Makita BA00000327 TENSION SPRING 5 CPL |
| 104 | BA00000328 | Makita BA00000328 CHANGE PLATE |
| 105 | BA00000329 | Makita BA00000329 HOLDER CAP A |
| 106 | BA00000331 | Makita BA00000331 MAGAZINE CAP |
