All parts of Makita AN621: 112 positions on 1 sheet

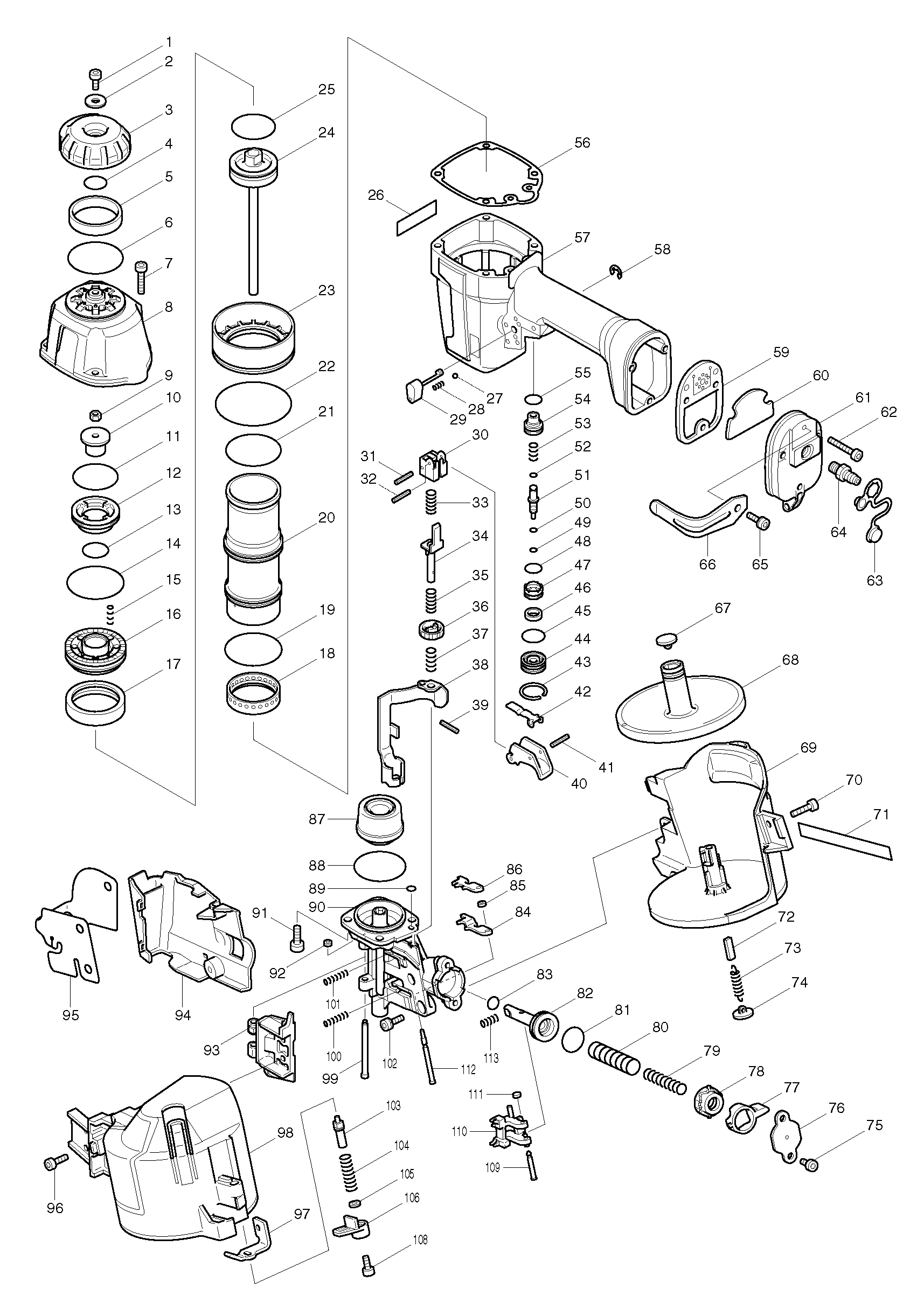

Sheet 1: Makita AN621 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 265903-7 | Makita 265903-7 HEX. SOCKET HEAD BOLAN621 |
| 2 | 267171-8 | Makita 267171-8 FLAT WASHER 6AN901 |
| 3 | 317345-2 | Makita 317345-2 EXTHAUST COVERAN621 |
| 4 | 213255-0 | Makita 213255-0 O RING 18 4101RH |
| 5 | 323863-0 | Makita 323863-0 EXHAUST FILTERAN621 |
| 6 | 213604-1 | Makita 213604-1 O RING 50 |
| 7 | 922242-5 | Makita 922242-5 HEX. SOCKET HEAD BOLT M5X |
| 8 | 317287-0 | Makita 317287-0 TOP CAP, AN611 |
| 9 | 931202-6 | Makita 931202-6 HEX.NUT M5, 3612BR |
| 10 | 421573-4 | Makita 421573-4 CUSHION RAN621 |
| 11 | 213513-4 | Makita 213513-4 O RING 39, AN611 |
| 12 | 416234-9 | Makita 416234-9 SEPARATOR, AN611 |
| 13 | 213393-8 | Makita 213393-8 O RING 23AN621 |
| 14 | 213616-4 | Makita 213616-4 O RING 48AN621 |
| 15 | 233199-8 | Makita 233199-8 COMPRESSION SPRING 3, AN611 |
| 16 | 416236-5 | Makita 416236-5 HEAD VALVE, AN611 |
| 17 | 421576-8 | Makita 421576-8 VALVE SHEETAN621 |
| 18 | 323979-1 | Makita 323979-1 CUSHION GUIDEAN621 |
| 19 | 213616-4 | Makita 213616-4 O RING 48AN621 |
| 20 | 331573-5 | Makita 331573-5 CYLINDERAN621 |
| 21 | 213608-3 | Makita 213608-3 O RING 47 |
| 22 | 213706-3 | Makita 213706-3 O RING 67 |
| 23 | 416235-7 | Makita 416235-7 CYLINDER STPARATOR, AN611 |
| 24 | 152756-2 | Makita 152756-2 DRIVER COMPLETEAN621 |
| 25 | 213521-5 | Makita 213521-5 O RING 36, AN611 |
| 26 | 852995-1 | Makita 852995-1 NAME PLATE AN621AN621 |
| 27 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 28 | 231236-2 | Makita 231236-2 COMPRESSION SPRING 3AN901 |
| 29 | 162189-3 | Makita 162189-3 LOCK PIN 6, AN611 |
| 30 | 344895-4 | Makita 344895-4 HOLDERAN901 |
| 31 | 951075-1 | Makita 951075-1 SPRING PIN 3-28 |
| 32 | 951075-1 | Makita 951075-1 SPRING PIN 3-28 |
| 33 | 233039-0 | Makita 233039-0 COMPRESSION SPRING 7AN621 |
| 34 | 310104-3 | Makita 310104-3 STOPPERAN621 |
| 35 | 233267-7 | Makita 233267-7 COMPRESSION SPRING 7, LS1016L |
| 36 | 310101-9 | Makita 310101-9 ADJUSTERAN621 |
| 37 | 233382-7 | Makita 233382-7 COMPRESSION SPRING 6AN621 |
| 38 | 344865-3 | Makita 344865-3 CONTACT ARMAN621 |
| 39 | 951010-9 | Makita 951010-9 SPRING PIN 2-14 |
| 40 | 415790-6 | Makita 415790-6 TRIGGERAN901 |
| 41 | 258004-8 | Makita 258004-8 SPRING PIN 2.5-16 |
| 42 | 344265-7 | Makita 344265-7 IDLERAN901 |
| 43 | 258010-3 | Makita 258010-3 SPRING PIN 2.5-25 |
| 44 | 323727-8 | Makita 323727-8 TRIGGER VALVE CASEAN621 |
| 45 | 213315-8 | Makita 213315-8 O RING 19, BO3710 |
| 46 | 257229-1 | Makita 257229-1 RING 12AN621 |
| 47 | 415789-1 | Makita 415789-1 PILOT VALVE, AN611 |
| 48 | 213162-7 | Makita 213162-7 O RING 14 |
| 49 | 213023-1 | Makita 213023-1 O-RING 4 HR3000C |
| 50 | 213023-1 | Makita 213023-1 O-RING 4 HR3000C |
| 51 | 323978-3 | Makita 323978-3 TRIGGER VALVE STEMAN621 |
| 52 | 213023-1 | Makita 213023-1 O-RING 4 HR3000C |
| 53 | 233189-1 | Makita 233189-1 COMPRESSION SPRING, AN611 |
| 54 | 416379-3 | Makita 416379-3 TRIGGER VALVE GUIDE, AN611 |
| 55 | 213162-7 | Makita 213162-7 O RING 14 |
| 56 | 162190-8 | Makita 162190-8 TOP CAP GASKETAN621 |
| 57 | 152844-5 | Makita 152844-5 HOUSING COMPLETEAN621 |
| 58 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 59 | 162198-2 | Makita 162198-2 INLET CAP GASKETAN901 |
| 60 | 415784-1 | Makita 415784-1 Inlet Filter AN901 |
| 61 | 317129-8 | Makita 317129-8 INLET CAP AN901 |
| 62 | 922252-2 | Makita 922252-2 HEX. SOCKET HEAD BOLAN621 |
| 63 | 286219-7 | Makita 286219-7 CAP 12AN901 TEC.73674 |
| 64 | ||
| 65 | 922216-6 | Makita 922216-6 HEX.SOCKET HEAD BOLT M5*14 W, JR3000V |
| 66 | 344720-9 | Makita 344720-9 HOOKAN901 |
| 67 | 414934-5 | Makita 414934-5 Holder Cap |
| 68 | 417173-6 | Makita 417173-6 CHANGE PLATEAN621 |
| 69 | 154455-2 | Makita 154455-2 MAGAZINE COMPLETEAN621 |
| 70 | 265973-6 | Makita 265973-6 HEX. SOCKET HEAD BOLAN621 |
| 71 | 813776-8 | Makita 813776-8 INDICATION LABELAN621 |
| 72 | 423232-6 | Makita 423232-6 RUBBER PLATE 6-20AN901 |
| 73 | 231791-4 | Makita 231791-4 TENSION SPRING 5AN621 |
| 74 | 414934-5 | Makita 414934-5 Holder Cap |
| 75 | 265903-7 | Makita 265903-7 HEX. SOCKET HEAD BOLAN621 |
| 76 | 344864-5 | Makita 344864-5 CYLINDER COVERAN621 |
| 77 | 310102-7 | Makita 310102-7 CHANGE LEVERAN621 |
| 78 | 310103-5 | Makita 310103-5 PISTON STOPPERAN621 |
| 79 | 233198-0 | Makita 233198-0 COMPRESSION SPRING 9, AN611 |
| 80 | 233268-5 | Makita 233268-5 COMPRESSION SPRING 1AN621 |
| 81 | 213379-2 | Makita 213379-2 O-RING 21, HR4002 |
| 82 | 323977-5 | Makita 323977-5 PISTONAN621 |
| 83 | 213055-8 | Makita 213055-8 O RING 10 |
| 84 | 344862-9 | Makita 344862-9 CHECK CLAW FAN621 |
| 85 | 262054-7 | Makita 262054-7 URETHANE RING 3, AN611 |
| 86 | 344863-7 | Makita 344863-7 CHECK CLAW RAN621 |
| 87 | 421722-3 | Makita 421722-3 CUSHION FAN621 |
| 88 | 213569-7 | Makita 213569-7 O RING 45AN621 |
| 89 | 213017-6 | Makita 213017-6 O RING 6, 5277NB |
| 90 | 151924-4 | Makita 151924-4 DRIVER GUIDE COMPLETAN621 |
| 91 | 265844-7 | Makita 265844-7 HEX. SOCKET HEAD BOLT M6X |
| 92 | 262054-7 | Makita 262054-7 URETHANE RING 3, AN611 |
| 93 | 310106-9 | Makita 310106-9 DOORAN621 |
| 94 | 417175-2 | Makita 417175-2 CONTACT ARM COVERAN621 |
| 95 | 417174-4 | Makita 417174-4 COVERAN621 |
| 96 | 266233-9 | Makita 266233-9 HEX. SOCKET HEAD BOLAN621 |
| 97 | 344861-1 | Makita 344861-1 MAGAZINE LOCKAN621 |
| 98 | 417176-0 | Makita 417176-0 MAGAZINE CAPAN621 |
| 99 | 268025-2 | Makita 268025-2 PIN 5, AN611 |
| 100 | 233265-1 | Makita 233265-1 COMPRESSION SPRING 5AN621 |
| 101 | 233265-1 | Makita 233265-1 COMPRESSION SPRING 5AN621 |
| 102 | 922216-6 | Makita 922216-6 HEX.SOCKET HEAD BOLT M5*14 W, JR3000V |
| 103 | 323976-7 | Makita 323976-7 LOCK PINAN621 |
| 104 | 233197-2 | Makita 233197-2 COMPRESSION SPRING 7, AN611 |
| 105 | 267010-2 | Makita 267010-2 FLAT WASHER 5, LS1016L |
| 106 | 414933-7 | Makita 414933-7 LOCK LEVERAN621 |
| 108 | 266233-9 | Makita 266233-9 HEX. SOCKET HEAD BOLAN621 |
| 109 | 268050-3 | Makita 268050-3 PIN 4AN621 |
| 110 | 310105-1 | Makita 310105-1 FEEDING CLAWAN621 |
| 111 | 262054-7 | Makita 262054-7 URETHANE RING 3, AN611 |
| 112 | 268051-1 | Makita 268051-1 PIN 4AN621 |
| 113 | 233266-9 | Makita 233266-9 COMPRESSION SPRING 5AN621 |
