Makita AN611
Makita AN611: exploded parts diagram, 1 sheet, 114 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita AN611: 114 positions on 1 sheet

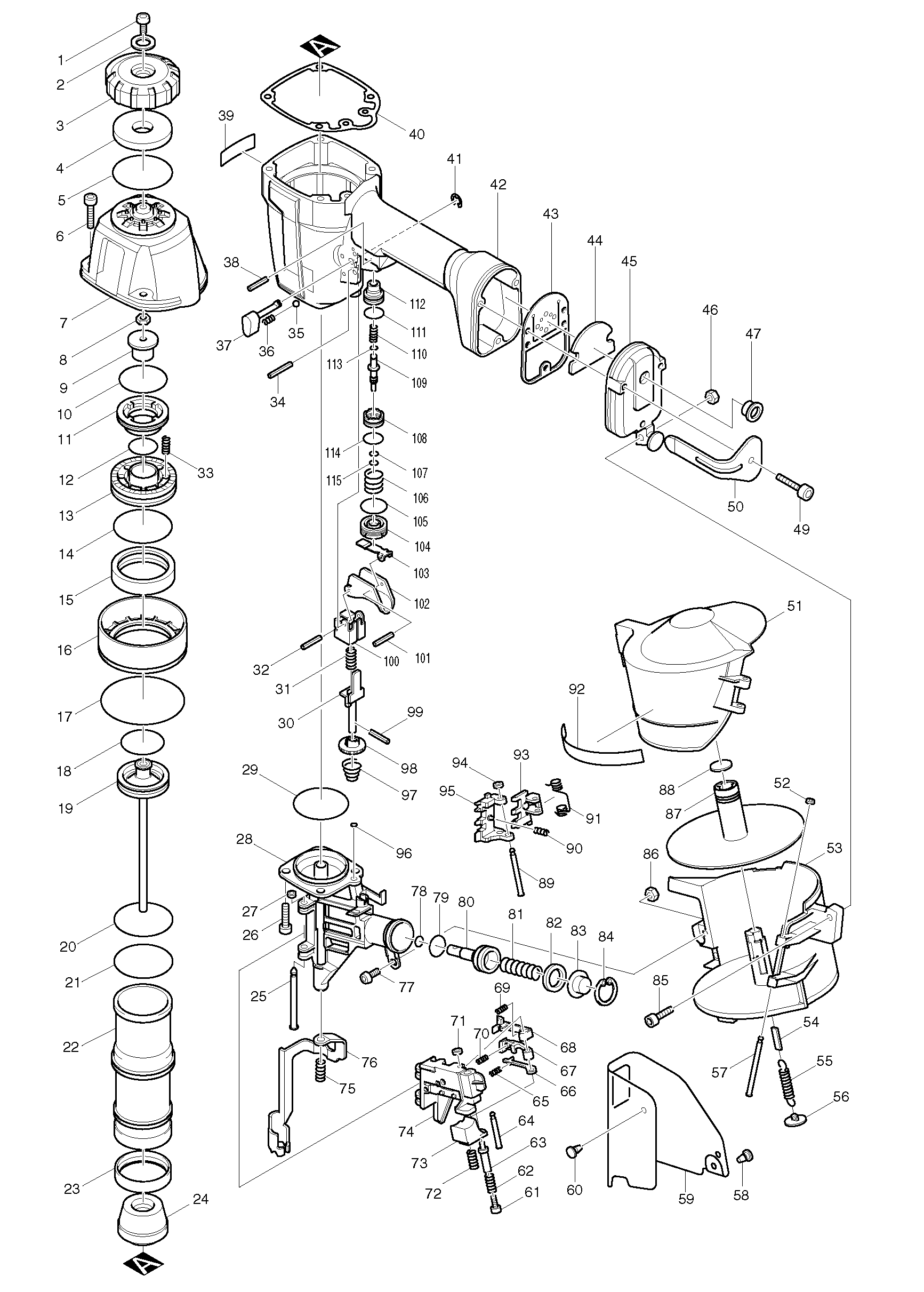

Sheet 1: Makita AN611 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266169-2 | Makita 266169-2 H.S.HEAD BOLT M5*12, AN611 |
| 2 | 267171-8 | Makita 267171-8 FLAT WASHER 6AN901 |
| 3 | 416233-1 | Makita 416233-1 EXTHAUST COVER, AN611 |
| 4 | 423300-5 | Makita 423300-5 Filter for AN611 |
| 5 | 213604-1 | Makita 213604-1 O RING 50 |
| 6 | 922242-5 | Makita 922242-5 HEX. SOCKET HEAD BOLT M5X |
| 7 | 317287-0 | Makita 317287-0 TOP CAP, AN611 |
| 8 | 931202-6 | Makita 931202-6 HEX.NUT M5, 3612BR |
| 9 | 421573-4 | Makita 421573-4 CUSHION RAN621 |
| 10 | 213513-4 | Makita 213513-4 O RING 39, AN611 |
| 11 | 416234-9 | Makita 416234-9 SEPARATOR, AN611 |
| 12 | 213393-8 | Makita 213393-8 O RING 23AN621 |
| 13 | 416236-5 | Makita 416236-5 HEAD VALVE, AN611 |
| 14 | 213616-4 | Makita 213616-4 O RING 48AN621 |
| 15 | 421576-8 | Makita 421576-8 VALVE SHEETAN621 |
| 16 | 416235-7 | Makita 416235-7 CYLINDER STPARATOR, AN611 |
| 17 | 213706-3 | Makita 213706-3 O RING 67 |
| 18 | 213521-5 | Makita 213521-5 O RING 36, AN611 |
| 19 | 150744-3 | Makita 150744-3 DRIVER COMPLETE, AN611 |
| 20 | 213608-3 | Makita 213608-3 O RING 47 |
| 21 | 213615-6 | Makita 213615-6 O-RING 46 HR3000C |
| 22 | 331567-0 | Makita 331567-0 CYLINDER |
| 23 | 323716-3 | Makita 323716-3 CUSHION GUIDE, AN611 |
| 24 | 421575-0 | Makita 421575-0 Cushion F for AN611 |
| 25 | 268025-2 | Makita 268025-2 PIN 5, AN611 |
| 26 | 265844-7 | Makita 265844-7 HEX. SOCKET HEAD BOLT M6X |
| 27 | 262054-7 | Makita 262054-7 URETHANE RING 3, AN611 |
| 28 | 310169-5 | Makita 310169-5 DRIVER GUIDE |
| 29 | 213569-7 | Makita 213569-7 O RING 45AN621 |
| 30 | 310055-0 | Makita 310055-0 STOPPERAN901 |
| 31 | 233197-2 | Makita 233197-2 COMPRESSION SPRING 7, AN611 |
| 32 | 951075-1 | Makita 951075-1 SPRING PIN 3-28 |
| 33 | 233199-8 | Makita 233199-8 COMPRESSION SPRING 3, AN611 |
| 34 | 951075-1 | Makita 951075-1 SPRING PIN 3-28 |
| 35 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 36 | 231236-2 | Makita 231236-2 COMPRESSION SPRING 3AN901 |
| 37 | 162189-3 | Makita 162189-3 LOCK PIN 6, AN611 |
| 38 | 258010-3 | Makita 258010-3 SPRING PIN 2.5-25 |
| 39 | 863754-8 | |
| 40 | 162190-8 | Makita 162190-8 TOP CAP GASKETAN621 |
| 41 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 42 | 151592-3 | |
| 43 | 162198-2 | Makita 162198-2 INLET CAP GASKETAN901 |
| 44 | 415784-1 | Makita 415784-1 Inlet Filter AN901 |
| 45 | 316887-3 | Makita 316887-3 INLET CAP, AN611 |
| 46 | 252103-8 | Makita 252103-8 HEX LOCK NUT M5-8 ROHS, 5604R |
| 47 | 286219-7 | Makita 286219-7 CAP 12AN901 TEC.73674 |
| 49 | 922252-2 | Makita 922252-2 HEX. SOCKET HEAD BOLAN621 |
| 50 | 344267-3 | Makita 344267-3 HOOK, AN611 |
| 51 | 416237-3 | Makita 416237-3 MAGAZINE CAP, AN611 |
| 52 | 262054-7 | Makita 262054-7 URETHANE RING 3, AN611 |
| 53 | 141020-6 | |
| 54 | 423232-6 | Makita 423232-6 RUBBER PLATE 6-20AN901 |
| 55 | 231791-4 | Makita 231791-4 TENSION SPRING 5AN621 |
| 56 | 414934-5 | Makita 414934-5 Holder Cap |
| 57 | 268026-0 | Makita 268026-0 PIN 4AN901 |
| 58 | 421418-6 | Makita 421418-6 RUBBER PIN 9.5AN901 |
| 59 | 413069-9 | Makita 413069-9 COVER |
| 60 | 421418-6 | Makita 421418-6 RUBBER PIN 9.5AN901 |
| 61 | 266167-6 | Makita 266167-6 H.S.HEAD BOLT M4*10, AN611 |
| 62 | 233201-7 | Makita 233201-7 COMPRESSION SPRING 6, AN611 |
| 63 | 323713-9 | Makita 323713-9 LOCK PINAN610H |
| 64 | 268024-4 | Makita 268024-4 PIN 4AN610H |
| 65 | 233101-1 | Makita 233101-1 COMPRESSION SPRING 4, AN611 |
| 66 | 344633-4 | Makita 344633-4 CHECK CLAW, AN611 |
| 67 | 310179-2 | Makita 310179-2 NAIL HOLDER, AN611 |
| 68 | 310184-9 | Makita 310184-9 ARM, AN611 |
| 69 | 233101-1 | Makita 233101-1 COMPRESSION SPRING 4, AN611 |
| 70 | 233101-1 | Makita 233101-1 COMPRESSION SPRING 4, AN611 |
| 71 | 262054-7 | Makita 262054-7 URETHANE RING 3, AN611 |
| 72 | 233204-1 | Makita 233204-1 COMPRESSION SPRING 5, AN611 |
| 73 | 310050-0 | Makita 310050-0 LOCK LEVERAN901 |
| 74 | 310180-7 | Makita 310180-7 DOOR, AN611 |
| 75 | 233127-3 | Makita 233127-3 COMPRESSION SPRING 7, AN611 |
| 76 | 345640-0 | Makita 345640-0 CONTACT ARM |
| 77 | 265487-5 | Makita 265487-5 H.S.HEAD BOLT M5*16, AN611 |
| 78 | 213054-0 | Makita 213054-0 O-RING 9, M442 |
| 79 | 213261-5 | Makita 213261-5 O RING 17 |
| 80 | 323714-7 | Makita 323714-7 PISTON |
| 81 | 233198-0 | Makita 233198-0 COMPRESSION SPRING 9, AN611 |
| 82 | 262075-9 | Makita 262075-9 RUBBER RING 16AN450H |
| 83 | 344452-8 | Makita 344452-8 CUP WASHER 5AN450H |
| 84 | 962103-7 | Makita 962103-7 RETAINING RING R-24, AN611 |
| 85 | 922231-0 | Makita 922231-0 HEX. SOCKET HEAD BOLT M5X20, HR2010 |
| 86 | ||
| 87 | 416238-1 | Makita 416238-1 CHANGE PLATE, AN611 |
| 88 | 414934-5 | Makita 414934-5 Holder Cap |
| 89 | 268027-8 | Makita 268027-8 PIN 4AN610H |
| 90 | 233081-1 | Makita 233081-1 COMPRESSION SPRING 3, AN611 |
| 91 | 231632-4 | Makita 231632-4 TORSION SPRING 6AN610H |
| 92 | 818599-9 | Makita 818599-9 INDICATION LABELAN901 |
| 93 | 310047-9 | Makita 310047-9 FEEDING CLAW R |
| 94 | 262054-7 | Makita 262054-7 URETHANE RING 3, AN611 |
| 95 | 310046-1 | Makita 310046-1 FEEDING CLAW FAN610H |
| 96 | 213017-6 | Makita 213017-6 O RING 6, 5277NB |
| 97 | 231978-8 | Makita 231978-8 CONICAL COMPRESSION SPRING9-16, AN611 |
| 98 | 310056-8 | Makita 310056-8 ADJUSTERAN901 |
| 99 | 951010-9 | Makita 951010-9 SPRING PIN 2-14 |
| 100 | 344895-4 | Makita 344895-4 HOLDERAN901 |
| 101 | 258004-8 | Makita 258004-8 SPRING PIN 2.5-16 |
| 102 | 415790-6 | Makita 415790-6 TRIGGERAN901 |
| 103 | 344265-7 | Makita 344265-7 IDLERAN901 |
| 104 | 323727-8 | Makita 323727-8 TRIGGER VALVE CASEAN621 |
| 105 | 213315-8 | Makita 213315-8 O RING 19, BO3710 |
| 106 | 233136-2 | Makita 233136-2 COMPRESSION SPRING14 |
| 107 | 213023-1 | Makita 213023-1 O-RING 4 HR3000C |
| 108 | 415789-1 | Makita 415789-1 PILOT VALVE, AN611 |
| 109 | 322993-4 | Makita 322993-4 TRIGGER VALVE SYSTEM |
| 110 | 233189-1 | Makita 233189-1 COMPRESSION SPRING, AN611 |
| 111 | 213162-7 | Makita 213162-7 O RING 14 |
| 112 | 416379-3 | Makita 416379-3 TRIGGER VALVE GUIDE, AN611 |
| 113 | 213023-1 | Makita 213023-1 O-RING 4 HR3000C |
| 114 | 213162-7 | Makita 213162-7 O RING 14 |
| 115 | 213023-1 | Makita 213023-1 O-RING 4 HR3000C |
