Makita AN510H
Makita AN510H: exploded parts diagram, 2 sheets, 134 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita AN510H: 134 positions on 2 sheets
Sheet 1: Makita AN510H parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266233-9 | Makita 266233-9 HEX. SOCKET HEAD BOLAN621 |
| 2 | 267343-5 | Makita 267343-5 FLAT WASHER 5AN911H |
| 3 | 419764-9 | Makita 419764-9 EXHAUST COVER, |
| 4 | 413106-9 | Makita 413106-9 FILTERAN510H |
| 5 | 419763-1 | Makita 419763-1 COVER SEAL, |
| 6 | 266369-4 | Makita 266369-4 NYLOK SCREW 5*20AN943 |
| 7 | 318252-2 | Makita 318252-2 TOP CAPAN510H |
| 8 | 234055-5 | Makita 234055-5 COMPRESSION SPRING 2AN510H |
| 9 | 213021-5 | Makita 213021-5 O RING 5, LS1030 |
| 10 | 213393-8 | Makita 213393-8 O RING 23AN621 |
| 11 | 213458-6 | Makita 213458-6 O RING 34 |
| 12 | 419770-4 | Makita 419770-4 HEAD VALVEAN510H |
| 13 | 213510-0 | Makita 213510-0 O-RING 36, BO4555 |
| 14 | 331744-4 | Makita 331744-4 H.VALVE GUIDE, AN510H |
| 15 | 213561-3 | Makita 213561-3 O RING 42, GA4030 |
| 17 | 267344-3 | Makita 267344-3 FLAT WASHER 18, AN510H |
| 18 | 421993-2 | Makita 421993-2 REAR CUSHIONAN510H |
| 19 | 213282-7 | Makita 213282-7 O-RING 17AN450H |
| 20 | 165458-1 | Makita 165458-1 DRIVERAN510H |
| 22 | 421994-0 | Makita 421994-0 VALVE SEATAN510H |
| 23 | 331743-6 | Makita 331743-6 CYLINDER STAY, AN510H |
| 24 | 331742-8 | Makita 331742-8 CYLINDER, AN510H |
| 25 | 213462-5 | Makita 213462-5 O RING 33AN901 |
| 26 | 213405-7 | Makita 213405-7 O RING 26 |
| 27 | 162249-1 | Makita 162249-1 TOP CAP GASKETAN510H |
| 28 | 866113-5 | |
| 29 | 819333-0 | Makita 819333-0 MAKITA LOGO LABEL RAT450H |
| 31 | 819334-8 | Makita 819334-8 MAKITA LOGO LABEL LAT450H |
| 34 | 421992-4 | Makita 421992-4 FRONT CUSHIONAN510H |
| 35 | 213491-8 | Makita 213491-8 O RING 31AN510H |
| 36 | 213034-6 | Makita 213034-6 O RING 3 DA3010F |
| 37 | 158171-8 | Makita 158171-8 DRIVER GUIDEAN510H |
| 38 | 266369-4 | Makita 266369-4 NYLOK SCREW 5*20AN943 |
| 39 | 951078-5 | Makita 951078-5 SPRING PINGN900 |
| 40 | 951078-5 | Makita 951078-5 SPRING PINGN900 |
| 41 | 951078-5 | Makita 951078-5 SPRING PINGN900 |
| 42 | 951069-6 | Makita 951069-6 SPRING PIN 3-20 |
| 43 | 413105-1 | Makita 413105-1 INLET FILTERAN911H |
| 44 | 213521-5 | Makita 213521-5 O RING 36, AN611 |
| 45 | 318108-9 | Makita 318108-9 INLET CAPAN450H |
| 46 | 286280-4 | Makita 286280-4 CAP 9, AN620H |
| 47 | 243105-5 | Makita 243105-5 ONE-TOUCH JOINT H22PAN450H |

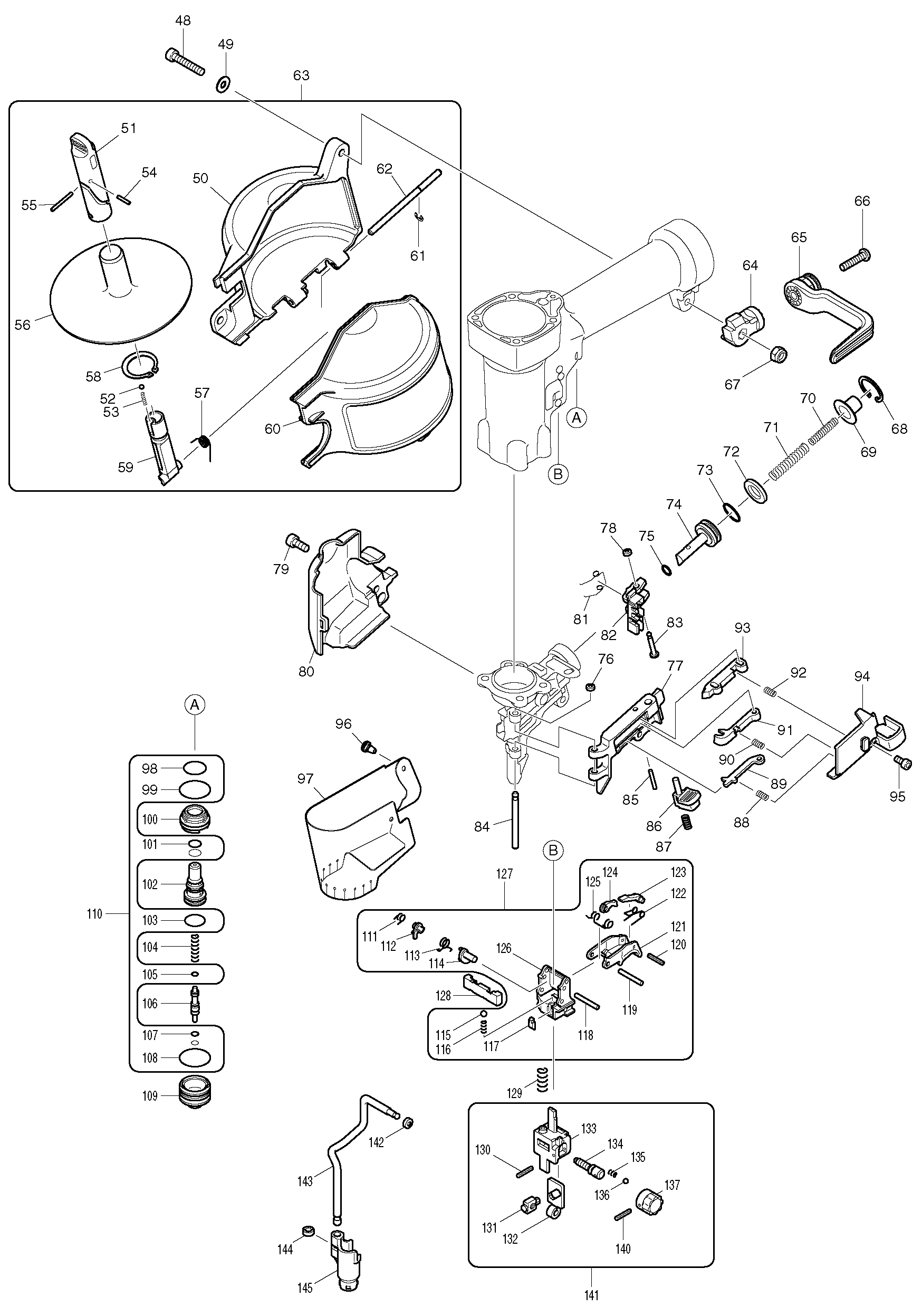

Sheet 2: Makita AN510H parts diagram
| No. | Part number | Part name |
|---|---|---|
| 48 | 265570-8 | Makita 265570-8 HEX.SOCKET HEAD BOLTAN911H |
| 49 | 267343-5 | Makita 267343-5 FLAT WASHER 5AN911H |
| 50 | 419768-1 | Makita 419768-1 MAGAZINE, |
| 51 | 419767-3 | Makita 419767-3 CHANGE SLEEVE, |
| 52 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 53 | 233492-0 | Makita 233492-0 COMPRESSION SPRING 2AN911H |
| 54 | 268169-8 | Makita 268169-8 PIN 2.5, AN911H |
| 55 | 268167-2 | Makita 268167-2 PIN 2.5AN610H |
| 56 | 419766-5 | Makita 419766-5 CHANGE PLATE, |
| 57 | 233505-7 | Makita 233505-7 TORSION SPRING 7AN911H |
| 58 | 961105-0 | Makita 961105-0 RETAINING RING S-25 |
| 59 | 419765-7 | Makita 419765-7 CHANGE SHAFT, |
| 60 | 158916-4 | Makita 158916-4 MAGAGINE CAP COMPLETAN510H |
| 61 | 259042-3 | Makita 259042-3 STOP RING E-3AN911H |
| 62 | 268171-1 | Makita 268171-1 PIN 4, |
| 64 | 162255-6 | Makita 162255-6 HOOK BASE, |
| 65 | 419843-3 | Makita 419843-3 HOOK, AN911H |
| 66 | 265176-2 | Makita 265176-2 PAN.HD.SCREW M5X22AN911H |
| 67 | 931202-6 | Makita 931202-6 HEX.NUT M5, 3612BR |
| 68 | 962101-1 | Makita 962101-1 RETAINING RING INT RAN510H |
| 69 | 345777-3 | Makita 345777-3 CUP WASHER, AN510H |
| 70 | 233493-8 | Makita 233493-8 COMPRESSION SPRING 6AN510H |
| 71 | 233494-6 | Makita 233494-6 COMPRESSION SPRING 8AN510H |
| 72 | 262121-8 | Makita 262121-8 RUBBER RING 13AN510H |
| 73 | 213154-6 | Makita 213154-6 O RING 14 |
| 74 | 324750-6 | Makita 324750-6 PISTON, AN510H |
| 75 | 213007-9 | Makita 213007-9 O RING 8 |
| 76 | 262120-0 | Makita 262120-0 URETHANE RING 3AN450H |
| 77 | 310189-9 | Makita 310189-9 DOORAN510H |
| 78 | 262120-0 | Makita 262120-0 URETHANE RING 3AN450H |
| 79 | 265903-7 | Makita 265903-7 HEX. SOCKET HEAD BOLAN621 |
| 80 | 419762-3 | Makita 419762-3 CONTACT ARM COVER, |
| 81 | 231652-8 | Makita 231652-8 TORSION SPRING 6AN510H |
| 82 | 310116-6 | Makita 310116-6 FEEDING CLAWAN510H |
| 83 | 256463-0 | Makita 256463-0 SHOULDER PIN 3-4AN510H |
| 84 | 268170-3 | Makita 268170-3 PIN 4, AN510H |
| 85 | 268183-4 | Makita 268183-4 PIN 3AN510H |
| 86 | 162247-5 | Makita 162247-5 LOCK LEVERAN510H |
| 87 | 234013-1 | Makita 234013-1 COMPRESSION SPRING 5AN510H |
| 88 | 233133-8 | Makita 233133-8 COMPRESSION SPRING 4AN510H |
| 89 | 344995-0 | Makita 344995-0 CHECK CLAWAN510H |
| 90 | 233133-8 | Makita 233133-8 COMPRESSION SPRING 4AN510H |
| 91 | 311998-9 | Makita 311998-9 NAIL HOLDERAN510H |
| 92 | 233133-8 | Makita 233133-8 COMPRESSION SPRING 4AN510H |
| 93 | 311997-1 | Makita 311997-1 ARMAN510H |
| 94 | 419761-5 | Makita 419761-5 DOOR COVER, |
| 95 | 265903-7 | Makita 265903-7 HEX. SOCKET HEAD BOLAN621 |
| 96 | 421418-6 | Makita 421418-6 RUBBER PIN 9.5AN901 |
| 97 | 413107-7 | Makita 413107-7 COVERAN510H |
| 98 | 213233-0 | Makita 213233-0 O-RING 15AN911H |
| 99 | 213275-4 | Makita 213275-4 O RING 18 |
| 100 | 419732-2 | Makita 419732-2 TRIGGER VALVE GUIDEAN450H |
| 101 | 213968-3 | Makita 213968-3 O-RING 7AN911H |
| 102 | 419733-0 | Makita 419733-0 PILOT VALVEAN450H |
| 103 | 213185-5 | Makita 213185-5 O-RING 12.5AN911H |
| 104 | 233485-7 | Makita 233485-7 COMPRESSION SPRING 4AN450H |
| 105 | 213034-6 | Makita 213034-6 O RING 3 DA3010F |
| 106 | 324743-3 | Makita 324743-3 TRIGGER VALVE STEMAN450H |
| 107 | 213979-8 | Makita 213979-8 O-RING 3AN450H |
| 108 | 213275-4 | Makita 213275-4 O RING 18 |
| 109 | 331741-0 | Makita 331741-0 TRIGGER VALVE CASEAN911H |
| 111 | 233501-5 | Makita 233501-5 TORSION SPRING 5AN911H |
| 112 | 310199-6 | Makita 310199-6 STOPPER PLATEAN450H |
| 113 | 233502-3 | Makita 233502-3 TORSION SPRING 6AN911H |
| 114 | 310310-0 | Makita 310310-0 LEVERAN450H |
| 115 | 216024-8 | Makita 216024-8 STEEL BALL 4, LS1016 |
| 116 | 233490-4 | Makita 233490-4 COMPRESSION SPRING 2AN911H |
| 117 | 419743-7 | Makita 419743-7 SPRING COVER, AN620H |
| 118 | 268168-0 | Makita 268168-0 PIN 3AN911H |
| 119 | 268168-0 | Makita 268168-0 PIN 3AN911H |
| 120 | 951007-8 | Makita 951007-8 SPRING PIN 2-12AN911H |
| 121 | 310294-2 | Makita 310294-2 TRIGGERAN911H |
| 122 | 231699-2 | Makita 231699-2 TORSION SPRING 4AN911H |
| 123 | 310196-2 | Makita 310196-2 TRIP LEVERAN450H |
| 124 | 310198-8 | Makita 310198-8 LEVERAN911H |
| 125 | 233503-1 | Makita 233503-1 TORSION SPRING 4AN911H |
| 126 | 419844-1 | Makita 419844-1 TRIGGER BASEAN911H |
| 128 | 310293-4 | Makita 310293-4 CHANGE RODAN911H |
| 129 | 234012-3 | Makita 234012-3 COMPRESSION SPRING 6AN510H |
| 130 | 951010-9 | Makita 951010-9 SPRING PIN 2-14 |
| 131 | 310201-5 | Makita 310201-5 ADJUSTER PIECEAN911H |
| 132 | 345775-7 | Makita 345775-7 SLIDE PLATE, AN620H |
| 133 | 310234-0 | Makita 310234-0 UPPER YORKAN450H |
| 134 | 324745-9 | Makita 324745-9 ADJUSTER SHAFT, AN620H |
| 135 | 233491-2 | Makita 233491-2 COMPRESSION SPRING 2AN911H |
| 136 | 216031-1 | Makita 216031-1 STEEL BALL 2.3AN911H |
| 137 | 158747-1 | Makita 158747-1 ADJUSTER COMPLETE, AT450H |
| 140 | 951010-9 | Makita 951010-9 SPRING PIN 2-14 |
| 142 | 262120-0 | Makita 262120-0 URETHANE RING 3AN450H |
| 143 | 324751-4 | Makita 324751-4 ARMAN510H |
| 144 | 262128-4 | Makita 262128-4 URETHANE RING 4AN510H |
| 145 | 310240-5 | Makita 310240-5 CONTACT TOPAN510H |
