Makita AN451
Makita AN451: exploded parts diagram, 1 sheet, 109 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita AN451: 109 positions on 1 sheet

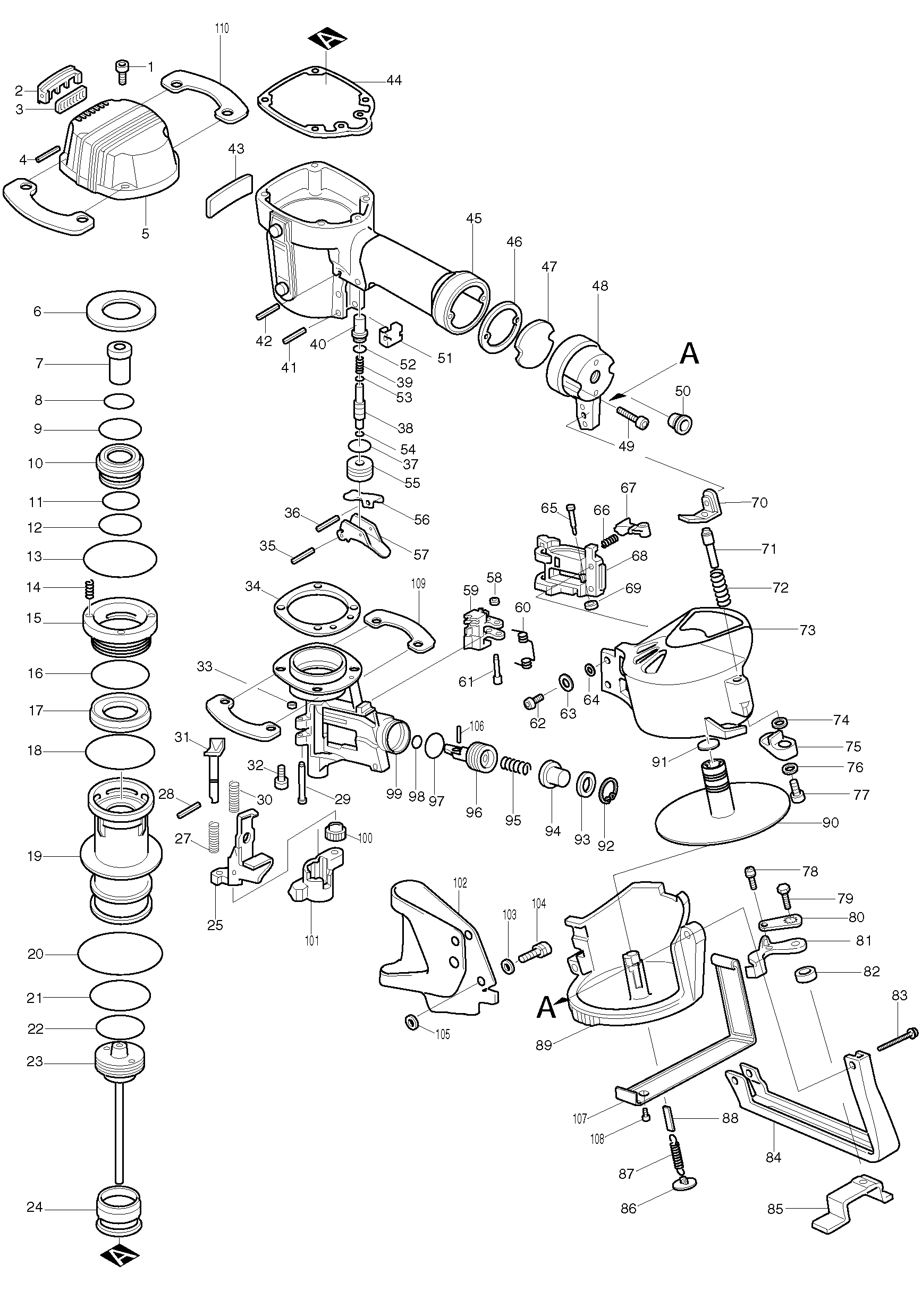

Sheet 1: Makita AN451 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 922241-7 | Makita 922241-7 Bolt M5X25 for JR300VT |
| 2 | 414957-3 | Makita 414957-3 COVERAN451 |
| 3 | 415235-4 | Makita 415235-4 MUFFLERAN451 |
| 4 | 258018-7 | Makita 258018-7 SPRING PIN 2.5-9 |
| 5 | 151605-0 | Makita 151605-0 TOP CAP COMPLETEAN451 |
| 6 | 261093-4 | Makita 261093-4 URETHANE WASHER 32AN451 |
| 7 | 421399-4 | Makita 421399-4 CUSHION RAN451 |
| 8 | 213416-2 | Makita 213416-2 O RING 26AN451 |
| 9 | 213462-5 | Makita 213462-5 O RING 33AN901 |
| 10 | 414935-3 | Makita 414935-3 MAIN VALVEAN451 |
| 11 | 213424-3 | Makita 213424-3 O RING 27AN451 |
| 12 | 213423-5 | Makita 213423-5 O RING 30 |
| 13 | 213665-1 | Makita 213665-1 O RING 56AN451 |
| 14 | 233038-2 | Makita 233038-2 COMPRESSION SPRING 5, JR307CT |
| 15 | 316380-7 | Makita 316380-7 SUB VALVEAN451 |
| 16 | 213558-2 | Makita 213558-2 O RING 42 |
| 17 | 421400-5 | Makita 421400-5 VALVE SHEETAN451 |
| 18 | 213656-2 | Makita 213656-2 O-RING 53, HM0830 |
| 19 | 316409-9 | Makita 316409-9 CYLINDERAN451 |
| 20 | 213706-3 | Makita 213706-3 O RING 67 |
| 21 | 213613-0 | Makita 213613-0 O RING 45AN451 |
| 22 | 213475-6 | Makita 213475-6 O RING 34AN451 |
| 23 | 150383-9 | Makita 150383-9 DRIVER COMPLETE |
| 24 | 421491-6 | Makita 421491-6 CUSHION FAN451 |
| 25 | 165207-6 | Makita 165207-6 CONTACT ARMAN451 |
| 27 | 233097-6 | Makita 233097-6 COMPRESSION SPRING 7AN451 |
| 28 | 258021-8 | Makita 258021-8 SPRING PIN 2-9AN451 |
| 29 | 256678-9 | Makita 256678-9 PIN 4AN451 |
| 30 | 233096-8 | Makita 233096-8 COMPRESSION SPRING 5 FOR |
| 31 | 162170-4 | Makita 162170-4 LEVER PIN 6AN451 |
| 32 | 265929-9 | Makita 265929-9 HEX. SOCKET HEAD BOLT M6X |
| 33 | 262054-7 | Makita 262054-7 URETHANE RING 3, AN611 |
| 34 | 442118-5 | Makita 442118-5 DRIVER GUIDE GASKETAN451 |
| 35 | 951072-7 | Makita 951072-7 SPRING PIN 3-24 |
| 36 | 258004-8 | Makita 258004-8 SPRING PIN 2.5-16 |
| 37 | 213218-6 | Makita 213218-6 O-RING 16, HR281FT |
| 38 | 322530-4 | Makita 322530-4 TRIGGER VALVE STEMAN451 |
| 39 | 233425-5 | Makita 233425-5 COMPRESSION SPRING 3AN451 |
| 40 | 322531-2 | Makita 322531-2 PILOT VALVEAN451 |
| 41 | 951072-7 | Makita 951072-7 SPRING PIN 3-24 |
| 42 | 258020-0 | Makita 258020-0 SPRING PIN 2.5-22AN451 |
| 43 | 857129-1 | Makita 857129-1 NAME PLATE AN451AN451 |
| 44 | 442109-6 | Makita 442109-6 TOP CAP GASKETAN451 |
| 45 | 151604-2 | Makita 151604-2 HOUSING COMPLETEAN451 |
| 46 | 442110-1 | Makita 442110-1 INLET CAP GASKETAN451 |
| 47 | 413054-2 | Makita 413054-2 INLET FILTERAN451 |
| 48 | 317861-4 | Makita 317861-4 INLET CAPAN451 |
| 49 | 922242-5 | Makita 922242-5 HEX. SOCKET HEAD BOLT M5X |
| 50 | 286219-7 | Makita 286219-7 CAP 12AN901 TEC.73674 |
| 51 | 343879-9 | Makita 343879-9 HOLDERAN451 |
| 52 | 213030-4 | Makita 213030-4 O RING 8 |
| 53 | 213957-8 | Makita 213957-8 O RING 2AN451 |
| 54 | 213957-8 | Makita 213957-8 O RING 2AN451 |
| 55 | 322380-7 | Makita 322380-7 TRIGGER VALVE CASEAN451 |
| 56 | 344258-4 | Makita 344258-4 IDLERAN451 |
| 57 | 165133-9 | Makita 165133-9 TRIGGERAN451 |
| 58 | 262054-7 | Makita 262054-7 URETHANE RING 3, AN611 |
| 59 | 310098-2 | Makita 310098-2 FEEDING CLAWAN451 |
| 60 | 231603-1 | Makita 231603-1 TORSION SPRING 6AN451 |
| 61 | 256432-1 | Makita 256432-1 PIN 4-4.5AN451 |
| 62 | 265903-7 | Makita 265903-7 HEX. SOCKET HEAD BOLAN621 |
| 63 | 253999-0 | Makita 253999-0 WASHER 5AN451 |
| 64 | 267010-2 | Makita 267010-2 FLAT WASHER 5, LS1016L |
| 65 | 256679-7 | Makita 256679-7 PIN 4AN451 |
| 66 | 233095-0 | Makita 233095-0 COMPRESSION SPRING 4AN451 |
| 67 | 311913-3 | Makita 311913-3 CHECK CLAWAN451 |
| 68 | 311914-1 | Makita 311914-1 DOORAN451 |
| 69 | 262054-7 | Makita 262054-7 URETHANE RING 3, AN611 |
| 70 | 344256-8 | Makita 344256-8 MAGAZINE LOCKAN451 |
| 71 | 322532-0 | Makita 322532-0 LOCK PINAN451 |
| 72 | 231307-5 | Makita 231307-5 COMPRESSION SPRING 6, LS1013 |
| 73 | 154457-8 | Makita 154457-8 MAGAZINE CAP COMPLETAN451 |
| 74 | 267010-2 | Makita 267010-2 FLAT WASHER 5, LS1016L |
| 75 | 414933-7 | Makita 414933-7 LOCK LEVERAN621 |
| 76 | ||
| 77 | 266233-9 | Makita 266233-9 HEX. SOCKET HEAD BOLAN621 |
| 78 | 911105-0 | Makita 911105-0 PAN HEAD SCREW M4X6AN451 |
| 79 | 921322-4 | Makita 921322-4 HEX. BOLT M6X16 |
| 80 | 341718-7 | Makita 341718-7 LOCK PLATE |
| 81 | 343977-9 | Makita 343977-9 LEVER PLATEAN451 |
| 82 | 257166-9 | Makita 257166-9 RING 9AN451 |
| 83 | 265919-2 | Makita 265919-2 HEX. SOCKET HEAD BOLT M5X |
| 84 | 343978-7 | Makita 343978-7 SINGLE GUIDEAN451 |
| 85 | 165250-5 | Makita 165250-5 ADJUSTER PLATEAN451 |
| 86 | 414934-5 | Makita 414934-5 Holder Cap |
| 87 | 231793-0 | Makita 231793-0 TENSION SPRING 5, 2012NB |
| 88 | 423232-6 | Makita 423232-6 RUBBER PLATE 6-20AN901 |
| 89 | 415779-4 | Makita 415779-4 MAGAZINEAN451 |
| 90 | 415169-1 | Makita 415169-1 CHANGE PLATEAN451 |
| 91 | 414934-5 | Makita 414934-5 Holder Cap |
| 92 | 962112-6 | Makita 962112-6 RETAINING RING R-22 |
| 93 | 262055-5 | Makita 262055-5 RUBBER RING 16AN451 |
| 94 | 344597-2 | Makita 344597-2 CUP WASHER 5AN451 |
| 95 | 233057-8 | Makita 233057-8 COMPRESSION SPRING 1AN451 |
| 96 | 322579-4 | Makita 322579-4 PISTONAN451 |
| 97 | 213261-5 | Makita 213261-5 O RING 17 |
| 98 | 213007-9 | Makita 213007-9 O RING 8 |
| 99 | 150386-3 | Makita 150386-3 DRIVER GUIDE COMPLETAN451 |
| 100 | 311891-7 | Makita 311891-7 ADJUSTERAN451 |
| 101 | 165073-1 | Makita 165073-1 CONTACT TOPAN451 |
| 102 | 413060-7 | Makita 413060-7 SAFETY COVERAN451 |
| 103 | 253999-0 | Makita 253999-0 WASHER 5AN451 |
| 104 | 265919-2 | Makita 265919-2 HEX. SOCKET HEAD BOLT M5X |
| 105 | 253999-0 | Makita 253999-0 WASHER 5AN451 |
| 106 | 951054-9 | Makita 951054-9 SPRING PIN 3-10 |
| 107 | 344254-2 | Makita 344254-2 MAGAZINE GUARDAN451 |
| 108 | 911110-7 | Makita 911110-7 PAN HEAD SCREW M4X8AN451 |
| 109 | 344747-9 | Makita 344747-9 HOUSING GUARD FAN451 |
| 110 | 344748-7 | Makita 344748-7 HOUSING GUARD RAN451 |
