Makita AN450H
Makita AN450H: exploded parts diagram, 2 sheets, 137 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita AN450H: 137 positions on 2 sheets
Sheet 1: Makita AN450H parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266501-0 | Makita 266501-0 HEX.SOCKET BUTTONAN450H |
| 2 | 346013-0 | Makita 346013-0 EXHAUST COVER CAP, AN450H |
| 3 | 450834-5 | Makita 450834-5 EXHAUST COVER, AT450H |
| 4 | 413128-9 | Makita 413128-9 FILTERAN450H |
| 5 | 922257-2 | Makita 922257-2 HEX. SOCKET HEAD BOLAN450H |
| 6 | 318109-7 | Makita 318109-7 TOP CAPAN450H |
| 7 | 346011-4 | Makita 346011-4 REAR HOUSING GUARD, AN450H |
| 8 | 233484-9 | Makita 233484-9 COMPRESSION SPRING 4AN911H |
| 9 | 213604-1 | Makita 213604-1 O RING 50 |
| 10 | 213447-1 | Makita 213447-1 O-RING 30AN450H |
| 11 | 419736-4 | Makita 419736-4 HEAD VALVEAN450H |
| 12 | 213558-2 | Makita 213558-2 O RING 42 |
| 14 | 267342-7 | Makita 267342-7 FLAT WASHER 26, AN620H |
| 15 | 424225-6 | Makita 424225-6 REAR CUSHIONAN450H |
| 16 | 213282-7 | Makita 213282-7 O-RING 17AN450H |
| 17 | 158827-3 | |
| 19 | 421981-9 | Makita 421981-9 VALVE SEATAN450H |
| 20 | 331739-7 | Makita 331739-7 CYLINDER STAY, AN620H |
| 21 | 331847-4 | Makita 331847-4 CYLINDER, AN450H |
| 22 | 213509-5 | Makita 213509-5 O RING 40 |
| 23 | 213413-8 | Makita 213413-8 O RING 28 |
| 24 | 162246-7 | Makita 162246-7 TOP CAP GASKETAN450H |
| 25 | 213021-5 | Makita 213021-5 O RING 5, LS1030 |
| 26 | 866139-7 | Makita 866139-7 AN450H NAME PLATEAN450H |
| 27 | 819321-7 | |
| 28 | 819322-5 | |
| 30 | 324968-9 | Makita 324968-9 CYLINDER GUIDE, AN450H |
| 31 | 424159-3 | Makita 424159-3 FRONT CUSHIONAN450H |
| 32 | 213528-1 | Makita 213528-1 O-RING 38AN450H |
| 33 | 346010-6 | Makita 346010-6 FRONT HOUSING GUARD, AN450H |
| 34 | 213970-6 | Makita 213970-6 O-RING 4AN450H |
| 35 | 158828-1 | Makita 158828-1 DRIVER GUIDE COMPLETAN450H |
| 36 | 266087-4 | Makita 266087-4 HEX.BOLT M6X25AN450H |
| 37 | 951078-5 | Makita 951078-5 SPRING PINGN900 |
| 38 | 951078-5 | Makita 951078-5 SPRING PINGN900 |
| 39 | 258029-2 | Makita 258029-2 SPRING PIN 3-30AN450H |
| 40 | 951069-6 | Makita 951069-6 SPRING PIN 3-20 |
| 41 | 213521-5 | Makita 213521-5 O RING 36, AN611 |
| 42 | 318108-9 | Makita 318108-9 INLET CAPAN450H |
| 43 | 286280-4 | Makita 286280-4 CAP 9, AN620H |
| 44 | 243105-5 | Makita 243105-5 ONE-TOUCH JOINT H22PAN450H |
| 146 | 816919-1 | Makita 816919-1 INDICATION LABELAN911H |

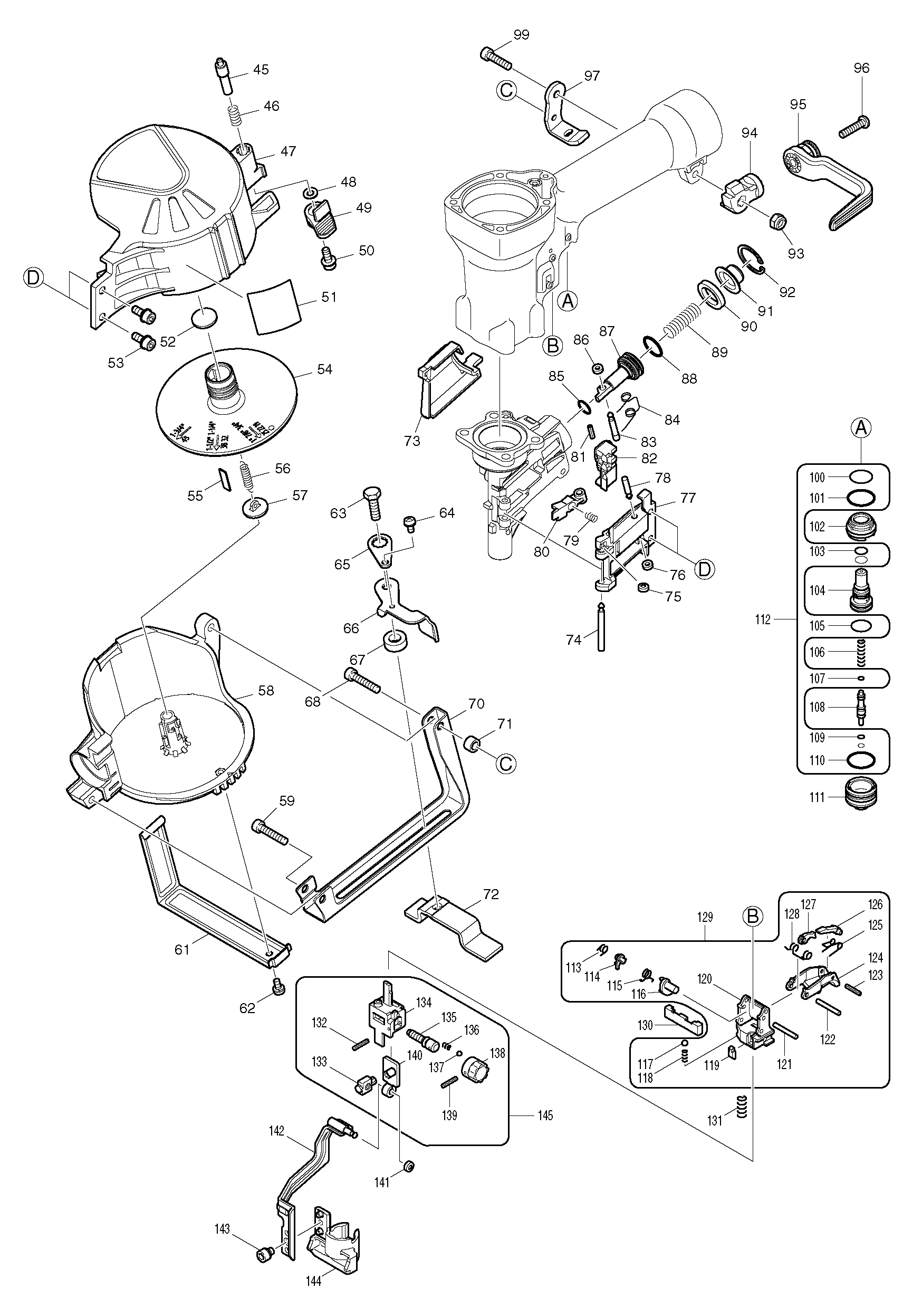

Sheet 2: Makita AN450H parts diagram
| No. | Part number | Part name |
|---|---|---|
| 45 | 322532-0 | Makita 322532-0 LOCK PINAN451 |
| 46 | 231307-5 | Makita 231307-5 COMPRESSION SPRING 6, LS1013 |
| 47 | 158924-5 | Makita 158924-5 MAGAZINE CAP COMPLETAN450H |
| 48 | 267010-2 | Makita 267010-2 FLAT WASHER 5, LS1016L |
| 49 | 414933-7 | Makita 414933-7 LOCK LEVERAN621 |
| 50 | 266233-9 | Makita 266233-9 HEX. SOCKET HEAD BOLAN621 |
| 51 | 807990-6 | |
| 52 | 414934-5 | Makita 414934-5 Holder Cap |
| 53 | 266233-9 | Makita 266233-9 HEX. SOCKET HEAD BOLAN621 |
| 54 | 415169-1 | Makita 415169-1 CHANGE PLATEAN451 |
| 55 | 423232-6 | Makita 423232-6 RUBBER PLATE 6-20AN901 |
| 56 | 231793-0 | Makita 231793-0 TENSION SPRING 5, 2012NB |
| 57 | 414934-5 | Makita 414934-5 Holder Cap |
| 58 | 415779-4 | Makita 415779-4 MAGAZINEAN451 |
| 59 | 266099-7 | Makita 266099-7 HEX. SOCKET HEAD BOLAN450H |
| 61 | 344254-2 | Makita 344254-2 MAGAZINE GUARDAN451 |
| 62 | 911110-7 | Makita 911110-7 PAN HEAD SCREW M4X8AN451 |
| 63 | 921332-1 | Makita 921332-1 HEX. BOLT M6X20 |
| 64 | 911110-7 | Makita 911110-7 PAN HEAD SCREW M4X8AN451 |
| 65 | 341718-7 | Makita 341718-7 LOCK PLATE |
| 66 | 343977-9 | Makita 343977-9 LEVER PLATEAN451 |
| 67 | 257166-9 | Makita 257166-9 RING 9AN451 |
| 68 | 266099-7 | Makita 266099-7 HEX. SOCKET HEAD BOLAN450H |
| 70 | 343978-7 | Makita 343978-7 SINGLE GUIDEAN451 |
| 71 | 257140-7 | Makita 257140-7 RING 6AN450H |
| 72 | 165250-5 | Makita 165250-5 ADJUSTER PLATEAN451 |
| 73 | 450832-9 | Makita 450832-9 COVER, AN450H |
| 74 | 256779-3 | Makita 256779-3 PIN 4, AF450H |
| 75 | 262120-0 | Makita 262120-0 URETHANE RING 3AN450H |
| 76 | 262120-0 | Makita 262120-0 URETHANE RING 3AN450H |
| 77 | 311914-1 | Makita 311914-1 DOORAN451 |
| 78 | 256778-5 | Makita 256778-5 PIN 4, AF450H |
| 79 | 233095-0 | Makita 233095-0 COMPRESSION SPRING 4AN451 |
| 80 | 311913-3 | Makita 311913-3 CHECK CLAWAN451 |
| 81 | 951054-9 | Makita 951054-9 SPRING PIN 3-10 |
| 82 | 310098-2 | Makita 310098-2 FEEDING CLAWAN451 |
| 83 | 256432-1 | Makita 256432-1 PIN 4-4.5AN451 |
| 84 | 231603-1 | Makita 231603-1 TORSION SPRING 6AN451 |
| 85 | 213054-0 | Makita 213054-0 O-RING 9, M442 |
| 86 | 262120-0 | Makita 262120-0 URETHANE RING 3AN450H |
| 87 | 324965-5 | Makita 324965-5 PISTON, AN450H |
| 88 | 213154-6 | Makita 213154-6 O RING 14 |
| 89 | 233346-1 | Makita 233346-1 COMPRESSION SPRING 7AN450H |
| 90 | 262075-9 | Makita 262075-9 RUBBER RING 16AN450H |
| 91 | 344452-8 | Makita 344452-8 CUP WASHER 5AN450H |
| 92 | 962103-7 | Makita 962103-7 RETAINING RING R-24, AN611 |
| 93 | 931202-6 | Makita 931202-6 HEX.NUT M5, 3612BR |
| 94 | 162255-6 | Makita 162255-6 HOOK BASE, |
| 95 | 419843-3 | Makita 419843-3 HOOK, AN911H |
| 96 | 265176-2 | Makita 265176-2 PAN.HD.SCREW M5X22AN911H |
| 97 | 346012-2 | Makita 346012-2 MAGAZING LOCK, AN450H |
| 99 | 266369-4 | Makita 266369-4 NYLOK SCREW 5*20AN943 |
| 100 | 213233-0 | Makita 213233-0 O-RING 15AN911H |
| 101 | 213275-4 | Makita 213275-4 O RING 18 |
| 102 | 419732-2 | Makita 419732-2 TRIGGER VALVE GUIDEAN450H |
| 103 | 213968-3 | Makita 213968-3 O-RING 7AN911H |
| 104 | 419733-0 | Makita 419733-0 PILOT VALVEAN450H |
| 105 | 213185-5 | Makita 213185-5 O-RING 12.5AN911H |
| 106 | 233485-7 | Makita 233485-7 COMPRESSION SPRING 4AN450H |
| 107 | 213034-6 | Makita 213034-6 O RING 3 DA3010F |
| 108 | 324743-3 | Makita 324743-3 TRIGGER VALVE STEMAN450H |
| 109 | 213979-8 | Makita 213979-8 O-RING 3AN450H |
| 110 | 213275-4 | Makita 213275-4 O RING 18 |
| 111 | 331741-0 | Makita 331741-0 TRIGGER VALVE CASEAN911H |
| 113 | 233501-5 | Makita 233501-5 TORSION SPRING 5AN911H |
| 114 | 310199-6 | Makita 310199-6 STOPPER PLATEAN450H |
| 115 | 233502-3 | Makita 233502-3 TORSION SPRING 6AN911H |
| 116 | 310310-0 | Makita 310310-0 LEVERAN450H |
| 117 | 216024-8 | Makita 216024-8 STEEL BALL 4, LS1016 |
| 118 | 233490-4 | Makita 233490-4 COMPRESSION SPRING 2AN911H |
| 119 | 419743-7 | Makita 419743-7 SPRING COVER, AN620H |
| 120 | 419844-1 | Makita 419844-1 TRIGGER BASEAN911H |
| 121 | 268168-0 | Makita 268168-0 PIN 3AN911H |
| 122 | 268168-0 | Makita 268168-0 PIN 3AN911H |
| 123 | 951007-8 | Makita 951007-8 SPRING PIN 2-12AN911H |
| 124 | 310294-2 | Makita 310294-2 TRIGGERAN911H |
| 125 | 231699-2 | Makita 231699-2 TORSION SPRING 4AN911H |
| 126 | 310196-2 | Makita 310196-2 TRIP LEVERAN450H |
| 127 | 310198-8 | Makita 310198-8 LEVERAN911H |
| 128 | 233503-1 | Makita 233503-1 TORSION SPRING 4AN911H |
| 130 | 310293-4 | Makita 310293-4 CHANGE RODAN911H |
| 131 | 233489-9 | Makita 233489-9 COMPRESSION SPRING 6AN911H |
| 132 | 951010-9 | Makita 951010-9 SPRING PIN 2-14 |
| 133 | 310201-5 | Makita 310201-5 ADJUSTER PIECEAN911H |
| 134 | 310234-0 | Makita 310234-0 UPPER YORKAN450H |
| 135 | 324745-9 | Makita 324745-9 ADJUSTER SHAFT, AN620H |
| 136 | 233491-2 | Makita 233491-2 COMPRESSION SPRING 2AN911H |
| 137 | 216031-1 | Makita 216031-1 STEEL BALL 2.3AN911H |
| 138 | 158747-1 | Makita 158747-1 ADJUSTER COMPLETE, AT450H |
| 139 | 951010-9 | Makita 951010-9 SPRING PIN 2-14 |
| 140 | 345775-7 | Makita 345775-7 SLIDE PLATE, AN620H |
| 141 | 262120-0 | Makita 262120-0 URETHANE RING 3AN450H |
| 142 | 165546-4 | Makita 165546-4 CONTACT ARM, AN250HC |
| 143 | 265480-9 | Makita 265480-9 HEX. SOCKET HEAD BOLAN450H |
| 144 | 165545-6 | Makita 165545-6 CONTACT TOP, AN250HC |
