Bosch AMW 10

Bosch AMW 10 leafblower attachment: exploded parts diagram, 1 sheet, 12 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AMW 10: 12 positions on 1 sheet

Bosch AMW 10 parts list (1 sheet)

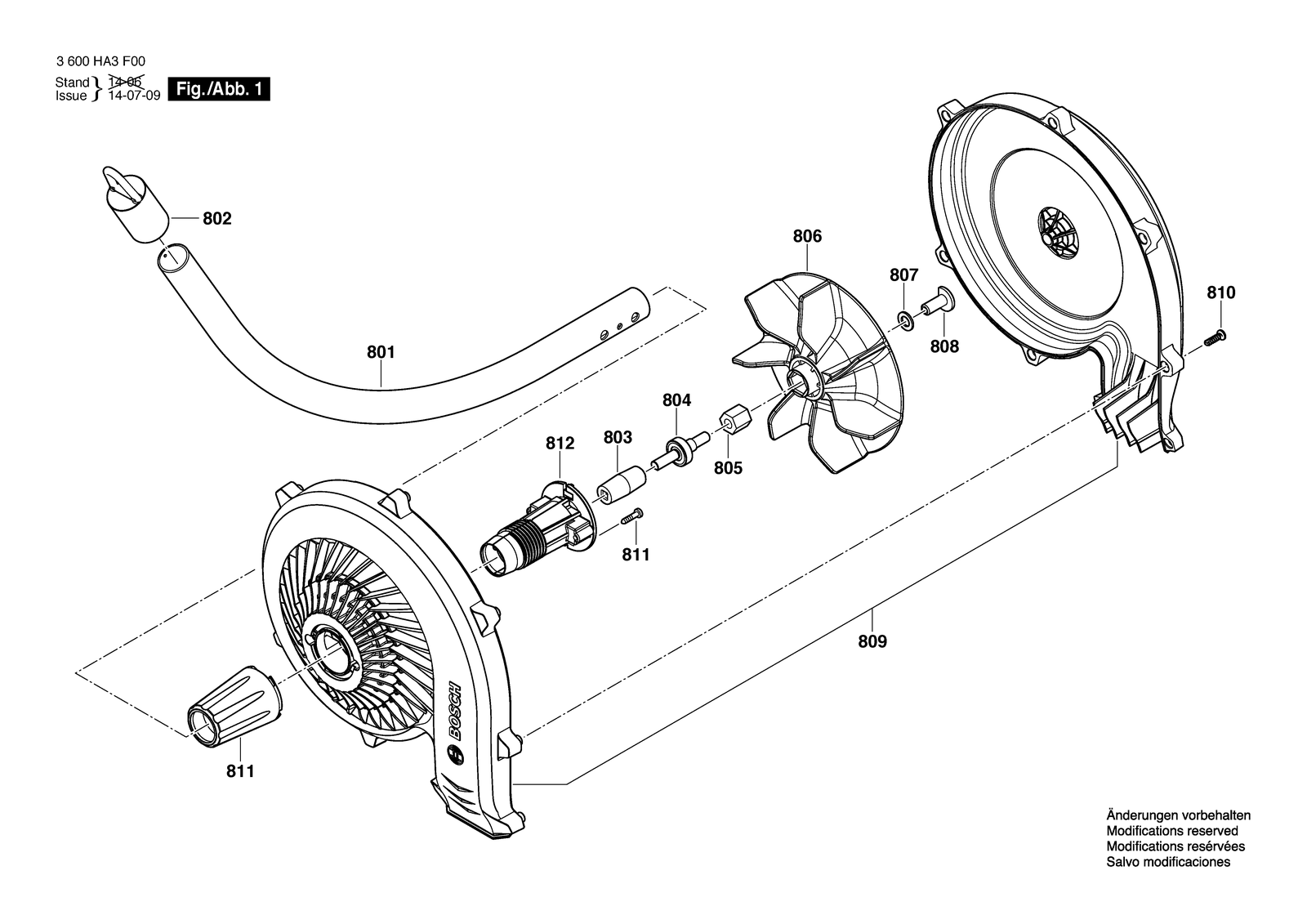

Bosch AMW 10 parts diagram, sheet 1
No.Part numberPart name
801F016F04525Tube
802F016F04482Cap
803F016F04527Connector
804F016F04528Bearing Shaft
805F016F04529Connecting Nut
806F016F04530Fan
807F016F04531Washer
808F016F04532Clamping Nut
809F016F04533Housing Set
810F016F04534Screw
811F016F04535Clamping Sleeve
812F016F04536Connecting Carrier
