Bosch AMR 30 lawnmower: exploded parts diagram, 2 sheets, 68 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

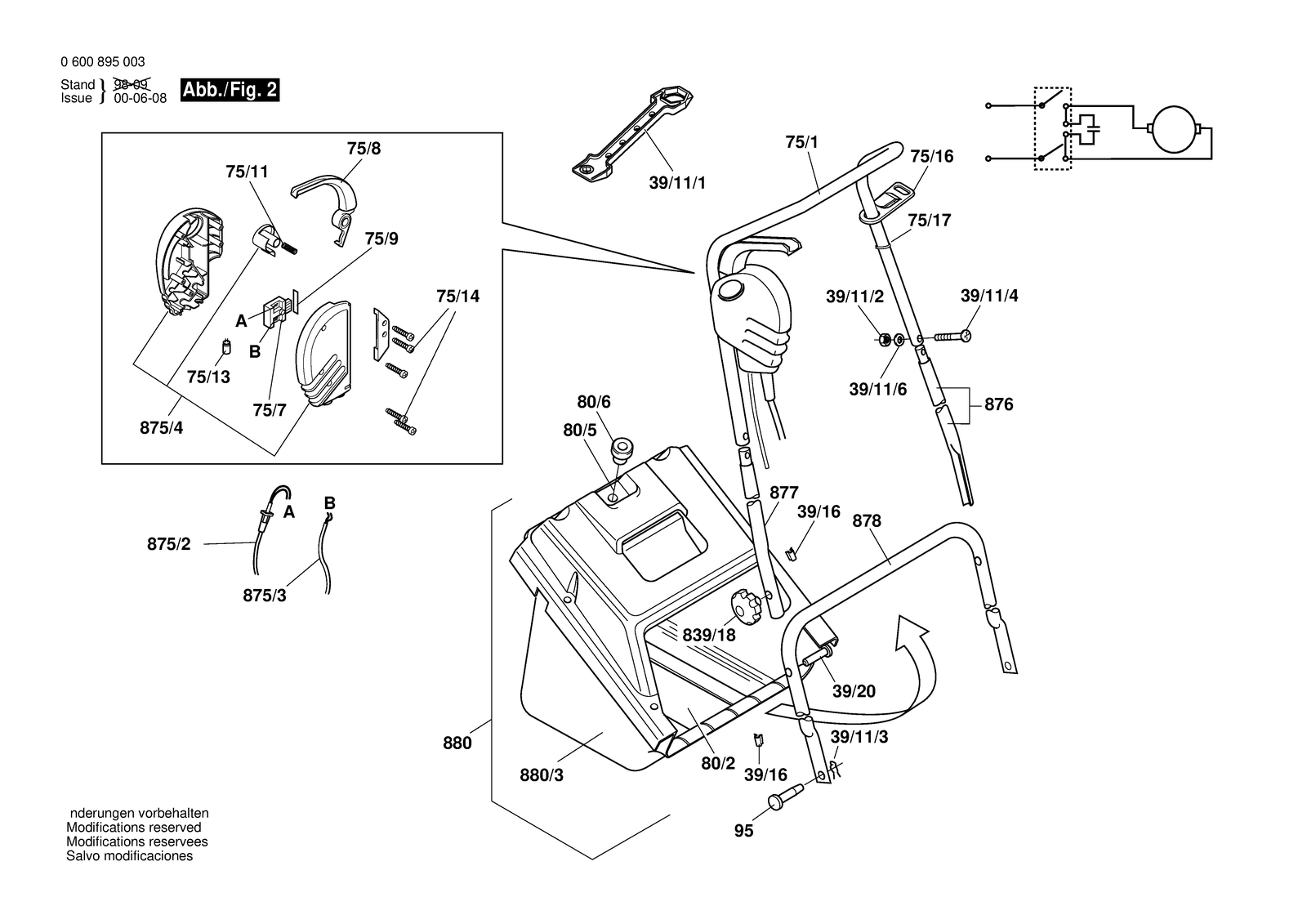

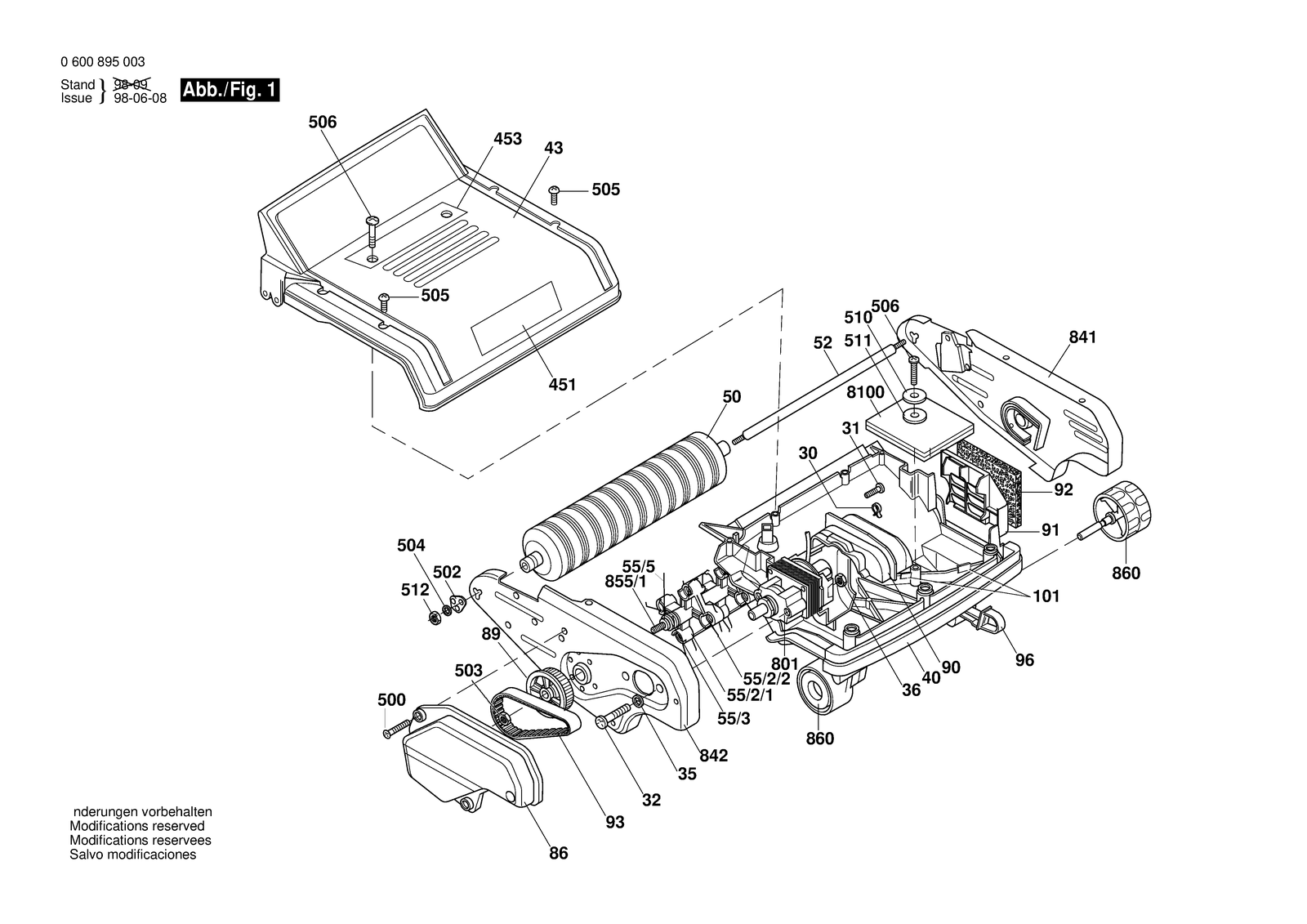

All parts of Bosch AMR 30: 68 positions on 2 sheets
Bosch AMR 30 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 101 | F016L61548 | Seal Strip |
| 30 | F016T46305 | Cable Cleat |
| 31 | F016L37433 | Self-Cutting Screw |
| 32 | F016T40588 | Stud bolt 5/16 Unc X 17/32 |
| 35 | F016T48531 | Plain Washer 8,5 MM |
| 36 | F016T40589 | Hex Nut |
| 39/11/1 | F016T47898 | Assembly Wrench |
| 39/11/2 | F016L35329 | Nut M6 |
| 39/11/3 | F016T45870 | Pickup Clip |
| 39/11/4 | F016T46339 | Trunnion |
| 39/11/6 | F016T48727 | Plain Washer |
| 39/16 | F016L59236 | Cable Clip |
| 39/20 | F016L37879 | Retaining Pin M 6X40 |
| 40 | F016L61201 | Motor Hood |
| 43 | F016L61202 | Protection cover |
| 451 | F016L61220 | Sticker |
| 453 | F016L61033 | Reference Plate |
| 50 | F016T43911 | Roller |
| 500 | F016L36179 | Screw |
| 502 | F016T48053 | Washer |
| 503 | F016L18048 | Nut |
| 504 | F016T48727 | Plain Washer |
| 505 | F016L37433 | Self-Cutting Screw |
| 506 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 510 | F016T48428 | Plain Washer M5 |
| 511 | F016L57338 | Plain Washer |
| 512 | F016L35329 | Nut M6 |
| 52 | F016T48782 | Guide Piece |
| 55/2/1 | F016T43967 | Carrier |
| 55/2/2 | F016T47920 | Claw |
| 55/3 | F016T44028 | Spare Part |
| 55/5 | F016T48537 | Locking washer |
| 75/1 | F016L61216 | Handle |
| 75/11 | F016T49226 | Compression Spring |
| 75/13 | F016L36952 | Condenser |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/16 | F016L65387 | Strain-Relief Clamp |
| 75/17 | F016L37706 | Cable Clip |
| 75/7 | F016F05717 | On-Off Switch |
| 75/8 | F016L65676 | Positioning Lever Black |
| 75/9 | F016T49845 | Leaf Spring |
| 80/2 | F016T46387 | Compactor |
| 80/5 | F016T48063 | Cord |
| 80/6 | F016T48901 | Sealing cap |
| 801 | F016L61206 | Motor |
| 8100 | F016102118 | Balance Weights |
| 839/18 | F016L66136 | Wing Nut |
| 841 | F016102135 | Side Plate |
| 842 | F016102136 | Side Plate |
| 855/1 | F016102137 | Spindle Assembly |
| 86 | F016L61200 | Belt Cover |
| 860 | F016102138 | Wheel |
| 875/2 | F016104086 | Power supply cord EU |
| 875/2 | F016104359 | Power supply cord Ch |
| 875/3 | F016102113 | Connecting Cable |
| 875/4 | F016103136 | Assembly Kit |
| 876 | F016102140 | Lengthening Piece |
| 877 | F016102141 | Lengthening Piece |
| 878 | F016102116 | Handle |
| 880 | F016102117 | Catcher Container |
| 880/3 | F016102142 | Catcher Container |
| 89 | F016T44491 | Toothed Belt Wheel |
| 90 | F016T46665 | Cover |
| 91 | F016T46724 | Holder |
| 92 | F016T46774 | Filter |
| 93 | F016T41945 | Drive Belt |
| 95 | F016T48910 | Retaining Pin |
| 96 | F016L61234 | Adjusting Part |
