Bosch ALM 34

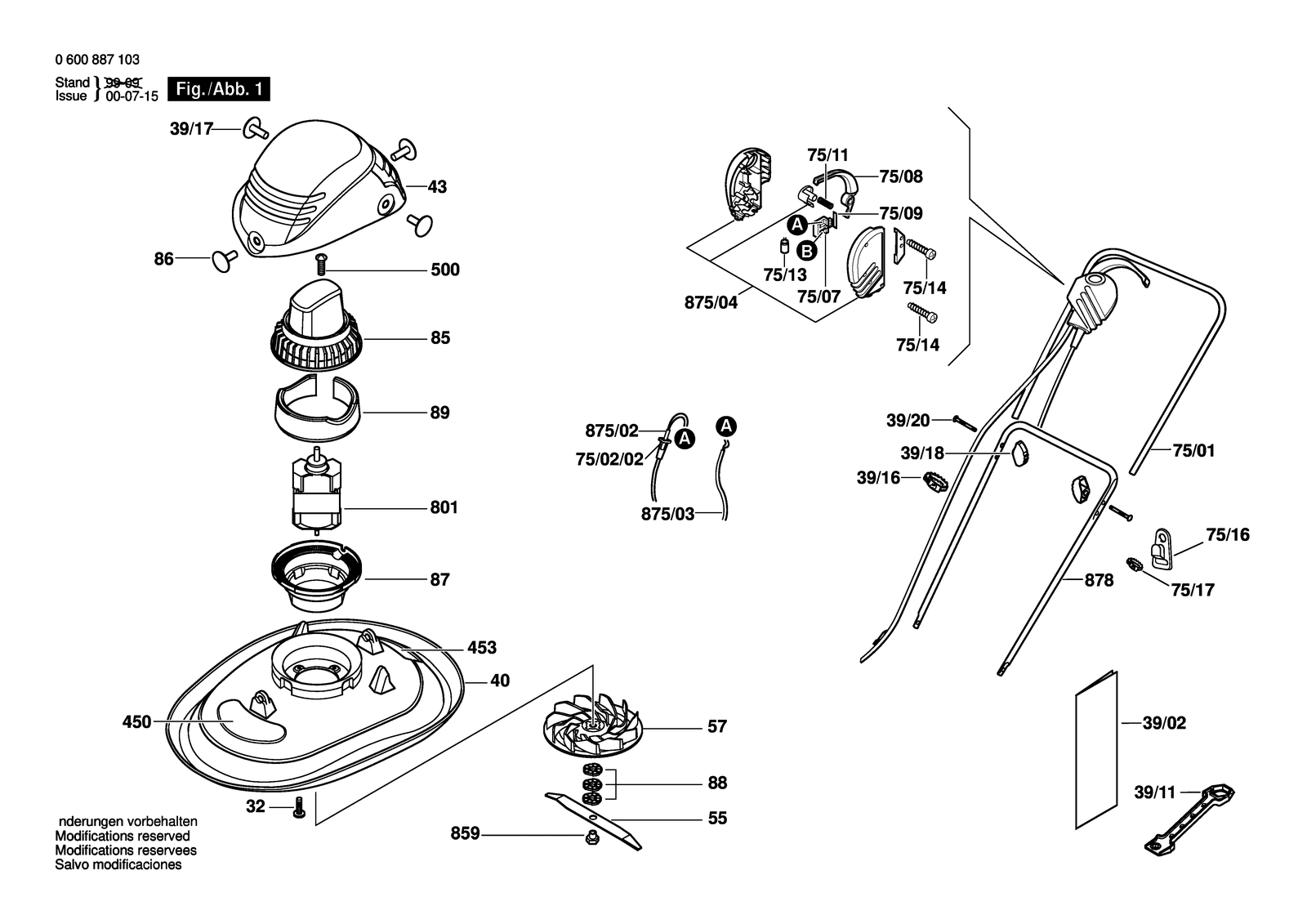

Bosch ALM 34 lawnmower: exploded parts diagram, 1 sheet, 37 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ALM 34: 37 positions on 1 sheet
Bosch ALM 34 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 32 | F016L37433 | Self-Cutting Screw |
| 39/11 | F016L61793 | Assembly Wrench |
| 39/16 | F016L11580 | Cable Cleat |
| 39/17 | F016L62356 | Pivot Pin |
| 39/18 | F016L66136 | Wing Nut |
| 39/20 | F016T49623 | Trunnion M6 X48 |
| 40 | F016L64167 | Housing |
| 43 | F016L62445 | Motor Hood |
| 450 | F016L62448 | Sticker |
| 453 | F016L62363 | Warning Label |
| 500 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 55 | F016L62467 | Cutter Blade |
| 57 | F016L62372 | Fan |
| 75/01 | F016L62472 | Handle Ø18 MM |
| 75/02/02 | F016T44500 | Grommet |
| 75/07 | F016F05717 | On-Off Switch |
| 75/08 | F016L65676 | Positioning Lever Black |
| 75/09 | F016T49845 | Leaf Spring |
| 75/11 | F016T49226 | Compression Spring |
| 75/13 | F016L36952 | Condenser |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/16 | F016L65387 | Strain-Relief Clamp |
| 75/17 | F016L37706 | Cable Clip |
| 801 | F016L80955 | Motor 230V |
| 85 | F016L62352 | Filter Housing |
| 859 | F016102096 | Nut |
| 86 | F016L62356 | Pivot Pin |
| 87 | F016L62466 | Filter Housing |
| 875/02 | F016102381 | Power supply cord |
| 875/02 | F016104085 | Power supply cord GB 22M 2 X 0,75MM Without Plug |
| 875/02 | F016104086 | Power supply cord EU |
| 875/02 | F016104359 | Power supply cord Ch |
| 875/03 | F016102723 | Connecting Cable |
| 875/04 | F016103136 | Assembly Kit |
| 878 | F016102384 | Handle |
| 88 | F016L62780 | Spacer |
| 89 | F016L62699 | Filter Element |
