Bosch AKE 45 S

Bosch AKE 45 S chain saw: exploded parts diagram, 1 sheet, 39 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AKE 45 S: 39 positions on 1 sheet

Bosch AKE 45 S parts list (1 sheet)

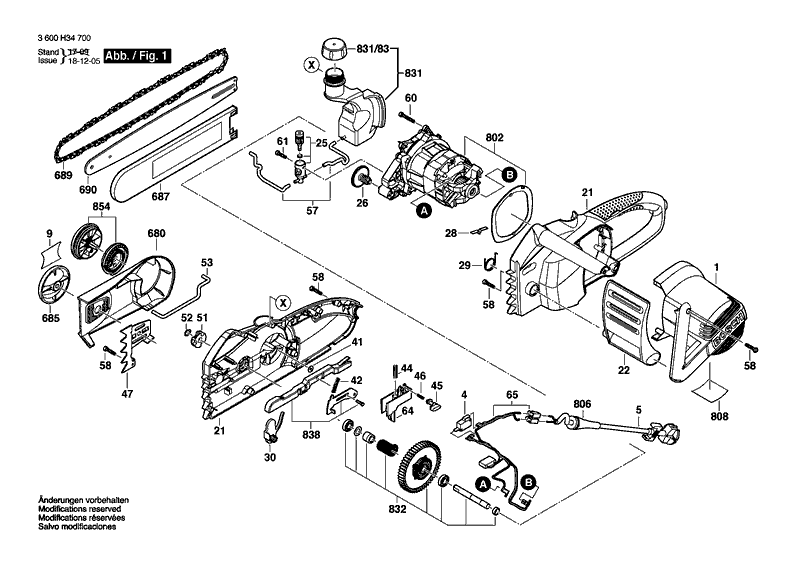

Bosch AKE 45 S parts diagram, sheet 1
No.Part numberPart name
12609001023Motor Housing Green
212609001110Housing
222609001024Protective Shield
251600A01A55Oil Pump
262609001043Worm-Gear Pair
282609001047Spring
292609006397Torsion Spring
302609001032Lever
42609001096Switch
412916011892Plain Washer DIN 9021-B 4,3-ST
422609001093Spring
442609001048Compression Spring
452609001031Safety Switch
462609001090Compression Spring
472609007270Mounting Plate
52604460183Power supply cord EU 0,4M 2 X 1,0MM H07 Rn-F
512609001036Sprocket wheel
522916650001Spring retaining ring DIN 471-10X1MM-FST
532609001109Rod
572609001086Pipe
582603490023Torx Oval-Head Screw 4X20
602603490024Torx Oval-Head Screw 4X25
612603490021Torx Oval-Head Screw 4X12
642609001029Switch Segment
652609004394Suppression Filter
6802609001104Protective Cover Black
6852609001106Wheel
6872609006174Chain Guard
6892609006172Saw Chain
6902609006173Guide Rail
8022609002728Motor
8062609005766Grommet
808160111A3VDNameplate
8312609001599Oil Reservoir
831/832609001040RSV Cap
8322609001100Drive Clutch
8382609001597Linkage
8542609004723Wheel
92609006170Manufacturer's nameplate AKE 45 S
