Bosch AKE 40-17 S

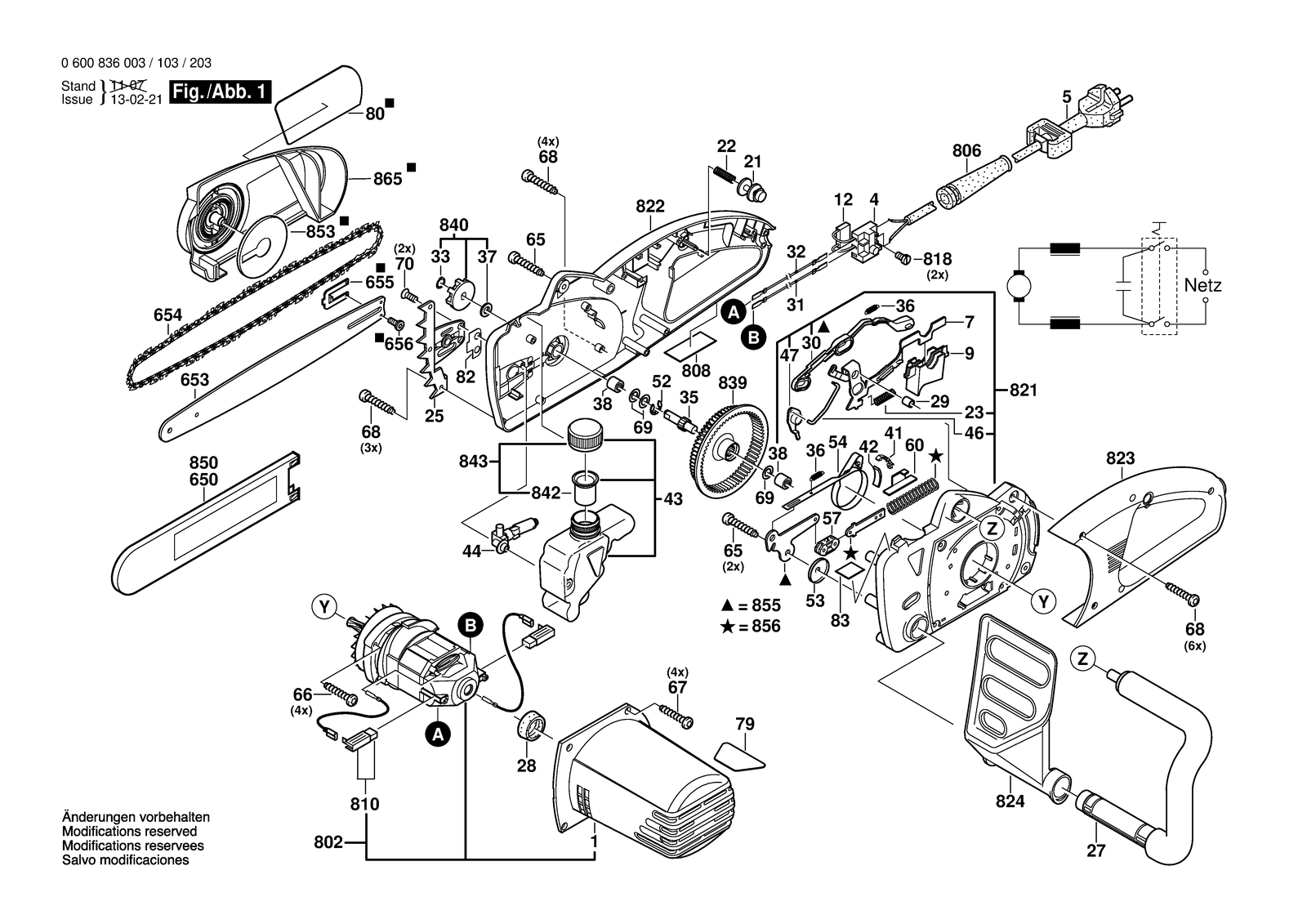

Bosch AKE 40-17 S chain saw: exploded parts diagram, 1 sheet, 198 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AKE 40-17 S: 198 positions on 1 sheet
Bosch AKE 40-17 S parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605190228 | Motor Housing |
| 1 | 1605190228 | Motor Housing |
| 1 | 1605190228 | Motor Housing |
| 12 | 2609004863 | Suppression Capacitor |
| 12 | 2609004863 | Suppression Capacitor |
| 12 | 2609004863 | Suppression Capacitor |
| 21 | 1600390019 | Locking Bolt |
| 21 | 1600390019 | Locking Bolt |
| 21 | 1600390019 | Locking Bolt |
| 22 | 1604617008 | Compression Spring |
| 22 | 1604617008 | Compression Spring |
| 22 | 1604617008 | Compression Spring |
| 23 | 1604617009 | Compression Spring |
| 23 | 1604617009 | Compression Spring |
| 23 | 1604617009 | Compression Spring |
| 25 | 1601098008 | Spiked bumper |
| 25 | 1601098008 | Spiked bumper |
| 25 | 1601098008 | Spiked bumper |
| 27 | 1605133045 | Handle |
| 27 | 1605133045 | Handle |
| 27 | 1605133045 | Handle |
| 28 | 1600206038 | Intermediate Ring |
| 28 | 1600206038 | Intermediate Ring |
| 28 | 1600206038 | Intermediate Ring |
| 29 | 1600300096 | Bushing |
| 29 | 1600300096 | Bushing |
| 29 | 1600300096 | Bushing |
| 30 | 1602319022 | Pusher |
| 30 | 1602319022 | Pusher |
| 30 | 1602319022 | Pusher |
| 31 | 1604431003 | Connecting Cable |
| 31 | 1604431003 | Connecting Cable |
| 31 | 1604431003 | Connecting Cable |
| 32 | 1604431004 | Connecting Cable |
| 32 | 1604431004 | Connecting Cable |
| 32 | 1604431004 | Connecting Cable |
| 33 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 33 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 33 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 35 | 1606100039 | Shaft |
| 35 | 1606100039 | Shaft |
| 35 | 1606100039 | Shaft |
| 36 | 1604650016 | Extension Spring |
| 36 | 1604650016 | Extension Spring |
| 36 | 1604650016 | Extension Spring |
| 37 | 1600205037 | Felt Washer |
| 37 | 1600205037 | Felt Washer |
| 37 | 1600205037 | Felt Washer |
| 38 | 2600917006 | Needle bearing |
| 38 | 2600917006 | Needle bearing |
| 38 | 2600917006 | Needle bearing |
| 4 | 1607200156 | On-Off Switch |
| 4 | 1607200156 | On-Off Switch |
| 4 | 1607200156 | On-Off Switch |
| 41 | 1601329038 | Guide Plate |
| 41 | 1601329038 | Guide Plate |
| 41 | 1601329038 | Guide Plate |
| 42 | 1600026004 | Brake Shoe |
| 42 | 1600026004 | Brake Shoe |
| 42 | 1600026004 | Brake Shoe |
| 43 | 1605405004 | Oil Reservoir |
| 43 | 1605405004 | Oil Reservoir |
| 43 | 1605405004 | Oil Reservoir |
| 44 | 1605437003 | Oil Pump |
| 44 | 1605437003 | Oil Pump |
| 44 | 1605437003 | Oil Pump |
| 5 | 1604460242 | Power supply cord EU 230V 0,55M 2 X 1,0MM H07 Rn-F |
| 5 | 1607000A04 | Power supply cord |
| 5 | 1614460089 | Power supply cord AUS 240V 0,55M 2 X 1,0MM H07RN-F |
| 5 | 1604460242 | Power supply cord EU 230V 0,55M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460442 | Power supply cord CH 230V 0,55M 2 X 1,0MM H07 Rn-F |
| 5 | 1607000A04 | Power supply cord |
| 5 | 1614460089 | Power supply cord AUS 240V 0,55M 2 X 1,0MM H07RN-F |
| 5 | 1604460242 | Power supply cord EU 230V 0,55M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460253 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460442 | Power supply cord CH 230V 0,55M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460089 | Power supply cord AUS 240V 0,55M 2 X 1,0MM H07RN-F |
| 52 | 2916080012 | Locking washer DIN 6799-9-FST |
| 52 | 2916080012 | Locking washer DIN 6799-9-FST |
| 52 | 2916080012 | Locking washer DIN 6799-9-FST |
| 53 | 1600328030 | Collar Disc |
| 53 | 1600328030 | Collar Disc |
| 53 | 1600328030 | Collar Disc |
| 54 | 1604652020 | Brake Band |
| 54 | 1604652020 | Brake Band |
| 54 | 1604652020 | Brake Band |
| 57 | 1600390018 | Lever Carrier |
| 57 | 1600390018 | Lever Carrier |
| 57 | 1600390018 | Lever Carrier |
| 60 | 1600590012 | Pressure Plate |
| 60 | 1600590012 | Pressure Plate |
| 60 | 1600590012 | Pressure Plate |
| 65 | 2914211528 | Oval-Head Screw 5X22 |
| 65 | 2914211528 | Oval-Head Screw 5X22 |
| 65 | 2914211528 | Oval-Head Screw 5X22 |
| 650 | 1605510329 | Chain Guard |
| 650 | 1605510348 | Chain Guard |
| 650 | 1605510329 | Chain Guard |
| 650 | 1605510329 | Chain Guard |
| 653 | 1602317005 | Guide Rail 300 MM |
| 653 | 1600A015H6 | Guide Rail 350 MM |
| 653 | 1600A015H7 | Guide Rail 400 MM |
| 654 | 2609007363 | Saw Chain AKE 30, AKE 30 LI |
| 654 | 2609007364 | Saw Chain AKE 35 |
| 654 | 2609007365 | Saw Chain AKE 40 |
| 655 | 1601015035 | Adjusting Plate |
| 655 | 1601015035 | Adjusting Plate |
| 655 | 1601015035 | Adjusting Plate |
| 656 | 1603421003 | Countersunk-Head Screw |
| 656 | 1603421003 | Countersunk-Head Screw |
| 656 | 1603421003 | Countersunk-Head Screw |
| 66 | 2914211528 | Oval-Head Screw 5X22 |
| 66 | 2914211528 | Oval-Head Screw 5X22 |
| 66 | 2914211528 | Oval-Head Screw 5X22 |
| 67 | 2914201506 | Oval-Head Screw 4X18 Mm,torx T20 |
| 67 | 2914201506 | Oval-Head Screw 4X18 Mm,torx T20 |
| 67 | 2914201506 | Oval-Head Screw 4X18 Mm,torx T20 |
| 68 | 2914201506 | Oval-Head Screw 4X18 Mm,torx T20 |
| 68 | 2914201506 | Oval-Head Screw 4X18 Mm,torx T20 |
| 68 | 2914201506 | Oval-Head Screw 4X18 Mm,torx T20 |
| 69 | 1600100038 | Friction Washer |
| 69 | 1600100038 | Friction Washer |
| 69 | 1600100038 | Friction Washer |
| 7 | 1602002008 | Lever |
| 7 | 1602002008 | Lever |
| 7 | 1602002008 | Lever |
| 70 | 2910601325 | Tapping Screw 4,2X13 |
| 70 | 2910601325 | Tapping Screw 4,2X13 |
| 70 | 2910601325 | Tapping Screw 4,2X13 |
| 79 | 1601118A25 | Reference Plate |
| 79 | 1601118A25 | Reference Plate |
| 79 | 1601118A25 | Reference Plate |
| 80 | 1601118A26 | Manufacturer's nameplate |
| 80 | 1601118A28 | Manufacturer's nameplate |
| 80 | 1601118A29 | Manufacturer's nameplate |
| 802 | 1607000A40 | Alternating-Current Motor |
| 802 | 1607000A40 | Alternating-Current Motor |
| 802 | 1607000A40 | Alternating-Current Motor |
| 806 | 2609005766 | Grommet |
| 806 | 2609005766 | Grommet |
| 806 | 2609005766 | Grommet |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 810 | 1607000A43 | Brush Holder |
| 810 | 1607000A43 | Brush Holder |
| 810 | 1607000A43 | Brush Holder |
| 818 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 818 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 818 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 82 | 1601010009 | Seal Strip |
| 82 | 1601010009 | Seal Strip |
| 82 | 1601010009 | Seal Strip |
| 821 | 1607000A44 | Housing Section |
| 821 | 1607000A44 | Housing Section |
| 821 | 1607000A44 | Housing Section |
| 822 | 1607000884 | Housing Section |
| 822 | 1607000884 | Housing Section |
| 822 | 1607000884 | Housing Section |
| 823 | 1605133046 | Handle |
| 823 | 1605133046 | Handle |
| 823 | 1605133046 | Handle |
| 824 | 1615510004 | Protective Shield |
| 824 | 1615510004 | Protective Shield |
| 824 | 1615510004 | Protective Shield |
| 83 | 1601118A64 | Sticker |
| 83 | 1601118A64 | Sticker |
| 83 | 1601118A64 | Sticker |
| 839 | 1607000A06 | Ring Gear |
| 839 | 1607000A06 | Ring Gear |
| 839 | 1607000A06 | Ring Gear |
| 840 | 1607000885 | Sprocket wheel |
| 840 | 1607000885 | Sprocket wheel |
| 840 | 1607000885 | Sprocket wheel |
| 842 | 1607431000 | Strainer |
| 842 | 1607431000 | Strainer |
| 842 | 1607431000 | Strainer |
| 843 | 1607000A47 | RSV Cap |
| 843 | 1607000A47 | RSV Cap |
| 843 | 1607000A47 | RSV Cap |
| 850 | 1605510329 | Chain Guard |
| 850 | 1605510329 | Chain Guard |
| 850 | 1605510329 | Chain Guard |
| 853 | 1605190190 | Dust-Protection Cover |
| 853 | 1605190190 | Dust-Protection Cover |
| 853 | 1605190190 | Dust-Protection Cover |
| 855 | 1607000A41 | Lever Arm |
| 855 | 1607000A41 | Lever Arm |
| 855 | 1607000A41 | Lever Arm |
| 856 | 1607000A42 | Spring Guide |
| 856 | 1607000A42 | Spring Guide |
| 856 | 1607000A42 | Spring Guide |
| 865 | 1607000887 | Protective Cover |
| 865 | 1607000887 | Protective Cover |
| 865 | 1607000887 | Protective Cover |
| 9 | 1603231020 | Push-Button |
| 9 | 1603231020 | Push-Button |
| 9 | 1603231020 | Push-Button |
