Bosch AKE 35 B

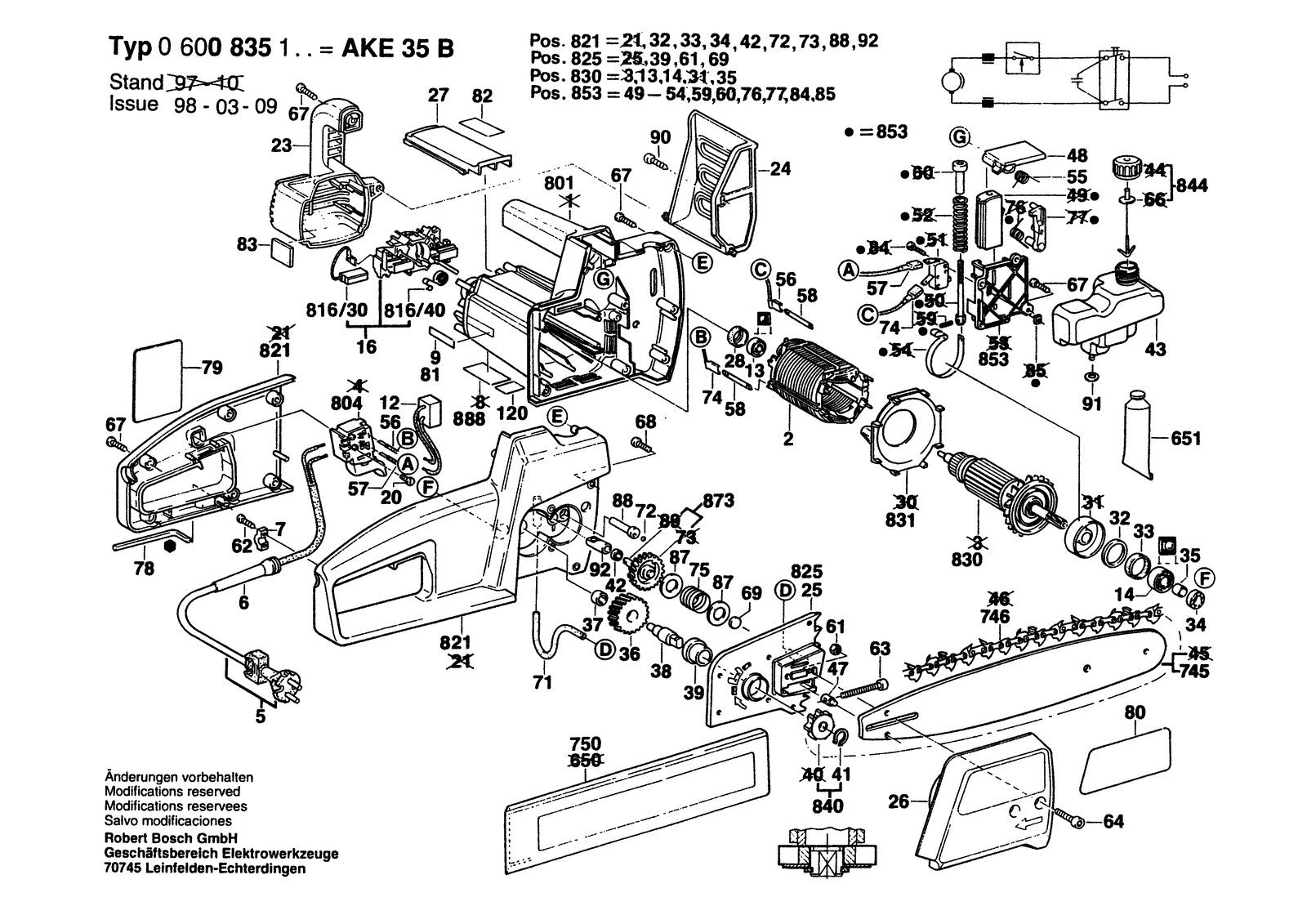

Bosch AKE 35 B chain saw: exploded parts diagram, 1 sheet, 86 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AKE 35 B: 86 positions on 1 sheet
Bosch AKE 35 B parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 12 | 1607328028 | Suppression Filter |
| 13 | 3600905135 | Groove ball bearing |
| 14 | 3600905136 | Groove ball bearing |
| 16 | 1604336016 | Brush Holder |
| 16 | 3604336001 | Brush Holder |
| 2 | 1604220242 | Field 100V |
| 2 | 1604220354 | Field 220-230V |
| 2 | 1604220356 | Field 240V |
| 20 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 23 | 3605500084 | Sealing cap Black |
| 24 | 3602311018 | Protective Shield |
| 26 | 3605500037 | Protective Cover |
| 27 | 3601012000 | Cover Strip |
| 28 | 1600502011 | Intermediate Ring |
| 32 | 3600190007 | Conical Spring Washer |
| 33 | 1600206026 | Intermediate Ring |
| 34 | 1600290016 | Rotary shaft lip seal |
| 35 | 1600300090 | Intermediate Ring |
| 36 | 3606317021 | Cylindrical Gear Z=41 |
| 37 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 38 | 3603124011 | Drive Shaft |
| 39 | 3600323000 | Headed Bush |
| 41 | 2916650903 | Spring retaining ring DIN 471-12X1-FSTM |
| 42 | 3600283034 | Rotary shaft lip seal 8X12X3 |
| 43 | 3607030320 | Oil Reservoir |
| 47 | 3603121004 | Stud bolt |
| 48 | 3601990001 | Swivelling Lever |
| 5 | 1604460123 | Power supply cord GB 240V 4,15M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460454 | Power supply cord |
| 5 | 1614460022 | Power supply cord J 5M 2 X 1,25MM Pvc |
| 5 | 2604460183 | Power supply cord EU 0,4M 2 X 1,0MM H07 Rn-F |
| 5 | 2609005679 | Power supply cord AUS 0,4M 2 X 1,0MM H07 Rn-F |
| 5 | 3604460018 | Power supply cord |
| 5 | 3604460023 | Power supply cord 0,5M Gummi |
| 55 | 3604651002 | Coiled Spring |
| 56 | 3604431018 | Connecting Cable Blue L=420 MM |
| 57 | 3604431012 | Connecting Cable White L=180 MM |
| 58 | 1604477005 | Blade terminal |
| 6 | 1600703025 | Grommet Ø9,6-Ø10,2X70 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 61 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 62 | 3603414026 | Lens Head Screw DIN 7981-ST3,9X16-C-H |
| 63 | 3603410001 | Socket head cap screw |
| 64 | 2910141203 | Hex Socket Head Cap Screw DIN 912-M6X25-8.8 |
| 67 | 2914201506 | Oval-Head Screw 4X18 Mm,torx T20 |
| 68 | 2914411403 | Thread-forming tap. Screw DIN 7500-CM 5X12-ST |
| 69 | 3600000006 | Cover Plate |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 71 | 3600703001 | Hose |
| 72 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 74 | 3604431013 | Connecting Cable White L=260 MM |
| 745 | 3602317035 | Guide Rail 350 MM |
| 746 | 3604730003 | Saw Chain 350 MM |
| 75 | 3604630000 | Compression Spring |
| 750 | 3605500038 | Protective Cover Black |
| 78 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 79 | 3601110064 | Reference Plate |
| 79 | 3601119077 | Reference Plate Caution |
| 79 | 3601119080 | Reference Plate Caution |
| 79 | 3601119081 | Reference Plate Caution |
| 80 | 3601110213 | Sticker |
| 80 | 3601110214 | Sticker |
| 80 | 3601110428 | Sticker |
| 801 | 3605108137 | Motor Housing Green |
| 804 | 1607200107 | On-Off Switch |
| 816/30 | 1607014129 | Carbon-Brush Set |
| 816/40 | 2604652008 | Spiral Spring |
| 821 | 3605190163 | Housing Section Green |
| 825 | 3605500082 | Gear Cover |
| 830 | 3604010026 | Armature 100V |
| 830 | 3604010037 | Armature 220V |
| 830 | 3604010038 | Armature 240V |
| 831 | 3600591002 | Air-Deflector Ring |
| 840 | 3607031199 | Sprocket wheel |
| 844 | 3603317002 | RSV Cap |
| 853 | 3607031182 | Braking Device |
| 87 | 1600101023 | Plain Washer Thick 0,5 MM |
| 873 | 3606317031 | Spindle With Gear Z=38 |
| 88 | 3603121003 | Detent Pin |
| 888 | 160111A3H3 | Nameplate |
| 9 | 1601110483 | Manufacturer's nameplate |
| 90 | 2910211008 | Tapping Screw DIN 7971-BZ2,9X19 |
| 90 | 2914552107 | Microencapsulated Screw DIN 84-AM4X12-8.8 |
| 91 | 3600210015 | O-Ring 4,0X1,0 MM |
| 92 | 3600301007 | Sintered-Metal Bushing 14 MM |
