Bosch AKE 30 LI

Bosch AKE 30 LI chain saw: exploded parts diagram, 1 sheet, 38 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AKE 30 LI: 38 positions on 1 sheet

Bosch AKE 30 LI parts list (1 sheet)

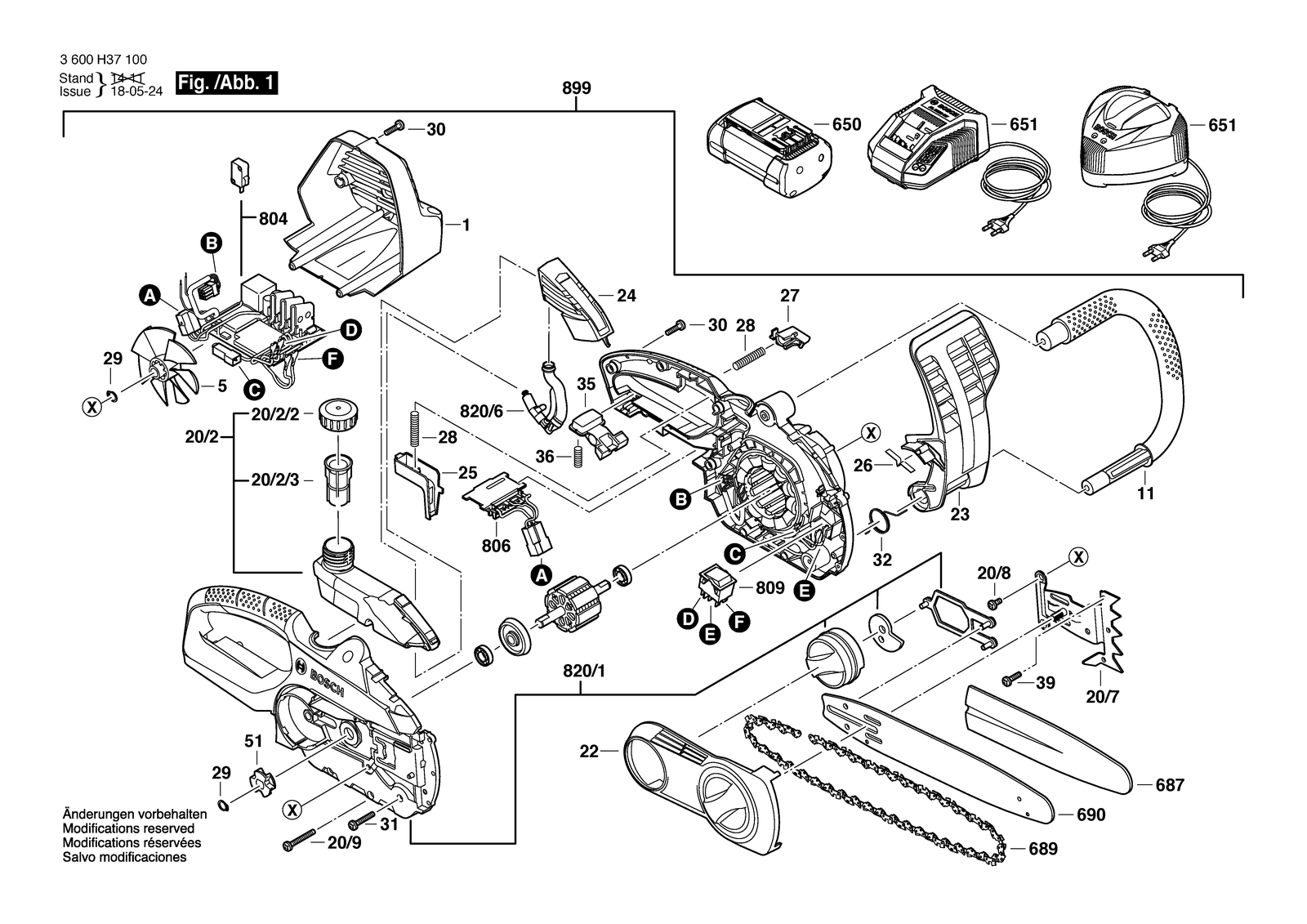

Bosch AKE 30 LI parts diagram, sheet 1
No.Part numberPart name
1F016L67012Motor Hood
11F016L67008Handle
20/2F016L67038Oil Reservoir
20/2/2F016L67042RSV Cap
20/2/31607431000Strainer
20/7F016L67035Spiked bumper
20/82910601325Tapping Screw 4,2X13
20/92603490022Screw 4X16
22F016L67000Protective Cover
23F016L67014Protective Shield
24F016L67015Trim Plate
25F016L67017Switch Segment
262609001047Spring
27F016L67018Interlock
28F016L67016Compression Spring
292916650001Spring retaining ring DIN 471-10X1MM-FST
302603490022Screw 4X16
312603490024Torx Oval-Head Screw 4X25
32F016L67052Torsion Spring
35F016L67051Release Lever
362609003320Compression Spring
392603490022Screw 4X16
5F016L67011Fan
512609001036Sprocket wheel
6501607A350R2Battery Pack GBA 36V 4,0AH H-c
6512607226273Fast Charger EU AL 36V-20/36V
6512607226277Fast Charger Aus AL 36V-20
6512607226459Charger Gb GAL 3680 CV 230/14,4-26V
6512607226465Charger Rok GAL 3680 CV 220/14,4-36V
6871605510329Chain Guard
6892609007363Saw Chain AKE 30, AKE 30 LI
690F016L67010Guide Rail
804F016104147Printed-Board Assembly
806F016104144Wiring Harness
809F016104150Microswitch
820/1F016104148Housing Assembly
820/6F016104149Oil Pump
8990600837102Chain Saw
