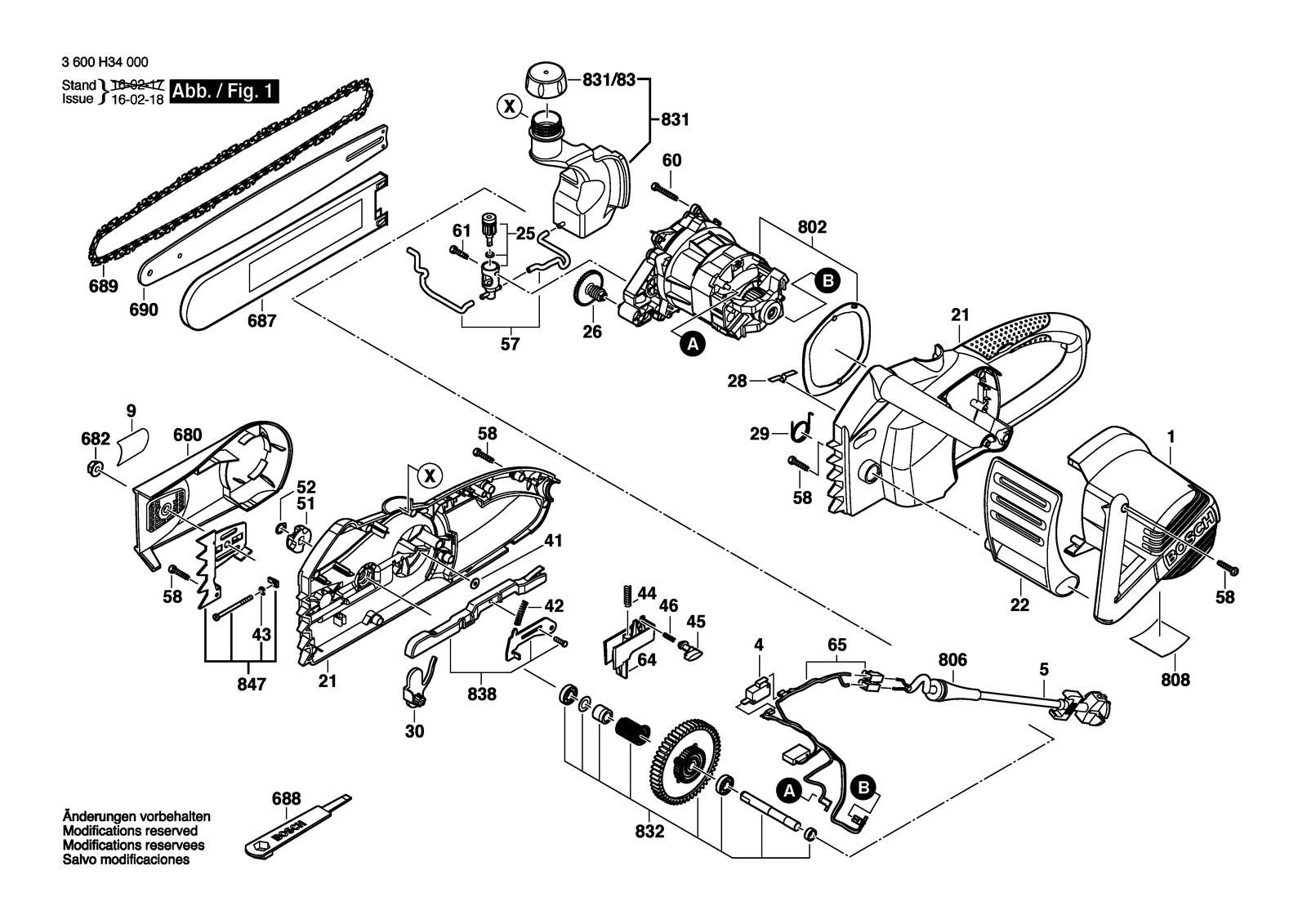

Bosch AKE 30 chain saw: exploded parts diagram, 1 sheet, 137 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AKE 30: 137 positions on 1 sheet
Bosch AKE 30 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609001023 | Motor Housing Green |
| 1 | 2609001023 | Motor Housing Green |
| 1 | 2609001023 | Motor Housing Green |
| 21 | 2609001110 | Housing |
| 21 | 2609001110 | Housing |
| 21 | 2609001110 | Housing |
| 22 | 2609001024 | Protective Shield |
| 22 | 2609001024 | Protective Shield |
| 22 | 2609001024 | Protective Shield |
| 25 | 1600A01A55 | Oil Pump |
| 25 | 1600A01A55 | Oil Pump |
| 25 | 1600A01A55 | Oil Pump |
| 26 | 2609001043 | Worm-Gear Pair |
| 26 | 2609001043 | Worm-Gear Pair |
| 26 | 2609001043 | Worm-Gear Pair |
| 28 | 2609001047 | Spring |
| 28 | 2609001047 | Spring |
| 28 | 2609001047 | Spring |
| 29 | 2609006397 | Torsion Spring |
| 29 | 2609006397 | Torsion Spring |
| 29 | 2609006397 | Torsion Spring |
| 30 | 2609001032 | Lever |
| 30 | 2609001032 | Lever |
| 30 | 2609001032 | Lever |
| 4 | 2609001096 | Switch |
| 4 | 2609001096 | Switch |
| 4 | 2609001096 | Switch |
| 41 | 2916011892 | Plain Washer DIN 9021-B 4,3-ST |
| 41 | 2916011892 | Plain Washer DIN 9021-B 4,3-ST |
| 41 | 2916011892 | Plain Washer DIN 9021-B 4,3-ST |
| 42 | 2609001093 | Spring |
| 42 | 2609001093 | Spring |
| 42 | 2609001093 | Spring |
| 43 | 2916080906 | Locking washer DIN 6799-3,2 |
| 43 | 2916080906 | Locking washer DIN 6799-3,2 |
| 43 | 2916080906 | Locking washer DIN 6799-3,2 |
| 44 | 2609001048 | Compression Spring |
| 44 | 2609001048 | Compression Spring |
| 44 | 2609001048 | Compression Spring |
| 45 | 2609001031 | Safety Switch |
| 45 | 2609001031 | Safety Switch |
| 45 | 2609001031 | Safety Switch |
| 46 | 2609001090 | Compression Spring |
| 46 | 2609001090 | Compression Spring |
| 46 | 2609001090 | Compression Spring |
| 5 | 1604460454 | Power supply cord |
| 5 | 2604460183 | Power supply cord EU 0,4M 2 X 1,0MM H07 Rn-F |
| 5 | 3604460071 | Power supply cord GB 2,65M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460454 | Power supply cord |
| 5 | 2604460183 | Power supply cord EU 0,4M 2 X 1,0MM H07 Rn-F |
| 5 | 3604460071 | Power supply cord GB 2,65M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460454 | Power supply cord |
| 5 | 2604460183 | Power supply cord EU 0,4M 2 X 1,0MM H07 Rn-F |
| 5 | 3604460071 | Power supply cord GB 2,65M 2 X 1,0MM H07 Rn-F |
| 51 | 2609001036 | Sprocket wheel |
| 51 | 2609001036 | Sprocket wheel |
| 51 | 2609001036 | Sprocket wheel |
| 52 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 52 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 52 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 57 | 2609001086 | Pipe |
| 57 | 2609001086 | Pipe |
| 57 | 2609001086 | Pipe |
| 58 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 58 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 58 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 60 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 60 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 60 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 61 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 61 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 61 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 64 | 2609001029 | Switch Segment |
| 64 | 2609001029 | Switch Segment |
| 64 | 2609001029 | Switch Segment |
| 65 | 2609004394 | Suppression Filter |
| 65 | 2609004394 | Suppression Filter |
| 65 | 2609004394 | Suppression Filter |
| 680 | 2609001045 | Protective Cover Black |
| 680 | 2609001045 | Protective Cover Black |
| 680 | 2609001045 | Protective Cover Black |
| 682 | 2609001307 | Hex Nut |
| 682 | 2609001307 | Hex Nut |
| 682 | 2609001307 | Hex Nut |
| 687 | 1605510329 | Chain Guard |
| 687 | 1605510329 | Chain Guard |
| 687 | 1605510329 | Chain Guard |
| 688 | 2609001095 | Offset Screwdriver |
| 688 | 2609001095 | Offset Screwdriver |
| 688 | 2609001095 | Offset Screwdriver |
| 689 | 2609007363 | Saw Chain AKE 30, AKE 30 LI |
| 689 | 2609007364 | Saw Chain AKE 35 |
| 689 | 2609007365 | Saw Chain AKE 40 |
| 689 | 2609007365 | Saw Chain AKE 40 |
| 689 | 2609007363 | Saw Chain AKE 30, AKE 30 LI |
| 690 | 1600A015H6 | Guide Rail 350 MM |
| 690 | 1600A015H7 | Guide Rail 400 MM |
| 690 | 1602317005 | Guide Rail 300 MM |
| 690 | 1600A015H7 | Guide Rail 400 MM |
| 690 | 1602317005 | Guide Rail 300 MM |
| 802 | 2609002728 | Motor |
| 802 | 2609002728 | Motor |
| 802 | 2609002728 | Motor |
| 806 | 2609005766 | Grommet |
| 806 | 2609005766 | Grommet |
| 806 | 2609005766 | Grommet |
| 808 | 2609001613 | Nameplate |
| 808 | 2609001614 | Nameplate |
| 808 | 2609001615 | Nameplate |
| 808 | 2609002882 | Nameplate |
| 808 | 2609002884 | Nameplate |
| 808 | 2609002886 | Nameplate |
| 808 | 2609002995 | Nameplate |
| 808 | 2609002996 | Nameplate |
| 808 | 2609002997 | Nameplate |
| 831 | 2609001599 | Oil Reservoir |
| 831 | 2609001599 | Oil Reservoir |
| 831 | 2609001599 | Oil Reservoir |
| 831/83 | 2609001040 | RSV Cap |
| 831/83 | 2609001040 | RSV Cap |
| 831/83 | 2609001040 | RSV Cap |
| 832 | 2609001100 | Drive Clutch |
| 832 | 2609001100 | Drive Clutch |
| 832 | 2609001100 | Drive Clutch |
| 838 | 2609001597 | Linkage |
| 838 | 2609001597 | Linkage |
| 838 | 2609001597 | Linkage |
| 847 | 1600A00318 | Mounting Plate |
| 847 | 1600A00318 | Mounting Plate |
| 847 | 1600A00318 | Mounting Plate |
| 9 | 2609001617 | Manufacturer's nameplate AKE 30, 1600W |
| 9 | 2609001618 | Manufacturer's nameplate AKE 35, 1600W |
| 9 | 2609001619 | Manufacturer's nameplate AKE 40, 1600W |
| 9 | 2609002667 | Manufacturer's nameplate AKE 40, 1700W |
| 9 | 2609002668 | Manufacturer's nameplate AKE 35, 1600W |
| 9 | 2609001619 | Manufacturer's nameplate AKE 40, 1600W |
| 9 | 2609001617 | Manufacturer's nameplate AKE 30, 1600W |
