Bosch AHW 3/4

Bosch AHW 3/4 tap connection piece for first equipping 3/4": exploded parts diagram, 1 sheet, 6 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AHW 3/4: 6 positions on 1 sheet

Bosch AHW 3/4 parts list (1 sheet)

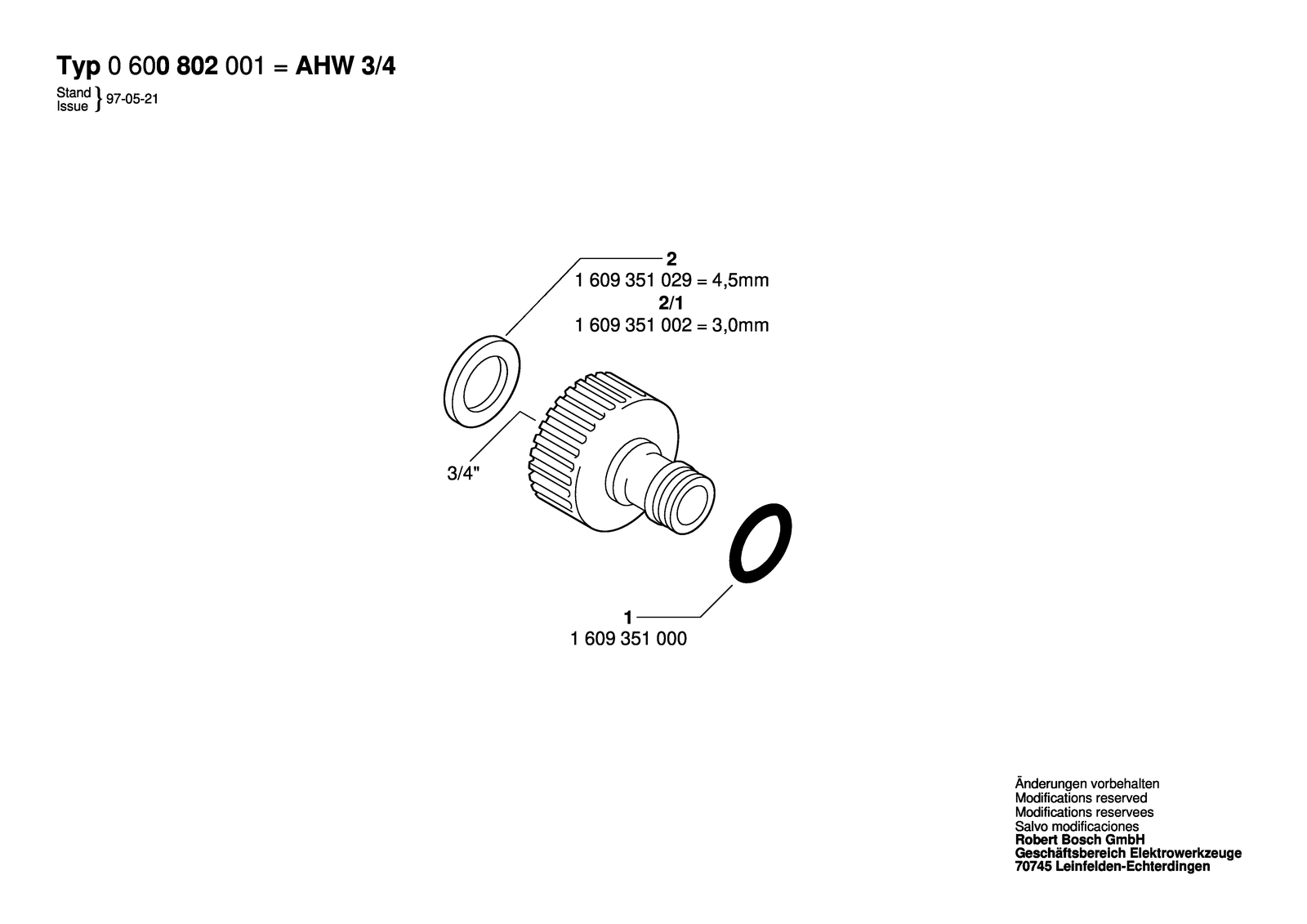

Bosch AHW 3/4 parts diagram, sheet 1
No.Part numberPart name
11609351000O-Ring 11X2,5 MM
11609351000O-Ring 11X2,5 MM
21609351002Gasket Ø15XØ24X3=3/4"
21609351029Gasket Ø15XØ24X4,5=3/4"
21609351029Gasket Ø15XØ24X4,5=3/4"
2/11609351002Gasket Ø15XØ24X3=3/4"
