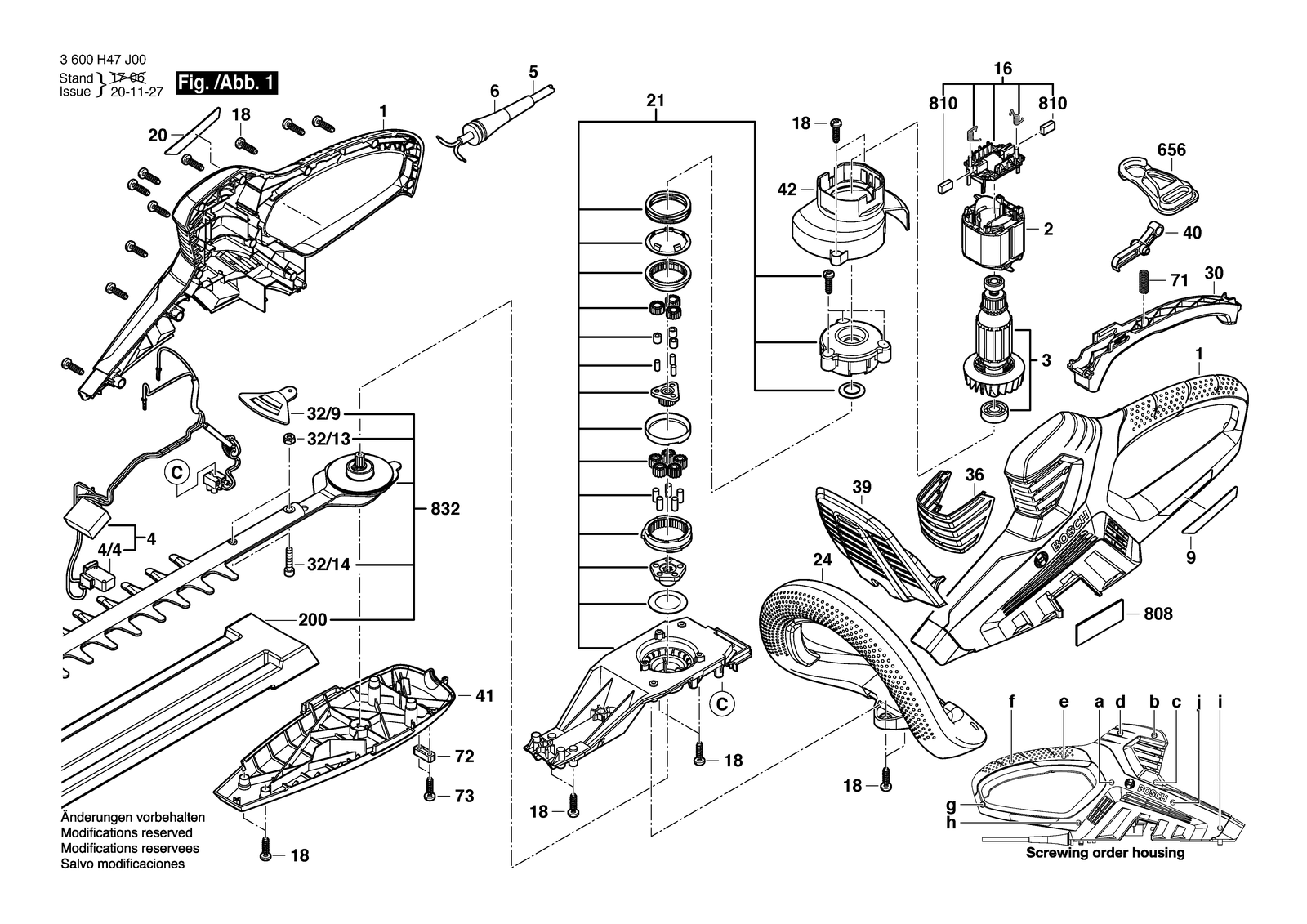

Bosch AHS 65-34 hedge trimmer: exploded parts diagram, 1 sheet, 70 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AHS 65-34: 70 positions on 1 sheet
Bosch AHS 65-34 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609004992 | Housing Section |
| 1 | 2609004992 | Housing Section |
| 16 | 2609005884 | Brush Holder |
| 16 | 2609005884 | Brush Holder |
| 18 | 2603490022 | Screw 4X16 |
| 18 | 2603490022 | Screw 4X16 |
| 2 | 2609005073 | Field 220-240V |
| 2 | 2609005073 | Field 220-240V |
| 20 | 2609005883 | Warning Label |
| 20 | 2609005882 | Warning Label |
| 200 | 2609005517 | Knife Guard |
| 200 | 2609005517 | Knife Guard |
| 21 | 2609005008 | Gear Box |
| 21 | 2609005008 | Gear Box |
| 24 | 2609005132 | Handle |
| 24 | 2609005132 | Handle |
| 3 | 2609005074 | Armature 220-240V |
| 3 | 2609005074 | Armature 220-240V |
| 30 | 2609005006 | Switch Segment |
| 30 | 2609005006 | Switch Segment |
| 32/13 | 160030010N | Bushing |
| 32/13 | 160030010N | Bushing |
| 32/14 | 2609005695 | Torx Oval-Head Screw |
| 32/14 | 2609005695 | Torx Oval-Head Screw |
| 32/9 | 2609005045 | Protector |
| 32/9 | 2609005045 | Protector |
| 36 | 2609004997 | Trim Plate |
| 36 | 2609004997 | Trim Plate |
| 39 | 2609005047 | Guard Segment |
| 39 | 2609005047 | Guard Segment |
| 4 | 2609005076 | Electronic Module |
| 4 | 2609005076 | Electronic Module |
| 4/4 | 2609006801 | Switch |
| 4/4 | 2609006801 | Switch |
| 40 | 2609005007 | Lever |
| 40 | 2609005007 | Lever |
| 41 | 2609004994 | Cover |
| 41 | 2609004994 | Cover |
| 42 | 2609004996 | Fan Housing |
| 42 | 2609004996 | Fan Housing |
| 5 | 1604460184 | Power supply cord GB 240V 10,2M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460437 | Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460182 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460184 | Power supply cord GB 240V 10,2M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460437 | Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460182 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 656 | 3601398000 | Strain-Relief Clamp |
| 656 | 3601398000 | Strain-Relief Clamp |
| 71 | 2604610028 | Compression Spring |
| 71 | 2604610028 | Compression Spring |
| 72 | 2601035001 | Cable Clip |
| 72 | 2601035001 | Cable Clip |
| 73 | 2603490022 | Screw 4X16 |
| 73 | 2603490022 | Screw 4X16 |
| 808 | 160111A4DU | Nameplate |
| 808 | 160111A4DW | Nameplate |
| 808 | 160111A4DY | Nameplate |
| 808 | 160111A4E0 | Nameplate |
| 808 | 160111A4E2 | Nameplate |
| 808 | 160111A4E4 | Nameplate |
| 810 | 1607000CE3 | Carbon-Brush Set |
| 810 | 1607000CE3 | Carbon-Brush Set |
| 832 | 2609005915 | Blade 65 CM |
| 832 | 2609005916 | Blade 70 CM |
| 9 | 2609005478 | Manufacturer's nameplate AHS 65-34 |
| 9 | 160111C0R6 | Manufacturer's nameplate AHS 70-700 |
| 9 | 161111C03L | Manufacturer's nameplate AHS 680-34 |
| 9 | 2609005479 | Manufacturer's nameplate AHS 70-34 |
