Bosch AHS 600

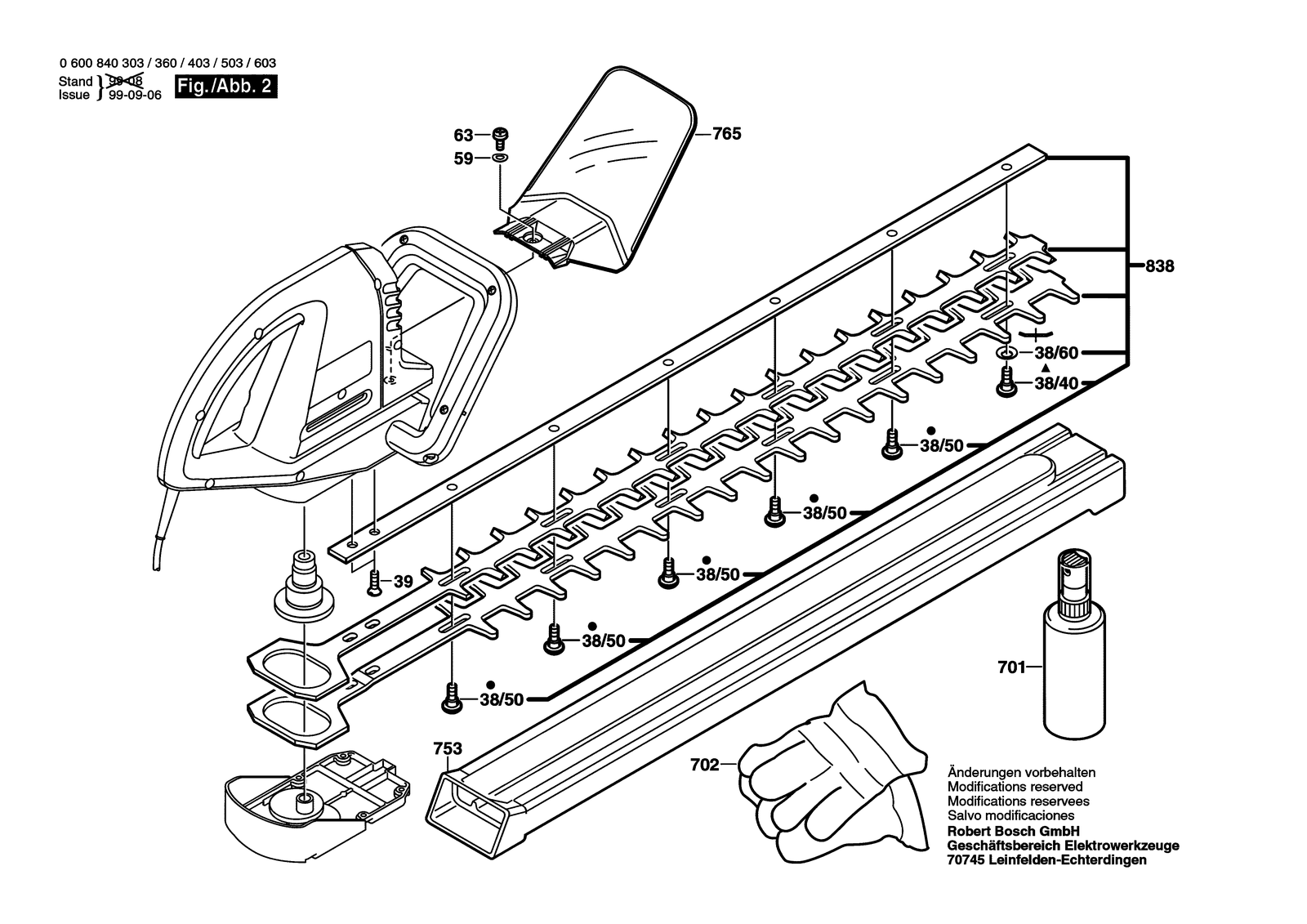

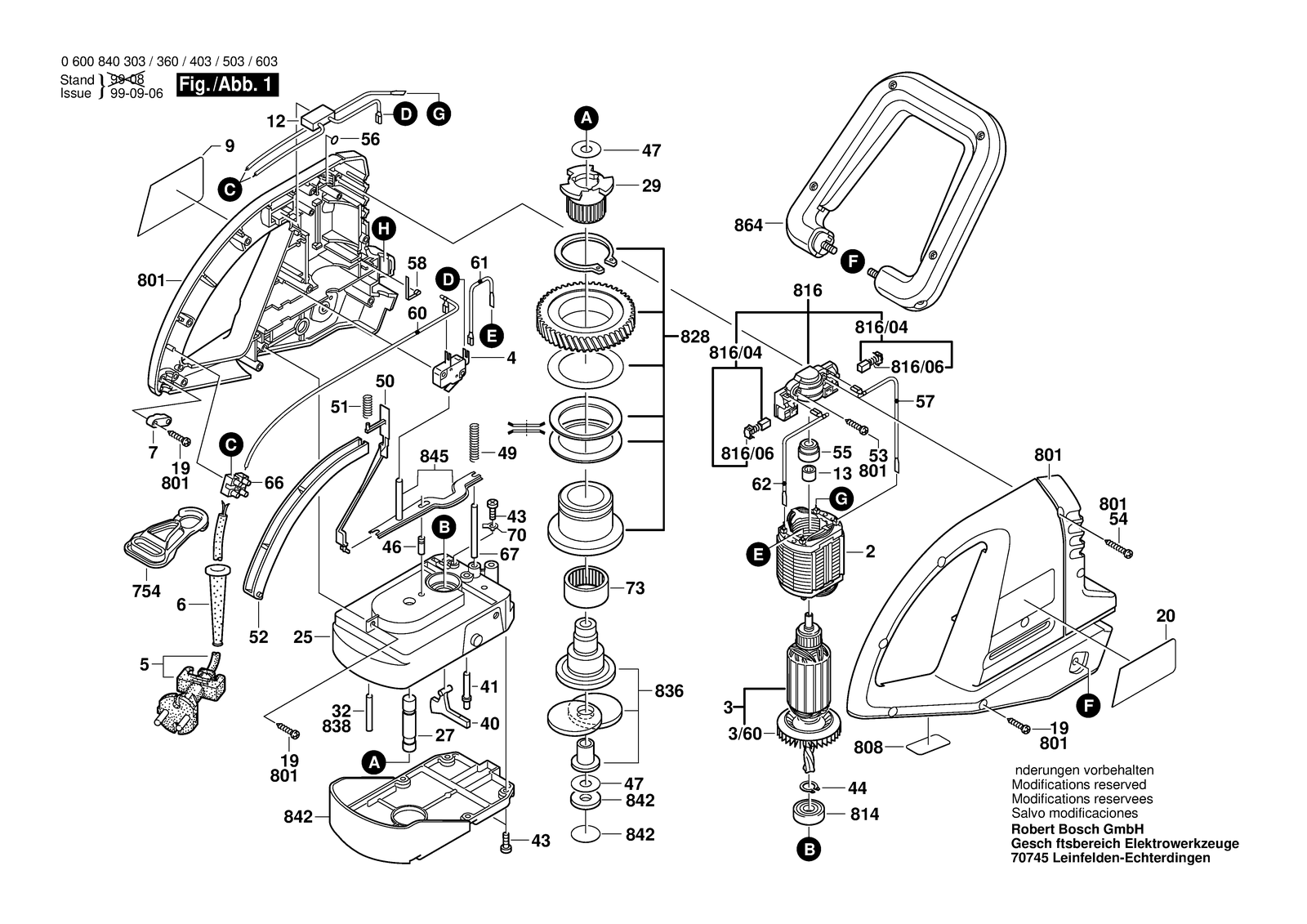

Bosch AHS 600 dummy: exploded parts diagram, 2 sheets, 342 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AHS 600: 342 positions on 2 sheets
Bosch AHS 600 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 12 | 2607329133 | Suppression Capacitor |
| 12 | 2607329133 | Suppression Capacitor |
| 12 | 2607329133 | Suppression Capacitor |
| 12 | 2607329133 | Suppression Capacitor |
| 12 | 2607329133 | Suppression Capacitor |
| 13 | 2600917002 | Needle bearing |
| 13 | 2600917002 | Needle bearing |
| 13 | 2600917002 | Needle bearing |
| 13 | 2600917002 | Needle bearing |
| 13 | 2605805004 | Flanged Bearing |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220429 | Field 220-230V |
| 2 | 2604220429 | Field 220-230V |
| 2 | 2604220429 | Field 220-230V |
| 2 | 2604220429 | Field 220-230V |
| 2 | 2604220429 | Field 220-230V |
| 20 | 2601118184 | Sticker Shadow Side |
| 20 | 2601118281 | Sticker Shadow Side |
| 20 | 2601118281 | Sticker Shadow Side |
| 20 | 2601118184 | Sticker Shadow Side |
| 20 | 2601118281 | Sticker Shadow Side |
| 20 | 2601118184 | Sticker Shadow Side |
| 20 | 2601118281 | Sticker Shadow Side |
| 20 | 2601118184 | Sticker Shadow Side |
| 20 | 2601118281 | Sticker Shadow Side |
| 25 | 2605806407 | Gear Housing |
| 25 | 2605806407 | Gear Housing |
| 25 | 2605806407 | Gear Housing |
| 25 | 2605806407 | Gear Housing |
| 25 | 2605806407 | Gear Housing |
| 27 | 2603120041 | Axle |
| 27 | 2603120041 | Axle |
| 27 | 2603120041 | Axle |
| 27 | 2603120041 | Axle |
| 27 | 2603120041 | Axle |
| 29 | 2606490054 | Clutch Element |
| 29 | 2606490054 | Clutch Element |
| 29 | 2606490054 | Clutch Element |
| 29 | 2606490054 | Clutch Element |
| 29 | 2606490054 | Clutch Element |
| 3 | 2604010870 | Armature 230V |
| 3 | 2604010871 | Armature 240V |
| 3 | 2604010870 | Armature 230V |
| 3 | 2604010870 | Armature 230V |
| 3 | 2604010871 | Armature 240V |
| 3 | 2604010870 | Armature 230V |
| 3 | 2604010871 | Armature 240V |
| 3 | 2604010870 | Armature 230V |
| 3 | 2604010871 | Armature 240V |
| 3/60 | 2606610068 | Fan |
| 3/60 | 2606610068 | Fan |
| 3/60 | 2606610068 | Fan |
| 3/60 | 2606610068 | Fan |
| 3/60 | 2606610068 | Fan |
| 32 | 2603001005 | Brake Spring |
| 32 | 2603001005 | Brake Spring |
| 32 | 2603001005 | Brake Spring |
| 32 | 2603001005 | Brake Spring |
| 32 | 2603001005 | Brake Spring |
| 38/40 | 2603413031 | Thread-forming tap. Screw |
| 38/40 | 2603413031 | Thread-forming tap. Screw |
| 38/40 | 2603413031 | Thread-forming tap. Screw |
| 38/40 | 2603413031 | Thread-forming tap. Screw |
| 38/40 | 2603413031 | Thread-forming tap. Screw |
| 38/50 | 2603413032 | Thread-forming tap. Screw |
| 38/50 | 2603413032 | Thread-forming tap. Screw |
| 38/50 | 2603413032 | Thread-forming tap. Screw |
| 38/50 | 2603413032 | Thread-forming tap. Screw |
| 38/50 | 2603413032 | Thread-forming tap. Screw |
| 38/60 | 2600200036 | Cupped Washer |
| 38/60 | 2600200036 | Cupped Washer |
| 38/60 | 2600200036 | Cupped Washer |
| 38/60 | 2600200036 | Cupped Washer |
| 38/60 | 2600200036 | Cupped Washer |
| 39 | 2603421223 | Countersunk-Head Screw Torx T25 |
| 39 | 2603421223 | Countersunk-Head Screw Torx T25 |
| 39 | 2603421223 | Countersunk-Head Screw Torx T25 |
| 39 | 2603421223 | Countersunk-Head Screw Torx T25 |
| 39 | 2603421223 | Countersunk-Head Screw Torx T25 |
| 4 | 2607200291 | On-Off Switch |
| 4 | 2607200291 | On-Off Switch |
| 4 | 2607200291 | On-Off Switch |
| 4 | 2607200291 | On-Off Switch |
| 4 | 2607200291 | On-Off Switch |
| 40 | 2603239020 | Control Lever |
| 40 | 2603239020 | Control Lever |
| 40 | 2603239020 | Control Lever |
| 40 | 2603239020 | Control Lever |
| 40 | 2603239020 | Control Lever |
| 41 | 2603123020 | Switch Slide |
| 41 | 2603123020 | Switch Slide |
| 41 | 2603123020 | Switch Slide |
| 41 | 2603123020 | Switch Slide |
| 41 | 2603123020 | Switch Slide |
| 43 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 43 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 43 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 43 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 43 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 44 | 2916640006 | Spring retaining ring DIN 471 9X1MM |
| 44 | 2916640006 | Spring retaining ring DIN 471 9X1MM |
| 44 | 2916640006 | Spring retaining ring DIN 471 9X1MM |
| 44 | 2916640006 | Spring retaining ring DIN 471 9X1MM |
| 44 | 2916640006 | Spring retaining ring DIN 471 9X1MM |
| 46 | 2603123021 | Crank Rod |
| 46 | 2603123021 | Crank Rod |
| 46 | 2603123021 | Crank Rod |
| 46 | 2603123021 | Crank Rod |
| 46 | 2603123021 | Crank Rod |
| 47 | 2600101614 | Shim 0,2 MM |
| 47 | 2600101654 | Shim 0,3 MM |
| 47 | 2600101614 | Shim 0,2 MM |
| 47 | 2600101654 | Shim 0,3 MM |
| 47 | 2600101614 | Shim 0,2 MM |
| 47 | 2600101654 | Shim 0,3 MM |
| 47 | 2600101614 | Shim 0,2 MM |
| 47 | 2600101654 | Shim 0,3 MM |
| 47 | 2600101614 | Shim 0,2 MM |
| 47 | 2600101654 | Shim 0,3 MM |
| 49 | 2604610029 | Compression Spring |
| 49 | 2604610029 | Compression Spring |
| 49 | 2604610029 | Compression Spring |
| 49 | 2604610029 | Compression Spring |
| 49 | 2604610029 | Compression Spring |
| 5 | 1604460437 | Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460104 | Power supply cord I 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460133 | Power supply cord |
| 5 | 2604460183 | Power supply cord EU 0,4M 2 X 1,0MM H07 Rn-F |
| 5 | 2604460184 | Power supply cord 0,46M |
| 5 | 2604460255 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460437 | Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460437 | Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460104 | Power supply cord I 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460133 | Power supply cord |
| 5 | 2604460183 | Power supply cord EU 0,4M 2 X 1,0MM H07 Rn-F |
| 5 | 2604460184 | Power supply cord 0,46M |
| 5 | 2604460255 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460437 | Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460104 | Power supply cord I 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460133 | Power supply cord |
| 5 | 2604460183 | Power supply cord EU 0,4M 2 X 1,0MM H07 Rn-F |
| 5 | 2604460184 | Power supply cord 0,46M |
| 5 | 2604460255 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460437 | Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460104 | Power supply cord I 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460133 | Power supply cord |
| 5 | 2604460183 | Power supply cord EU 0,4M 2 X 1,0MM H07 Rn-F |
| 5 | 2604460184 | Power supply cord 0,46M |
| 5 | 2604460255 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 50 | 2608040060 | Shifter Rod |
| 50 | 2608040060 | Shifter Rod |
| 50 | 2608040060 | Shifter Rod |
| 50 | 2608040060 | Shifter Rod |
| 50 | 2608040060 | Shifter Rod |
| 51 | 2604610027 | Compression Spring |
| 51 | 2604610027 | Compression Spring |
| 51 | 2604610027 | Compression Spring |
| 51 | 2604610027 | Compression Spring |
| 51 | 2604610027 | Compression Spring |
| 52 | 2608001011 | Switch Segment |
| 52 | 2608001011 | Switch Segment |
| 52 | 2608001011 | Switch Segment |
| 52 | 2608001011 | Switch Segment |
| 52 | 2608001011 | Switch Segment |
| 53 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 53 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 53 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 53 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 53 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 54 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 54 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 54 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 54 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 54 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 55 | 2600222002 | Bearing Sleeve |
| 55 | 2600222002 | Bearing Sleeve |
| 55 | 2600222002 | Bearing Sleeve |
| 55 | 2600222002 | Bearing Sleeve |
| 55 | 2600222002 | Bearing Sleeve |
| 56 | 1900210000 | O-Ring 5,0X1,5 MM |
| 56 | 1900210000 | O-Ring 5,0X1,5 MM |
| 56 | 1900210000 | O-Ring 5,0X1,5 MM |
| 56 | 1900210000 | O-Ring 5,0X1,5 MM |
| 56 | 1900210000 | O-Ring 5,0X1,5 MM |
| 57 | 2604448190 | Connecting Cable White L=50 MM |
| 57 | 2604448190 | Connecting Cable White L=50 MM |
| 57 | 2604448190 | Connecting Cable White L=50 MM |
| 57 | 2604448190 | Connecting Cable White L=50 MM |
| 57 | 2604448190 | Connecting Cable White L=50 MM |
| 58 | 2601329057 | Contact Spring |
| 58 | 2601329057 | Contact Spring |
| 58 | 2601329057 | Contact Spring |
| 58 | 2601329057 | Contact Spring |
| 58 | 2601329057 | Contact Spring |
| 59 | 2916061006 | Spring Washer DIN 137-A 5-FST |
| 59 | 2916061006 | Spring Washer DIN 137-A 5-FST |
| 59 | 2916061006 | Spring Washer DIN 137-A 5-FST |
| 59 | 2916061006 | Spring Washer DIN 137-A 5-FST |
| 59 | 2916061006 | Spring Washer DIN 137-A 5-FST |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 60 | 2604448162 | Connecting Cable White L=273 MM |
| 60 | 2604448162 | Connecting Cable White L=273 MM |
| 60 | 2604448162 | Connecting Cable White L=273 MM |
| 60 | 2604448162 | Connecting Cable White L=273 MM |
| 60 | 2604448162 | Connecting Cable White L=273 MM |
| 61 | 2604448034 | Connecting Cable White L=88 MM |
| 61 | 2604448034 | Connecting Cable White L=88 MM |
| 61 | 2604448034 | Connecting Cable White L=88 MM |
| 61 | 2604448034 | Connecting Cable White L=88 MM |
| 61 | 2604448034 | Connecting Cable White L=88 MM |
| 62 | 2604448123 | Connecting Cable White L=73 MM |
| 62 | 2604448123 | Connecting Cable White L=73 MM |
| 62 | 2604448123 | Connecting Cable White L=73 MM |
| 62 | 2604448123 | Connecting Cable White L=73 MM |
| 62 | 2604448123 | Connecting Cable White L=73 MM |
| 63 | 2910641152 | Oval-Head Screw DIN 7985-M5X10-4.8 |
| 63 | 2910641152 | Oval-Head Screw DIN 7985-M5X10-4.8 |
| 63 | 2910641152 | Oval-Head Screw DIN 7985-M5X10-4.8 |
| 63 | 2910641152 | Oval-Head Screw DIN 7985-M5X10-4.8 |
| 63 | 2910641152 | Oval-Head Screw DIN 7985-M5X10-4.8 |
| 66 | 2604490012 | Socket-Terminal Strip |
| 66 | 2604490012 | Socket-Terminal Strip |
| 66 | 2604490012 | Socket-Terminal Strip |
| 66 | 2604490012 | Socket-Terminal Strip |
| 66 | 2604490012 | Socket-Terminal Strip |
| 67 | 2609002714 | Straight Pin |
| 67 | 2609002714 | Straight Pin |
| 67 | 2609002714 | Straight Pin |
| 67 | 2609002714 | Straight Pin |
| 67 | 2609002714 | Straight Pin |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 70 | 2601098019 | Tab Washer |
| 70 | 2601098019 | Tab Washer |
| 70 | 2601098019 | Tab Washer |
| 70 | 2601098019 | Tab Washer |
| 70 | 2601098019 | Tab Washer |
| 701 | 1609200399 | Oil Spray Tin |
| 701 | 1609200399 | Oil Spray Tin |
| 701 | 1609200399 | Oil Spray Tin |
| 701 | 1609200399 | Oil Spray Tin |
| 701 | 1609200399 | Oil Spray Tin |
| 702 | 2607000134 | Protective Glove |
| 702 | 2607000134 | Protective Glove |
| 702 | 2607000134 | Protective Glove |
| 702 | 2607000134 | Protective Glove |
| 702 | 2607000134 | Protective Glove |
| 753 | 2605411040 | Oil Reservoir Black |
| 753 | 2605411086 | Oil Reservoir |
| 753 | 2605411040 | Oil Reservoir Black |
| 753 | 2605411040 | Oil Reservoir Black |
| 753 | 2605411040 | Oil Reservoir Black |
| 754 | 2601398012 | Strain-Relief Clamp |
| 754 | 3601398000 | Strain-Relief Clamp |
| 754 | 2601398012 | Strain-Relief Clamp |
| 754 | 2601398012 | Strain-Relief Clamp |
| 754 | 2601398012 | Strain-Relief Clamp |
| 765 | 2607001151 | Protective Shield |
| 765 | 2607001151 | Protective Shield |
| 765 | 2607001151 | Protective Shield |
| 765 | 2607001151 | Protective Shield |
| 765 | 2607001151 | Protective Shield |
| 801 | 2605104836 | Housing Section Green |
| 801 | 2605104833 | Housing Section Red |
| 801 | 2605104836 | Housing Section Green |
| 801 | 2605104836 | Housing Section Green |
| 801 | 2605104836 | Housing Section Green |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3HC | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 814 | 2600905039 | Groove ball bearing 9X24X7 |
| 814 | 2600905039 | Groove ball bearing 9X24X7 |
| 814 | 2600905039 | Groove ball bearing 9X24X7 |
| 814 | 2600905039 | Groove ball bearing 9X24X7 |
| 814 | 2600905039 | Groove ball bearing 9X24X7 |
| 816 | 2609992604 | Brush Plate |
| 816 | 2609992604 | Brush Plate |
| 816 | 2609992604 | Brush Plate |
| 816 | 2609992604 | Brush Plate |
| 816 | 2609992604 | Brush Plate |
| 816/04 | 2607014001 | Carbon-Brush Set |
| 816/04 | 2607014001 | Carbon-Brush Set |
| 816/04 | 2607014001 | Carbon-Brush Set |
| 816/04 | 2607014001 | Carbon-Brush Set |
| 816/04 | 2607014001 | Carbon-Brush Set |
| 816/06 | 2601322013 | Ratchet Cap |
| 816/06 | 2601322013 | Ratchet Cap |
| 816/06 | 2601322013 | Ratchet Cap |
| 816/06 | 2601322013 | Ratchet Cap |
| 816/06 | 2601322013 | Ratchet Cap |
| 828 | 2606490916 | Sliding Clutch |
| 828 | 2606490916 | Sliding Clutch |
| 828 | 2606490916 | Sliding Clutch |
| 828 | 2606490916 | Sliding Clutch |
| 828 | 2606490916 | Sliding Clutch |
| 836 | 2602210908 | Eccentric |
| 836 | 2602210908 | Eccentric |
| 836 | 2602210908 | Eccentric |
| 836 | 2602210908 | Eccentric |
| 836 | 2602210908 | Eccentric |
| 838 | 2607001231 | Set of knives Black 600 MM |
| 838 | 2607001231 | Set of knives Black 600 MM |
| 838 | 2607001232 | Set of knives Black 700 MM |
| 838 | 2607001231 | Set of knives Black 600 MM |
| 838 | 2607001232 | Set of knives Black 700 MM |
| 842 | 2605500132 | Gear Cover |
| 842 | 2605500132 | Gear Cover |
| 842 | 2605500132 | Gear Cover |
| 842 | 2605500132 | Gear Cover |
| 842 | 2605500132 | Gear Cover |
| 845 | 2601901003 | Switching Element |
| 845 | 2601901003 | Switching Element |
| 845 | 2601901003 | Switching Element |
| 845 | 2601901003 | Switching Element |
| 845 | 2601901003 | Switching Element |
| 864 | 2602025107 | Auxiliary Handle Black |
| 864 | 2602025107 | Auxiliary Handle Black |
| 864 | 2602025107 | Auxiliary Handle Black |
| 864 | 2602025107 | Auxiliary Handle Black |
| 864 | 2602025107 | Auxiliary Handle Black |
| 9 | 2601118183 | Sticker Sunny Side |
| 9 | 2601118757 | Manufacturer's nameplate Sunny Side |
| 9 | 2601118195 | Sticker Sunny Side |
| 9 | 2601117072 | Manufacturer's nameplate |
| 9 | 2601117073 | Manufacturer's nameplate Sunny Side |
Selected parts0
