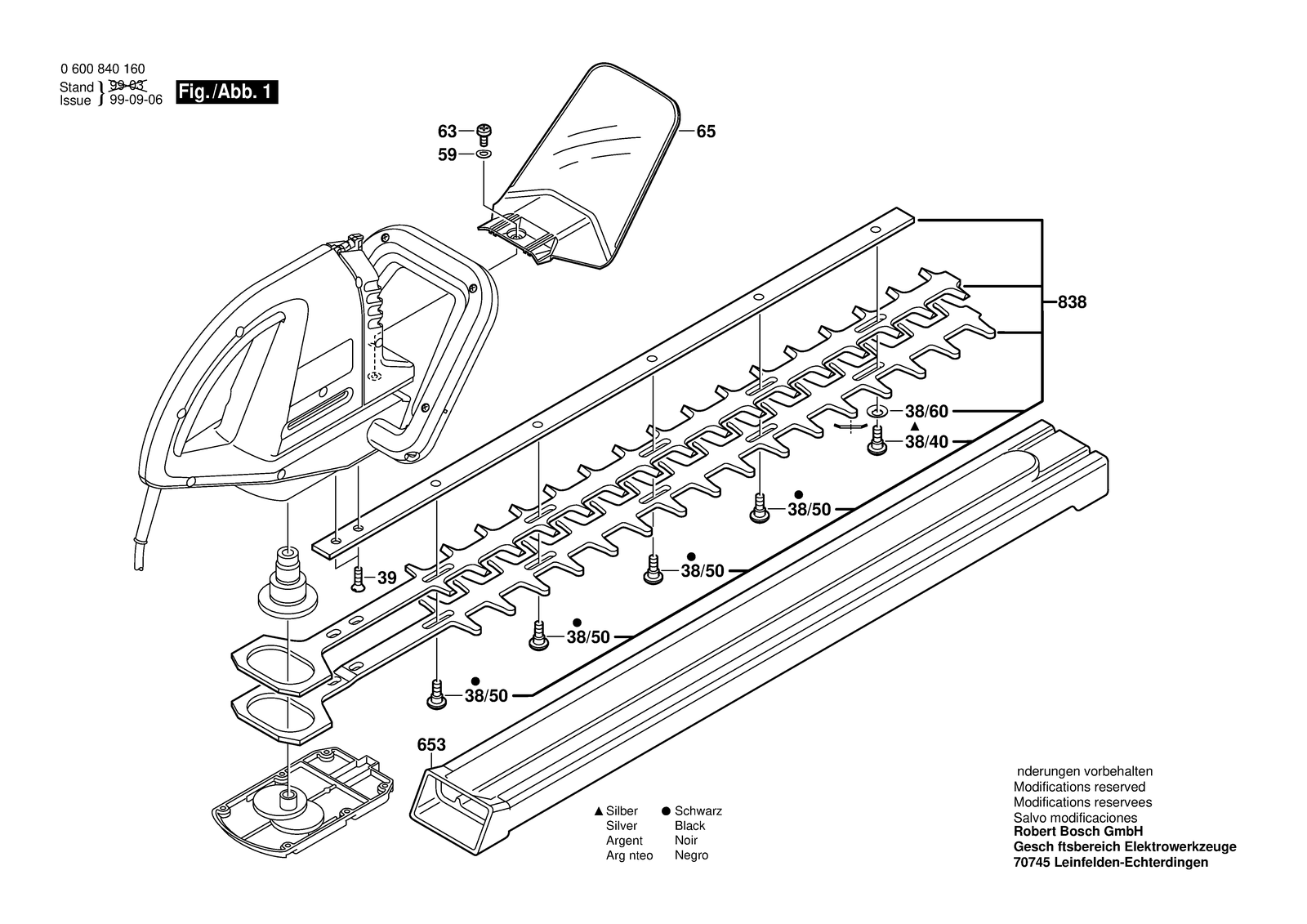

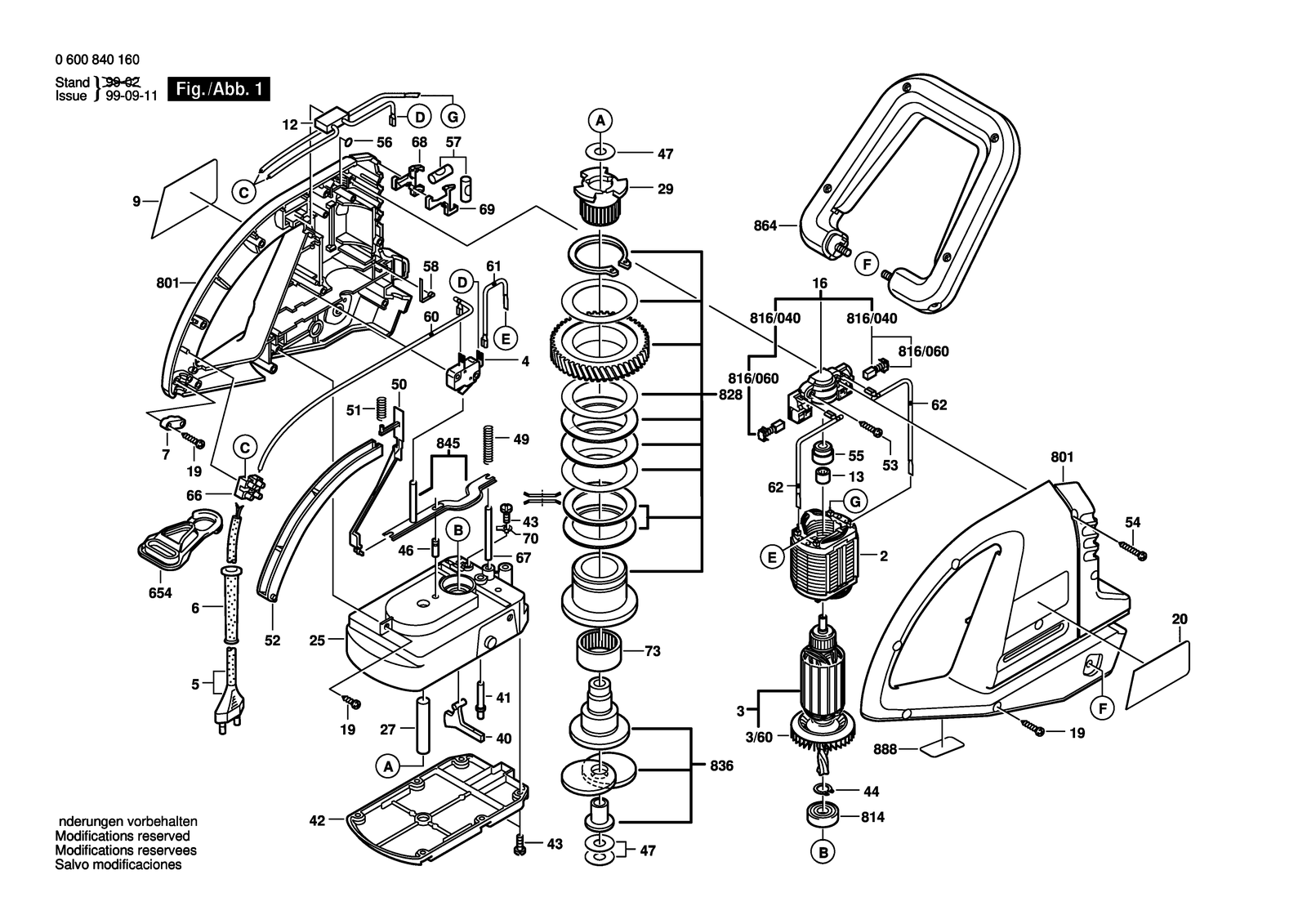

Bosch AHS 600 hedge trimmer: exploded parts diagram, 2 sheets, 62 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AHS 600: 62 positions on 2 sheets
Bosch AHS 600 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 12 | 2607329133 | Suppression Capacitor |
| 13 | 2600917002 | Needle bearing |
| 16 | 2609992604 | Brush Plate |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220429 | Field 220-230V |
| 20 | 2601118281 | Sticker Shadow Side |
| 25 | 2605806407 | Gear Housing |
| 27 | 2603120038 | Axle |
| 29 | 2606490054 | Clutch Element |
| 3 | 2604010870 | Armature 230V |
| 3/60 | 2606610068 | Fan |
| 38/40 | 2603413031 | Thread-forming tap. Screw |
| 38/50 | 2603413032 | Thread-forming tap. Screw |
| 38/60 | 2600200036 | Cupped Washer |
| 39 | 2603421223 | Countersunk-Head Screw Torx T25 |
| 4 | 2607200291 | On-Off Switch |
| 40 | 2603239020 | Control Lever |
| 41 | 2603123020 | Switch Slide |
| 42 | 2605500121 | Gear Cover |
| 43 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 44 | 2916640006 | Spring retaining ring DIN 471 9X1MM |
| 46 | 2603123021 | Crank Rod |
| 47 | 2600101614 | Shim 0,2 MM |
| 47 | 2600101654 | Shim 0,3 MM |
| 49 | 2604610029 | Compression Spring |
| 5 | 1604460437 | Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F |
| 50 | 2608040060 | Shifter Rod |
| 51 | 2604610027 | Compression Spring |
| 52 | 2608001011 | Switch Segment |
| 53 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 54 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 55 | 2600222002 | Bearing Sleeve |
| 56 | 1900210000 | O-Ring 5,0X1,5 MM |
| 57 | 2607233010 | Support |
| 58 | 2601329057 | Contact Spring |
| 59 | 2916060006 | Spring Washer DIN 137-A5-FST |
| 6 | 2600703007 | Grommet Ø7 MM |
| 60 | 2604448162 | Connecting Cable White L=273 MM |
| 61 | 2604448034 | Connecting Cable White L=88 MM |
| 62 | 2604448109 | Connecting Cable White L=115 MM |
| 63 | 2910641152 | Oval-Head Screw DIN 7985-M5X10-4.8 |
| 65 | 2607001151 | Protective Shield |
| 653 | 2605411086 | Oil Reservoir |
| 654 | 3601398000 | Strain-Relief Clamp |
| 66 | 1901091101 | Socket-Terminal Strip 2-POLE |
| 67 | 2609002714 | Straight Pin |
| 68 | 2608005039 | Support |
| 69 | 2608005040 | Support |
| 7 | 2601035001 | Cable Clip |
| 70 | 2601098019 | Tab Washer |
| 801 | 2605104838 | Housing Section Red |
| 814 | 2600905039 | Groove ball bearing 9X24X7 |
| 816/040 | 2604321917 | Carbon-Brush Set |
| 816/060 | 2601322013 | Ratchet Cap |
| 816/060 | 2601329051 | Ratchet Cap |
| 828 | 2606490916 | Sliding Clutch |
| 836 | 2602210901 | Eccentric |
| 838 | 2607001232 | Set of knives Black 700 MM |
| 845 | 2601901003 | Switching Element |
| 864 | 2602025107 | Auxiliary Handle Black |
| 888 | 160111A3HC | Nameplate |
| 9 | 2601118757 | Manufacturer's nameplate Sunny Side |
