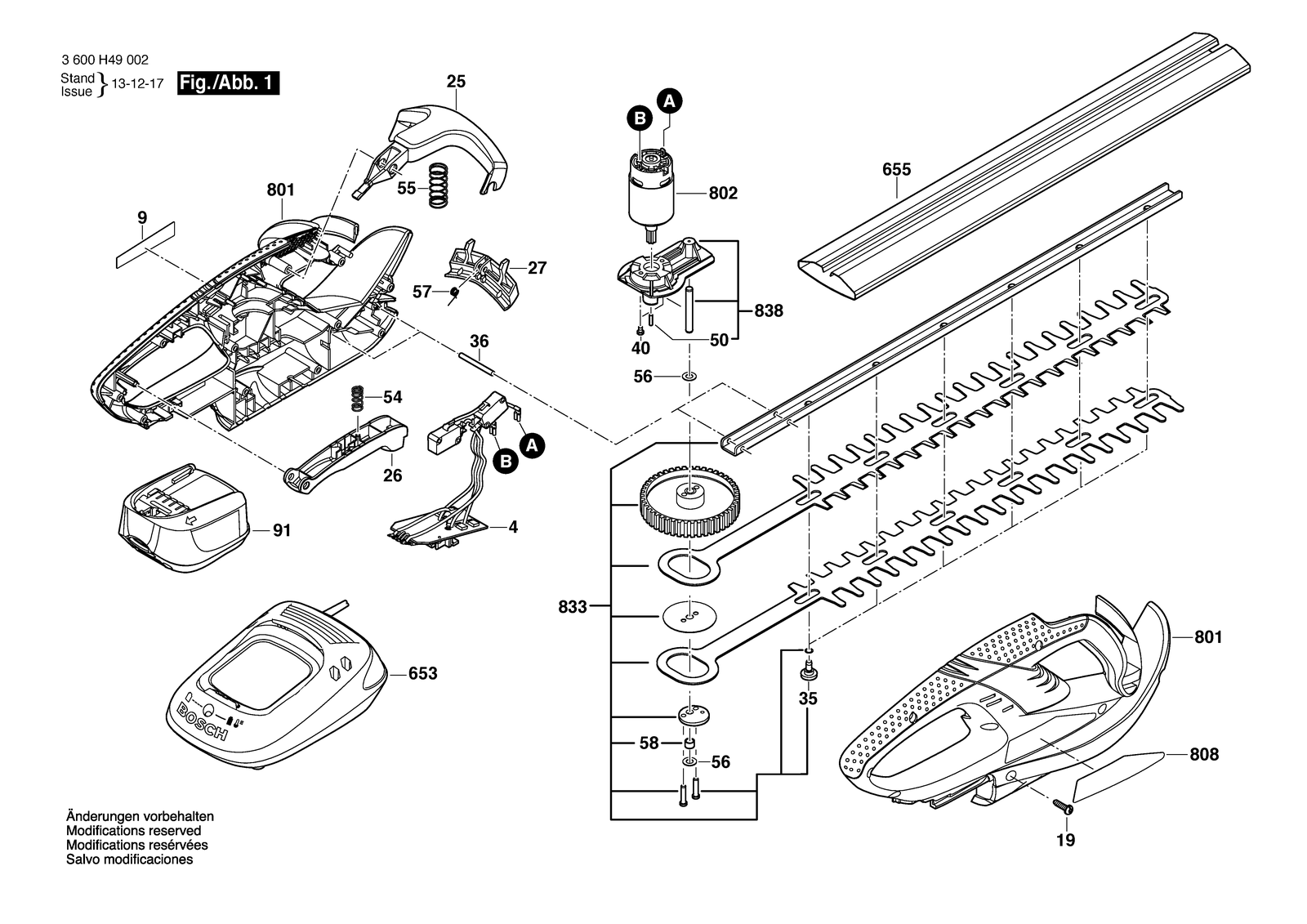

Bosch AHS 52 LI hedge trimmer: exploded parts diagram, 1 sheet, 57 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AHS 52 LI: 57 positions on 1 sheet
Bosch AHS 52 LI parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 25 | 2609002388 | Switch Segment |
| 25 | 2609002388 | Switch Segment |
| 26 | 2609002389 | Switch Segment |
| 26 | 2609002389 | Switch Segment |
| 27 | 2609002390 | Push-Button |
| 27 | 2609002390 | Push-Button |
| 35 | 2609002473 | Thread-forming tap. Screw |
| 35 | 2609002473 | Thread-forming tap. Screw |
| 36 | 2917650106 | Straight Pin 4H8X40-ST |
| 36 | 2917650106 | Straight Pin 4H8X40-ST |
| 4 | 2609006363 | Electronic Module |
| 4 | 2609006363 | Electronic Module |
| 40 | 2603414048 | Torx SH cap screw M3X5-8.8-Z |
| 40 | 2603414048 | Torx SH cap screw M3X5-8.8-Z |
| 50 | 2609003105 | Bolt |
| 50 | 2609003105 | Bolt |
| 54 | 2604610028 | Compression Spring |
| 54 | 2604610028 | Compression Spring |
| 55 | 2609003057 | Compression Spring |
| 55 | 2609003057 | Compression Spring |
| 56 | 2600100040 | Shim |
| 56 | 2600100040 | Shim |
| 57 | 2609002391 | Torsion Spring |
| 57 | 2609002391 | Torsion Spring |
| 58 | 2609001120 | Spacer Tube |
| 58 | 2609001120 | Spacer Tube |
| 653 | 2607225471 | Fast Charger EU AL 2215 CV 230/14,4-18V, 1H |
| 653 | 2607225475 | Charger Aus AL 2215 CV 240/14,4-18V, 1H |
| 653 | 2607225481 | Fast Charger J AL 2215 CV 100/14,4-18V, 1H |
| 653 | 2607225843 | Fast Charger Rok AL 2204 CV 230/14,4-18V 3H |
| 653 | 2607225967 | Charger Gb AL 1830 CV 230/14,4-18V 1H |
| 653 | 2607226517 | Charger EU AL 18V-20 230V 2A |
| 653 | 2607225273 | Fast Charger EU AL 2204 CV 230/14,4-18V 3H |
| 653 | 2607225471 | Fast Charger EU AL 2215 CV 230/14,4-18V, 1H |
| 653 | 2607225967 | Charger Gb AL 1830 CV 230/14,4-18V 1H |
| 653 | 2607226517 | Charger EU AL 18V-20 230V 2A |
| 655 | 1600A003WC | Knife Guard |
| 655 | 1600A003WD | Knife Guard |
| 801 | 2609002891 | Housing Set Green |
| 801 | 2609002891 | Housing Set Green |
| 802 | 2609002765 | DC motor 18V |
| 802 | 2609002765 | DC motor 18V |
| 808 | 2609007041 | Nameplate |
| 808 | 2609007045 | Nameplate |
| 808 | 2609007203 | Nameplate |
| 808 | 2609007043 | Nameplate |
| 833 | 2609002766 | Set of knives 48 CM |
| 833 | 2609002767 | Set of knives 52 CM |
| 838 | 2609003669 | Bearing Bracket |
| 838 | 2609003669 | Bearing Bracket |
| 9 | 1601118R89 | Manufacturer's nameplate AHS 41 LI |
| 9 | 2609002775 | Manufacturer's nameplate AHS 52 LI |
| 91 | 1607A350JM | Battery Pack PBA 18V/1,5 Ah W-a |
| 91 | 2607336457 | Battery Pack PBA 18V 1,5AH V-a J |
| 91 | 1607A350JM | Battery Pack PBA 18V/1,5 Ah W-a |
