Bosch AHS 45-26

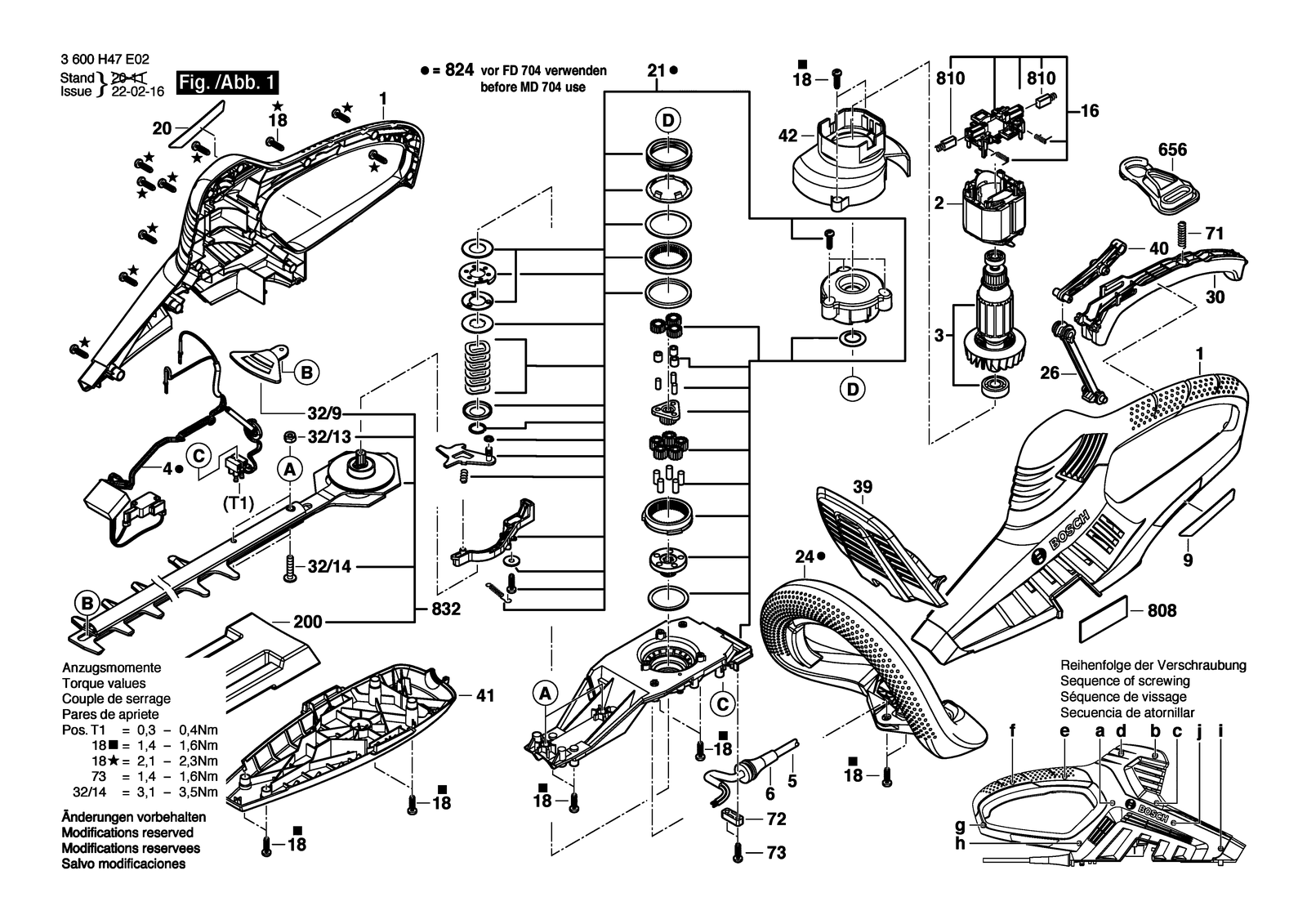

Bosch AHS 45-26 hedge trimmer: exploded parts diagram, 1 sheet, 185 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AHS 45-26: 185 positions on 1 sheet
Bosch AHS 45-26 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609007200 | Housing Section |
| 1 | 2609007200 | Housing Section |
| 1 | 2609007200 | Housing Section |
| 1 | 2609007200 | Housing Section |
| 1 | 2609007200 | Housing Section |
| 16 | 1600A012AZ | Brush Plate |
| 16 | 1600A012AZ | Brush Plate |
| 16 | 1600A012AZ | Brush Plate |
| 16 | 1600A012AZ | Brush Plate |
| 16 | 1600A012AZ | Brush Plate |
| 18 | 2603490022 | Screw 4X16 |
| 18 | 2603490022 | Screw 4X16 |
| 18 | 2603490022 | Screw 4X16 |
| 18 | 2603490022 | Screw 4X16 |
| 18 | 2603490022 | Screw 4X16 |
| 2 | 2609005073 | Field 220-240V |
| 2 | 2609005073 | Field 220-240V |
| 2 | 2609005073 | Field 220-240V |
| 2 | 2609005073 | Field 220-240V |
| 2 | 2609005073 | Field 220-240V |
| 20 | 2609005882 | Warning Label |
| 20 | 2609005882 | Warning Label |
| 20 | 2609005882 | Warning Label |
| 20 | 2609005882 | Warning Label |
| 20 | 2609005882 | Warning Label |
| 200 | 2609005512 | Knife Guard |
| 200 | 2609005512 | Knife Guard |
| 200 | 2609005512 | Knife Guard |
| 200 | 2609005514 | Knife Guard |
| 200 | 2609005514 | Knife Guard |
| 21 | 1600A00P4P | Gear Box |
| 21 | 1600A00P4P | Gear Box |
| 21 | 1600A00P4P | Gear Box |
| 21 | 1600A00P4P | Gear Box |
| 21 | 1600A00P4P | Gear Box |
| 24 | 2609007139 | Handle |
| 24 | 2609007139 | Handle |
| 24 | 2609007139 | Handle |
| 24 | 2609007139 | Handle |
| 24 | 2609007139 | Handle |
| 26 | 2609007159 | Lever |
| 26 | 2609007159 | Lever |
| 26 | 2609007159 | Lever |
| 26 | 2609007159 | Lever |
| 26 | 2609007159 | Lever |
| 3 | 2609007254 | Armature 220-240V |
| 3 | 2609005074 | Armature 220-240V |
| 3 | 2609007254 | Armature 220-240V |
| 3 | 2609007254 | Armature 220-240V |
| 3 | 2609007254 | Armature 220-240V |
| 30 | 2609007413 | Switch Segment |
| 30 | 2609007413 | Switch Segment |
| 30 | 2609007413 | Switch Segment |
| 30 | 2609007413 | Switch Segment |
| 30 | 2609007413 | Switch Segment |
| 32/13 | 160030010C | Bushing |
| 32/13 | 160030010C | Bushing |
| 32/13 | 160030010C | Bushing |
| 32/13 | 160030010C | Bushing |
| 32/13 | 160030010C | Bushing |
| 32/14 | 2609005695 | Torx Oval-Head Screw |
| 32/14 | 2609005695 | Torx Oval-Head Screw |
| 32/14 | 2609005695 | Torx Oval-Head Screw |
| 32/14 | 2609005695 | Torx Oval-Head Screw |
| 32/14 | 2609005695 | Torx Oval-Head Screw |
| 32/9 | 2609005045 | Protector |
| 32/9 | 2609005045 | Protector |
| 32/9 | 2609005045 | Protector |
| 32/9 | 2609005045 | Protector |
| 32/9 | 2609005045 | Protector |
| 39 | 2609005047 | Guard Segment |
| 39 | 2609005047 | Guard Segment |
| 39 | 2609005047 | Guard Segment |
| 39 | 2609005047 | Guard Segment |
| 39 | 2609005047 | Guard Segment |
| 4 | 1600A00PE1 | Electronic Module |
| 4 | 1600A00PE1 | Electronic Module |
| 4 | 1600A00PE1 | Electronic Module |
| 4 | 1600A00PE1 | Electronic Module |
| 4 | 1600A00PE1 | Electronic Module |
| 40 | 2609007234 | Lever |
| 40 | 2609007234 | Lever |
| 40 | 2609007234 | Lever |
| 40 | 2609007234 | Lever |
| 40 | 2609007234 | Lever |
| 41 | 2609004994 | Cover |
| 41 | 2609004994 | Cover |
| 41 | 2609004994 | Cover |
| 41 | 2609004994 | Cover |
| 41 | 2609004994 | Cover |
| 42 | 2609004996 | Fan Housing |
| 42 | 2609004996 | Fan Housing |
| 42 | 2609004996 | Fan Housing |
| 42 | 2609004996 | Fan Housing |
| 42 | 2609004996 | Fan Housing |
| 5 | 1604460184 | Power supply cord GB 240V 10,2M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460437 | Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460182 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460182 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460184 | Power supply cord GB 240V 10,2M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460437 | Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460182 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460184 | Power supply cord GB 240V 10,2M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460369 | Power supply cord AUS 240V |
| 5 | 1604460437 | Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460182 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460184 | Power supply cord GB 240V 10,2M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460369 | Power supply cord AUS 240V |
| 5 | 1604460437 | Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460182 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 6 | 2609002019 | Grommet |
| 6 | 2609002019 | Grommet |
| 6 | 2609002019 | Grommet |
| 6 | 2609002019 | Grommet |
| 6 | 2609002019 | Grommet |
| 656 | 3601398000 | Strain-Relief Clamp |
| 656 | 3601398000 | Strain-Relief Clamp |
| 656 | 3601398000 | Strain-Relief Clamp |
| 656 | 3601398000 | Strain-Relief Clamp |
| 656 | 3601398000 | Strain-Relief Clamp |
| 71 | 1604612015 | Compression Spring |
| 71 | 1604612015 | Compression Spring |
| 71 | 1604612015 | Compression Spring |
| 71 | 1604612015 | Compression Spring |
| 71 | 1604612015 | Compression Spring |
| 72 | 2601035001 | Cable Clip |
| 72 | 2601035001 | Cable Clip |
| 72 | 2601035001 | Cable Clip |
| 72 | 2601035001 | Cable Clip |
| 72 | 2601035001 | Cable Clip |
| 73 | 2603490022 | Screw 4X16 |
| 73 | 2603490022 | Screw 4X16 |
| 73 | 2603490022 | Screw 4X16 |
| 73 | 2603490022 | Screw 4X16 |
| 73 | 2603490022 | Screw 4X16 |
| 808 | 160111A2NY | Nameplate |
| 808 | 160111A2P0 | Nameplate |
| 808 | 160111A2P2 | Nameplate |
| 808 | 160111A2P4 | Nameplate |
| 808 | 160111A58J | Nameplate |
| 808 | 160111A58M | Nameplate |
| 808 | 160111A2P6 | Nameplate |
| 808 | 160111A2P9 | Nameplate |
| 808 | 160111A2PB | Nameplate |
| 808 | 160111A2PD | Nameplate |
| 808 | 160111A2PF | Nameplate |
| 808 | 160111A2PH | Nameplate |
| 808 | 160111A2PK | Nameplate |
| 808 | 160111A2PM | Nameplate |
| 808 | 160111A2PP | Nameplate |
| 808 | 160111A2PU | Nameplate |
| 808 | 160111A2PW | Nameplate |
| 808 | 160111A2PZ | Nameplate |
| 808 | 160111A2R1 | Nameplate |
| 808 | 160111A2R3 | Nameplate |
| 810 | 2604321925 | Carbon-Brush Set |
| 810 | 2604321925 | Carbon-Brush Set |
| 810 | 2604321925 | Carbon-Brush Set |
| 810 | 2604321925 | Carbon-Brush Set |
| 810 | 2604321925 | Carbon-Brush Set |
| 824 | 1607000CZ3 | Electronic Module |
| 824 | 1607000CZ3 | Electronic Module |
| 824 | 1607000CZ3 | Electronic Module |
| 824 | 1607000CZ3 | Electronic Module |
| 824 | 1607000CZ3 | Electronic Module |
| 832 | 1600A0071N | Blade 48 CM |
| 832 | 2609005911 | Blade 45 CM |
| 832 | 1600A0071N | Blade 48 CM |
| 832 | 1600A0071P | Blade 60 CM |
| 832 | 2609005912 | Blade 50 CM |
| 832 | 2609005913 | Blade 55 CM |
| 832 | 1600A0071P | Blade 60 CM |
| 832 | 2609005914 | Blade 60 CM |
| 9 | 161111C03C | Manufacturer's nameplate AHS 48-26 |
| 9 | 2609005906 | Manufacturer's nameplate AHS 45-26 |
| 9 | 161111C03C | Manufacturer's nameplate AHS 48-26 |
| 9 | 161111C03F | Manufacturer's nameplate AHS 63-26 |
| 9 | 2609005907 | Manufacturer's nameplate AHS 50-26 |
| 9 | 2609006894 | Manufacturer's nameplate AHS 550-50 |
| 9 | 161111C03D | Manufacturer's nameplate AHS 53-26 |
| 9 | 161111C03E | Manufacturer's nameplate AHS 54-26 |
| 9 | 2609005908 | Manufacturer's nameplate AHS 55-26 |
| 9 | 161111C03F | Manufacturer's nameplate AHS 63-26 |
| 9 | 161111C03G | Manufacturer's nameplate AHS 580-26 |
| 9 | 2609005909 | Manufacturer's nameplate AHS 60-26 |
