Bosch AHS 45-16

Bosch AHS 45-16 hedge trimmer: exploded parts diagram, 1 sheet, 23 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AHS 45-16: 23 positions on 1 sheet

Bosch AHS 45-16 parts list (1 sheet)

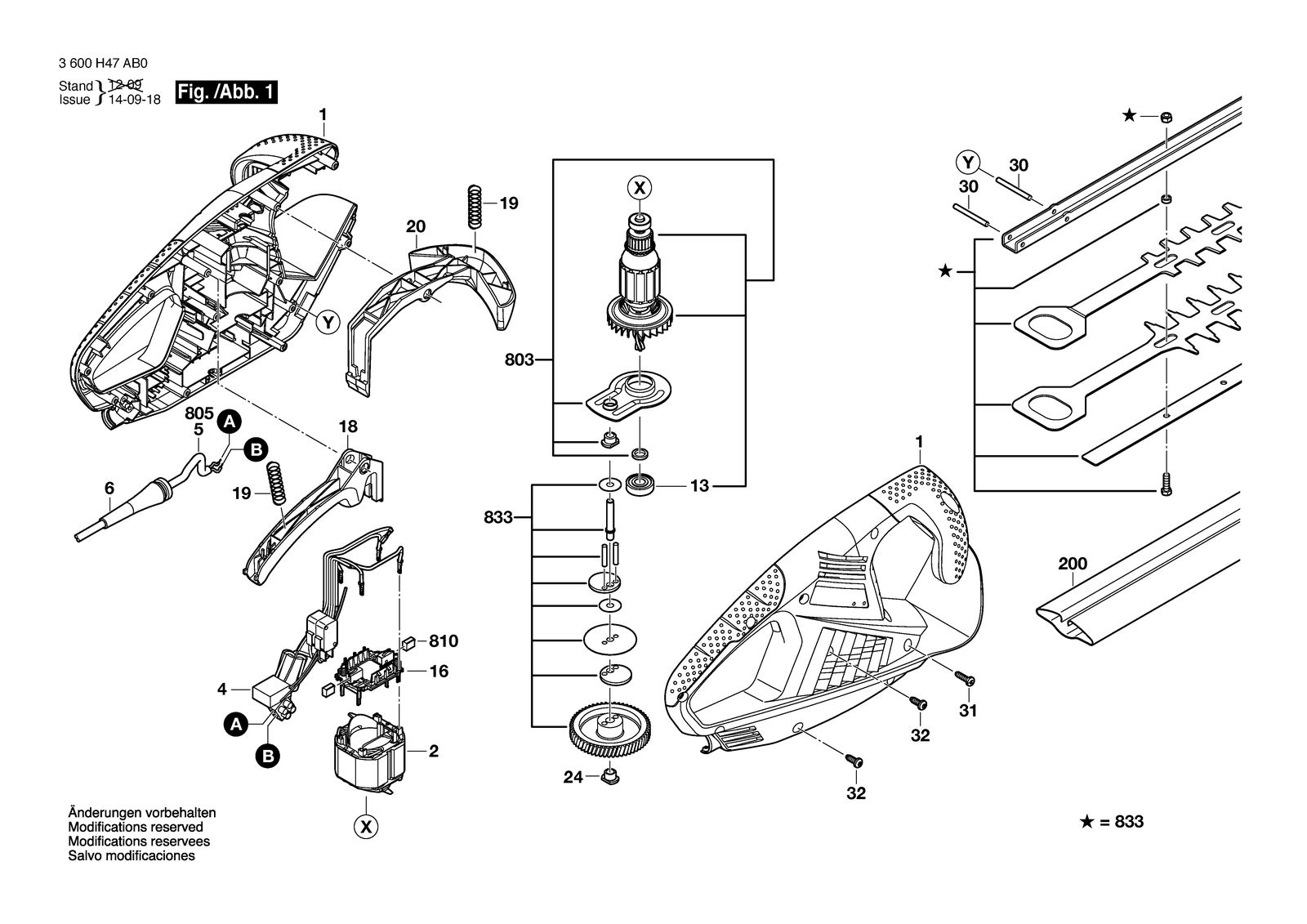

Bosch AHS 45-16 parts diagram, sheet 1
No.Part numberPart name
11619X06326Housing
132600905021Groove ball bearing 9X24X7
161619X06331Brush Holder
161619X06502Brush Holder
181619X06327Switch Segment
192604610028Compression Spring
21619X05938Field 100V
21619X06317Field 220-240V
201619X06328Switch Segment
2002609004759Knife Guard 45 CM
242609004018Bushing
301619X06392Straight Pin
312603490022Screw 4X16
32F016T49429Self-Cutting Screw 4X19 MM
42609005219Cable Wiring Set
52604460256Power supply cord AUS 0,40M 2 X 1,00MM H05 Vv-F
62600703017Grommet Ø6,4-Ø7,2X76 MM
62600703019Grommet Ø8,7-Ø9,6X76 MM
8031619X06475Armature 220-240V
8031619X06481Armature 100V
8052604460255Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F
8102609005200Carbon-Brush Set
8332609004700Blade 45 CM
