Bosch AHS 41 ACCU

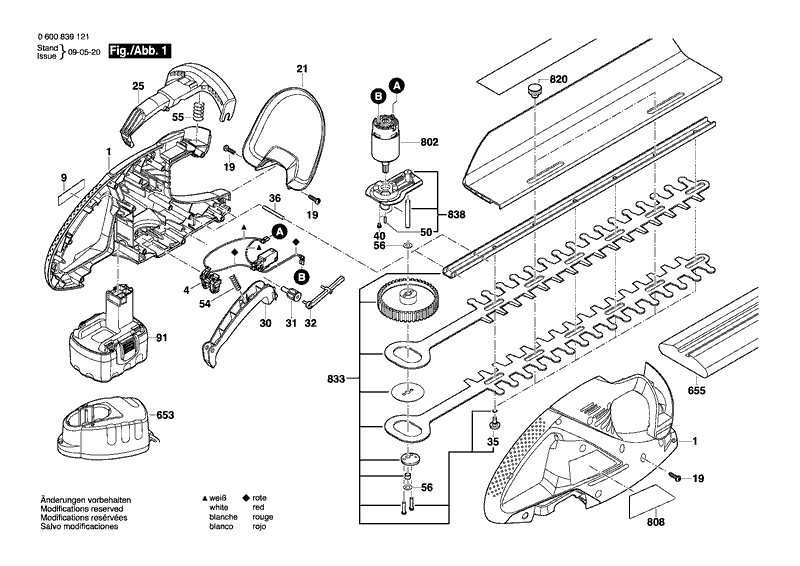

Bosch AHS 41 ACCU hedge trimmer: exploded parts diagram, 1 sheet, 56 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AHS 41 ACCU: 56 positions on 1 sheet
Bosch AHS 41 ACCU parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605105063 | Housing Section Green |
| 1 | 2605105063 | Housing Section Green |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 21 | 2607001804 | Protective Shield |
| 21 | 2607001804 | Protective Shield |
| 25 | 2605190486 | Switch Segment |
| 25 | 2605190486 | Switch Segment |
| 30 | 2605190487 | Switch Segment |
| 30 | 2605190487 | Switch Segment |
| 31 | 2606329004 | Switch Wheel |
| 31 | 2606329004 | Switch Wheel |
| 32 | 2608040230 | Shifter Rod |
| 32 | 2608040230 | Shifter Rod |
| 35 | 2603413039 | Thread-forming tap. Screw |
| 35 | 2603413039 | Thread-forming tap. Screw |
| 36 | 2609002714 | Straight Pin |
| 36 | 2609002714 | Straight Pin |
| 4 | 2607200486 | Circuit Unit |
| 4 | 2607200486 | Circuit Unit |
| 40 | 2603414048 | Torx SH cap screw M3X5-8.8-Z |
| 40 | 2603414048 | Torx SH cap screw M3X5-8.8-Z |
| 50 | 2609003105 | Bolt |
| 50 | 2609003105 | Bolt |
| 54 | 2604610028 | Compression Spring |
| 54 | 2604610028 | Compression Spring |
| 55 | 2609003057 | Compression Spring |
| 55 | 2609003057 | Compression Spring |
| 56 | 2600100040 | Shim |
| 56 | 2600100040 | Shim |
| 653 | 2607224711 | Fast Charger J 100/7,2-14,4V, 30 Min. |
| 653 | 2607225011 | Fast Charger EU 230/14,4V, 3-5H |
| 653 | 2607225013 | Fast Charger GB 230/14,4V, 3-5H |
| 653 | 2607225015 | Charger AUS 240/14,4V, 3-5H |
| 653 | 2607225011 | Fast Charger EU 230/14,4V, 3-5H |
| 653 | 2607225013 | Fast Charger GB 230/14,4V, 3-5H |
| 653 | 2607225015 | Charger AUS 240/14,4V, 3-5H |
| 655 | 1600A00484 | Knife Guard |
| 655 | 1600A003WD | Knife Guard |
| 802 | 2609003668 | DC motor 14,4V |
| 802 | 2609003668 | DC motor 14,4V |
| 808 | 2609003780 | Nameplate |
| 808 | 2609003781 | Nameplate |
| 808 | 2609000641 | Nameplate |
| 820 | 2603345021 | Knurled Thumbscrew |
| 820 | 2603345021 | Knurled Thumbscrew |
| 833 | 2609001186 | Set of knives |
| 833 | 2609001187 | Set of knives |
| 838 | 2609003669 | Bearing Bracket |
| 838 | 2609003669 | Bearing Bracket |
| 9 | 2601116643 | Manufacturer's nameplate 41 Accu |
| 9 | 2609002784 | Manufacturer's nameplate AHS 41 |
| 9 | 2601116645 | Manufacturer's nameplate |
| 91 | 1617S0004W | Accumulator package 14,4V, 1,5AH, Nicd |
| 91 | 2607335699 | Slide-In Accu Package 14,4V, 2,0AH, Nimh |
| 91 | 1617S0004W | Accumulator package 14,4V, 1,5AH, Nicd |
