Bosch AHS 400-24 T

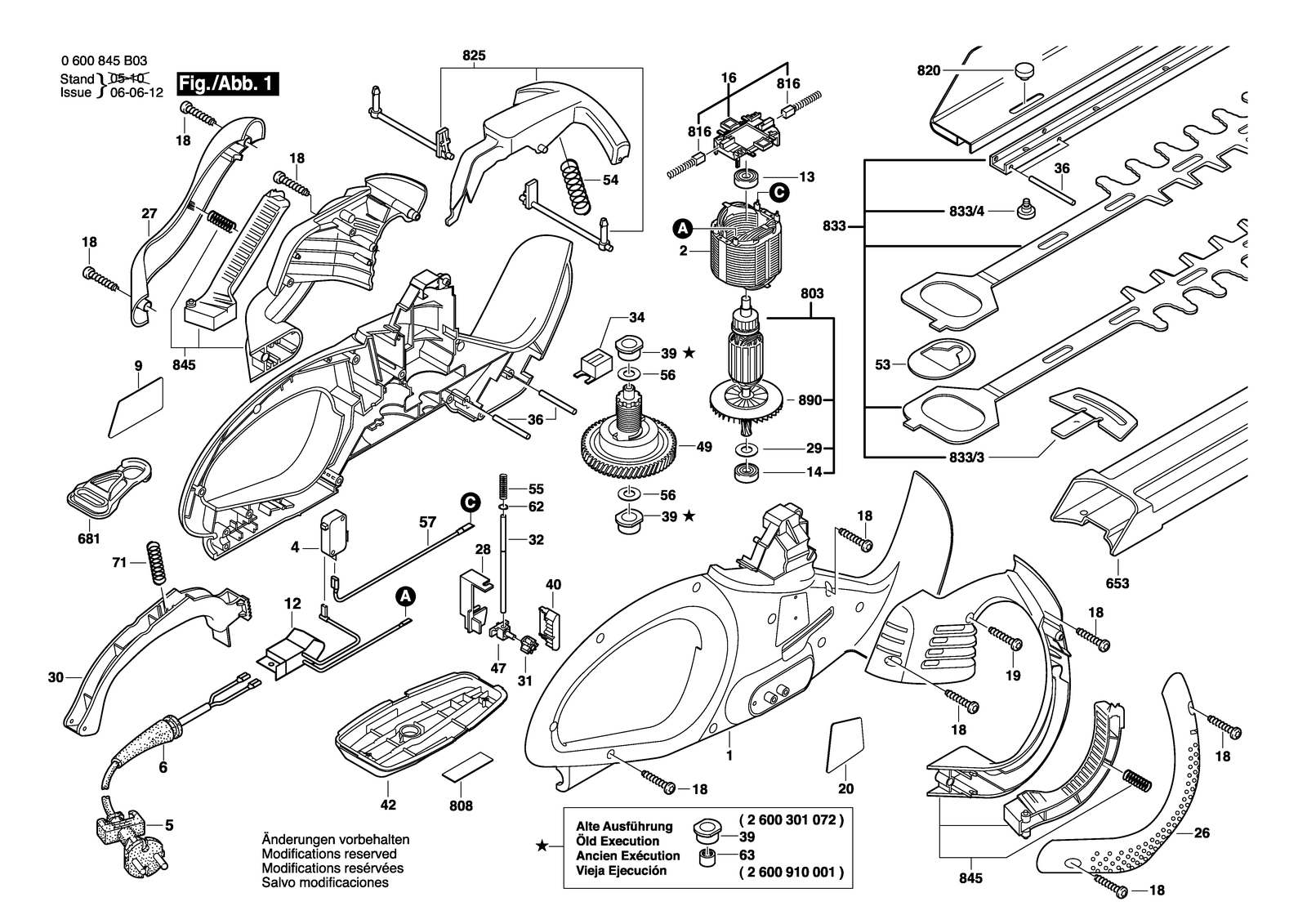

Bosch AHS 400-24 T hedge trimmer: exploded parts diagram, 1 sheet, 317 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AHS 400-24 T: 317 positions on 1 sheet
Bosch AHS 400-24 T parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609002758 | Housing Section Turquoise |
| 1 | 2609002758 | Housing Section Turquoise |
| 1 | 2609002758 | Housing Section Turquoise |
| 1 | 2609002758 | Housing Section Turquoise |
| 1 | 2609002758 | Housing Section Turquoise |
| 1 | 2609002758 | Housing Section Turquoise |
| 12 | 2609003984 | Interference Suppr.Choke |
| 12 | 2609003984 | Interference Suppr.Choke |
| 12 | 2609003984 | Interference Suppr.Choke |
| 12 | 2609003984 | Interference Suppr.Choke |
| 12 | 2609003984 | Interference Suppr.Choke |
| 12 | 2609003984 | Interference Suppr.Choke |
| 13 | 2605805004 | Flanged Bearing |
| 13 | 2605805004 | Flanged Bearing |
| 13 | 2605805004 | Flanged Bearing |
| 13 | 2605805004 | Flanged Bearing |
| 13 | 2605805004 | Flanged Bearing |
| 13 | 2605805004 | Flanged Bearing |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 16 | 1600A012AZ | Brush Plate |
| 16 | 1600A012AZ | Brush Plate |
| 16 | 1600A012AZ | Brush Plate |
| 16 | 1600A012AZ | Brush Plate |
| 16 | 1600A012AZ | Brush Plate |
| 16 | 1600A012AZ | Brush Plate |
| 18 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 18 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 18 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 18 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 18 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 18 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 19 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 19 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 19 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 19 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 19 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 19 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 2 | 2604220594 | Field 220-240V |
| 2 | 2604220594 | Field 220-240V |
| 2 | 2604220594 | Field 220-240V |
| 2 | 2604220594 | Field 220-240V |
| 2 | 2604220594 | Field 220-240V |
| 2 | 2604220594 | Field 220-240V |
| 20 | 2601116714 | Reference Plate |
| 20 | 2609003055 | Switch Segment |
| 20 | 2601116714 | Reference Plate |
| 20 | 2601116714 | Reference Plate |
| 20 | 2601116714 | Reference Plate |
| 20 | 2601116714 | Reference Plate |
| 26 | 2609005342 | Fixing Element |
| 26 | 2609005342 | Fixing Element |
| 26 | 2609005342 | Fixing Element |
| 26 | 2609005342 | Fixing Element |
| 26 | 2609005342 | Fixing Element |
| 26 | 2609005342 | Fixing Element |
| 27 | 2609005343 | Fixing Element |
| 27 | 2609005343 | Fixing Element |
| 27 | 2609005343 | Fixing Element |
| 27 | 2609005343 | Fixing Element |
| 27 | 2609005343 | Fixing Element |
| 27 | 2609005343 | Fixing Element |
| 28 | 2608040167 | Support |
| 28 | 2608040167 | Support |
| 28 | 2608040167 | Support |
| 28 | 2608040167 | Support |
| 28 | 2608040167 | Support |
| 28 | 2608040167 | Support |
| 29 | 2600209003 | Spacer Ring |
| 29 | 2600209003 | Spacer Ring |
| 29 | 2600209003 | Spacer Ring |
| 29 | 2600209003 | Spacer Ring |
| 29 | 2600209003 | Spacer Ring |
| 29 | 2600209003 | Spacer Ring |
| 30 | 2609003055 | Switch Segment |
| 30 | 2609003055 | Switch Segment |
| 30 | 2609003055 | Switch Segment |
| 30 | 2609003055 | Switch Segment |
| 30 | 2609003055 | Switch Segment |
| 30 | 2609003055 | Switch Segment |
| 31 | 2606319105 | Switch Wheel |
| 31 | 2606319105 | Switch Wheel |
| 31 | 2606319105 | Switch Wheel |
| 31 | 2606319105 | Switch Wheel |
| 31 | 2606319105 | Switch Wheel |
| 31 | 2606319105 | Switch Wheel |
| 32 | 2609004249 | Coupling |
| 32 | 2609004249 | Coupling |
| 32 | 2609004249 | Coupling |
| 32 | 2609004249 | Coupling |
| 32 | 2609004249 | Coupling |
| 32 | 2609004249 | Coupling |
| 34 | 2600502012 | Plug |
| 34 | 2600502012 | Plug |
| 34 | 2600502012 | Plug |
| 34 | 2600502012 | Plug |
| 34 | 2600502012 | Plug |
| 34 | 2600502012 | Plug |
| 36 | 2609002714 | Straight Pin |
| 36 | 2609002714 | Straight Pin |
| 36 | 2609002714 | Straight Pin |
| 36 | 2609002714 | Straight Pin |
| 36 | 2609002714 | Straight Pin |
| 36 | 2609002714 | Straight Pin |
| 39 | 2600301073 | Bushing |
| 39 | 2600301073 | Bushing |
| 39 | 2600301073 | Bushing |
| 39 | 2600301073 | Bushing |
| 39 | 2600301073 | Bushing |
| 39 | 2600301073 | Bushing |
| 4 | 2607200446 | Switch |
| 4 | 2607200446 | Switch |
| 4 | 2607200446 | Switch |
| 4 | 2607200446 | Switch |
| 4 | 2607200446 | Switch |
| 4 | 2607200446 | Switch |
| 40 | 2608040163 | Shifter Rod |
| 40 | 2608040163 | Shifter Rod |
| 40 | 2608040163 | Shifter Rod |
| 40 | 2608040163 | Shifter Rod |
| 40 | 2608040163 | Shifter Rod |
| 40 | 2608040163 | Shifter Rod |
| 42 | 2605808086 | Gear Cover |
| 42 | 2605808086 | Gear Cover |
| 42 | 2605808086 | Gear Cover |
| 42 | 2605808086 | Gear Cover |
| 42 | 2605808086 | Gear Cover |
| 42 | 2605808086 | Gear Cover |
| 47 | 2606314102 | Control Element |
| 47 | 2606314102 | Control Element |
| 47 | 2606314102 | Control Element |
| 47 | 2606314102 | Control Element |
| 47 | 2606314102 | Control Element |
| 47 | 2606314102 | Control Element |
| 49 | 2606440028 | Sliding Clutch |
| 49 | 2606440028 | Sliding Clutch |
| 49 | 2606440028 | Sliding Clutch |
| 49 | 2606440028 | Sliding Clutch |
| 49 | 2606440028 | Sliding Clutch |
| 49 | 2606440028 | Sliding Clutch |
| 5 | 1604460436 | Power supply cord CH 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460255 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460262 | Power supply cord 0,46M |
| 5 | 2604460263 | Power supply cord |
| 5 | 2604460264 | Power supply cord I/br 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460436 | Power supply cord CH 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460255 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460262 | Power supply cord 0,46M |
| 5 | 2604460263 | Power supply cord |
| 5 | 2604460264 | Power supply cord I/br 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460255 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460436 | Power supply cord CH 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460255 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460262 | Power supply cord 0,46M |
| 5 | 2604460263 | Power supply cord |
| 5 | 2604460264 | Power supply cord I/br 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460436 | Power supply cord CH 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460255 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460262 | Power supply cord 0,46M |
| 5 | 2604460263 | Power supply cord |
| 5 | 2604460264 | Power supply cord I/br 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460436 | Power supply cord CH 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460255 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460262 | Power supply cord 0,46M |
| 5 | 2604460263 | Power supply cord |
| 5 | 2604460264 | Power supply cord I/br 0,46M 2 X 1,0MM H05 Vv-F |
| 53 | 2608040183 | Spacer |
| 53 | 2608040183 | Spacer |
| 53 | 2608040183 | Spacer |
| 53 | 2608040183 | Spacer |
| 53 | 2608040183 | Spacer |
| 53 | 2608040183 | Spacer |
| 54 | 2604610045 | Compression Spring |
| 54 | 2604610045 | Compression Spring |
| 54 | 2604610045 | Compression Spring |
| 54 | 2604610045 | Compression Spring |
| 54 | 2604610045 | Compression Spring |
| 54 | 2604610045 | Compression Spring |
| 55 | 2604610073 | Compression Spring Alt |
| 55 | 2604610073 | Compression Spring Alt |
| 55 | 2604610073 | Compression Spring Alt |
| 55 | 2604610073 | Compression Spring Alt |
| 55 | 2604610073 | Compression Spring Alt |
| 55 | 2604610073 | Compression Spring Alt |
| 56 | 2600101617 | Shim 0,3 MM |
| 56 | 2600101617 | Shim 0,3 MM |
| 56 | 2600101617 | Shim 0,3 MM |
| 56 | 2600101617 | Shim 0,3 MM |
| 56 | 2600101617 | Shim 0,3 MM |
| 56 | 2600101617 | Shim 0,3 MM |
| 57 | 2604448234 | Connecting Cable |
| 57 | 2604448234 | Connecting Cable |
| 57 | 2604448234 | Connecting Cable |
| 57 | 2604448234 | Connecting Cable |
| 57 | 2604448234 | Connecting Cable |
| 57 | 2604448234 | Connecting Cable |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 62 | 2916080905 | Locking washer |
| 62 | 2916080905 | Locking washer |
| 62 | 2916080905 | Locking washer |
| 62 | 2916080905 | Locking washer |
| 62 | 2916080905 | Locking washer |
| 62 | 2916080905 | Locking washer |
| 63 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 653 | 2605411154 | Knife Guard |
| 653 | 2605411154 | Knife Guard |
| 653 | 2605411154 | Knife Guard |
| 653 | 2605411207 | Knife Guard |
| 653 | 2605411207 | Knife Guard |
| 653 | 2605411152 | Knife Guard |
| 681 | 3601398000 | Strain-Relief Clamp |
| 681 | 3601398000 | Strain-Relief Clamp |
| 681 | 3601398000 | Strain-Relief Clamp |
| 681 | 3601398000 | Strain-Relief Clamp |
| 681 | 3601398000 | Strain-Relief Clamp |
| 681 | 3601398000 | Strain-Relief Clamp |
| 71 | 2604610074 | Compression Spring |
| 71 | 2604610074 | Compression Spring |
| 71 | 2604610074 | Compression Spring |
| 71 | 2604610074 | Compression Spring |
| 71 | 2604610074 | Compression Spring |
| 71 | 2604610074 | Compression Spring |
| 803 | 2604010982 | Armature 230-240V |
| 803 | 2604010982 | Armature 230-240V |
| 803 | 2604010982 | Armature 230-240V |
| 803 | 2604010982 | Armature 230-240V |
| 803 | 2604010982 | Armature 230-240V |
| 803 | 2604010982 | Armature 230-240V |
| 808 | 2601116554 | Marking Plate |
| 808 | 2601116555 | Marking Plate |
| 808 | 2601116556 | Marking Plate |
| 808 | 2601116557 | Marking Plate |
| 808 | 2601116558 | Marking Plate |
| 808 | 2601116560 | Marking Plate |
| 808 | 2601116561 | Marking Plate |
| 808 | 2601116562 | Marking Plate |
| 808 | 2601116563 | Marking Plate |
| 808 | 2601116564 | Marking Plate |
| 808 | 2601116783 | Marking Plate |
| 808 | 2601116566 | Nameplate |
| 808 | 2601116567 | Marking Plate |
| 808 | 2601116568 | Marking Plate |
| 808 | 2601116569 | Marking Plate |
| 808 | 2601116570 | Marking Plate |
| 808 | 2601116572 | Marking Plate |
| 808 | 2601116573 | Marking Plate |
| 808 | 2601116574 | Marking Plate |
| 808 | 2601116575 | Marking Plate |
| 808 | 2601116576 | Marking Plate |
| 808 | 2601116577 | Marking Plate |
| 808 | 2601116578 | Marking Plate |
| 808 | 2601116579 | Marking Plate |
| 808 | 2601116580 | Marking Plate |
| 808 | 2601116581 | Marking Plate |
| 816 | 2604321925 | Carbon-Brush Set |
| 816 | 2604321925 | Carbon-Brush Set |
| 816 | 2604321925 | Carbon-Brush Set |
| 816 | 2604321925 | Carbon-Brush Set |
| 816 | 2604321925 | Carbon-Brush Set |
| 816 | 2604321925 | Carbon-Brush Set |
| 820 | 2603345021 | Knurled Thumbscrew |
| 820 | 2603345021 | Knurled Thumbscrew |
| 820 | 2603345021 | Knurled Thumbscrew |
| 820 | 2603345021 | Knurled Thumbscrew |
| 820 | 2603345021 | Knurled Thumbscrew |
| 820 | 2603345021 | Knurled Thumbscrew |
| 825 | 2608001903 | Switch Segment |
| 825 | 2608001903 | Switch Segment |
| 825 | 2608001903 | Switch Segment |
| 825 | 2608001903 | Switch Segment |
| 825 | 2608001903 | Switch Segment |
| 825 | 2608001903 | Switch Segment |
| 833 | 2607009900 | Set of knives |
| 833 | 2607009901 | Set of knives |
| 833 | 2607009901 | Set of knives |
| 833 | 2607009902 | Set of knives |
| 833 | 2607009903 | Set of knives |
| 833 | 2607009904 | Set of knives |
| 833/3 | 2601020016 | Protector |
| 833/3 | 2601020016 | Protector |
| 833/3 | 2601020016 | Protector |
| 833/3 | 2601020016 | Protector |
| 833/3 | 2601020016 | Protector |
| 833/3 | 2601020016 | Protector |
| 833/4 | 2603413040 | Thread-forming tap. Screw |
| 833/4 | 2603413040 | Thread-forming tap. Screw |
| 833/4 | 2603413040 | Thread-forming tap. Screw |
| 833/4 | 2603413040 | Thread-forming tap. Screw |
| 833/4 | 2603413040 | Thread-forming tap. Screw |
| 833/4 | 2603413040 | Thread-forming tap. Screw |
| 845 | 2608001900 | Switch Segment |
| 845 | 2608001900 | Switch Segment |
| 845 | 2608001900 | Switch Segment |
| 845 | 2608001900 | Switch Segment |
| 845 | 2608001900 | Switch Segment |
| 845 | 2608001900 | Switch Segment |
| 890 | 2606610093 | Fan |
| 890 | 2606610093 | Fan |
| 890 | 2606610093 | Fan |
| 890 | 2606610093 | Fan |
| 890 | 2606610093 | Fan |
| 890 | 2606610093 | Fan |
| 9 | 2601116592 | Manufacturer's nameplate |
| 9 | 2601116593 | Manufacturer's nameplate |
| 9 | 2601116758 | Manufacturer's nameplate |
| 9 | 2601116594 | Manufacturer's nameplate |
| 9 | 2601116595 | Manufacturer's nameplate |
| 9 | 2601116596 | Manufacturer's nameplate |
Selected parts0
