Bosch AHS 40

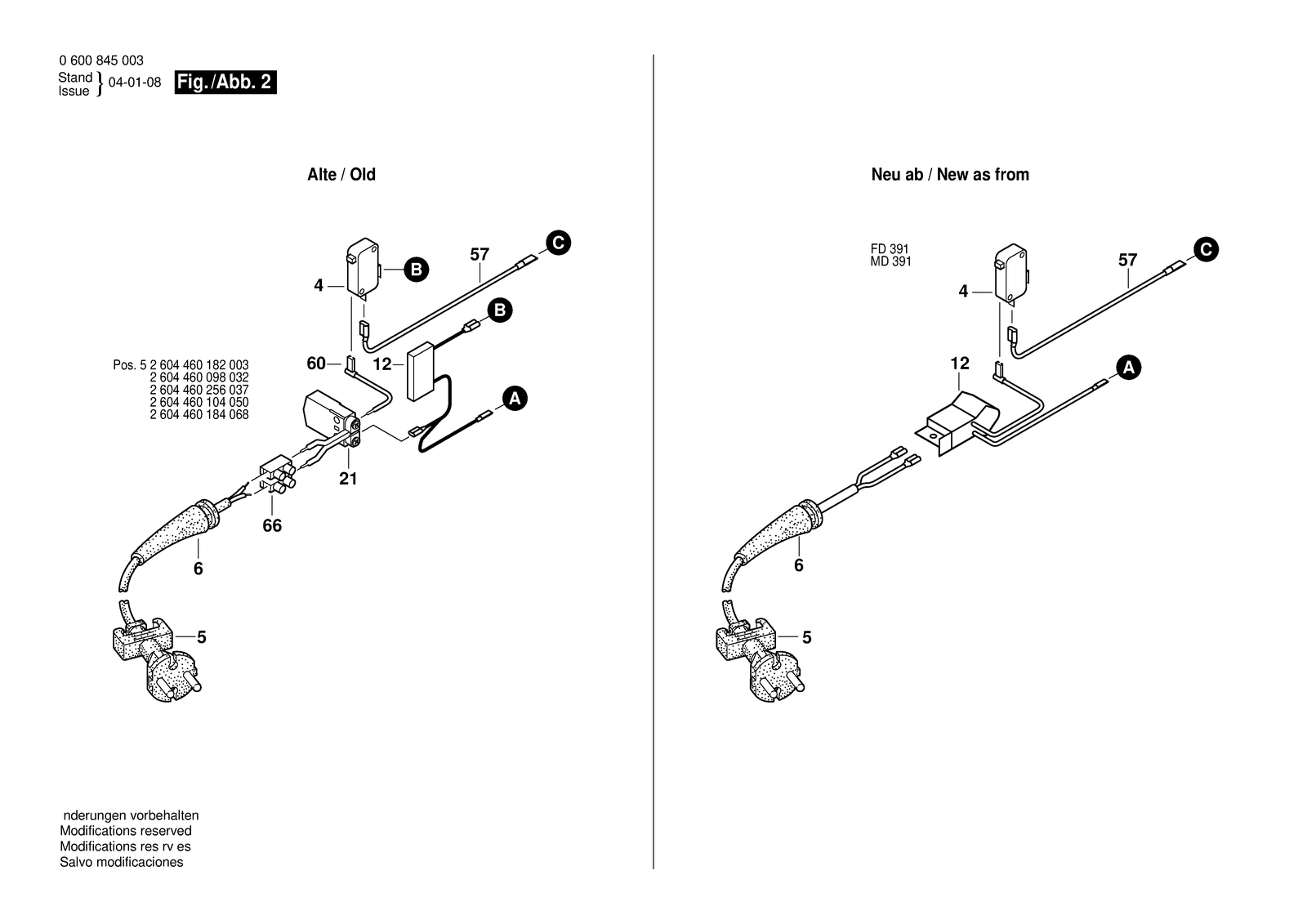

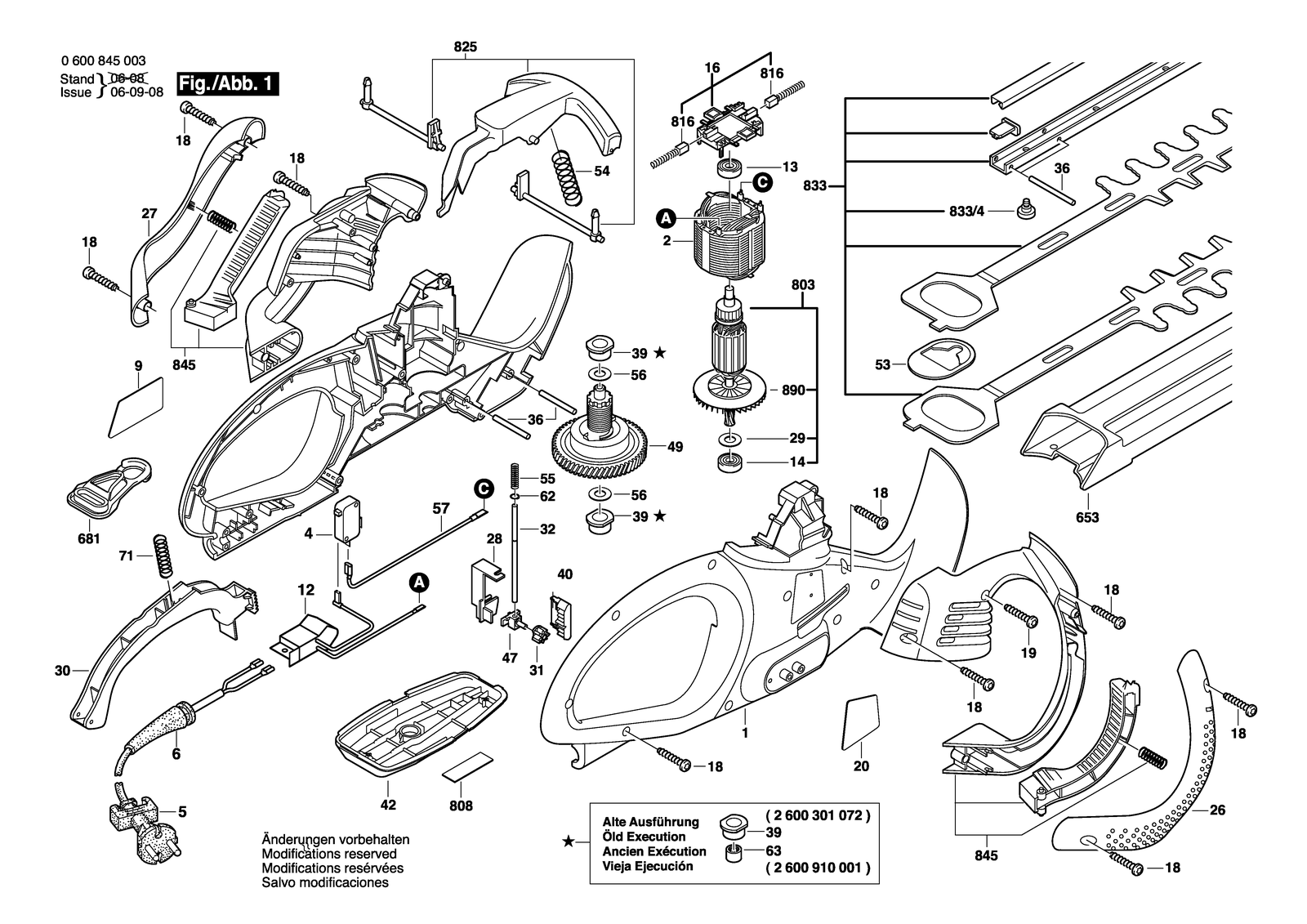

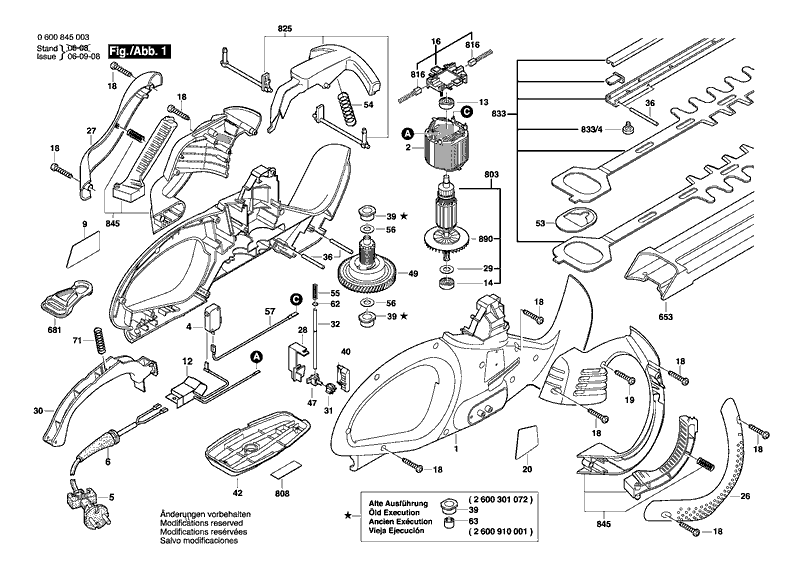

Bosch AHS 40 hedge trimmer: exploded parts diagram, 2 sheets, 361 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AHS 40: 361 positions on 2 sheets
Bosch AHS 40 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609002758 | Housing Section Turquoise |
| 1 | 2605104754 | Housing Section |
| 1 | 2609002758 | Housing Section Turquoise |
| 1 | 2609002758 | Housing Section Turquoise |
| 1 | 2605104754 | Housing Section |
| 1 | 2609002758 | Housing Section Turquoise |
| 1 | 2609002758 | Housing Section Turquoise |
| 12 | 2609003984 | Interference Suppr.Choke |
| 12 | 2609003984 | Interference Suppr.Choke |
| 12 | 2609003984 | Interference Suppr.Choke |
| 12 | 2609003984 | Interference Suppr.Choke |
| 12 | 2609003984 | Interference Suppr.Choke |
| 12 | 2609003984 | Interference Suppr.Choke |
| 12 | 2609003984 | Interference Suppr.Choke |
| 13 | 2605805004 | Flanged Bearing |
| 13 | 2605805004 | Flanged Bearing |
| 13 | 2605805004 | Flanged Bearing |
| 13 | 2605805004 | Flanged Bearing |
| 13 | 2605805004 | Flanged Bearing |
| 13 | 2605805004 | Flanged Bearing |
| 13 | 2605805004 | Flanged Bearing |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 16 | 1600A012AZ | Brush Plate |
| 16 | 1600A012AZ | Brush Plate |
| 16 | 1600A012AZ | Brush Plate |
| 16 | 1600A012AZ | Brush Plate |
| 16 | 1600A012AZ | Brush Plate |
| 16 | 1600A012AZ | Brush Plate |
| 16 | 1600A012AZ | Brush Plate |
| 18 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 18 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 18 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 18 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 18 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 18 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 18 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 19 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 19 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 19 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 19 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 19 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 19 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 19 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 2 | 2604220688 | Field 230-240V |
| 2 | 2604220594 | Field 220-240V |
| 2 | 2604220594 | Field 220-240V |
| 2 | 2604220594 | Field 220-240V |
| 2 | 2604220594 | Field 220-240V |
| 2 | 2604220594 | Field 220-240V |
| 2 | 2604220594 | Field 220-240V |
| 20 | 2601116119 | Reference Plate |
| 20 | 2601116201 | Reference Plate |
| 20 | 2601116119 | Reference Plate |
| 20 | 2601116119 | Reference Plate |
| 20 | 2601116205 | Reference Plate |
| 20 | 2601116119 | Reference Plate |
| 20 | 2601116119 | Reference Plate |
| 21 | 2604465109 | Suppression Filter |
| 21 | 2604465109 | Suppression Filter |
| 21 | 2604465109 | Suppression Filter |
| 21 | 2604465109 | Suppression Filter |
| 21 | 2604465109 | Suppression Filter |
| 21 | 2604465109 | Suppression Filter |
| 21 | 2604465109 | Suppression Filter |
| 26 | 2609005342 | Fixing Element |
| 26 | 2609005342 | Fixing Element |
| 26 | 2609005342 | Fixing Element |
| 26 | 2609005342 | Fixing Element |
| 26 | 2609005342 | Fixing Element |
| 26 | 2609005342 | Fixing Element |
| 26 | 2609005342 | Fixing Element |
| 27 | 2609005343 | Fixing Element |
| 27 | 2609005343 | Fixing Element |
| 27 | 2609005343 | Fixing Element |
| 27 | 2609005343 | Fixing Element |
| 27 | 2609005343 | Fixing Element |
| 27 | 2609005343 | Fixing Element |
| 27 | 2609005343 | Fixing Element |
| 28 | 2608040167 | Support |
| 28 | 2608040167 | Support |
| 28 | 2608040167 | Support |
| 28 | 2608040167 | Support |
| 28 | 2608040167 | Support |
| 28 | 2608040167 | Support |
| 28 | 2608040167 | Support |
| 29 | 2600209003 | Spacer Ring |
| 29 | 2600209003 | Spacer Ring |
| 29 | 2600209003 | Spacer Ring |
| 29 | 2600209003 | Spacer Ring |
| 29 | 2600209003 | Spacer Ring |
| 29 | 2600209003 | Spacer Ring |
| 29 | 2600209003 | Spacer Ring |
| 30 | 2609003055 | Switch Segment |
| 30 | 2609003055 | Switch Segment |
| 30 | 2609003055 | Switch Segment |
| 30 | 2609003055 | Switch Segment |
| 30 | 2609003055 | Switch Segment |
| 30 | 2609003055 | Switch Segment |
| 30 | 2609003055 | Switch Segment |
| 31 | 2606319105 | Switch Wheel |
| 31 | 2606319105 | Switch Wheel |
| 31 | 2606319105 | Switch Wheel |
| 31 | 2606319105 | Switch Wheel |
| 31 | 2606319105 | Switch Wheel |
| 31 | 2606319105 | Switch Wheel |
| 31 | 2606319105 | Switch Wheel |
| 32 | 2609004249 | Coupling |
| 32 | 2609004249 | Coupling |
| 32 | 2609004249 | Coupling |
| 32 | 2609004249 | Coupling |
| 32 | 2609004249 | Coupling |
| 32 | 2609004249 | Coupling |
| 32 | 2609004249 | Coupling |
| 36 | 2609002714 | Straight Pin |
| 36 | 2609002714 | Straight Pin |
| 36 | 2609002714 | Straight Pin |
| 36 | 2609002714 | Straight Pin |
| 36 | 2609002714 | Straight Pin |
| 36 | 2609002714 | Straight Pin |
| 36 | 2609002714 | Straight Pin |
| 39 | 2600301073 | Bushing |
| 39 | 2600301073 | Bushing |
| 39 | 2600301073 | Bushing |
| 39 | 2600301073 | Bushing |
| 39 | 2600301073 | Bushing |
| 39 | 2600301073 | Bushing |
| 39 | 2600301073 | Bushing |
| 4 | 2607200446 | Switch |
| 4 | 2607200446 | Switch |
| 4 | 2607200446 | Switch |
| 4 | 2607200446 | Switch |
| 4 | 2607200446 | Switch |
| 4 | 2607200446 | Switch |
| 4 | 2607200446 | Switch |
| 40 | 2608040163 | Shifter Rod |
| 40 | 2608040163 | Shifter Rod |
| 40 | 2608040163 | Shifter Rod |
| 40 | 2608040163 | Shifter Rod |
| 40 | 2608040163 | Shifter Rod |
| 40 | 2608040163 | Shifter Rod |
| 40 | 2608040163 | Shifter Rod |
| 42 | 2605808086 | Gear Cover |
| 42 | 2605808086 | Gear Cover |
| 42 | 2605808086 | Gear Cover |
| 42 | 2605808086 | Gear Cover |
| 42 | 2605808086 | Gear Cover |
| 42 | 2605808086 | Gear Cover |
| 42 | 2605808086 | Gear Cover |
| 47 | 2606314102 | Control Element |
| 47 | 2606314102 | Control Element |
| 47 | 2606314102 | Control Element |
| 47 | 2606314102 | Control Element |
| 47 | 2606314102 | Control Element |
| 47 | 2606314102 | Control Element |
| 47 | 2606314102 | Control Element |
| 49 | 2606440028 | Sliding Clutch |
| 49 | 2606440028 | Sliding Clutch |
| 49 | 2606440028 | Sliding Clutch |
| 49 | 2606440028 | Sliding Clutch |
| 49 | 2606440028 | Sliding Clutch |
| 49 | 2606440028 | Sliding Clutch |
| 49 | 2606440028 | Sliding Clutch |
| 5 | 1604460437 | Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460104 | Power supply cord I 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460184 | Power supply cord 0,46M |
| 5 | 2604460255 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460256 | Power supply cord AUS 0,40M 2 X 1,00MM H05 Vv-F |
| 5 | 1604460437 | Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460437 | Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460104 | Power supply cord I 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460184 | Power supply cord 0,46M |
| 5 | 2604460255 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460256 | Power supply cord AUS 0,40M 2 X 1,00MM H05 Vv-F |
| 5 | 1604460437 | Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460104 | Power supply cord I 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460184 | Power supply cord 0,46M |
| 5 | 2604460255 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460256 | Power supply cord AUS 0,40M 2 X 1,00MM H05 Vv-F |
| 5 | 1604460437 | Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460436 | Power supply cord CH 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460255 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460262 | Power supply cord 0,46M |
| 5 | 2604460263 | Power supply cord |
| 5 | 2604460264 | Power supply cord I/br 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460436 | Power supply cord CH 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460255 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460262 | Power supply cord 0,46M |
| 5 | 2604460263 | Power supply cord |
| 5 | 2604460264 | Power supply cord I/br 0,46M 2 X 1,0MM H05 Vv-F |
| 53 | 2608040183 | Spacer |
| 53 | 2608040183 | Spacer |
| 53 | 2608040183 | Spacer |
| 53 | 2608040183 | Spacer |
| 53 | 2608040183 | Spacer |
| 53 | 2608040183 | Spacer |
| 53 | 2608040183 | Spacer |
| 54 | 2604610045 | Compression Spring |
| 54 | 2604610045 | Compression Spring |
| 54 | 2604610045 | Compression Spring |
| 54 | 2604610045 | Compression Spring |
| 54 | 2604610045 | Compression Spring |
| 54 | 2604610045 | Compression Spring |
| 54 | 2604610045 | Compression Spring |
| 55 | 2604610073 | Compression Spring Alt |
| 55 | 2604610073 | Compression Spring Alt |
| 55 | 2604610073 | Compression Spring Alt |
| 55 | 2604610073 | Compression Spring Alt |
| 55 | 2604610073 | Compression Spring Alt |
| 55 | 2604610073 | Compression Spring Alt |
| 55 | 2604610073 | Compression Spring Alt |
| 56 | 2600101617 | Shim 0,3 MM |
| 56 | 2600101617 | Shim 0,3 MM |
| 56 | 2600101617 | Shim 0,3 MM |
| 56 | 2600101617 | Shim 0,3 MM |
| 56 | 2600101617 | Shim 0,3 MM |
| 56 | 2600101617 | Shim 0,3 MM |
| 56 | 2600101617 | Shim 0,3 MM |
| 57 | 2604448234 | Connecting Cable |
| 57 | 2604448234 | Connecting Cable |
| 57 | 2604448234 | Connecting Cable |
| 57 | 2604448234 | Connecting Cable |
| 57 | 2604448234 | Connecting Cable |
| 57 | 2604448234 | Connecting Cable |
| 57 | 2604448234 | Connecting Cable |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 60 | 2604448235 | Connecting Cable |
| 60 | 2604448235 | Connecting Cable |
| 60 | 2604448235 | Connecting Cable |
| 60 | 2604448235 | Connecting Cable |
| 60 | 2604448235 | Connecting Cable |
| 60 | 2604448235 | Connecting Cable |
| 60 | 2604448235 | Connecting Cable |
| 62 | 2916080905 | Locking washer |
| 62 | 2916080905 | Locking washer |
| 62 | 2916080905 | Locking washer |
| 62 | 2916080905 | Locking washer |
| 62 | 2916080905 | Locking washer |
| 62 | 2916080905 | Locking washer |
| 62 | 2916080905 | Locking washer |
| 63 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 653 | 2605411154 | Knife Guard |
| 653 | 2605411188 | Knife Guard |
| 653 | 2605411154 | Knife Guard |
| 653 | 2605411153 | Knife Guard |
| 653 | 2605411189 | Knife Guard |
| 653 | 2605411153 | Knife Guard |
| 653 | 2605411152 | Knife Guard |
| 66 | 2604490012 | Socket-Terminal Strip |
| 66 | 2604490012 | Socket-Terminal Strip |
| 66 | 2604490012 | Socket-Terminal Strip |
| 66 | 2604490012 | Socket-Terminal Strip |
| 66 | 2604490012 | Socket-Terminal Strip |
| 66 | 2604490012 | Socket-Terminal Strip |
| 66 | 2604490012 | Socket-Terminal Strip |
| 681 | 3601398000 | Strain-Relief Clamp |
| 681 | 3601398000 | Strain-Relief Clamp |
| 681 | 3601398000 | Strain-Relief Clamp |
| 681 | 3601398000 | Strain-Relief Clamp |
| 681 | 3601398000 | Strain-Relief Clamp |
| 681 | 3601398000 | Strain-Relief Clamp |
| 681 | 3601398000 | Strain-Relief Clamp |
| 71 | 2604610074 | Compression Spring |
| 71 | 2604610074 | Compression Spring |
| 71 | 2604610074 | Compression Spring |
| 71 | 2604610074 | Compression Spring |
| 71 | 2604610074 | Compression Spring |
| 71 | 2604610074 | Compression Spring |
| 71 | 2604610074 | Compression Spring |
| 803 | 2604010982 | Armature 230-240V |
| 803 | 2604010982 | Armature 230-240V |
| 803 | 2604010982 | Armature 230-240V |
| 803 | 2604010982 | Armature 230-240V |
| 803 | 2604010982 | Armature 230-240V |
| 803 | 2604010982 | Armature 230-240V |
| 803 | 2604010982 | Armature 230-240V |
| 808 | 2601117838 | Marking Plate |
| 808 | 2601117839 | Marking Plate |
| 808 | 2601117840 | Marking Plate |
| 808 | 2601117841 | Marking Plate |
| 808 | 2601117842 | Marking Plate |
| 808 | 2601116203 | Marking Plate |
| 808 | 2601117843 | Marking Plate |
| 808 | 2601117844 | Marking Plate |
| 808 | 2601117845 | Marking Plate |
| 808 | 2601117846 | Marking Plate |
| 808 | 2601117847 | Marking Plate |
| 808 | 2601117848 | Marking Plate |
| 808 | 2601117849 | Marking Plate |
| 808 | 2601117850 | Marking Plate |
| 808 | 2601117851 | Marking Plate |
| 808 | 2601117852 | Marking Plate |
| 808 | 2601116204 | Marking Plate |
| 808 | 2601117853 | Marking Plate |
| 808 | 2601117854 | Marking Plate |
| 808 | 2601117855 | Marking Plate |
| 808 | 2601117856 | Marking Plate |
| 808 | 2601117857 | Marking Plate |
| 808 | 2601117858 | Marking Plate |
| 808 | 2601117859 | Marking Plate |
| 808 | 2601117860 | Marking Plate |
| 808 | 2601117861 | Marking Plate |
| 808 | 2601117862 | Marking Plate |
| 816 | 2604321925 | Carbon-Brush Set |
| 816 | 2604321925 | Carbon-Brush Set |
| 816 | 2604321925 | Carbon-Brush Set |
| 816 | 2604321925 | Carbon-Brush Set |
| 816 | 2604321925 | Carbon-Brush Set |
| 816 | 2604321925 | Carbon-Brush Set |
| 816 | 2604321925 | Carbon-Brush Set |
| 825 | 2608001903 | Switch Segment |
| 825 | 2608001903 | Switch Segment |
| 825 | 2608001903 | Switch Segment |
| 825 | 2608001903 | Switch Segment |
| 825 | 2608001903 | Switch Segment |
| 825 | 2608001903 | Switch Segment |
| 825 | 2608001903 | Switch Segment |
| 833 | 2607001902 | Set of knives |
| 833 | 2607001902 | Set of knives |
| 833 | 2607001903 | Set of knives |
| 833 | 2607001904 | Set of knives |
| 833 | 2607001904 | Set of knives |
| 833 | 2607001905 | Set of knives |
| 833 | 2607001906 | Set of knives |
| 833/4 | 2603413026 | Thread-forming tap. Screw |
| 833/4 | 2603413026 | Thread-forming tap. Screw |
| 833/4 | 2603413026 | Thread-forming tap. Screw |
| 833/4 | 2603413026 | Thread-forming tap. Screw |
| 833/4 | 2603413026 | Thread-forming tap. Screw |
| 833/4 | 2603413026 | Thread-forming tap. Screw |
| 833/4 | 2603413026 | Thread-forming tap. Screw |
| 845 | 2608001900 | Switch Segment |
| 845 | 2608001900 | Switch Segment |
| 845 | 2608001900 | Switch Segment |
| 845 | 2608001900 | Switch Segment |
| 845 | 2608001900 | Switch Segment |
| 890 | 2606610093 | Fan |
| 890 | 2606610093 | Fan |
| 890 | 2606610093 | Fan |
| 890 | 2606610093 | Fan |
| 890 | 2606610093 | Fan |
| 890 | 2606610093 | Fan |
| 890 | 2606610093 | Fan |
| 9 | 2601117797 | Manufacturer's nameplate |
| 9 | 2601116202 | Manufacturer's nameplate |
| 9 | 2601117475 | Manufacturer's nameplate |
| 9 | 2601117508 | Manufacturer's nameplate |
| 9 | 2601116206 | Manufacturer's nameplate |
| 9 | 2601117796 | Manufacturer's nameplate |
| 9 | 2601117833 | Manufacturer's nameplate |
Selected parts0
