Bosch AHS 4
Bosch AHS 4 hedge trimmer: exploded parts diagram, 2 sheets, 101 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

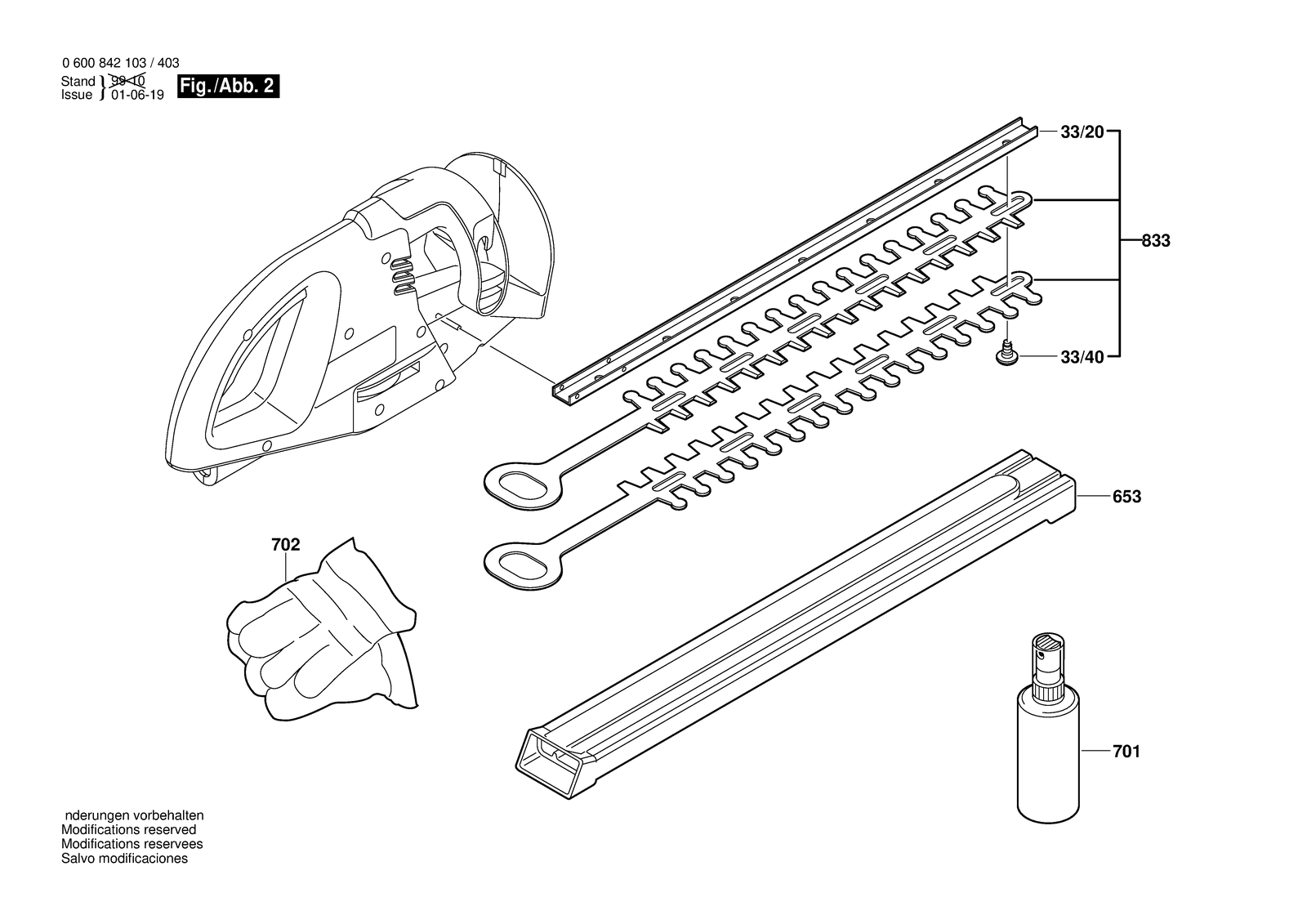

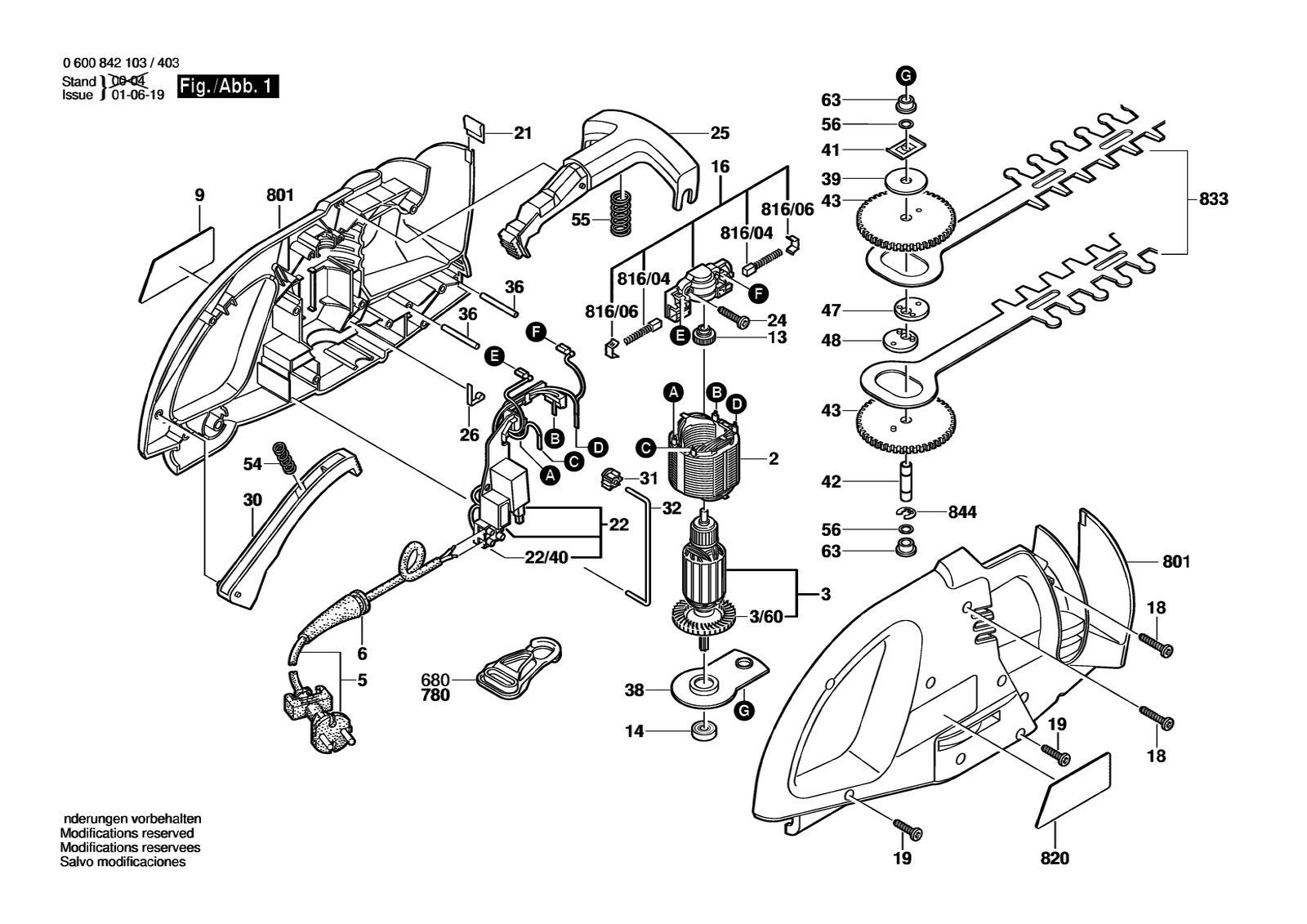

All parts of Bosch AHS 4: 101 positions on 2 sheets
Bosch AHS 4 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 13 | 2605805004 | Flanged Bearing |
| 13 | 2605805004 | Flanged Bearing |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 16 | 2609992620 | Brush Plate |
| 16 | 2609992620 | Brush Plate |
| 18 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 18 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220570 | Field 230-240V |
| 2 | 2604220570 | Field 230-240V |
| 21 | 2601310010 | Spring Clip |
| 21 | 2601310010 | Spring Clip |
| 22 | 2607235007 | Circuit Unit |
| 22 | 2607235007 | Circuit Unit |
| 22/40 | 2604490012 | Socket-Terminal Strip |
| 22/40 | 2604490012 | Socket-Terminal Strip |
| 24 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 24 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 25 | 1605190090 | Switch Segment |
| 25 | 2605190219 | Switch Segment |
| 26 | 2601329057 | Contact Spring |
| 26 | 2601329057 | Contact Spring |
| 3 | 2604011096 | Armature 230-240V |
| 3 | 2604011096 | Armature 230-240V |
| 3/60 | 2606610027 | Fan |
| 3/60 | 2606610027 | Fan |
| 30 | 1605190091 | Switch Segment |
| 30 | 1605190091 | Switch Segment |
| 31 | 1606330021 | Switch Wheel |
| 31 | 1606330021 | Switch Wheel |
| 32 | 2608040108 | Shifter Rod |
| 32 | 2608040108 | Shifter Rod |
| 33/20 | 2601038070 | Guide |
| 33/20 | 2601038070 | Guide |
| 33/40 | 2603413026 | Thread-forming tap. Screw |
| 33/40 | 2603413026 | Thread-forming tap. Screw |
| 36 | 2609002714 | Straight Pin |
| 36 | 2609002714 | Straight Pin |
| 38 | 2605807080 | Bushing |
| 38 | 2605807080 | Bushing |
| 39 | 2600100083 | Shim washer |
| 39 | 2600100083 | Shim washer |
| 41 | 2601310011 | Spring Nut |
| 41 | 2601310011 | Spring Nut |
| 42 | 2603105054 | Bearing bolt |
| 42 | 2603105054 | Bearing bolt |
| 43 | 2606316163 | Cylindrical Gear Z=86 |
| 43 | 2606316163 | Cylindrical Gear Z=86 |
| 47 | 2600030010 | Eccentric Disc |
| 47 | 2600030010 | Eccentric Disc |
| 48 | 2600030011 | Eccentric Disc |
| 48 | 2600030011 | Eccentric Disc |
| 5 | 1604460437 | Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460133 | Power supply cord |
| 5 | 2604460178 | Power supply cord |
| 5 | 2604460184 | Power supply cord 0,46M |
| 5 | 2604460255 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460437 | Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460184 | Power supply cord 0,46M |
| 5 | 2604460255 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 54 | 2604610028 | Compression Spring |
| 54 | 2604610028 | Compression Spring |
| 55 | 2604610045 | Compression Spring |
| 55 | 2604610045 | Compression Spring |
| 56 | 2600101676 | Shim |
| 56 | 2600101676 | Shim |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 63 | 1900322018 | Sintered-Metal Bushing 8 X 12 X 8MM |
| 63 | 1900322018 | Sintered-Metal Bushing 8 X 12 X 8MM |
| 653 | 2605411122 | Oil Reservoir |
| 653 | 2605411122 | Oil Reservoir |
| 680 | 3601398000 | Strain-Relief Clamp |
| 701 | 1609200399 | Oil Spray Tin |
| 701 | 1609200399 | Oil Spray Tin |
| 702 | 2607000134 | Protective Glove |
| 702 | 2607000134 | Protective Glove |
| 780 | 2601398012 | Strain-Relief Clamp |
| 801 | 2605104794 | Housing Section |
| 801 | 2605104794 | Housing Section |
| 816/04 | 2604321920 | Carbon-Brush Set |
| 816/04 | 2604321920 | Carbon-Brush Set |
| 816/06 | 2601322017 | Ratchet Cap |
| 816/06 | 2601322017 | Ratchet Cap |
| 820 | 2601119121 | Reference Plate |
| 820 | 2601119132 | Reference Plate |
| 820 | 2601119134 | Reference Plate |
| 820 | 2601119477 | Nameplate |
| 820 | 2601119478 | Reference Plate |
| 820 | 2601117064 | Reference Plate |
| 820 | 2601117065 | Reference Plate |
| 820 | 2601117066 | Reference Plate |
| 833 | 2607001273 | Set of knives 420 MM |
| 833 | 2607001273 | Set of knives 420 MM |
| 844 | 2916080910 | Locking washer DIN 6799-7-FST |
| 844 | 2916080910 | Locking washer DIN 6799-7-FST |
| 9 | 2601119120 | Manufacturer's nameplate |
| 9 | 2601117060 | Manufacturer's nameplate |
