Bosch AHS 3

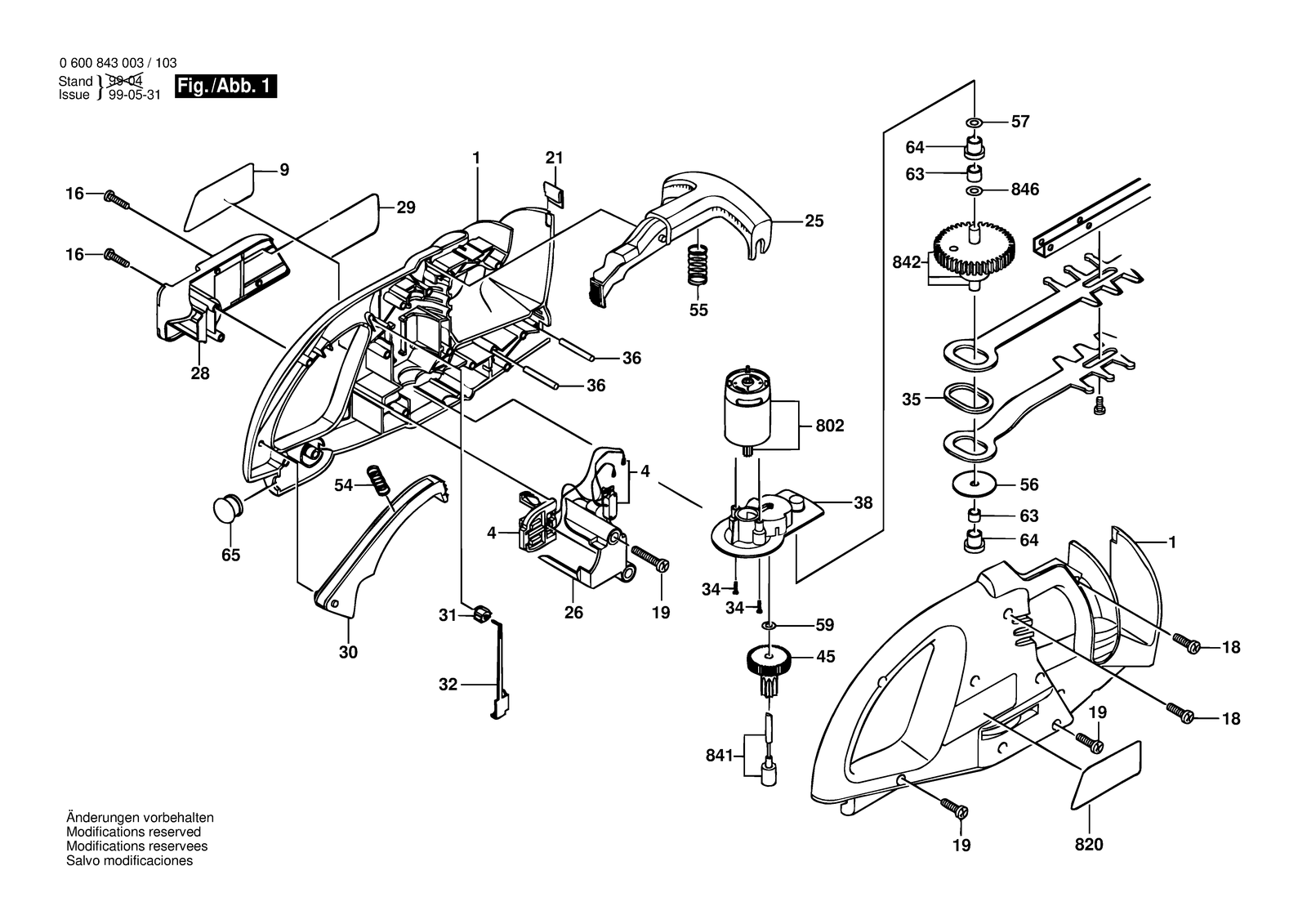

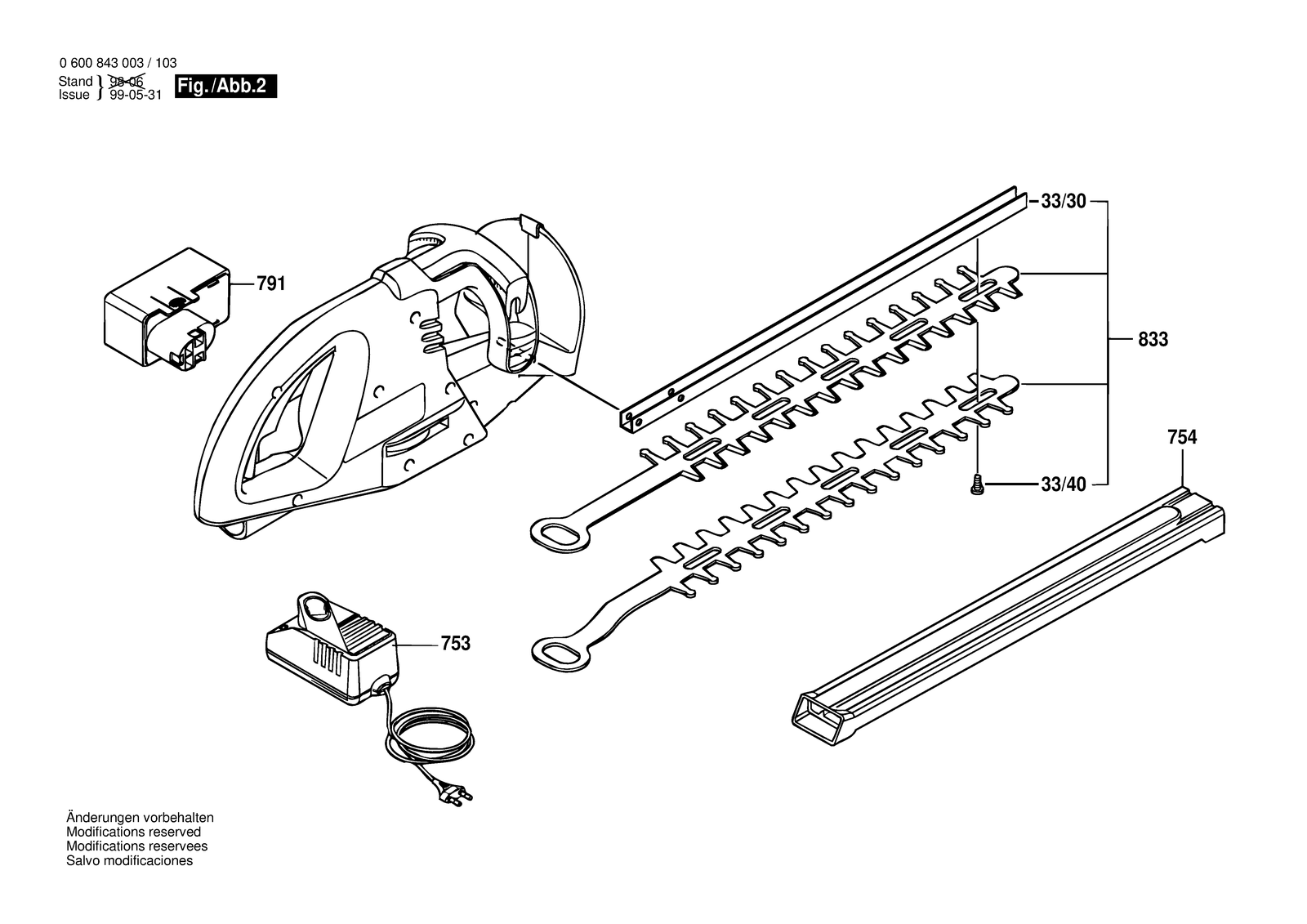

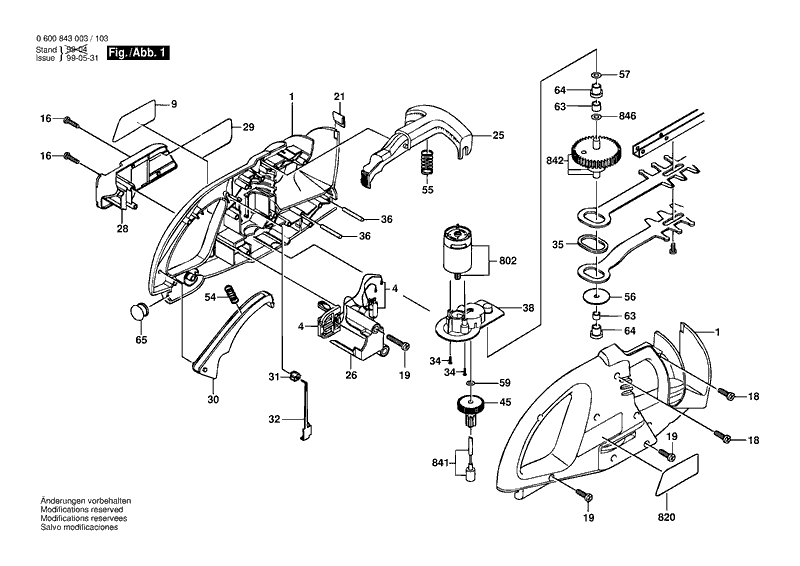

Bosch AHS 3 hedge trimmer: exploded parts diagram, 2 sheets, 81 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AHS 3: 81 positions on 2 sheets
Bosch AHS 3 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104658 | Housing Section Green |
| 1 | 2605104714 | Housing Section Red |
| 16 | 2603429008 | Oval-Head Screw |
| 16 | 2603429008 | Oval-Head Screw |
| 18 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 18 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 21 | 2601310010 | Spring Clip |
| 21 | 2601310010 | Spring Clip |
| 25 | 2605190219 | Switch Segment |
| 25 | 1605190090 | Switch Segment |
| 26 | 2605190161 | Switch Housing |
| 26 | 2605190161 | Switch Housing |
| 28 | 2605190162 | Insert Piece |
| 28 | 2605190283 | Insert Piece |
| 29 | 2601329041 | Retaining Bracket |
| 29 | 2601329041 | Retaining Bracket |
| 30 | 1605190091 | Switch Segment |
| 30 | 1605190091 | Switch Segment |
| 31 | 1606330021 | Switch Wheel |
| 31 | 1606330021 | Switch Wheel |
| 32 | 2608040144 | Shifter Rod |
| 32 | 2608040144 | Shifter Rod |
| 33/30 | 2601038070 | Guide |
| 33/30 | 2601038071 | Guide |
| 33/40 | 2603413033 | Thread-forming tap. Screw |
| 33/40 | 2603413033 | Thread-forming tap. Screw |
| 34 | 2603414048 | Torx SH cap screw M3X5-8.8-Z |
| 34 | 2603414048 | Torx SH cap screw M3X5-8.8-Z |
| 35 | 2600200044 | Retaining snap ring |
| 35 | 2600200044 | Retaining snap ring |
| 36 | 2609002714 | Straight Pin |
| 36 | 2609002714 | Straight Pin |
| 38 | 2605806428 | Gear Housing |
| 38 | 2605806428 | Gear Housing |
| 4 | 2607235008 | Circuit Unit |
| 4 | 2607235008 | Circuit Unit |
| 45 | 2606316092 | Cylindrical Gear |
| 45 | 2606316092 | Cylindrical Gear |
| 54 | 2604610028 | Compression Spring |
| 54 | 2604610028 | Compression Spring |
| 55 | 2604610045 | Compression Spring |
| 55 | 2604610045 | Compression Spring |
| 56 | 2600101096 | Shim |
| 56 | 2600101096 | Shim |
| 57 | 2600000028 | Shim 0,5 MM |
| 57 | 2600000028 | Shim 0,5 MM |
| 59 | 2600100525 | Shim |
| 59 | 2600100525 | Shim |
| 63 | 2600910005 | Needle bearing |
| 63 | 2600910005 | Needle bearing |
| 64 | 2600400043 | Bearing Sleeve |
| 64 | 2600400043 | Bearing Sleeve |
| 65 | 2608040145 | Plug |
| 65 | 2608040145 | Plug |
| 753 | 2607224425 | Fast Charger EU 230/7,2-24V, 1H |
| 753 | 2607224427 | Fast Charger GB 230/7,2-24V, 1H |
| 753 | 2607224403 | Fast Charger EU 230/7,2-14,4V, 1H |
| 754 | 2605411109 | Oil Reservoir |
| 791 | 2607335039 | Slide-In Accu Package 12V, 1,7AH, Nicd |
| 791 | 2607336145 | Slide-In Accu Package 12V, 1,5AH, Nicd |
| 791 | 2607335039 | Slide-In Accu Package 12V, 1,7AH, Nicd |
| 802 | 2607022978 | DC motor 12V |
| 802 | 2607022978 | DC motor 12V |
| 820 | 2601119397 | Reference Plate |
| 820 | 2601119864 | Reference Plate |
| 820 | 2601119988 | Manufacturer's nameplate |
| 820 | 2601117283 | Reference Plate |
| 833 | 2607001315 | Set of knives |
| 833 | 2607001326 | Set of knives |
| 833 | 2607001326 | Set of knives |
| 841 | 2603124906 | Shaft |
| 841 | 2603124906 | Shaft |
| 842 | 2607034003 | Reflector And Drive Assy. |
| 842 | 2607034003 | Reflector And Drive Assy. |
| 846 | 2916080007 | Locking washer DIN 6799-4-FST |
| 846 | 2916080007 | Locking washer DIN 6799-4-FST |
| 9 | 2601119395 | Manufacturer's nameplate |
| 9 | 2601119863 | Manufacturer's nameplate |
| 9 | 2601117282 | Manufacturer's nameplate |
