Bosch AHS 2400

Bosch AHS 2400 hedge trimmer: exploded parts diagram, 2 sheets, 44 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AHS 2400: 44 positions on 2 sheets

Bosch AHS 2400 parts list (2 sheets)

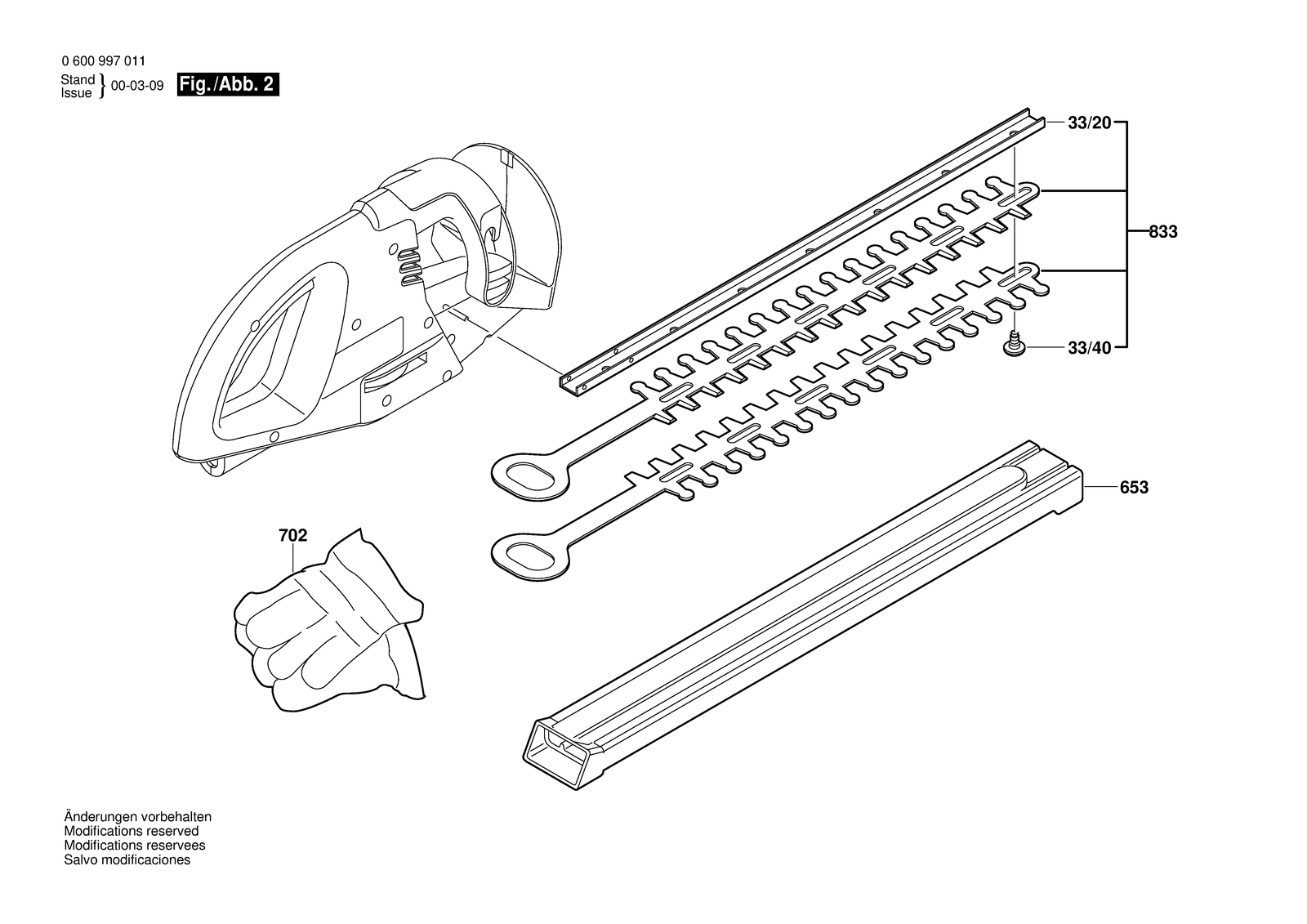

Bosch AHS 2400 parts diagram, sheet 1Bosch AHS 2400 parts diagram, sheet 2
No.Part numberPart name
12605104719Housing Section Green
132605805004Flanged Bearing
142600905021Groove ball bearing 9X24X7
162609992620Brush Plate
182603490024Torx Oval-Head Screw 4X25
192603490022Screw 4X16
22604220694Field 230-240V
212601310010Spring Clip
222607235007Circuit Unit
22/302607329005Suppression Capacitor
22/402604490012Socket-Terminal Strip
242603490023Torx Oval-Head Screw 4X20
252605190219Switch Segment
262601329057Contact Spring
32604011248Armature 230-240V
3/602606610027Fan
301605190091Switch Segment
311606330021Switch Wheel
322608040108Shifter Rod
33/202601038070Guide
33/402603413026Thread-forming tap. Screw
362609002714Straight Pin
382605807080Bushing
392600100083Shim washer
412601310011Spring Nut
422603105054Bearing bolt
432606316163Cylindrical Gear Z=86
472600030010Eccentric Disc
482600030011Eccentric Disc
52604460255Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F
542604610028Compression Spring
552604610045Compression Spring
562600101676Shim
62600703017Grommet Ø6,4-Ø7,2X76 MM
631900322018Sintered-Metal Bushing 8 X 12 X 8MM
6532605411122Oil Reservoir
7022607000134Protective Glove
816/042604321920Carbon-Brush Set
816/062601322017Ratchet Cap
8202601117906Reference Plate
8222607235007Circuit Unit
8332607001907Set of knives
8442916080910Locking washer DIN 6799-7-FST
92601117905Manufacturer's nameplate
