Bosch AHS 18 ACCU hedge trimmer: exploded parts diagram, 1 sheet, 32 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AHS 18 ACCU: 32 positions on 1 sheet

Bosch AHS 18 ACCU parts list (1 sheet)

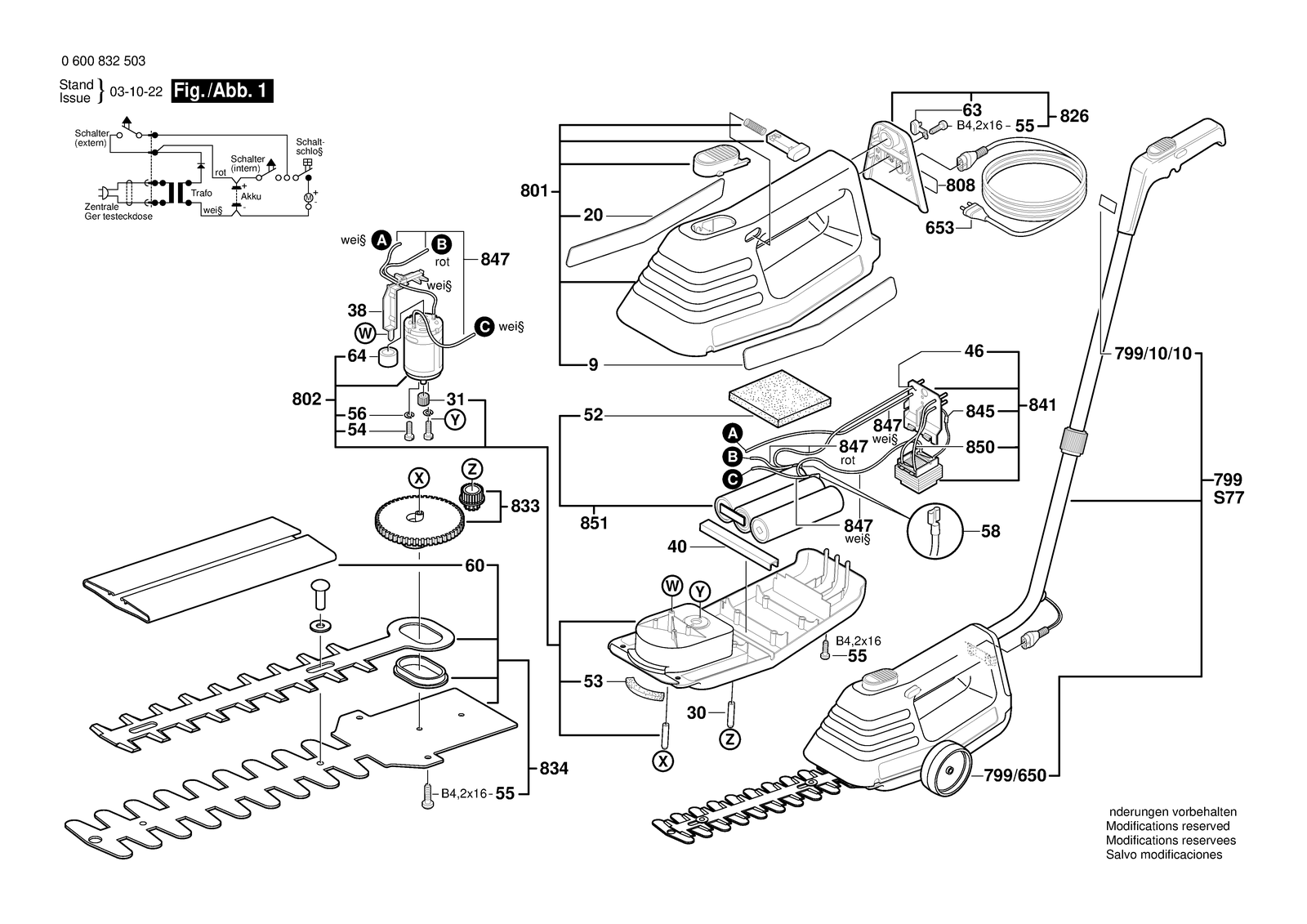

Bosch AHS 18 ACCU parts diagram, sheet 1
No.Part numberPart name
202601116642Reference Plate
302603120035Axle
312606316175Pinion Z=10, Ø2,3 MM
382608018002Contact Housing
402602386000Cover Strip
462600422003Contact Sleeve
522602388007Damping Plate 60X80X2 MM
532602391002Wiper
542603413030Socket head cap screw AM 2,6X8 MM
552603490022Screw 4X16
562600116037Spring retaining ring
581904478015Receptacle
602605411209Knife Guard
632605500141Protective Cap
642605719025Adapter
6532604460107Power supply cord 1,1M Pvc
6532604460111Power supply cord GB 1,1M
7992607001181Guide Bracket Green
799/10/102601110601Manufacturer's nameplate
799/6501609200927Impeller
8012605105934Upper Housing
8022607022960DC motor 18V
808160111A3H4Nameplate
8262605500906Housing Cover Green
8331609200910Eccentric Cog Wheel
8342607009908Set of knives
8412607224906Charging Transformer GB 240/7,2V, 1H
8452607010227Parts Set 2 Piece
8472604412900Connecting Cable
8502604412023Connecting Cable White L=63 MM
8512607335811Battery Set 7,2V, 1,5AH, Nicd
92601116641Manufacturer's nameplate
