Bosch AHR 1300
Bosch AHR 1300 high pressure cleaner: exploded parts diagram, 3 sheets, 170 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

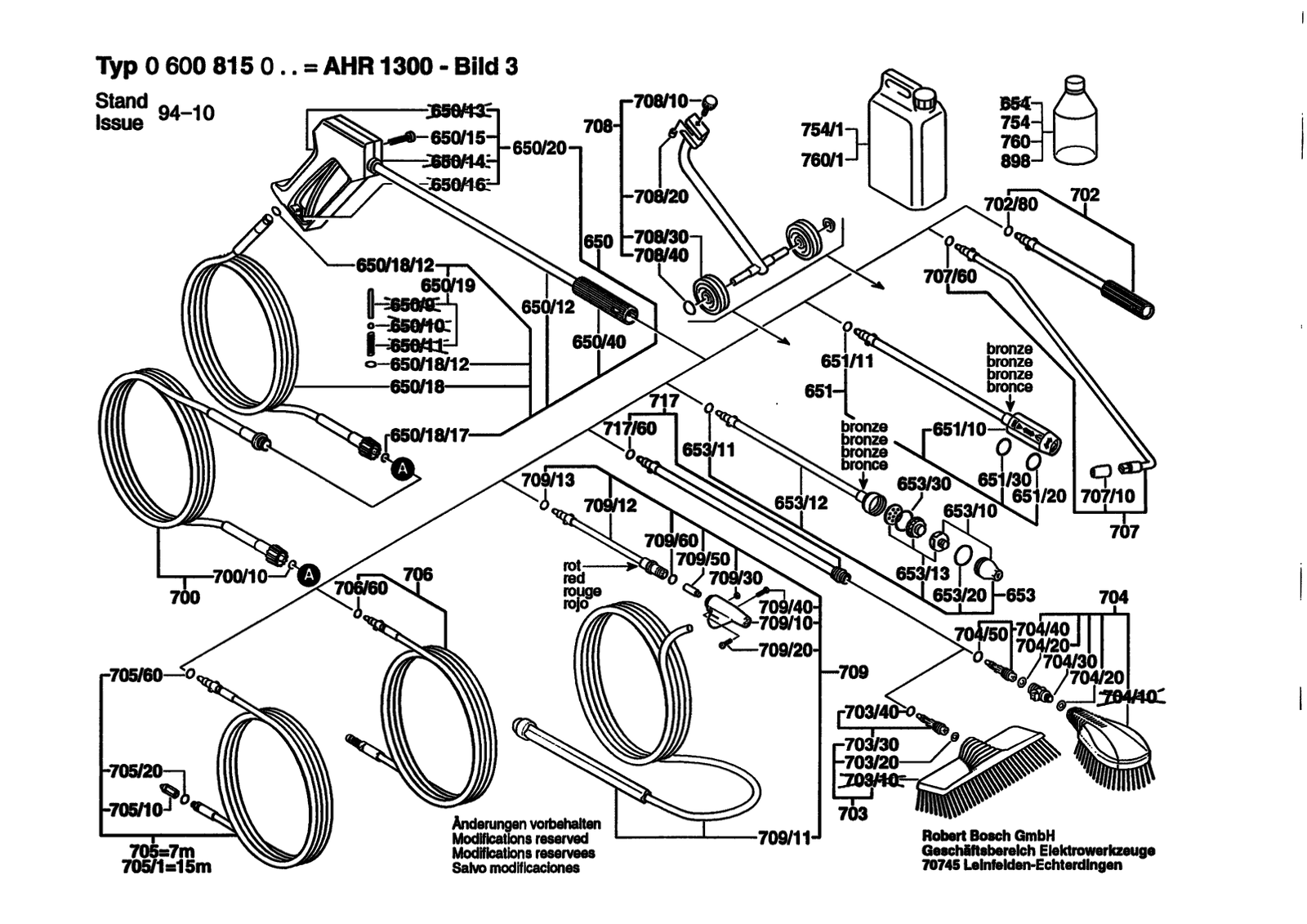

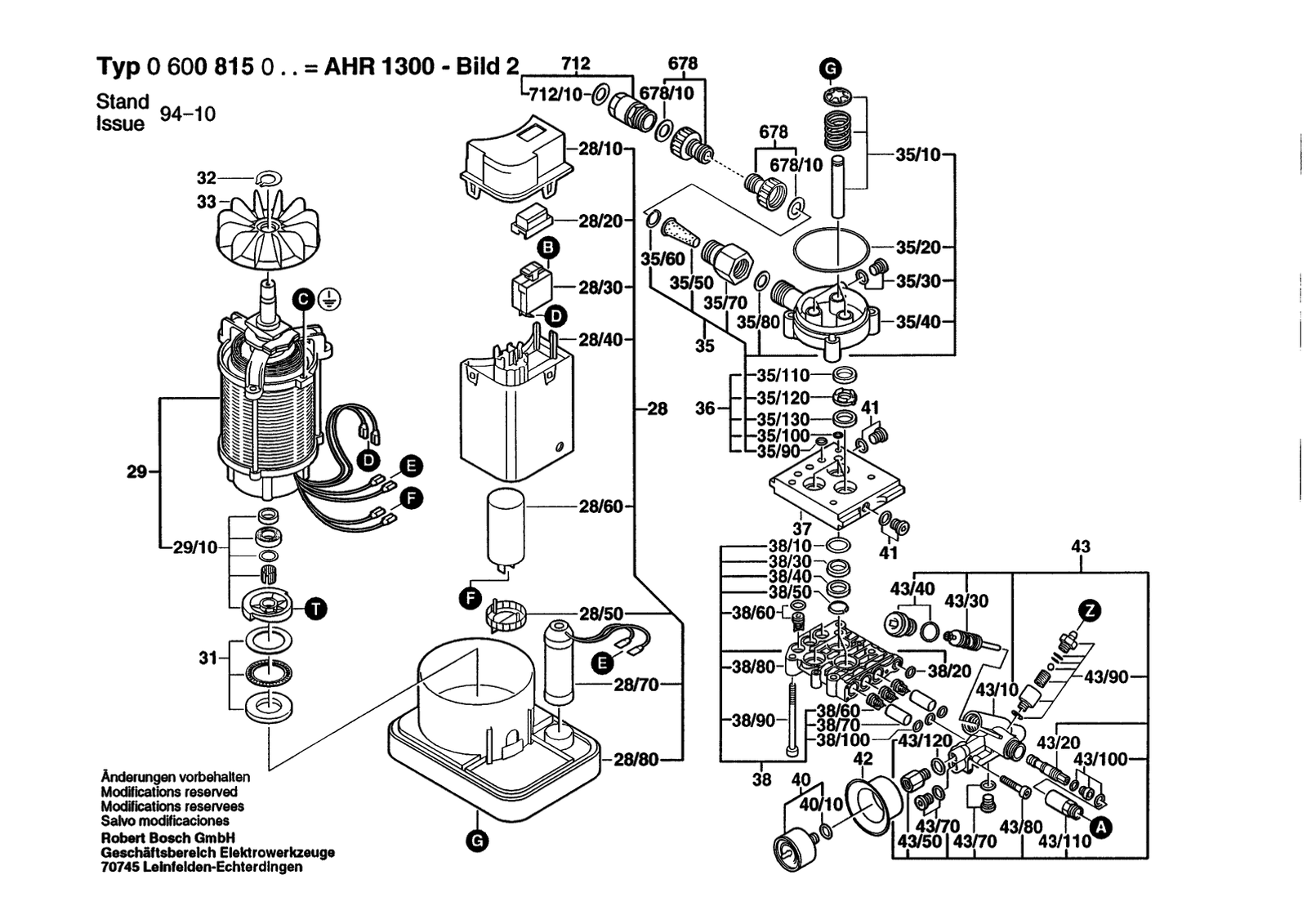

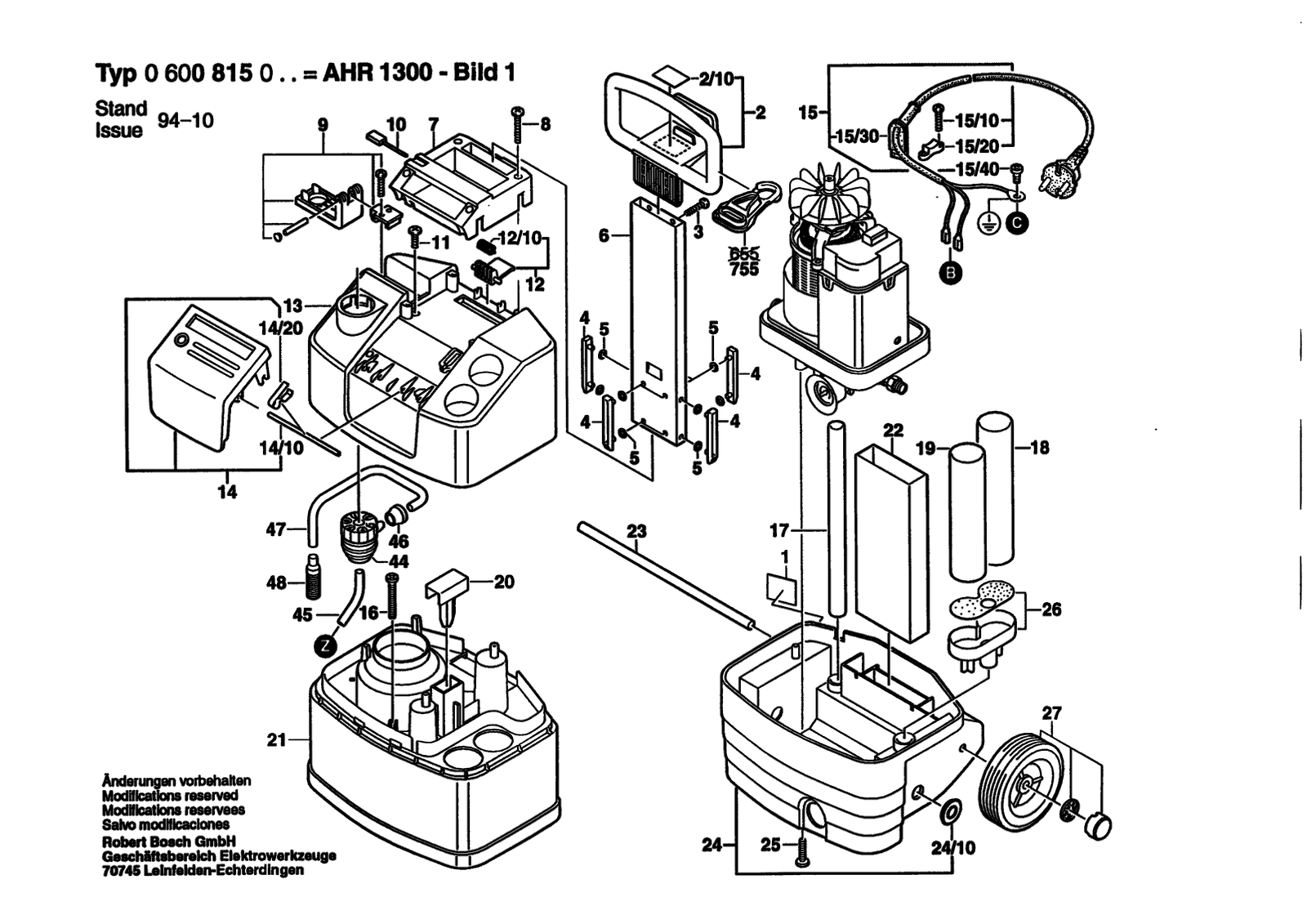

All parts of Bosch AHR 1300: 170 positions on 3 sheets
Bosch AHR 1300 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1601118452 | Nameplate |
| 1 | 1601118478 | Nameplate |
| 10 | 1609350324 | Cleaning Pin |
| 11 | 1609350006 | Raised ctsk Tapping Screw Ø6X20 MM |
| 12 | 1609350325 | Release Lever |
| 12/10 | 1609350413 | Coiled Spring |
| 13 | 1609350326 | Upper Housing Green |
| 14 | 1609350327 | Push-Button Gray |
| 14/10 | 1609350328 | Axle |
| 14/20 | 1609350406 | Spiral Spring |
| 15 | 1609350372 | Power supply cord L=5 M |
| 15 | 1609350405 | Power supply cord L=5 M |
| 15/10 | 1609350142 | Tapping Screw St Ø3X20 MM |
| 15/20 | 1609350025 | Strain-Relief Clamp |
| 15/30 | 1609350166 | Cord guard |
| 15/40 | 2912311150 | Oval-Head Screw DIN 7985-M5X8-8.8-Z |
| 16 | 1609350329 | Raised ctsk Tapping Screw |
| 17 | 1609350330 | Pipe |
| 18 | 1609350331 | Hose Guide |
| 19 | 1609350332 | Hose Guide |
| 2 | 1609350316 | Handle Black |
| 2/10 | 1601118479 | Reference Plate |
| 20 | 1609350333 | Control Lever |
| 21 | 1609350334 | Intermediate housing Green |
| 22 | 1609350335 | Rectangular Tube |
| 23 | 1609350336 | Axle |
| 24 | 1609350337 | Housing Base Black |
| 24/10 | 1609350407 | Rubber Collar |
| 25 | 1609350338 | Raised ctsk Tapping Screw |
| 26 | 1609350339 | Connector |
| 27 | 1609350340 | Wheel Set |
| 28 | 1609350341 | Circuit Unit |
| 28/10 | 1609350364 | Upper Housing Black |
| 28/20 | 1609350365 | Cover Plate |
| 28/30 | 1609350366 | On-Off Switch |
| 28/40 | 1609350367 | Housing Black |
| 28/50 | 1609350368 | Spring Washer |
| 28/60 | 1609350369 | Condenser Black |
| 28/70 | 1609350370 | Condenser |
| 28/80 | 1609350371 | Base Plate |
| 29 | 1609350342 | Motor 230V |
| 29/10 | 1609350343 | Repair Kit |
| 3 | 1609350317 | Raised ctsk Tapping Screw |
| 31 | 1609350344 | Repair Kit |
| 32 | 1609350016 | Spring retaining ring |
| 33 | 1609350017 | Fan Wheel |
| 35 | 1609350345 | Cylinder Block |
| 35/10 | 1609350410 | Repair Kit |
| 35/100 | 1609350382 | O-Ring |
| 35/110 | 1609350035 | Rubber Collar |
| 35/120 | 1609350036 | Thrust Ring |
| 35/130 | 1609350383 | Seal |
| 35/20 | 1609350098 | O-Ring 80X2 MM |
| 35/30 | 1609350308 | Plug |
| 35/40 | 1609350377 | Cylinder Block |
| 35/50 | 1609350032 | Filter screen |
| 35/60 | 1609350378 | Retaining ring |
| 35/70 | 1609350379 | Threaded Fitting |
| 35/80 | 1609350380 | Seal |
| 35/90 | 1609350381 | O-Ring |
| 36 | 1609350408 | Repair Kit |
| 37 | 1609350347 | Intermediate Flange |
| 38 | 1609350348 | Cylinder Head |
| 38/10 | 1609350384 | O-Ring |
| 38/100 | 1609350038 | Parts Set 3 Piece Ø1,6XØ15,1 MM |
| 38/20 | 1609350385 | O-Ring |
| 38/30 | 1609350386 | Sleeve |
| 38/40 | 1609350387 | Sleeve |
| 38/50 | 1609350388 | Thrust Ring |
| 38/60 | 1609350389 | Valve |
| 38/70 | 1609350390 | Connector |
| 38/80 | 1609350391 | Cylinder Head |
| 38/90 | 1609350392 | Screw |
| 4 | 1609350318 | Guide Rail |
| 40 | 1609350307 | Pressure gauge |
| 40/10 | 1609350350 | O-Ring |
| 41 | 1609350308 | Plug |
| 42 | 1609350351 | Sleeve |
| 43 | 1609350352 | Trailer-Control Valve |
| 43/10 | 1609350393 | Valve Housing |
| 43/100 | 1609350402 | Nipple |
| 43/110 | 1609350403 | Union Nut |
| 43/120 | 1609350350 | O-Ring |
| 43/20 | 1609350394 | Flow Throttle |
| 43/30 | 1609350400 | Valve Cone |
| 43/40 | 1609350395 | Plug |
| 43/50 | 1609350396 | Lengthening Piece |
| 43/70 | 1609350398 | Plug |
| 43/80 | 1609350399 | Screw |
| 43/90 | 1609350401 | Hose fitting |
| 44 | 1609350353 | Dosing Unit |
| 45 | 1609350354 | Hose |
| 46 | 1609350355 | Compression Gland |
| 47 | 1609350356 | Hose |
| 48 | 1609350357 | Filter |
| 5 | 1609350319 | O-Ring |
| 6 | 1609350320 | Rectangular Tube |
| 650 | 1609350310 | Set Of Handles |
| 650/12 | 1609350089 | Connecting Tube |
| 650/15 | 1609350142 | Tapping Screw St Ø3X20 MM |
| 650/18 | 1609350504 | Plastic Hose L=9 M, Max. 150 Bar |
| 650/18/12 | 1609350074 | Parts Set 3 Piece Ø2XØ11 MM |
| 650/18/17 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 650/19 | 1609350080 | Repair Kit |
| 650/20 | 1609350176 | Parts Set |
| 650/40 | 1609350198 | Guide Sleeve |
| 651 | 1609350311 | High Press Clean Nozzle |
| 651/10 | 1609350145 | Nozzle retaining nut |
| 651/11 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 651/20 | 1609350182 | Parts Set 3 Piece Ø2,0XØ18,0 MM |
| 651/30 | 1609350181 | Parts Set 3 Piece Ø1,78XØ18,77 MM |
| 653 | F016102635 | Nozzle |
| 653/10 | 1609350414 | Nozzle Carrier |
| 653/12 | 1609350411 | Connecting Tube |
| 653/13 | 1609350412 | Repair Kit |
| 653/20 | 1609350182 | Parts Set 3 Piece Ø2,0XØ18,0 MM |
| 653/30 | 1609350181 | Parts Set 3 Piece Ø1,78XØ18,77 MM |
| 678 | 0600800001 | Tap Connection Piece For First Equipping 3/4" |
| 678/10 | 1609351029 | Gasket Ø15XØ24X4,5=3/4" |
| 7 | 1609350321 | Carrying Handle |
| 700 | 2609200276 | Flexible Connection L=7 M |
| 700/10 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 702 | 1609350053 | Extension Tube |
| 702/80 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 703 | 1609350156 | Cleaning Brush |
| 703/20 | 1609351002 | Gasket Ø15XØ24X3=3/4" |
| 703/30 | 1609350159 | Adapter |
| 703/40 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 704 | 1609350126 | Rotary Cleaning Brush |
| 704/20 | 1609351002 | Gasket Ø15XØ24X3=3/4" |
| 704/30 | 1609351014 | Connecting Piece |
| 704/40 | 1609350159 | Adapter |
| 704/50 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 705 | 1609350054 | Pipe Cleaning Set L=7 M |
| 705/1 | 1609350055 | Pipe Cleaning Set L=15 M |
| 705/10 | 1609350137 | Pipe Nozzle |
| 705/20 | 1609350088 | Parts Set 3 Piece Ø1,6XØ10 MM |
| 705/60 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 706 | 2609200277 | Pipe Cleaning Set L=7 M |
| 706/60 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 707 | 1609350057 | Jet Pipe |
| 707/10 | 1609350136 | Nozzle retaining nut |
| 707/60 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 708 | 1609350119 | Spacer |
| 708/10 | 1609350120 | Clamp Screw |
| 708/20 | 1609350121 | Clamping Piece |
| 708/30 | 1609350122 | Wheel |
| 708/40 | 1609350123 | Sealing cap |
| 709 | 1609350188 | Sand Blast Equipment Red |
| 709/10 | 1609350146 | Nozzle-Holder Assembly |
| 709/11 | 1609350135 | Suction Connection Piece |
| 709/12 | 1609350192 | Connecting Tube |
| 709/13 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 709/20 | 2912311130 | Oval-Head Screw DIN 7985-M4X20-8.8-Z |
| 709/30 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 709/40 | 2912401005 | Tapping Screw DIN7981-ST2,9X9,5C-Z |
| 709/50 | 1609350134 | Nozzle |
| 709/60 | 1609350074 | Parts Set 3 Piece Ø2XØ11 MM |
| 712 | 1609350060 | Non-Return Valve |
| 712/10 | 1609351002 | Gasket Ø15XØ24X3=3/4" |
| 717 | 1609350164 | Extension Tube 410 MM |
| 717/60 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 754 | 1609350153 | Cleaning Agent 1X0,55 Liter |
| 754/1 | 1609350155 | Cleaning Agent 1X2,5 Liter |
| 755 | 2601398012 | Strain-Relief Clamp |
| 760 | 1609350161 | Wax 1X0,55 Liter |
| 760/1 | 1609350162 | Wax 1X2,5 Liter |
| 8 | 1609350322 | Raised ctsk Tapping Screw |
| 898 | 1609350189 | Container 0,55 Liter, 12 Stck. |
| 9 | 1609350323 | Bottle Carrier |
