Bosch AHR 120
Bosch AHR 120 high pressure cleaner: exploded parts diagram, 3 sheets, 101 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

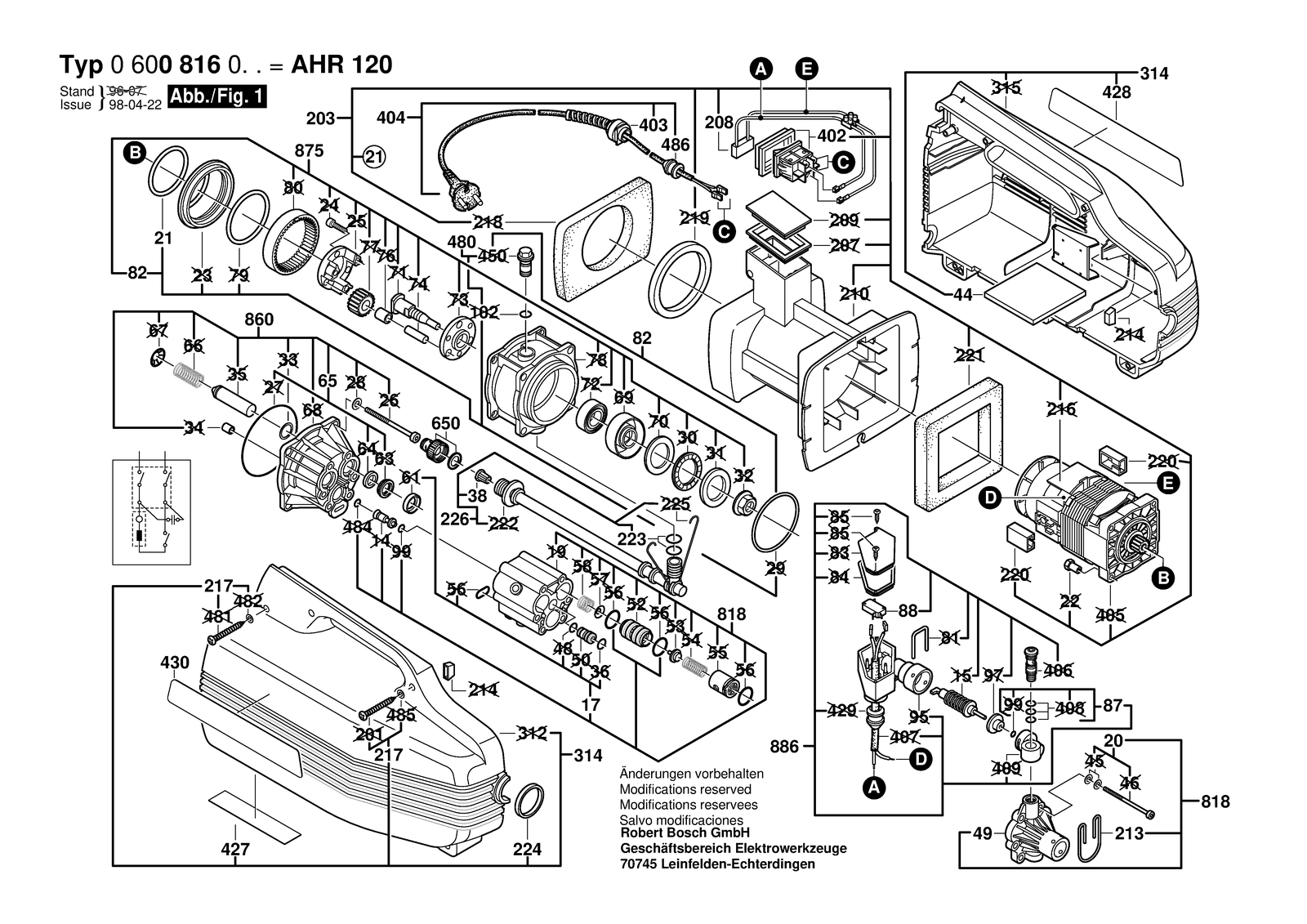

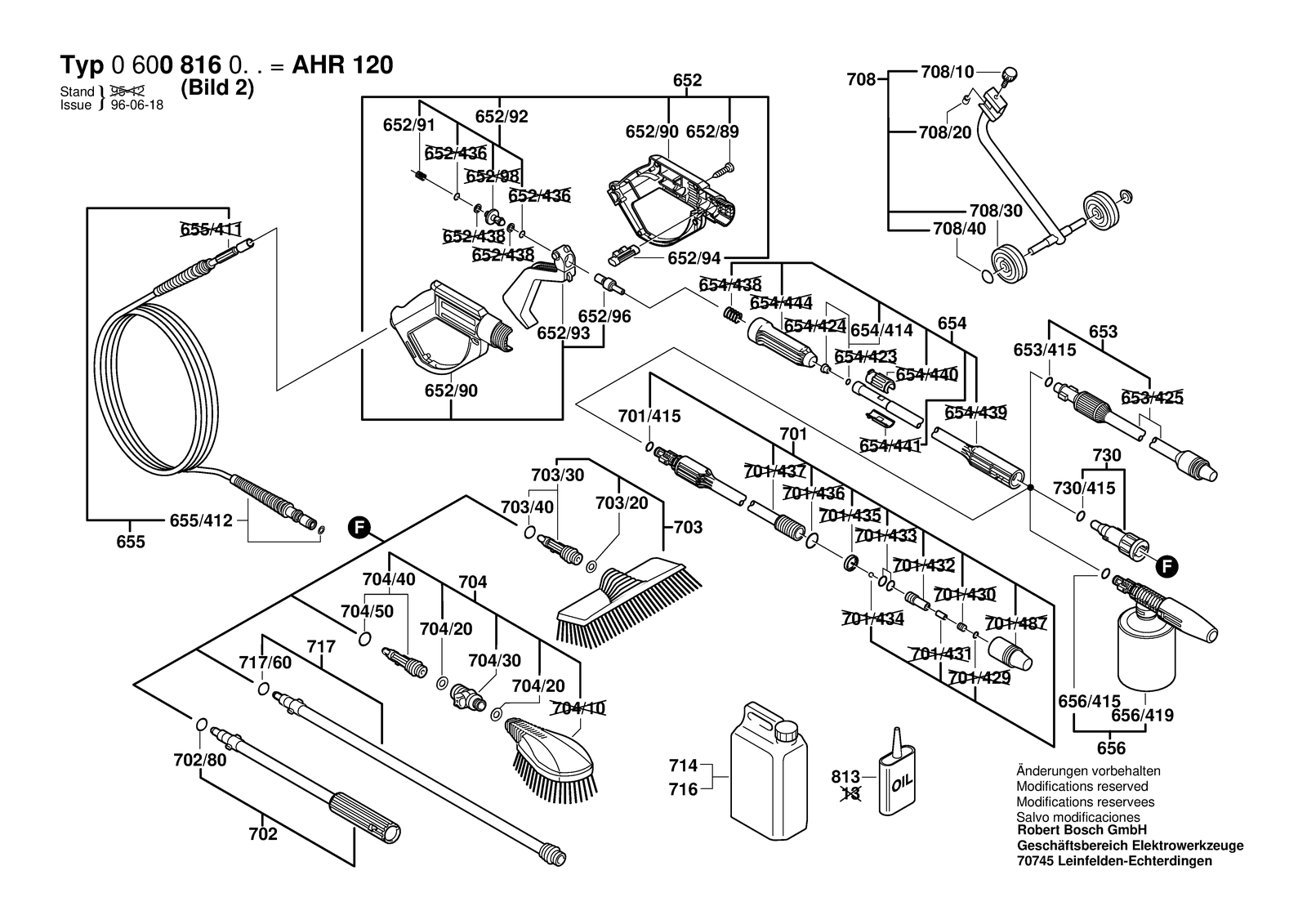

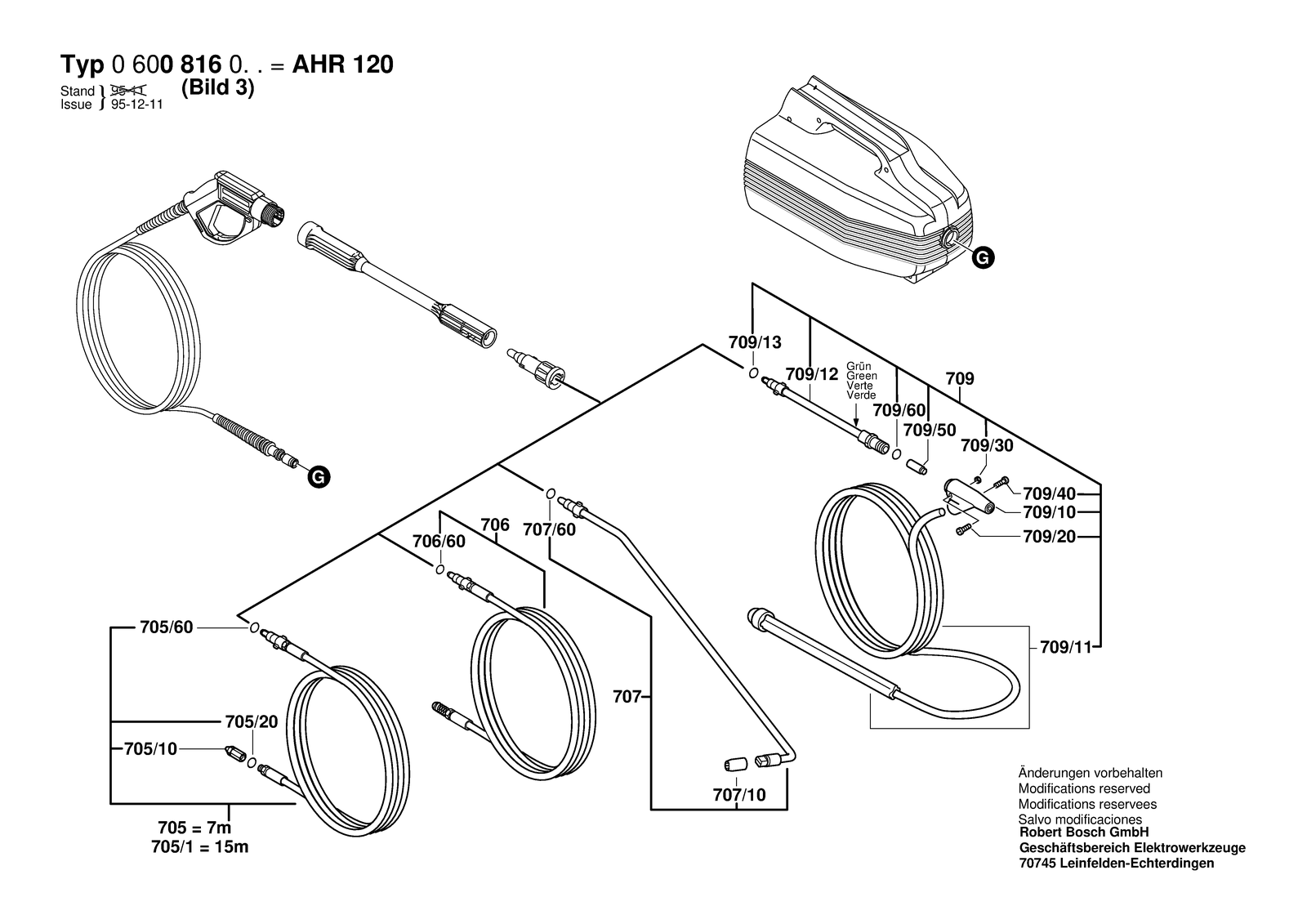

All parts of Bosch AHR 120: 101 positions on 3 sheets
Bosch AHR 120 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 17 | 1609350468 | Parts Set |
| 20 | 1609350466 | Parts Set |
| 203 | 1609350458 | Motor 230V |
| 203 | 1609350500 | Motor 240V |
| 208 | 1609350505 | Suppression Filter |
| 21 | 1609350471 | O-Ring 53,7X1,78 MM |
| 213 | 1609350469 | Clip |
| 217 | 1609350502 | Special Screw |
| 223 | 1609350477 | O-Ring 10X2 MM |
| 224 | 1609350465 | Ring |
| 226 | 1609350475 | Suction Pipe |
| 314 | 1609350459 | Housing Green |
| 38 | 1609350476 | Filter |
| 402 | 1609350501 | On-Off Switch |
| 403 | 1609350473 | Grommet |
| 404 | 1609350461 | Power supply cord |
| 404 | 1609350462 | Power supply cord |
| 404 | 1609350463 | Power supply cord |
| 404 | 1609350464 | Power supply cord |
| 404 | 1609350506 | Power supply cord |
| 427 | 1601118593 | Nameplate |
| 427 | 1601118594 | Nameplate |
| 427 | 1601118595 | Nameplate |
| 427 | 1601118596 | Nameplate |
| 427 | 1601118597 | Nameplate |
| 427 | 1601118628 | Nameplate |
| 428 | 1601118598 | Sticker |
| 430 | 1601118599 | Sticker |
| 44 | 1609350507 | Felt Sheet |
| 480 | 1609350503 | Lock |
| 49 | 1609350467 | Cylinder Head Cover |
| 65 | 1609350470 | Seal Kit |
| 650 | 0600802001 | Tap Connection Piece 3/4" |
| 652 | 1609350449 | Spray gun |
| 652/89 | 1609350480 | Special Screw |
| 652/90 | 1609350481 | Handle Cover |
| 652/91 | 1609350482 | Compression Spring |
| 652/92 | 1609350483 | Parts Set |
| 652/93 | 1609350484 | Push-Button |
| 652/94 | 1609350485 | Molded Part |
| 652/96 | 1609350486 | Molded Part |
| 653 | 1609350450 | Jet Pipe |
| 653/415 | 1609203577 | O-Ring 9,25X1,78 MM |
| 654 | 1609350451 | Extension Tube |
| 654/414 | 1609350491 | Parts Set |
| 655 | 1609350452 | High-Pressure Hose |
| 655/412 | 1609350487 | O-Ring 8,9X2,7 MM |
| 656 | F016102474 | Nozzle |
| 656/415 | 1609203577 | O-Ring 9,25X1,78 MM |
| 656/419 | 1609350492 | Container |
| 701 | 2609200294 | High Press Clean Nozzle |
| 701/415 | 1609203577 | O-Ring 9,25X1,78 MM |
| 702 | 1609350053 | Extension Tube |
| 702/80 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 703 | 1609350156 | Cleaning Brush |
| 703/20 | 1609351002 | Gasket Ø15XØ24X3=3/4" |
| 703/30 | 1609350159 | Adapter |
| 703/40 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 704 | 1609350126 | Rotary Cleaning Brush |
| 704/20 | 1609351002 | Gasket Ø15XØ24X3=3/4" |
| 704/30 | 1609351014 | Connecting Piece |
| 704/40 | 1609350159 | Adapter |
| 704/50 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 705 | 1609350054 | Pipe Cleaning Set L=7 M |
| 705/1 | 1609350055 | Pipe Cleaning Set L=15 M |
| 705/10 | 1609350137 | Pipe Nozzle |
| 705/20 | 1609350088 | Parts Set 3 Piece Ø1,6XØ10 MM |
| 705/60 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 706 | 2609200277 | Pipe Cleaning Set L=7 M |
| 706/60 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 707 | 1609350057 | Jet Pipe |
| 707/10 | 1609350136 | Nozzle retaining nut |
| 707/60 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 708 | 1609350119 | Spacer |
| 708/10 | 1609350120 | Clamp Screw |
| 708/20 | 1609350121 | Clamping Piece |
| 708/30 | 1609350122 | Wheel |
| 708/40 | 1609350123 | Sealing cap |
| 709 | 2607000191 | Sand Blast Equipment |
| 709/10 | 1609350146 | Nozzle-Holder Assembly |
| 709/11 | 1609350135 | Suction Connection Piece |
| 709/12 | 1609350303 | Connecting Tube |
| 709/13 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 709/20 | 2912311130 | Oval-Head Screw DIN 7985-M4X20-8.8-Z |
| 709/30 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 709/40 | 2912401005 | Tapping Screw DIN7981-ST2,9X9,5C-Z |
| 709/50 | 1609350134 | Nozzle |
| 709/60 | 1609350074 | Parts Set 3 Piece Ø2XØ11 MM |
| 714 | 1609350155 | Cleaning Agent 1X2,5 Liter |
| 716 | 1609350162 | Wax 1X2,5 Liter |
| 717 | 1609350164 | Extension Tube 410 MM |
| 717/60 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 730 | 2609200295 | Adapter |
| 813 | 1609350493 | Lubricating Oil 70 Ml |
| 818 | 1609350454 | Cylinder Head |
| 82 | 1609350474 | Parts Set |
| 860 | 1609350455 | Cylinder Block |
| 87 | 1609350478 | Seal Kit |
| 875 | 1609350456 | Gear |
| 88 | 1609350479 | Microswitch |
| 886 | 1609350457 | Pressure Switch |
