Bosch AHR 1000
Bosch AHR 1000 high pressure cleaner: exploded parts diagram, 3 sheets, 165 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

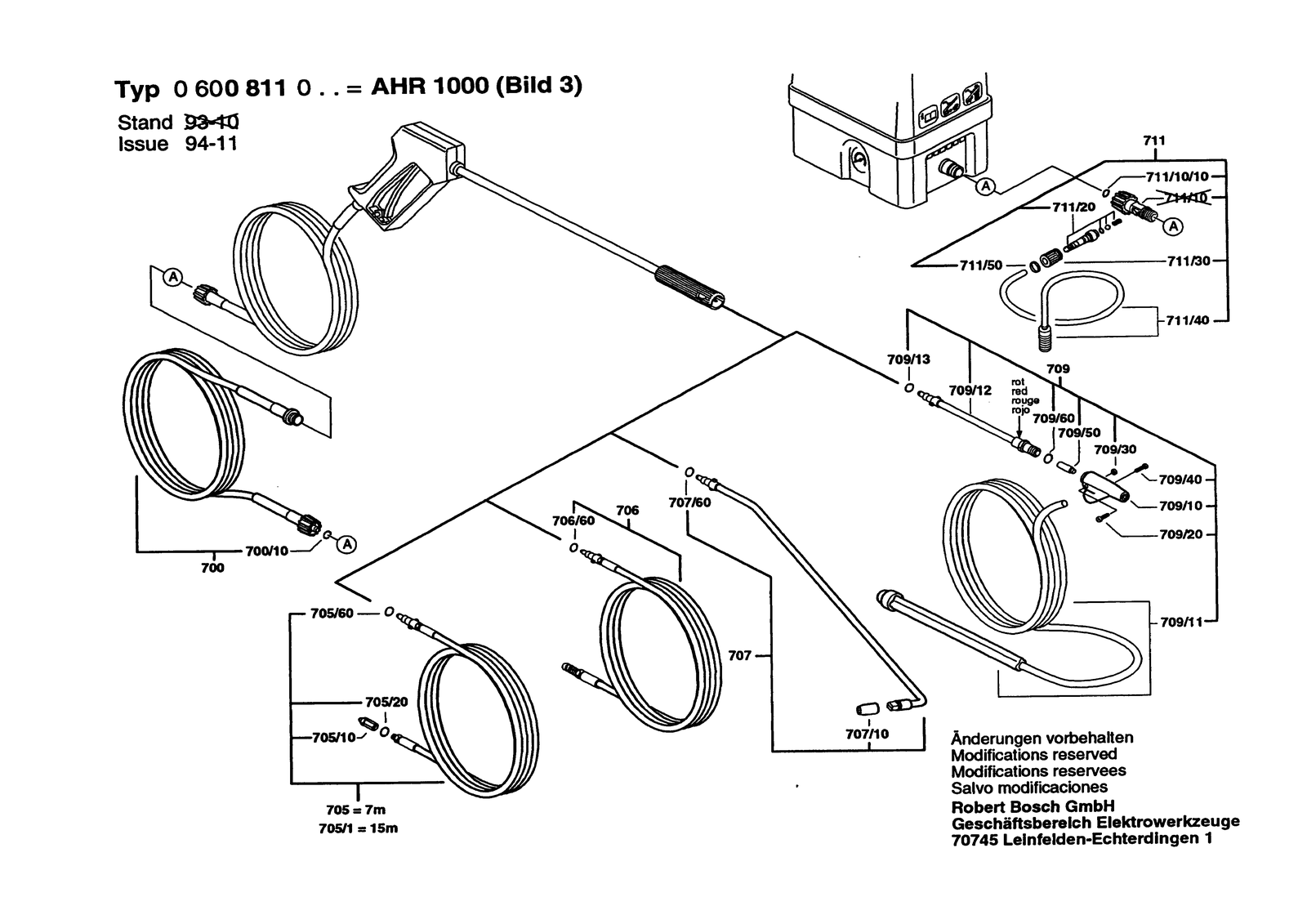

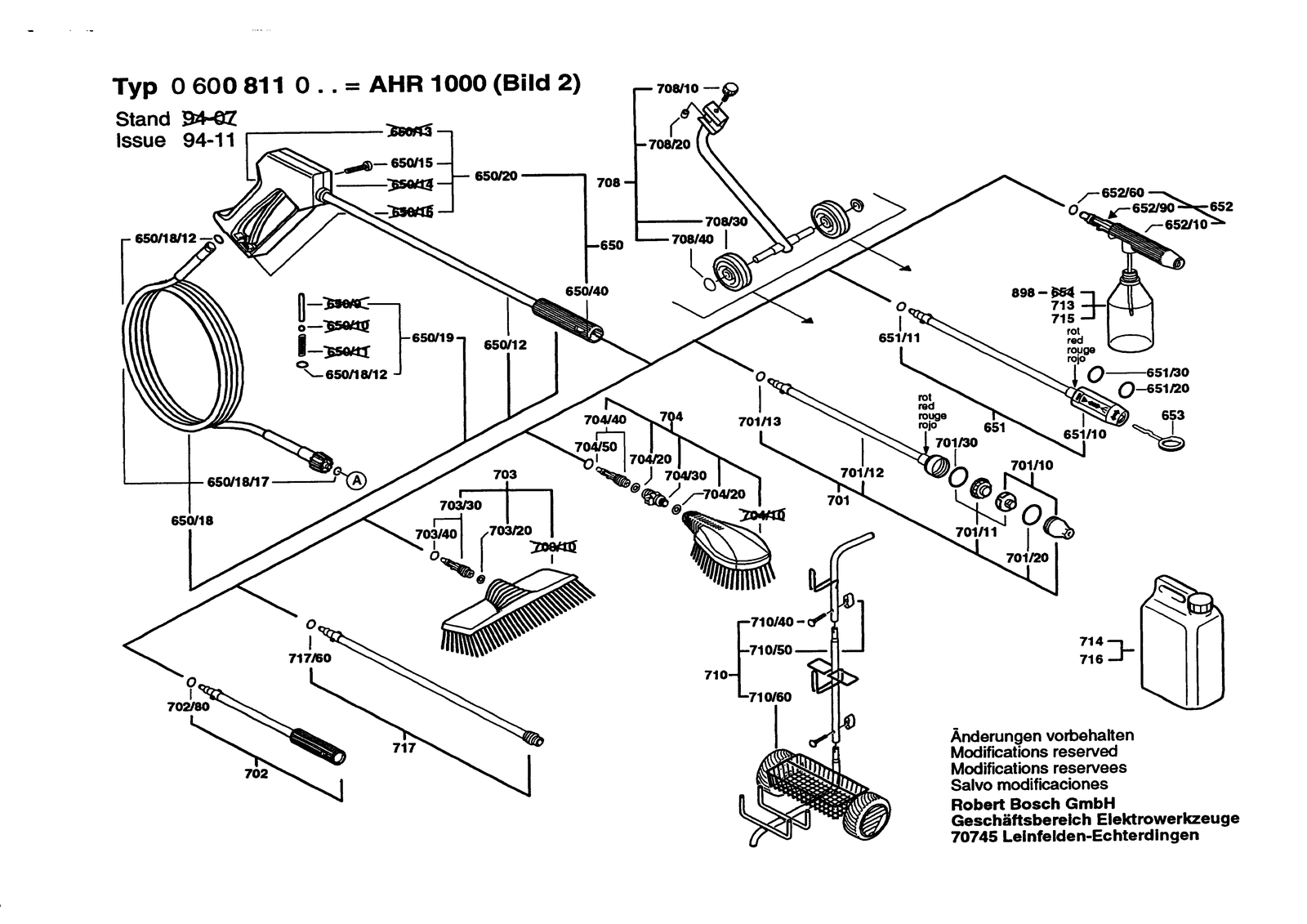

All parts of Bosch AHR 1000: 165 positions on 3 sheets
Bosch AHR 1000 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609350001 | Upper Housing |
| 1/20 | 1609350003 | Roller |
| 1/30 | 1609350004 | Push-Button |
| 1/40 | 1609350005 | Compression Spring |
| 1/50 | 1601110972 | Manufacturer's nameplate |
| 10 | 1609350193 | Intermediate housing |
| 11/1 | 1609350002 | Upper Housing |
| 14/1 | 1609350194 | Pressure Switch |
| 17 | 1609350015 | Motor Capacitor 25UF,50HZ |
| 18 | 1609350022 | Plastic Tubing |
| 18/10 | 1609350023 | Tube Mounting |
| 18/20 | 1609350178 | Seal |
| 18/30 | 1609350179 | Flat Seal Ring |
| 18/40 | 1609350180 | Cup Seal |
| 19 | 1609350007 | Intermediate housing |
| 20 | 1609350011 | Power supply cord L=5 M |
| 20 | 1609350100 | Power supply cord |
| 20 | 1609350103 | Power supply cord |
| 20 | 1609350107 | Power supply cord |
| 20 | 1609350117 | Power supply cord |
| 20 | 1609350118 | Power supply cord |
| 20 | 1609350183 | Power supply cord |
| 21 | 1609350142 | Tapping Screw St Ø3X20 MM |
| 22 | 1609350025 | Strain-Relief Clamp |
| 23 | 2912311150 | Oval-Head Screw DIN 7985-M5X8-8.8-Z |
| 24 | 1609350166 | Cord guard |
| 28 | 1609350016 | Spring retaining ring |
| 29 | 1609350017 | Fan Wheel |
| 3 | 1601110964 | Nameplate |
| 3 | 1601110965 | Nameplate |
| 3 | 1601110966 | Nameplate |
| 3 | 1601110967 | Nameplate |
| 3 | 1601110968 | Nameplate |
| 3 | 1601110969 | Nameplate |
| 3 | 1601110970 | Nameplate |
| 3 | 1601110971 | Nameplate |
| 3 | 1601110973 | Nameplate |
| 30 | 1609350201 | Motor 240V/50HZ |
| 30 | 1609350202 | Motor 230V/50HZ |
| 31 | 1609350093 | Splash Guard |
| 40 | 1609350195 | Repair Kit 50HZ |
| 41 | 1609350020 | Thrust Needle Bearing |
| 42 | 1609350021 | Cylinder Block |
| 42/30 | 1609350309 | Parts Set |
| 43 | 1609350027 | Compression Spring |
| 44 | 1609350098 | O-Ring 80X2 MM |
| 45 | 1609350308 | Plug |
| 45/10 | 1609350081 | Parts Set 3 Piece Ø1,78XØ7,66 MM |
| 47 | 1609350032 | Filter screen |
| 48 | 1609350033 | Retaining ring |
| 49 | 1609350035 | Rubber Collar |
| 50 | 1609350036 | Thrust Ring |
| 51 | 1609350038 | Parts Set 3 Piece Ø1,6XØ15,1 MM |
| 52 | 1609350039 | Parts Set 3 Piece Ø1,6XØ6,1 MM |
| 53 | 1609350028 | Cylinder Head |
| 54 | 1609350029 | Parts Set 3 Piece Ø1,78XØ11,11 MM |
| 55 | 1609350037 | Cup Seal |
| 56/50 | 1609350065 | Parts Set 3 Piece Ø2X10 MM |
| 59 | 2910141218 | Hex Socket Head Cap Screw DIN 912-M6X65-8.8 |
| 6 | 1609350006 | Raised ctsk Tapping Screw Ø6X20 MM |
| 60 | 1609350196 | Valve Housing |
| 62 | 1609350197 | Flow Throttle Green |
| 63 | 1609350063 | Pressure Modulation Valve |
| 64 | 1609350306 | Plug |
| 64/10 | 1609350140 | Parts Set 3 Piece Ø2,4XØ16,6 MM |
| 65 | 1609350307 | Pressure gauge |
| 650 | 1609350199 | Handle |
| 650/12 | 1609350089 | Connecting Tube |
| 650/15 | 1609350142 | Tapping Screw St Ø3X20 MM |
| 650/18 | 1609350504 | Plastic Hose L=9 M, Max. 150 Bar |
| 650/18/12 | 1609350074 | Parts Set 3 Piece Ø2XØ11 MM |
| 650/18/17 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 650/19 | 1609350080 | Repair Kit |
| 650/20 | 1609350176 | Parts Set |
| 650/40 | 1609350198 | Guide Sleeve |
| 651 | 1609350186 | High Press Clean Nozzle Red |
| 651/10 | 1609350145 | Nozzle retaining nut |
| 651/11 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 651/20 | 1609350182 | Parts Set 3 Piece Ø2,0XØ18,0 MM |
| 651/30 | 1609350181 | Parts Set 3 Piece Ø1,78XØ18,77 MM |
| 652 | 1609350047 | Foam Spray Device |
| 652/10 | 1609350104 | Single-Orifice Nozzle |
| 652/60 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 652/90 | 1609350115 | Parts Set |
| 653 | 1609350124 | Cleaning Pin |
| 66 | 1609350308 | Plug |
| 678 | 0600800001 | Tap Connection Piece For First Equipping 3/4" |
| 678/10 | 1609351029 | Gasket Ø15XØ24X4,5=3/4" |
| 68 | 2910141207 | Hex Socket Head Cap Screw DIN 912-M6X35-8.8 |
| 7 | 2910951162 | Oval-Head Screw DIN 7985-M5X20-8.8-H |
| 70 | 1609350041 | Housing Base |
| 70/20 | 1609350068 | Foam Panel |
| 700 | 2609200276 | Flexible Connection L=7 M |
| 700/10 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 701 | 1609350187 | High Press Clean Nozzle Red |
| 701/10 | 1609350190 | Nozzle Carrier |
| 701/11 | 1609350191 | Repair Kit |
| 701/12 | 1609350090 | Connecting Tube |
| 701/13 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 701/20 | 1609350084 | Parts Set 3 Piece Ø2XØ37 MM |
| 701/30 | 1609350184 | Parts Set 3 Piece Ø1,78XØ34,65 MM |
| 702 | 1609350053 | Extension Tube |
| 702/80 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 703 | 1609350156 | Cleaning Brush |
| 703/20 | 1609351002 | Gasket Ø15XØ24X3=3/4" |
| 703/30 | 1609350159 | Adapter |
| 703/40 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 704 | 1609350126 | Rotary Cleaning Brush |
| 704/20 | 1609351002 | Gasket Ø15XØ24X3=3/4" |
| 704/30 | 1609351014 | Connecting Piece |
| 704/40 | 1609350159 | Adapter |
| 704/50 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 705 | 1609350054 | Pipe Cleaning Set L=7 M |
| 705/1 | 1609350055 | Pipe Cleaning Set L=15 M |
| 705/10 | 1609350137 | Pipe Nozzle |
| 705/20 | 1609350088 | Parts Set 3 Piece Ø1,6XØ10 MM |
| 705/60 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 706 | 1609350056 | Pipe Cleaning Set L=7 M |
| 706/60 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 707 | 1609350057 | Jet Pipe |
| 707/10 | 1609350136 | Nozzle retaining nut |
| 708 | 1609350119 | Spacer |
| 708/10 | 1609350120 | Clamp Screw |
| 708/20 | 1609350121 | Clamping Piece |
| 708/30 | 1609350122 | Wheel |
| 708/40 | 1609350123 | Sealing cap |
| 709 | 1609350188 | Sand Blast Equipment Red |
| 709/10 | 1609350146 | Nozzle-Holder Assembly |
| 709/11 | 1609350135 | Suction Connection Piece |
| 709/12 | 1609350192 | Connecting Tube |
| 709/13 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 709/20 | 2912311130 | Oval-Head Screw DIN 7985-M4X20-8.8-Z |
| 709/30 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 709/40 | 2912401005 | Tapping Screw DIN7981-ST2,9X9,5C-Z |
| 709/50 | 1609350134 | Nozzle |
| 709/60 | 1609350074 | Parts Set 3 Piece Ø2XØ11 MM |
| 71 | 1609350069 | Casing Foot |
| 710 | 2608005050 | Equipment Trolley |
| 710/40 | 2910141203 | Hex Socket Head Cap Screw DIN 912-M6X25-8.8 |
| 710/50 | 2915191106 | Wing Nut DIN 1709 BM 6 Verzinkt |
| 710/60 | 1609351088 | Wheel Ø200 MM |
| 711 | 1609350128 | Injector |
| 711/10/10 | 1609350065 | Parts Set 3 Piece Ø2X10 MM |
| 711/20 | 1609350169 | Repair Kit |
| 711/30 | 1609350170 | Dosing Unit |
| 711/40 | 1609350171 | Hose |
| 711/50 | 1609350172 | Hose Clamp |
| 712 | 1609350060 | Non-Return Valve |
| 712/10 | 1609351002 | Gasket Ø15XØ24X3=3/4" |
| 713 | 1609350152 | Cleaning Agent 1X0,55 Liter |
| 713 | 1609350153 | Cleaning Agent 1X0,55 Liter |
| 714 | 1609350154 | Cleaning Agent 1X2,5 Liter |
| 714 | 1609350155 | Cleaning Agent 1X2,5 Liter |
| 715 | 1609350161 | Wax 1X0,55 Liter |
| 716 | 1609350162 | Wax 1X2,5 Liter |
| 717 | 1609350164 | Extension Tube 410 MM |
| 717/60 | 1609350078 | Parts Set 3 Piece Ø2,4XØ9,6 MM |
| 72 | 2912311201 | Oval-Head Screw DIN 7985-M6X20-8.8-Z |
| 73 | 1609350044 | Seal Kit |
| 74 | 1609350045 | Repair Kit |
| 76 | 1609350066 | Packing Sleeve |
| 76/10 | 1609350065 | Parts Set 3 Piece Ø2X10 MM |
| 78 | 1609350067 | Inlet Connector |
| 8 | 1609350143 | Oval-Head Screw M5X60 MM |
| 9 | 1609350092 | Sealing Cap |
