Bosch AHM 30 C
Bosch AHM 30 C lawnmower: exploded parts diagram, 1 sheet, 50 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

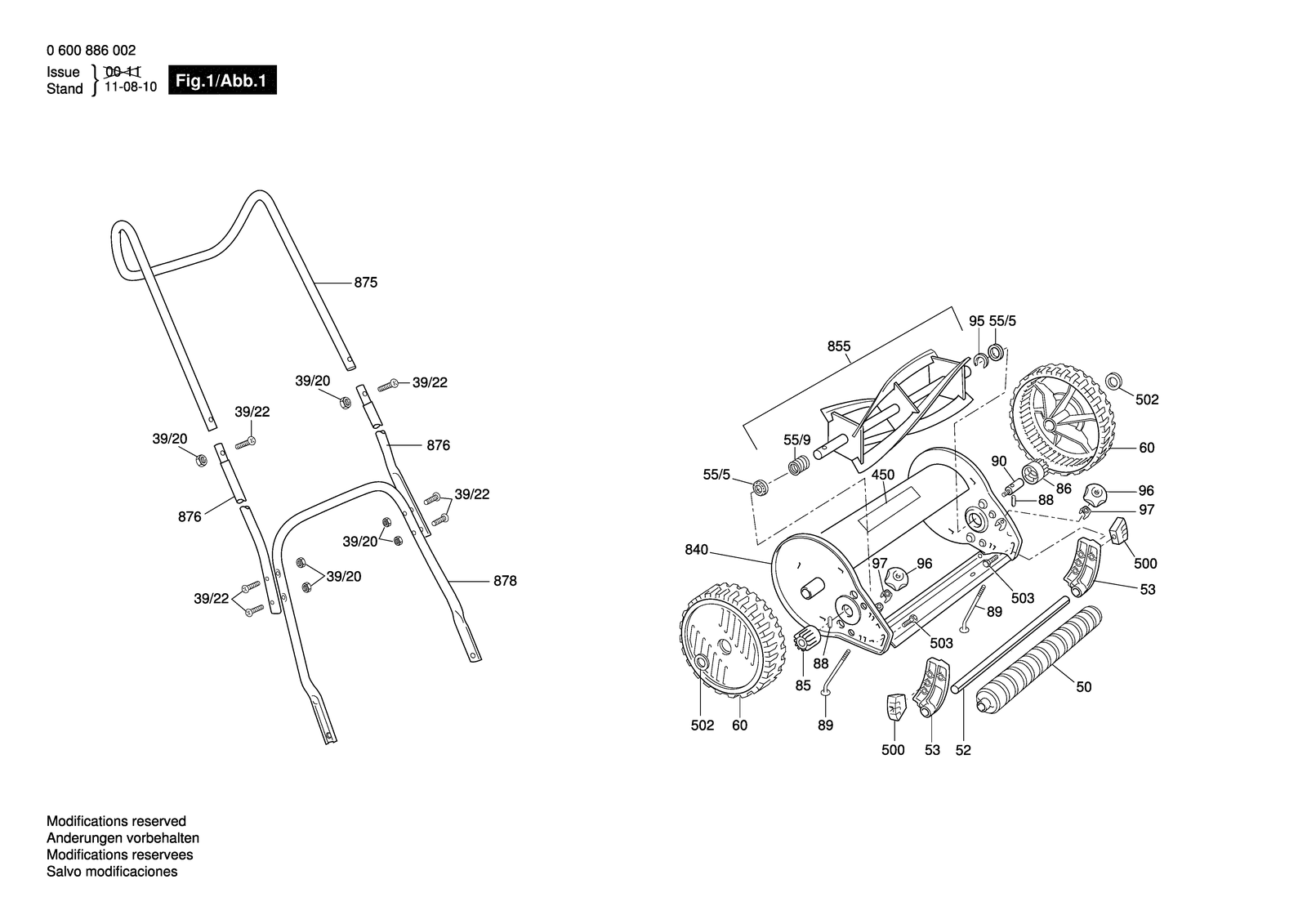

All parts of Bosch AHM 30 C: 50 positions on 1 sheet
Bosch AHM 30 C parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 39/20 | F016L35329 | Nut M6 |
| 39/20 | F016L35329 | Nut M6 |
| 39/22 | F016T46339 | Trunnion |
| 39/22 | F016T46339 | Trunnion |
| 450 | F016L63282 | Sticker |
| 450 | F016L63291 | Sticker |
| 50 | F016L57431 | Roller |
| 50 | F016L57432 | Roller |
| 500 | F016L66136 | Wing Nut |
| 500 | F016L66136 | Wing Nut |
| 502 | F016L57354 | Spring retaining ring |
| 502 | F016L57354 | Spring retaining ring |
| 503 | F016L11371 | Stud bolt M6X25 MM |
| 503 | F016L11371 | Stud bolt M6X25 MM |
| 52 | F016L57265 | Spindle |
| 52 | F016L57285 | Spindle |
| 53 | F016L57208 | Bracket |
| 53 | F016L57208 | Bracket |
| 55/5 | F016L63264 | Bearing |
| 55/5 | F016L63264 | Bearing |
| 55/9 | F016L59647 | Spring |
| 55/9 | F016L59647 | Spring |
| 60 | F016L63265 | Wheel |
| 60 | F016L63265 | Wheel |
| 840 | F016102820 | Chassis |
| 840 | F016102821 | Chassis |
| 85 | F016L63267 | Pinion Blue |
| 85 | F016L63267 | Pinion Blue |
| 855 | F016102823 | Cutter Cylinder |
| 855 | F016102830 | Cutter Cylinder |
| 86 | F016L63268 | Pinion Yellow R |
| 86 | F016L63268 | Pinion Yellow R |
| 875 | F016102848 | Handle |
| 875 | F016102825 | Handle |
| 876 | F016102828 | Handle |
| 876 | F016102828 | Handle |
| 878 | F016102826 | Handle |
| 878 | F016102827 | Handle |
| 88 | F016L37988 | Pawl |
| 88 | F016L37988 | Pawl |
| 89 | F016L63269 | Adjusting Bolt |
| 89 | F016L63269 | Adjusting Bolt |
| 90 | F016L57198 | Adapter |
| 90 | F016L57198 | Adapter |
| 95 | F016L63464 | Retaining clip |
| 95 | F016L63464 | Retaining clip |
| 96 | F016L63451 | Knob |
| 96 | F016L63451 | Knob |
| 97 | F016L63452 | Adjusting Plate |
| 97 | F016L63452 | Adjusting Plate |
