Bosch AGS 10-6 cordless grass shear: exploded parts diagram, 1 sheet, 45 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AGS 10-6: 45 positions on 1 sheet

Bosch AGS 10-6 parts list (1 sheet)

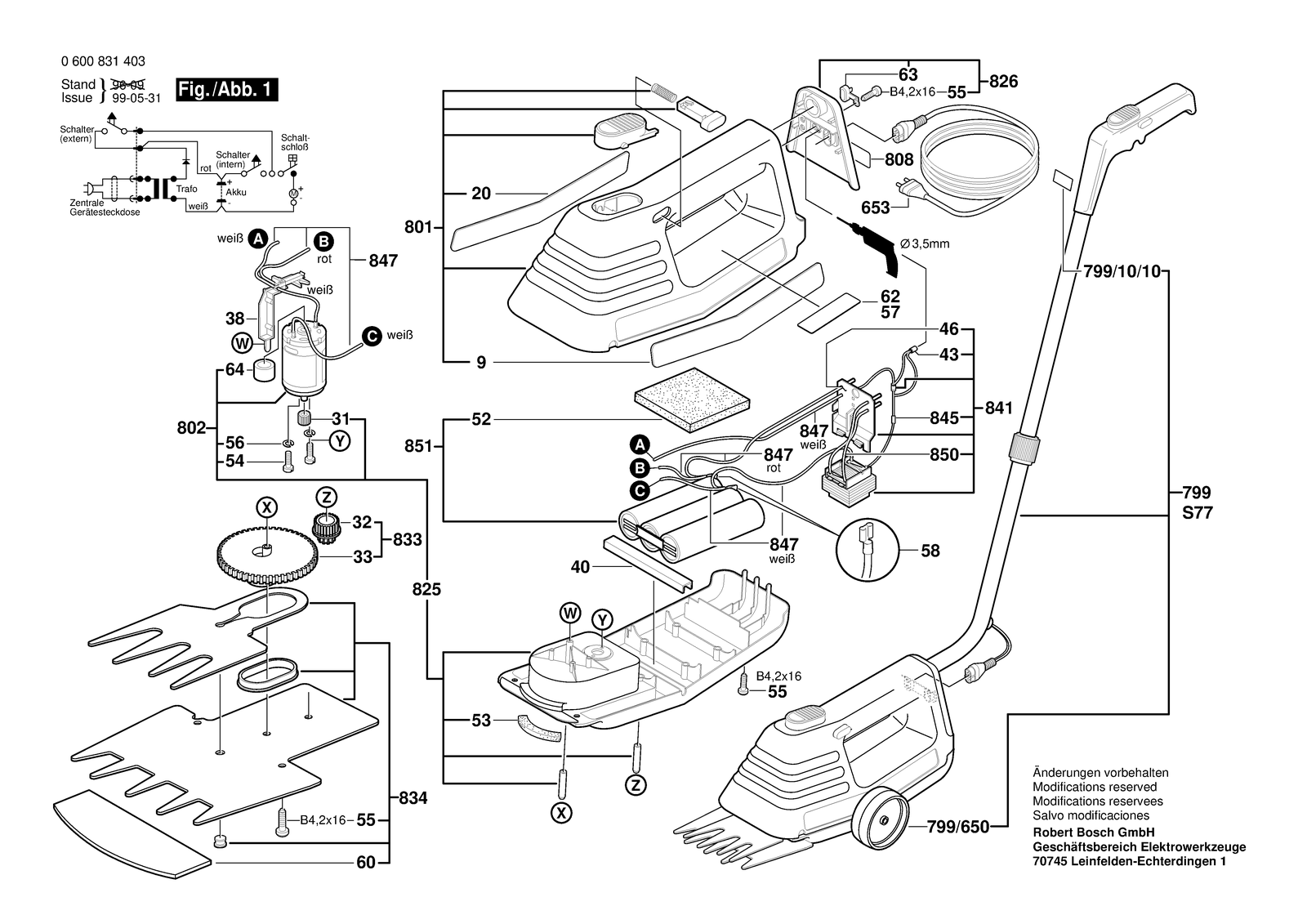

Bosch AGS 10-6 parts diagram, sheet 1
No.Part numberPart name
202601118279Reference Plate Shadow Side
202601119402Reference Plate Shadow Side
202601119471Reference Plate Shadow Side
312606316113Pinion Z=10, Ø3,1 MM
312606316175Pinion Z=10, Ø2,3 MM
382608018002Contact Housing
402602386000Cover Strip
432607320009Silicon Diode
462600422003Contact Sleeve
522602388007Damping Plate 60X80X2 MM
532602391002Wiper
542603413030Socket head cap screw AM 2,6X8 MM
542910021050Socket head cap screw DIN 84-AM3X8-8.8
552603490022Screw 4X16
562916070023Serrated Lock-Washer DIN 6798-A2,7-FST
571601110317Reference Plate
581904478015Receptacle
602605510018Protective Cap
622601110999Sticker
632605500141Protective Cap
642605719025Adapter
6532604460107Power supply cord 1,1M Pvc
6532604460134Power supply cord EU 1,1M
7992607001181Guide Bracket Green
799/10/102601110601Manufacturer's nameplate
799/6501609200927Impeller
8012605104831Upper Housing Green
8021609200917DC motor 7,2V
8022607022960DC motor 18V
808160111A3H4Nameplate
8252607022960DC motor 18V
8261609200920Housing Cover Black
8262605500906Housing Cover Green
8331609200910Eccentric Cog Wheel
8341609200908Set of knives 100 MM
8412607224906Charging Transformer GB 240/7,2V, 1H
8412607224907Charging Transformer J 100/7,2V, 1H
8452607010227Parts Set 2 Piece
8472604412900Connecting Cable
8502604412023Connecting Cable White L=63 MM
8511609200914Battery Set 7,2V
92601118278Manufacturer's nameplate Sunny Side
92601118280Manufacturer's nameplate Sunny Side
92601119399Manufacturer's nameplate Sunny Side
92601119470Manufacturer's nameplate Sunny Side
