Bosch AGS 10 cordless grass shear: exploded parts diagram, 1 sheet, 40 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AGS 10: 40 positions on 1 sheet

Bosch AGS 10 parts list (1 sheet)

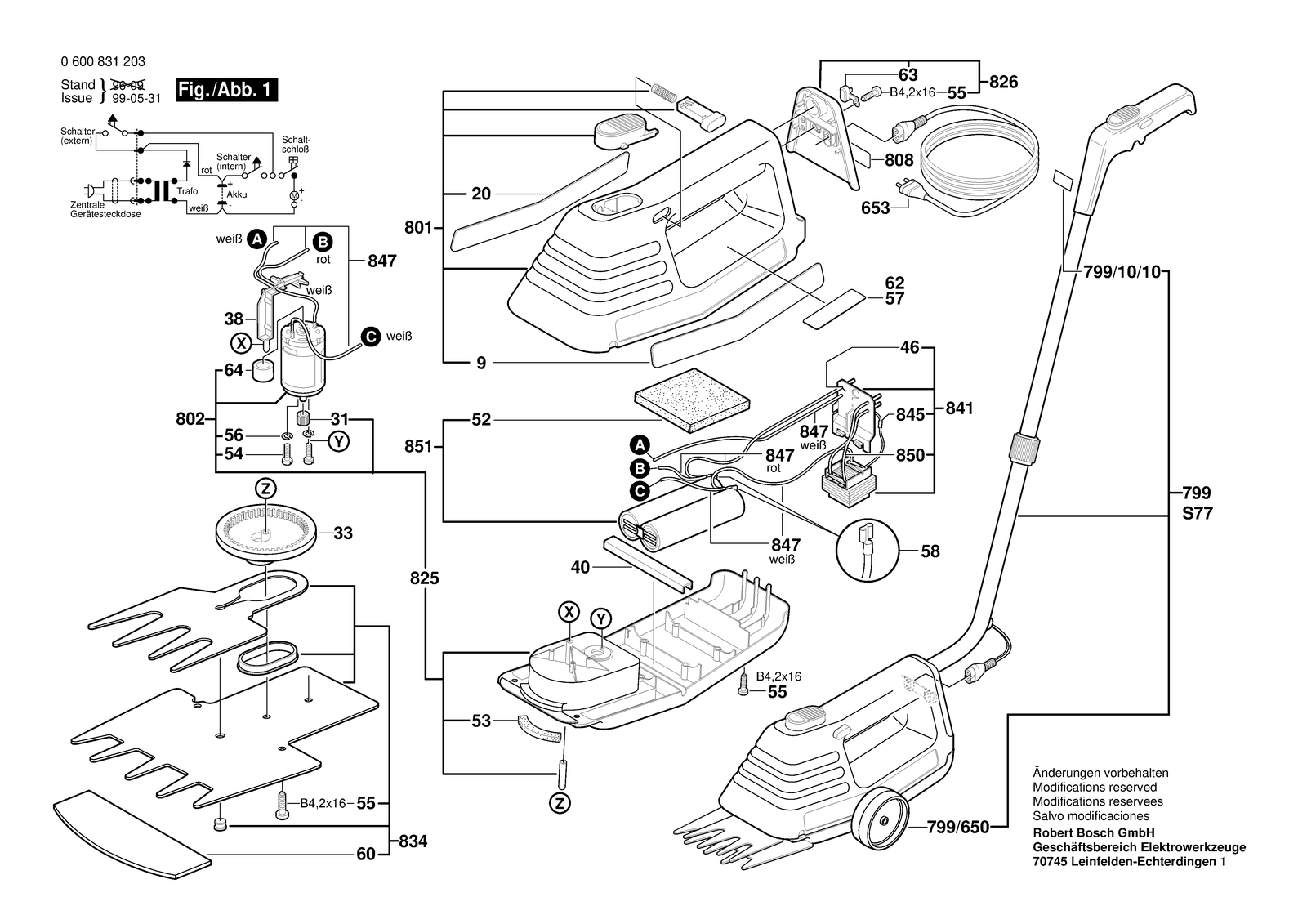

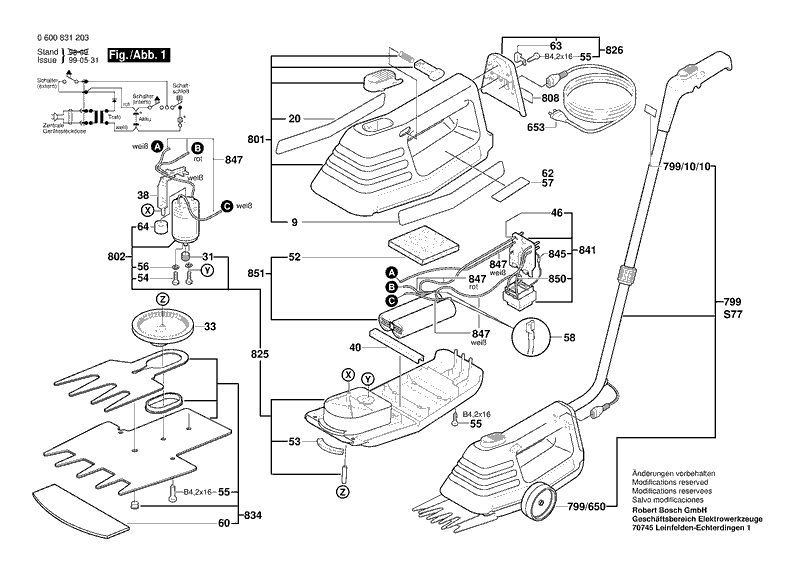

Bosch AGS 10 parts diagram, sheet 1
No.Part numberPart name
202601118277Reference Plate Shadow Side
202601119402Reference Plate Shadow Side
312606316113Pinion Z=10, Ø3,1 MM
312606316175Pinion Z=10, Ø2,3 MM
332606334004Eccentric Cog Wheel Z=85
382608018002Contact Housing
402602386000Cover Strip
462600422003Contact Sleeve
522602388007Damping Plate 60X80X2 MM
532602391002Wiper
542603413030Socket head cap screw AM 2,6X8 MM
542910021050Socket head cap screw DIN 84-AM3X8-8.8
552603490022Screw 4X16
562916070023Serrated Lock-Washer DIN 6798-A2,7-FST
571601110317Reference Plate
581904478015Receptacle
602605510018Protective Cap
622601110999Sticker
632605500141Protective Cap
642605719025Adapter
6532604460107Power supply cord 1,1M Pvc
6532604460111Power supply cord GB 1,1M
7992607001181Guide Bracket Green
799/10/102601110601Manufacturer's nameplate
799/6501609200927Impeller
8012605104831Upper Housing Green
8021609200917DC motor 7,2V
8022607022960DC motor 18V
808160111A3H4Nameplate
8252607022960DC motor 18V
8261609200920Housing Cover Black
8262605500906Housing Cover Green
8341609200908Set of knives 100 MM
8411609200915Charging Transformer 230V/4,8V
8452607010227Parts Set 2 Piece
8472604412900Connecting Cable
8502604412023Connecting Cable White L=63 MM
8511609200922Battery Set
92601118276Manufacturer's nameplate Sunny Side
92601119398Manufacturer's nameplate Sunny Side
