Bosch AG50-11VS
Bosch AG50-11VS angle grinder: exploded parts diagram, 2 sheets, 58 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

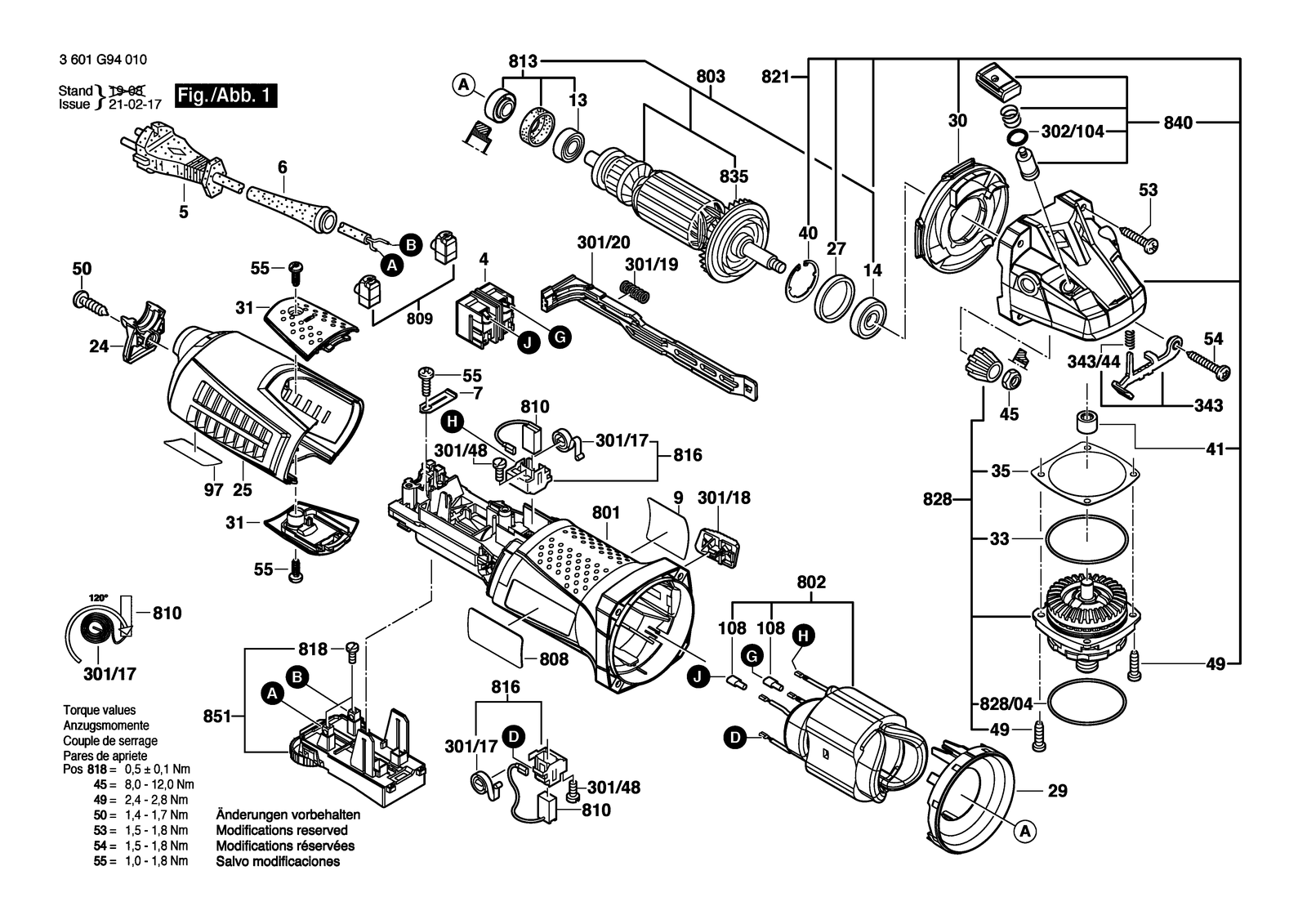

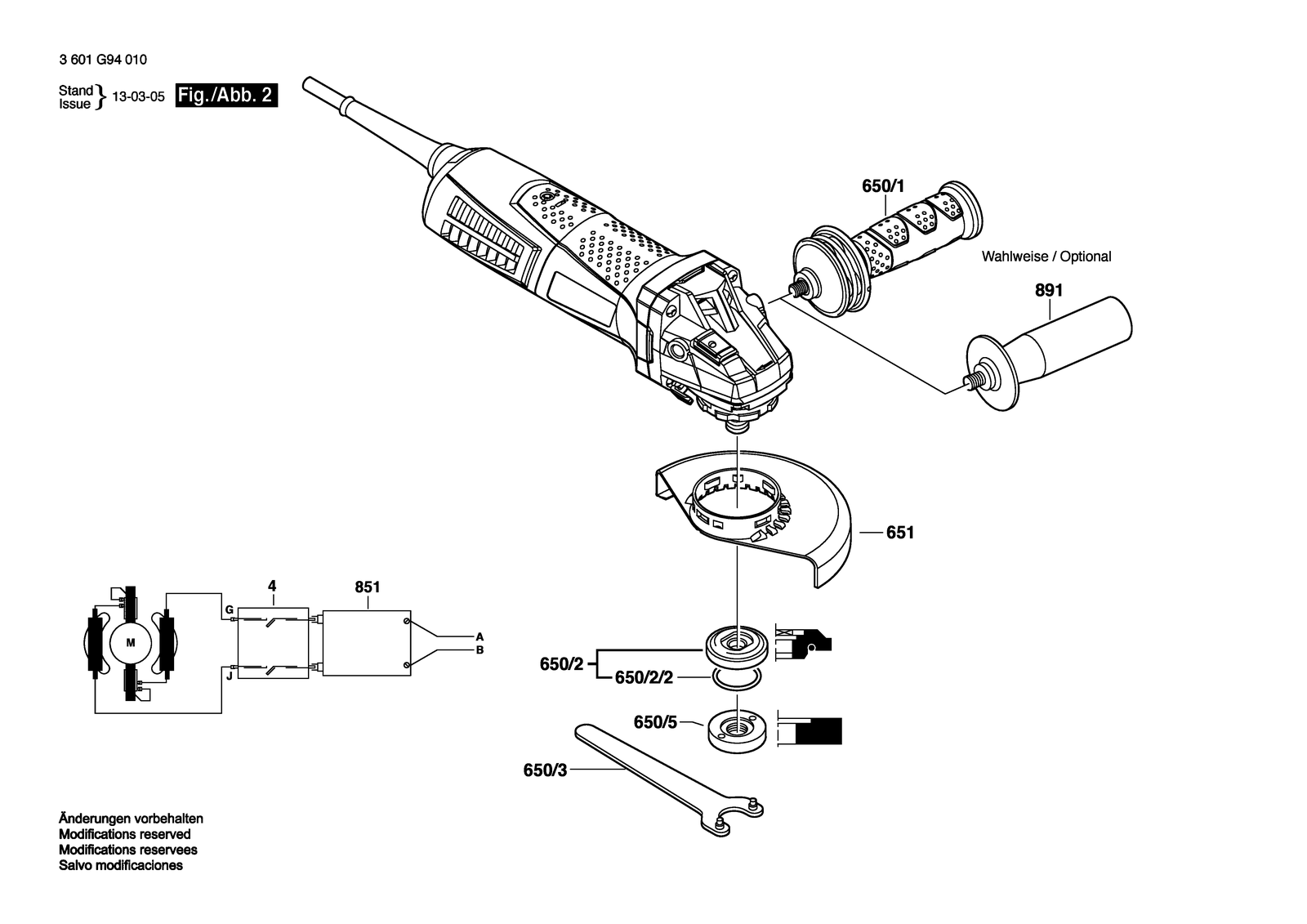

All parts of Bosch AG50-11VS: 58 positions on 2 sheets
Bosch AG50-11VS parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 108 | 1600712030 | Insulating Part |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1600905032 | Groove ball bearing 8X22X7 |
| 24 | 1605500275 | Cover |
| 25 | 1605500276 | Housing Cover |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1600591047 | Air-Deflector Ring |
| 30 | 1600591048 | Air Distributor |
| 301/17 | 1604652021 | Spiral Spring |
| 301/18 | 1602026091 | Switch Handle |
| 301/19 | 1604611031 | Compression Spring |
| 301/20 | 1602319025 | Adjusting Slide |
| 301/48 | 1613435034 | Lens Head Screw 3X10 St |
| 302/104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 31 | 1605500277 | Brush-Cover |
| 33 | 1600210035 | O-Ring 46,0X1,1 MM |
| 343 | 1607000742 | Catch Lever |
| 343/44 | 1604611042 | Compression Spring |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 35 | 1600136020 | Shim Thick 0,15 MM |
| 4 | 160720035A | Switch |
| 40 | 1600119011 | Retaining clip |
| 41 | 1600200029 | Plain bearing |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 49 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 5 | 1604460336 | Power supply cord Usa/can/sma 2,68M 2 X 1,31MM SJ 16/2 |
| 50 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 53 | 1603435078 | Torx Oval-Head Screw |
| 54 | 1603414026 | Torx Oval-Head Screw 4X30 |
| 55 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 6 | 1600703043 | Grommet |
| 650/1 | 16020250A0 | Auxiliary Handle |
| 650/2 | 1605703140 | Clamping-Flange |
| 650/2/2 | 1600210253 | O-Ring |
| 650/3 | 1607950052 | Pin-Type Face-Wrench |
| 650/5 | 3603340503 | Round Nut 5/8" |
| 651 | 1600A00XL5 | Protective Cover |
| 7 | 1601302017 | Fastening Clamp |
| 801 | 1607000D97 | Motor Housing |
| 802 | 1604220530 | Field assembly 127V |
| 803 | 1607000V34 | Armature With Fan 110V |
| 808 | 1601106069 | Nameplate |
| 809 | 1607000D9C | Seal |
| 810 | 1607000V37 | Carbon-Brush Set |
| 813 | 1607000V38 | Groove ball bearing |
| 816 | 1607000V43 | Brush Holder |
| 818 | 1607000V42 | Pan head screw |
| 821 | 1607000V39 | Gear Housing |
| 828 | 1607000E1E | Bearing Flange |
| 828/04 | 3600210109 | O-Ring 47,0X1,5 MM |
| 835 | 1606610132 | Fan |
| 840 | 1607000V41 | Push-Button |
| 851 | 1607233473 | Speed governor |
| 891 | 1602025027 | Auxiliary Handle M10 |
| 9 | 1601118L45 | Manufacturer's nameplate AG50-11VS |
| 97 | 1601118L49 | Warning Plate |
