Bosch AG50-10

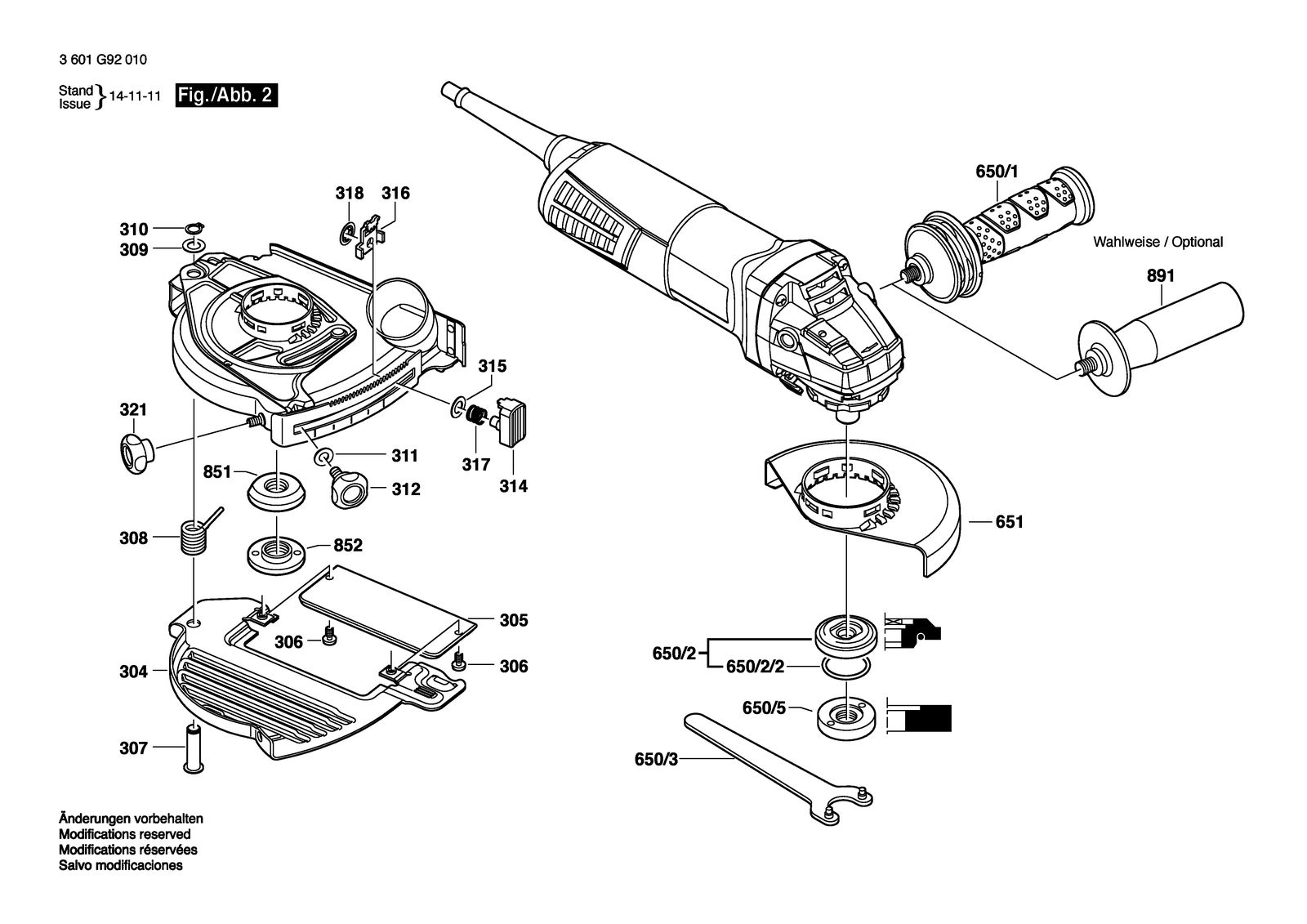

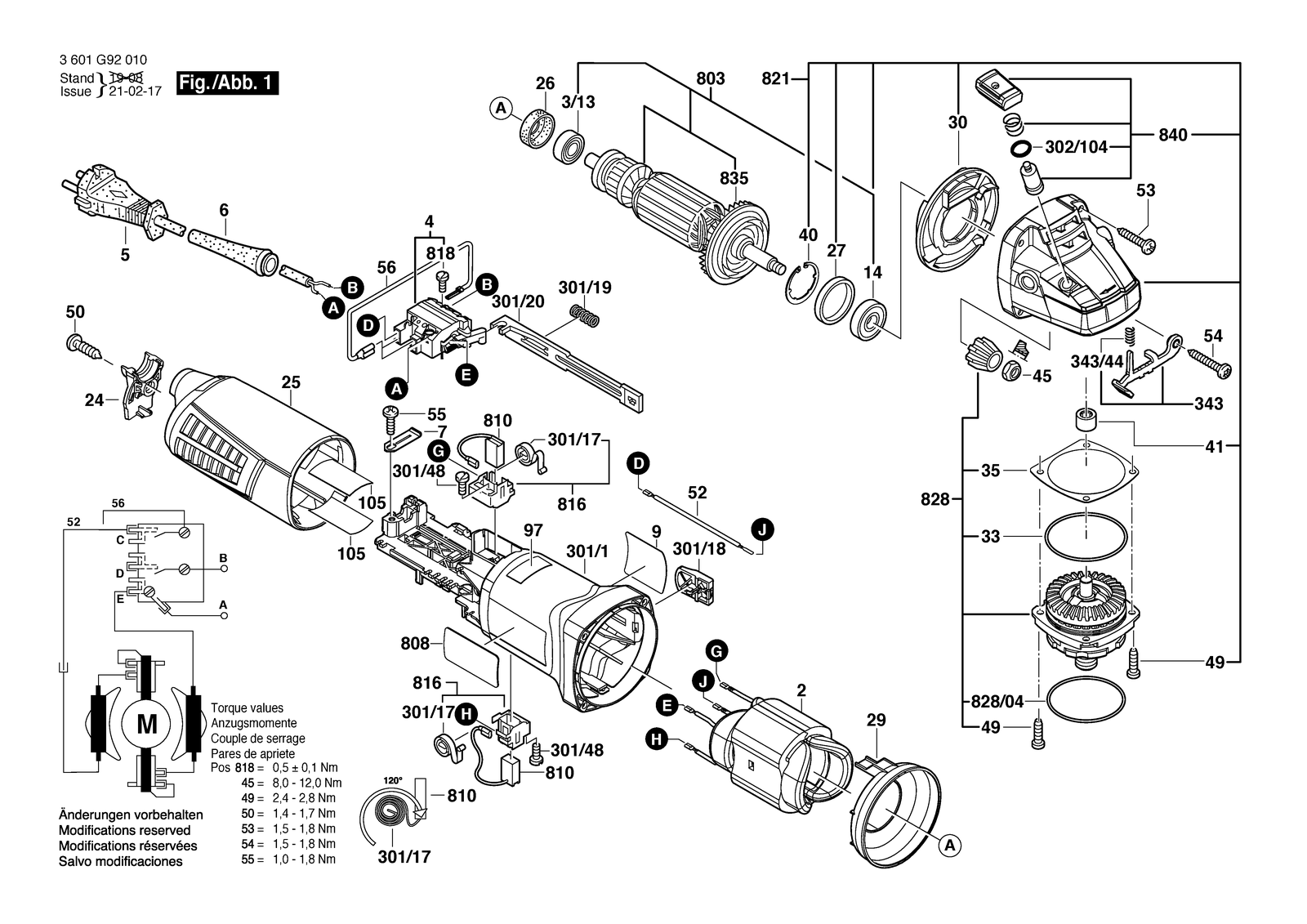

Bosch AG50-10 angle grinder: exploded parts diagram, 2 sheets, 74 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AG50-10: 74 positions on 2 sheets
Bosch AG50-10 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 105 | 1601008005 | Insulating Plate |
| 14 | 1600905032 | Groove ball bearing 8X22X7 |
| 2 | 1604220473 | Field 127V |
| 24 | 1605500279 | Cover |
| 25 | 1605500278 | Housing Cover |
| 26 | 1600502023 | Intermediate Ring |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1600591025 | Air-Deflector Ring |
| 3/13 | 2600905032 | Ball Bearing 7X19X6 |
| 30 | 1600591050 | Air Distributor |
| 301/1 | 1605108288 | Motor Housing |
| 301/17 | 1604652021 | Spiral Spring |
| 301/18 | 1602026088 | Switch Handle |
| 301/19 | 1604611026 | Compression Spring |
| 301/20 | 1602319011 | Adjusting Slide |
| 301/48 | 1613435034 | Lens Head Screw 3X10 St |
| 302/104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 304 | 1605500297 | Cover |
| 305 | 3600150030 | Lens |
| 306 | 2914411412 | Thread-forming tap. Screw |
| 307 | 3600150032 | Bearing bolt |
| 308 | 3604611035 | Coiled Spring |
| 309 | 2916190019 | Shim ring |
| 310 | 2916649005 | Spring retaining ring DIN471-8 |
| 311 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 312 | 3603435030 | Tommy Screw M 6X13 |
| 314 | 3603239002 | Push-Button |
| 315 | 2916190019 | Shim ring |
| 316 | 3601023014 | Safety Catch |
| 317 | 3604611036 | Compression Spring |
| 318 | 3600240008 | Clamping Disc |
| 321 | 3603435031 | Tommy Nut M5 |
| 33 | 1600210035 | O-Ring 46,0X1,1 MM |
| 343 | 1607000742 | Catch Lever |
| 343/44 | 1604611042 | Compression Spring |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 35 | 1600136020 | Shim Thick 0,15 MM |
| 4 | 1607200141 | Switch |
| 40 | 1600119011 | Retaining clip |
| 41 | 1600200029 | Plain bearing |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 49 | 160343508X | Thread-forming tap. Screw M4X16-ST W/ Precote 85-3 |
| 5 | 1604460336 | Power supply cord Usa/can/sma 2,68M 2 X 1,31MM SJ 16/2 |
| 50 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 52 | 1604448013 | Connecting Cable White L=90 MM |
| 53 | 1603435078 | Torx Oval-Head Screw |
| 54 | 1603414026 | Torx Oval-Head Screw 4X30 |
| 55 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 56 | 1604438026 | Connecting Cable |
| 6 | 1600703043 | Grommet |
| 650/1 | 16020250A0 | Auxiliary Handle |
| 650/2 | 1605703140 | Clamping-Flange |
| 650/2/2 | 1600210253 | O-Ring |
| 650/3 | 1607950052 | Pin-Type Face-Wrench |
| 650/5 | 3603340503 | Round Nut 5/8" |
| 651 | 1600A00XL5 | Protective Cover |
| 7 | 1601302017 | Fastening Clamp |
| 803 | 1607000V52 | Armature With Fan 110V |
| 808 | 1601106068 | Nameplate |
| 810 | 1607000V53 | Carbon-Brush Set |
| 816 | 1607000V54 | Brush Holder |
| 818 | 2910110048 | Pan head screw DIN 85-AM3X6-CUZN |
| 821 | 1607000V55 | Gear Housing |
| 828 | 1607000E1E | Bearing Flange |
| 828/04 | 3600210109 | O-Ring 47,0X1,5 MM |
| 835 | 1606610132 | Fan |
| 840 | 1607000V41 | Push-Button |
| 851 | 1600A002TR | Flange nut |
| 852 | 1600A002TP | Clamping Flange |
| 891 | 1602025027 | Auxiliary Handle M10 |
| 9 | 1601118L44 | Manufacturer's nameplate AG50-10 |
| 97 | 1601118L49 | Warning Plate |
