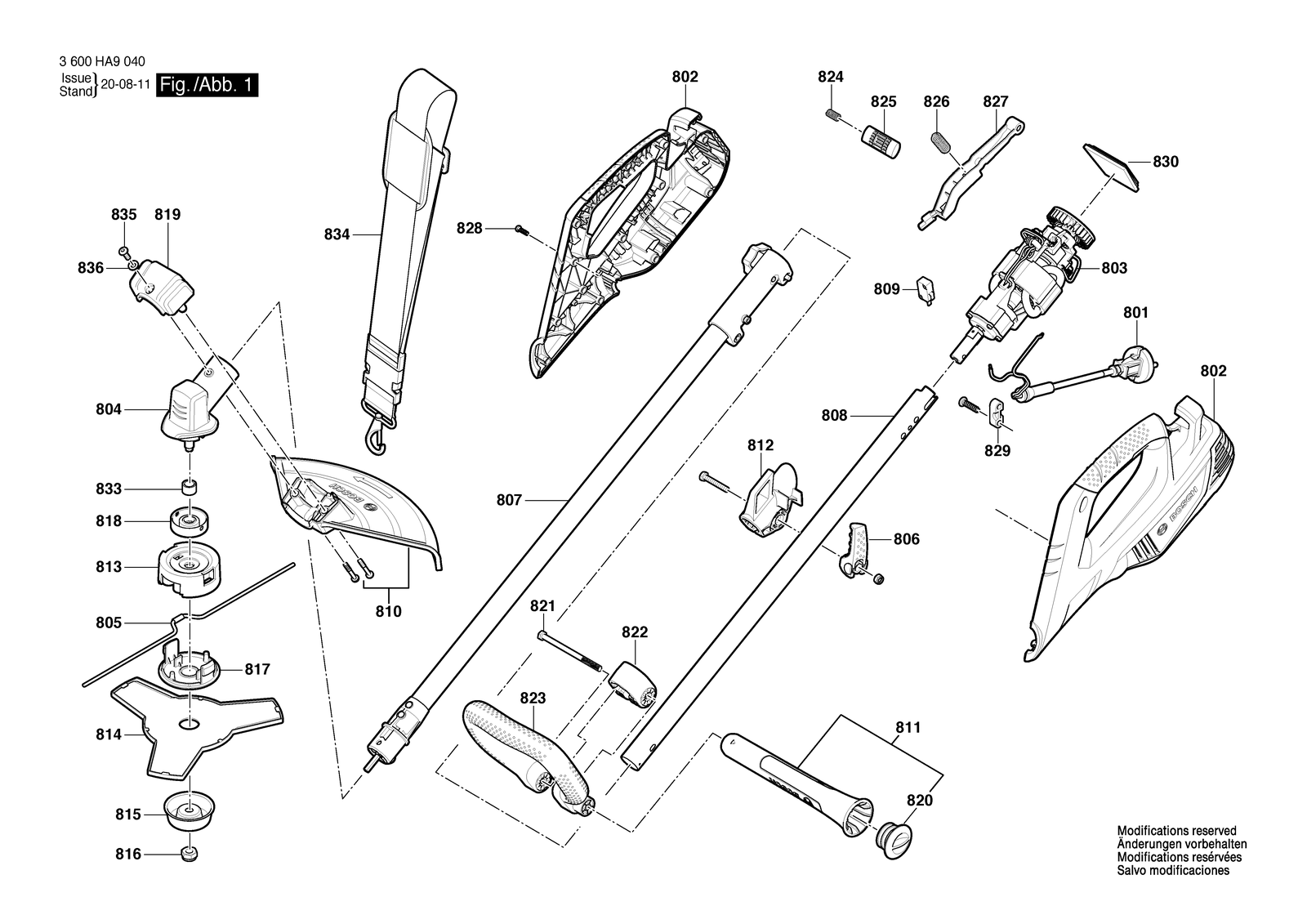

Bosch AFS 23-37 electric brushcutter: exploded parts diagram, 1 sheet, 35 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AFS 23-37: 35 positions on 1 sheet
Bosch AFS 23-37 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 801 | F016F04879 | Power supply cord |
| 801 | F016F04881 | Power supply cord |
| 802 | F016F04831 | Motor Housing |
| 803 | F016F04832 | Motor assembly |
| 804 | F016F04547 | Gear Housing |
| 805 | F016F04833 | Plastic Cable |
| 806 | F016F04834 | Clamp |
| 807 | F016F04835 | Telescope Pipe |
| 808 | F016F04836 | Telescope Pipe |
| 809 | F016F04862 | Microswitch |
| 810 | F016F04552 | Protective Cover |
| 811 | F016F04837 | Safety Guard |
| 812 | F016F04838 | Clamp |
| 813 | F016F04839 | Cutting Head |
| 814 | F016F04840 | Blade |
| 815 | F016F04550 | Locking Plate |
| 816 | F016F04551 | Lock Nut |
| 817 | F016F04841 | Cap |
| 818 | F016F04549 | Holding Fixture |
| 819 | F016F04546 | Guard Plate |
| 820 | F016F04842 | Plug |
| 821 | F016F04821 | Bolt |
| 822 | F016F04272 | Mounting Clamp |
| 823 | F016F04271 | Auxiliary Handle |
| 824 | F016F04843 | Contact strap |
| 825 | F016F04844 | Trigger |
| 826 | F016F04845 | Contact strap |
| 827 | F016F04846 | Trigger |
| 828 | F016L72416 | Screw |
| 829 | F016F04847 | Clamp |
| 830 | F016F04848 | Counter Weight |
| 833 | F016F04790 | Metal Ring |
| 834 | F016L72340 | Shoulder strap |
| 835 | F016F04543 | Screw |
| 836 | F016F04823 | Washer |
