All parts of Bosch AFS 23-37: 39 positions on 1 sheet

Bosch AFS 23-37 parts list (1 sheet)

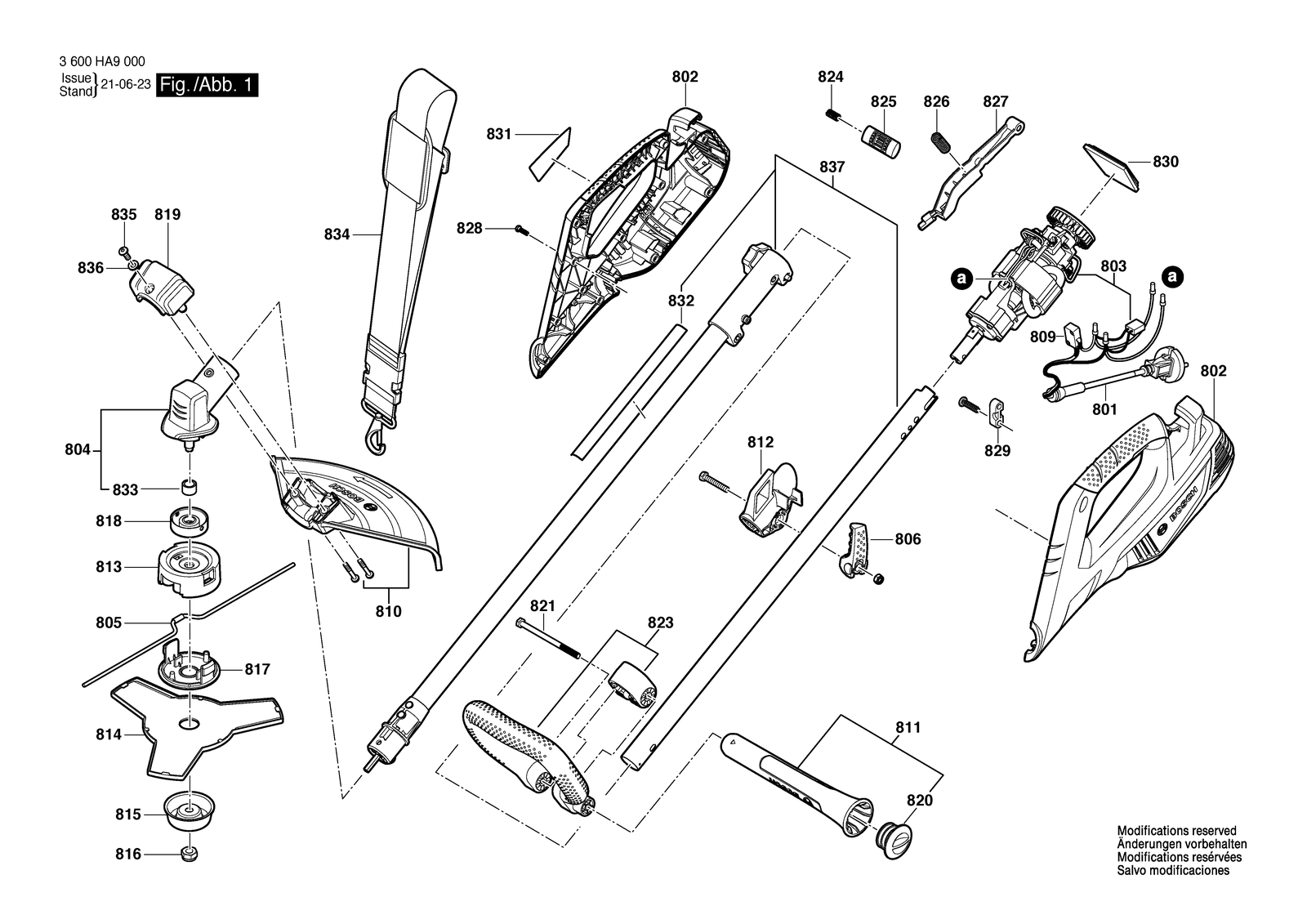

Bosch AFS 23-37 parts diagram, sheet 1
No.Part numberPart name
801F016F04830Power supply cord
801F016F04878Power supply cord
801F016F04880Power supply cord
802F016F04831Motor Housing
803F016F04832Motor assembly
804F016F04547Gear Housing
805F016F04833Plastic Cable
806F016F05381Clamp
809F016F04862Microswitch
810F016F05383Protective Cover
811F016F04837Safety Guard
812F016F04838Clamp
813F016F04839Cutting Head
814F016F04840Blade
815F016F04550Locking Plate
816F016F04551Lock Nut
817F016F05384Cap
818F016F04549Holding Fixture
819F016F04546Guard Plate
820F016F04842Plug
821F016F04821Bolt
823F016F05386Auxiliary Handle
824F016F04843Contact strap
825F016F05388Trigger
826F016F04845Contact strap
827F016F05389Trigger
828F016L72416Screw
829F016F04847Clamp
830F016F04848Counter Weight
831F016F04849Nameplate
831F016F04882Nameplate
831F016F04884Nameplate
831F016F04886Nameplate
832F016F04850Warning Label
833F016F04790Metal Ring
834F016L72340Shoulder strap
835F016F04543Screw
836F016F04823Washer
837F016F05504Telescope Pipe
