Bosch AdvPrune 18-45

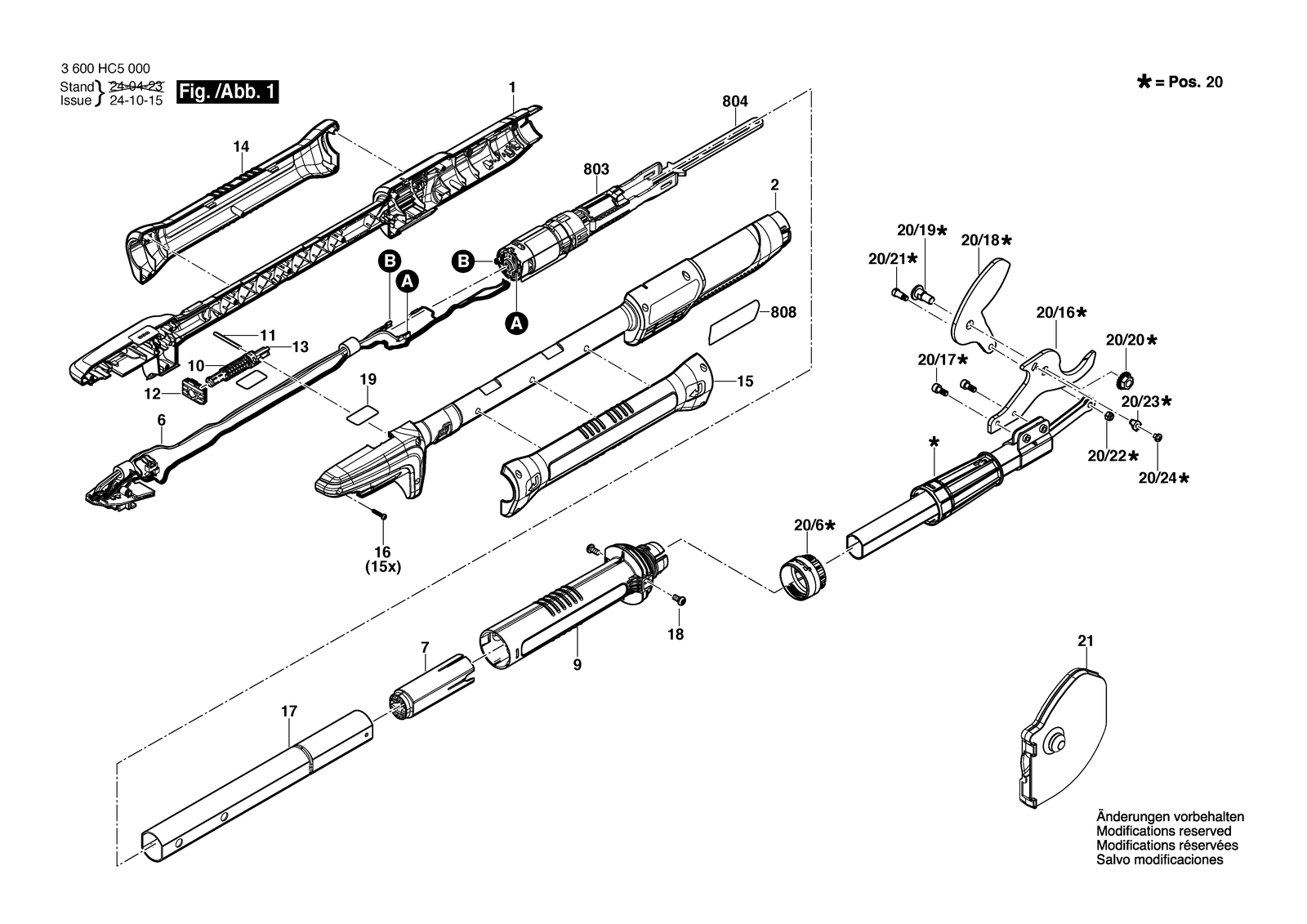

Bosch AdvPrune 18-45 long handle pruning shear: exploded parts diagram, 1 sheet, 30 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AdvPrune 18-45: 30 positions on 1 sheet
Bosch AdvPrune 18-45 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1600A020T6 | Housing |
| 10 | 1600A020TE | Spring |
| 11 | 1600A020XP | Pin |
| 12 | 1600A026Y3 | Actuator spring retainer |
| 13 | 1600A020T9 | Switch Actuator |
| 14 | 1600A020TA | Trigger |
| 15 | 1600A020TB | Trigger |
| 16 | 16034300BN | Screw |
| 17 | 1600A020VA | Tube |
| 18 | 16034300D8 | Screw |
| 19 | 1600A020T8 | Sticker |
| 2 | 1600A020T7 | Housing |
| 20 | 1600A023K7 | Cutting Head |
| 20/16 | F016F06370 | Blade |
| 20/17 | 16034300DE | Screw |
| 20/18 | F016F06373 | Blade |
| 20/19 | F016F06366 | Bolt |
| 20/20 | F016F06367 | Nut |
| 20/21 | F016F06372 | Shoulder Screw |
| 20/22 | F016F06332 | Lock nut |
| 20/23 | F016F06368 | Locking Plate |
| 20/24 | F016F06369 | Screw |
| 20/6 | 1600A02K0M | Sleeve |
| 21 | F016F06371 | Guard |
| 6 | 1600A020V5 | Electronic Assembly |
| 7 | 1600A023RC | Tube Insert |
| 803 | F016F06223 | DC motor |
| 804 | 1600A031ZN | Linkage |
| 808 | F016F06221 | Nameplate |
| 9 | 1600A020VB | Cap |
