Bosch AdvancedVac 18V-8
Bosch AdvancedVac 18V-8 battery vacuum cleaner: exploded parts diagram, 3 sheets, 37 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

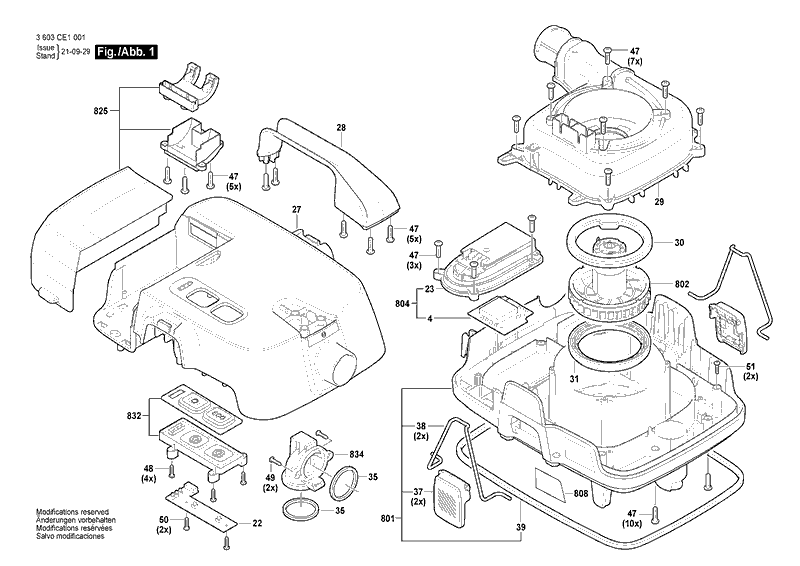

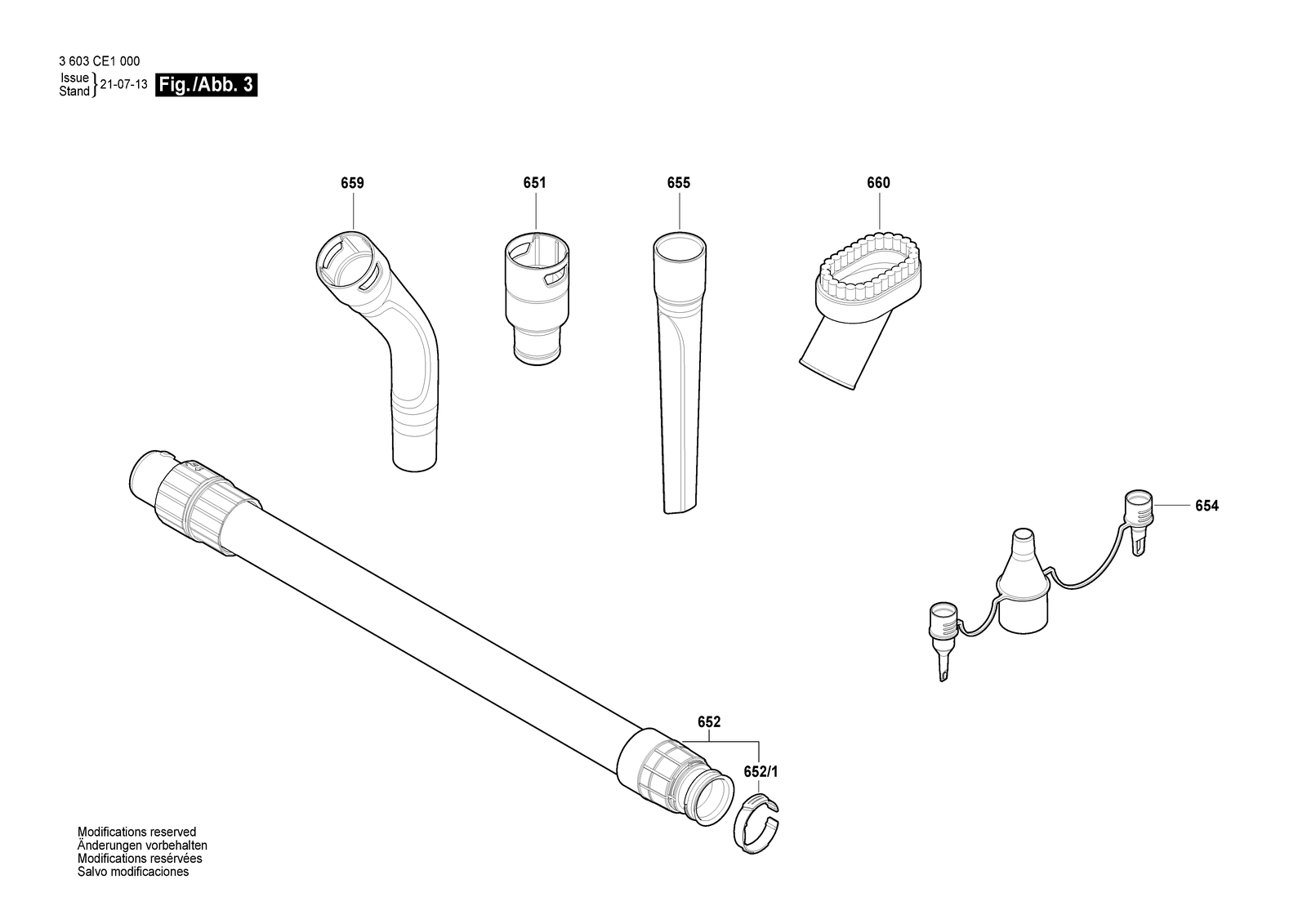

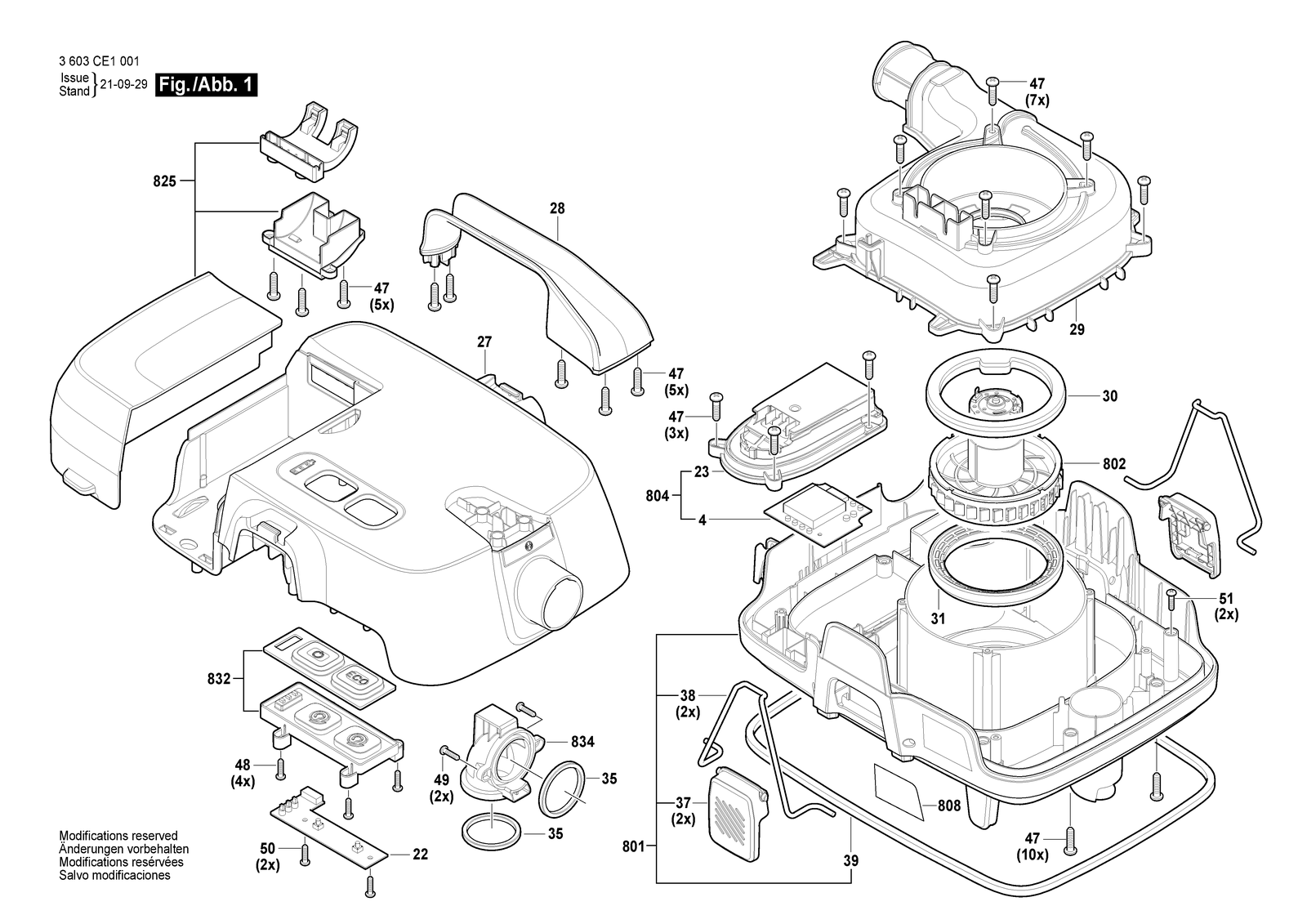

All parts of Bosch AdvancedVac 18V-8: 37 positions on 3 sheets
Bosch AdvancedVac 18V-8 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 22 | 1600A023YR | Electronic Board |
| 23 | 1619PB5669 | Contact retainer |
| 27 | 1619PB5655 | Housing |
| 28 | 1600A023YS | Handle |
| 29 | 1619PB5663 | Cover |
| 30 | 1619PB5666 | Sealing Rubber |
| 31 | 1619PB5667 | Sealing Rubber |
| 35 | 1619PB5661 | Sealing Rubber |
| 37 | 1619PB5676 | Latch |
| 38 | 1619PB5675 | Cord |
| 39 | 1619PB5657 | Sealing Rubber |
| 4 | 1619PB5668 | Electronic Board |
| 40 | 1619PB5678 | Dust container |
| 41 | 1619PB5679 | Filter |
| 42 | 1619PB5680 | Holder |
| 43 | 1619PB5681 | Holder |
| 47 | 160343009Z | Screw |
| 48 | 160343009Y | Screw |
| 49 | 1619PB6781 | Screw |
| 50 | 1619PB6782 | Screw |
| 51 | 1619PB7702 | Screw |
| 651 | 1619PB0871 | Adapter |
| 652 | 1619PB5646 | Hose |
| 652/1 | 1619PB0872 | Clamping Ring |
| 654 | 1619PB5645 | Nozzle |
| 655 | 1600A011RS | Suction Nozzle |
| 658 | 160541102E | Dust Bag |
| 658 | 160541102N | Dust Bag |
| 659 | 1619PB0868 | Suction Pipe |
| 660 | 1619PB6975 | Suction Brush |
| 801 | 1619PB6689 | Housing |
| 802 | 1619PB6688 | DC motor |
| 804 | 1607000ED7 | Electronic Assembly |
| 808 | 1619PB7300 | Nameplate |
| 825 | 1619PB6685 | Battery Cover |
| 832 | 1619PB6686 | Switch Button |
| 834 | 1619PB6687 | Tube |
