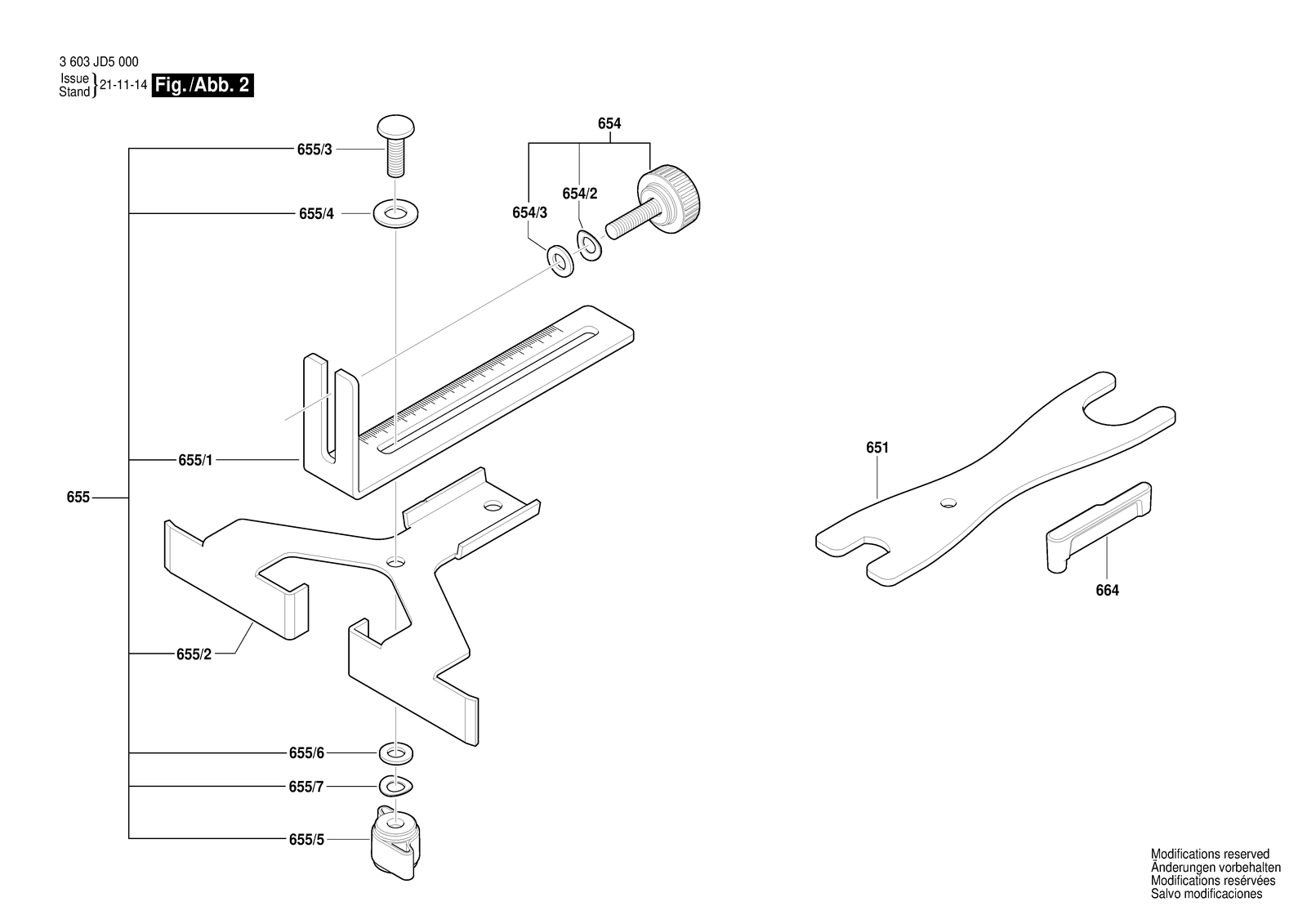

Bosch AdvancedTrimRouter 18V-8 router: exploded parts diagram, 2 sheets, 33 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AdvancedTrimRouter 18V-8: 33 positions on 2 sheets
Bosch AdvancedTrimRouter 18V-8 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1619PB3004 | Scale |
| 15 | 1619PB7238 | Screw |
| 5 | 1619PB7228 | Slide Switch |
| 6 | 1619PB7233 | Switch Spring |
| 651 | 1619PB7230 | Assembly Wrench |
| 652 | 1619PB7222 | Dust Extraction |
| 654 | 1619PB8514 | Knob |
| 654/2 | 1619PB3071 | Plain Washer |
| 654/3 | 1619PB3072 | Corrugated Washer |
| 655 | 1619PB8396 | Edge Guide |
| 655/1 | 1619PB8397 | Edge Guide |
| 655/2 | 1619PB3074 | Guide Bracket |
| 655/3 | 1619PB3075 | Special Screw |
| 655/4 | 1619PB3076 | Plain Washer |
| 655/5 | 1619PB2373 | Wing Screw |
| 655/6 | 1619PB3071 | Plain Washer |
| 655/7 | 1619PB3072 | Corrugated Washer |
| 656/1 | 1619PB7220 | Base |
| 656/2 | 1619PB7221 | Base Plate |
| 656/3 | 1619PB7225 | Knob |
| 656/4 | 1619PB2376 | Knurled Thumbscrew |
| 656/5 | 1619PB6976 | Gear |
| 656/6 | 1619PB3080 | Plain Washer |
| 656/7 | 1619PB3081 | Screw |
| 661 | 1619PB7241 | Collet Set |
| 663 | 1619PB7242 | Collet Set |
| 664 | 1619PB7224 | Adjustment aid |
| 7 | 1619PB7223 | Lens |
| 801 | 1619PB7218 | Motor Housing |
| 803 | 1619PB7232 | Rotor Assembly |
| 808 | 1619PB7229 | Nameplate |
| 811 | 1619PB8515 | Motor cover |
| 9 | 1619PB7235 | Label |
