Bosch AdvancedSpray 18V-500

Bosch AdvancedSpray 18V-500 spray pistol: exploded parts diagram, 2 sheets, 24 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AdvancedSpray 18V-500: 24 positions on 2 sheets

Bosch AdvancedSpray 18V-500 parts list (2 sheets)

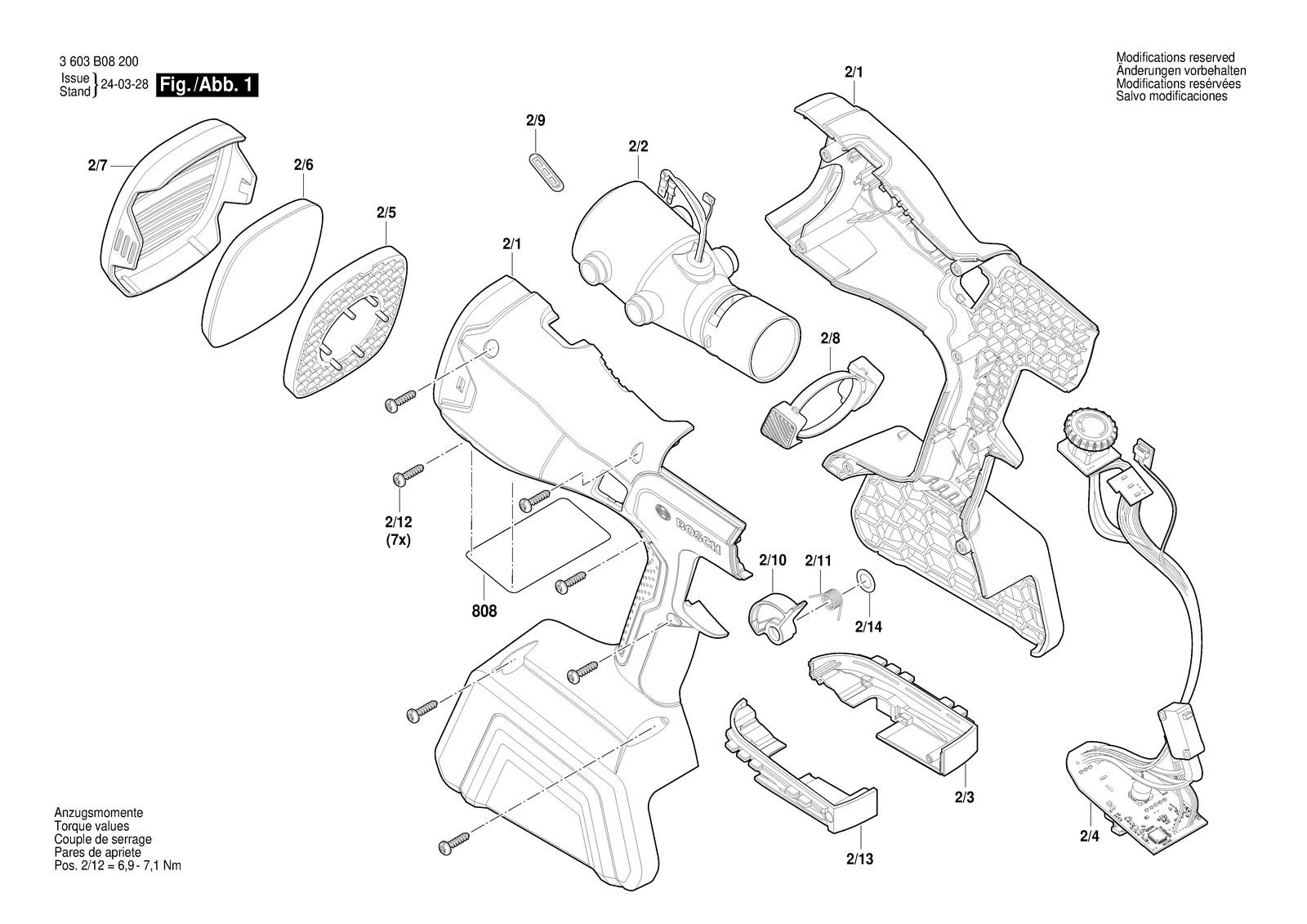

Bosch AdvancedSpray 18V-500 parts diagram, sheet 1Bosch AdvancedSpray 18V-500 parts diagram, sheet 2
No.Part numberPart name
1/1016051082T9O-Ring
1/1116051082SZNozzle
1/121600A02S8TSpraying Nozzle
1/1416051082T0Union Nut
1/1516051082T7Suction Pipe
1/1616051082T8Sealing Plate
1/316051082T6Ink Reservoir
1/416002100ANO-Ring
2/116058066MAHousing
2/101600A02G1DLever
2/111600A02V0VSpring
2/122603490022Screw 4X16
2/131600A02U27Battery Plate
2/142600101077Shim 0,5 MM
2/21600A031RZBlower
2/31600A02JT0Battery Plate
2/41600A02S83Electronic Assembly
2/51600A02G18Filter holder
2/61617S0207KAir Filter
2/716051082TLFilter Cover
2/81600A02G19Elastic Element
2/9160111C4BWSticker
8081617S01YA2Nameplate
8991600A02T0ASpray gun
