Bosch AdvancedShear 18 cordless grass shear: exploded parts diagram, 1 sheet, 40 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AdvancedShear 18: 40 positions on 1 sheet

Bosch AdvancedShear 18 parts list (1 sheet)

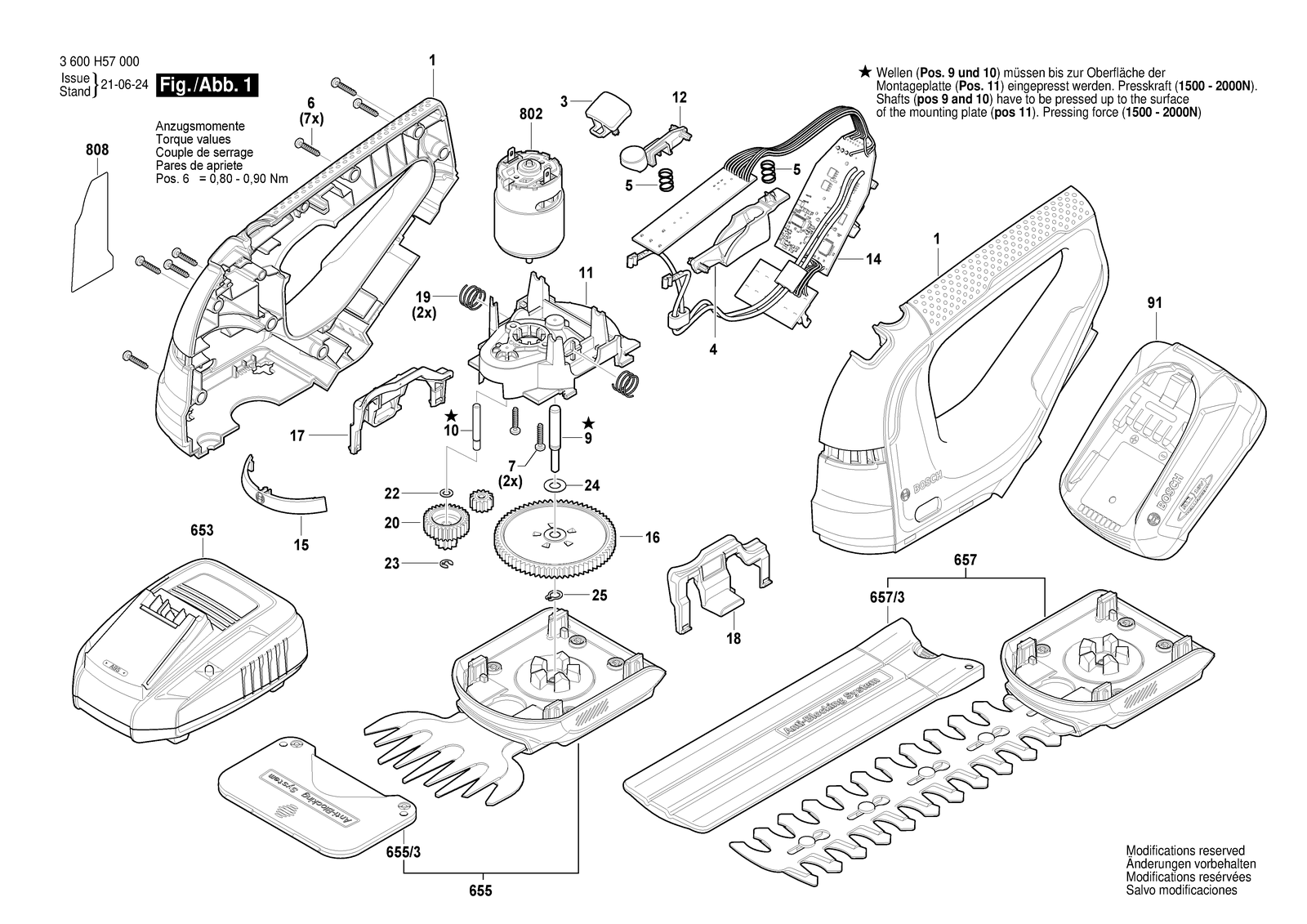

Bosch AdvancedShear 18 parts diagram, sheet 1
No.Part numberPart name
11600A0218FHousing
101600A021E7Axle
111600A021E8Mounting Plate
121600A021E9Button
141600A021EEPrinted-Board Assembly
151600A021EAClip
161600A021E5Eccentric Cog Wheel
171600A021EBButton
181600A0234MButton
191600A01VE1Spring
201600A021ECCylindrical Gear
222600100032Shim 0,2 MM
232916080906Locking washer DIN 6799-3,2
242600100040Shim
252916640003Spring retaining ring DIN 471-6X0,7-FST
31600A021E0Lens
41600A021E1Trigger
52609001975Switch Spring
62603490017Torx Oval-Head Screw 3X10
6532607226385Fast Charger EU AL 1810 CV 230/14,4-18V 1A
6532607226387Fast Charger Gb AL 1810 CV 230/14,4-18V 1A
6532607226393Fast Charger Rok AL 1810 CV 230V/14.4-18V
6532607226517Charger EU AL 18V-20 230V 2A
6532607226593Charger Aus AL 18V-20 220-240V 2A
6551600A021F2Set of knives
655/32609004100Knife Guard
6571600A021FJSet of knives
657/31600A021FGKnife Guard
72603435089Torx Oval-Head Screw M3X8
8021607000E8NMotor
808160111A84UNameplate
808160111AA1GNameplate
91600A021E6Axle
911607A3501DBattery Pack Korea PBA 18V 2,0AH
911607A350JMBattery Pack PBA 18V/1,5 Ah W-a
911607A350RPBattery Pack PBA 18V 2,0AH W-b
911607A350RUBattery Pack PBA 18V 2,5AH W-b 45WH
911607A351C9Battery Pack
911617S01Y7LBattery Pack
912607337211Battery Pack PBA 18V 2,0 Ah W-b
