Bosch AdvancedMulti 18

Bosch AdvancedMulti 18 multipurpose tool: exploded parts diagram, 2 sheets, 31 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AdvancedMulti 18: 31 positions on 2 sheets

Bosch AdvancedMulti 18 parts list (2 sheets)

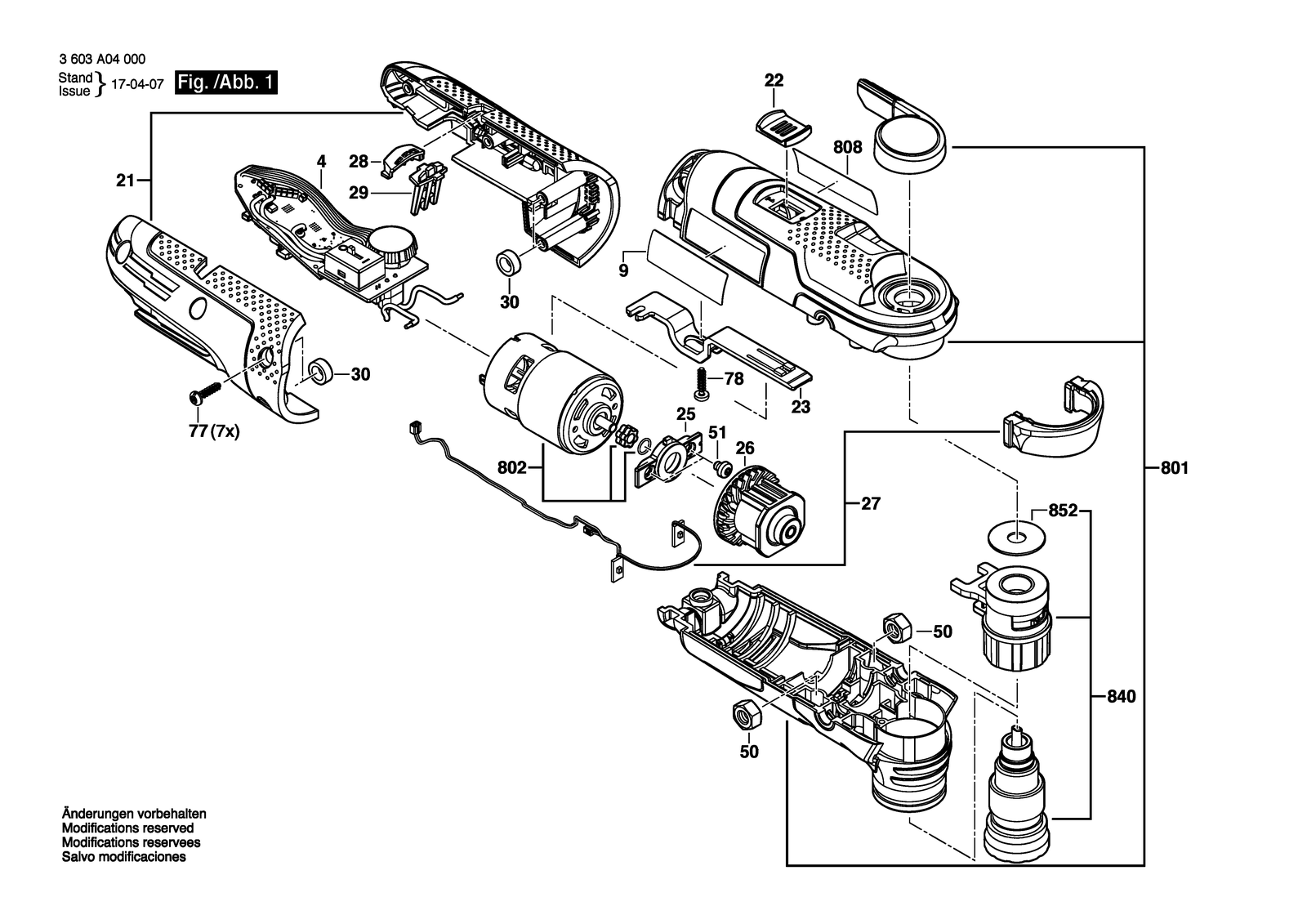

Bosch AdvancedMulti 18 parts diagram, sheet 1Bosch AdvancedMulti 18 parts diagram, sheet 2
No.Part numberPart name
2116058065D3Housing
222609005541Slide Button
231600A01003Slider
251600A00K1EFlange
261600A00MW8Clutch Housing
271600A00K1FLight Unit
28608276310KCover
291600A00ZT1Lens
301600A00H25Damping Ring
41600A00PG5Electronic Module
502915011009Hex Nut DIN 934-M8-8-A
512603414049Torx SH cap screw M4X8-4,8-Z
6501600A013NMCarrying Case
6532607225965Fast Charger EU AL 1830 CV 230/14,4-18V 1H
6532607225967Charger Gb AL 1830 CV 230/14,4-18V 1H
6532607225969Charger Aus AL 1830 CV 230/14,4-18V 1H
6532607225975Fast Charger J AL 1830 CV 100/14,4-18V 1H
6821600A008LTSander Plate
6841600A0087VDepth gauge
687160202507VHandle
772603490022Screw 4X16
782609110201Torx Flat-Head Screw 3X16
80116058065JKHousing
802160702266PDC motor
808160111A4MLNameplate
808160111A58XNameplate
8401600A00Y5FToolholder
8521607000C6DFelt Disc
9160111C20AManufacturer's nameplate Advanvedmulti 18
911607A350RUBattery Pack PBA 18V 2,5AH W-b 45WH
912607337201Battery Pack PBA 2,5AH W-b J
