Bosch AdvancedImpact 18 Quick Snap

Bosch AdvancedImpact 18 Quick Snap cordless impact drill: exploded parts diagram, 1 sheet, 26 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AdvancedImpact 18 Quick Snap: 26 positions on 1 sheet

Bosch AdvancedImpact 18 Quick Snap parts list (1 sheet)

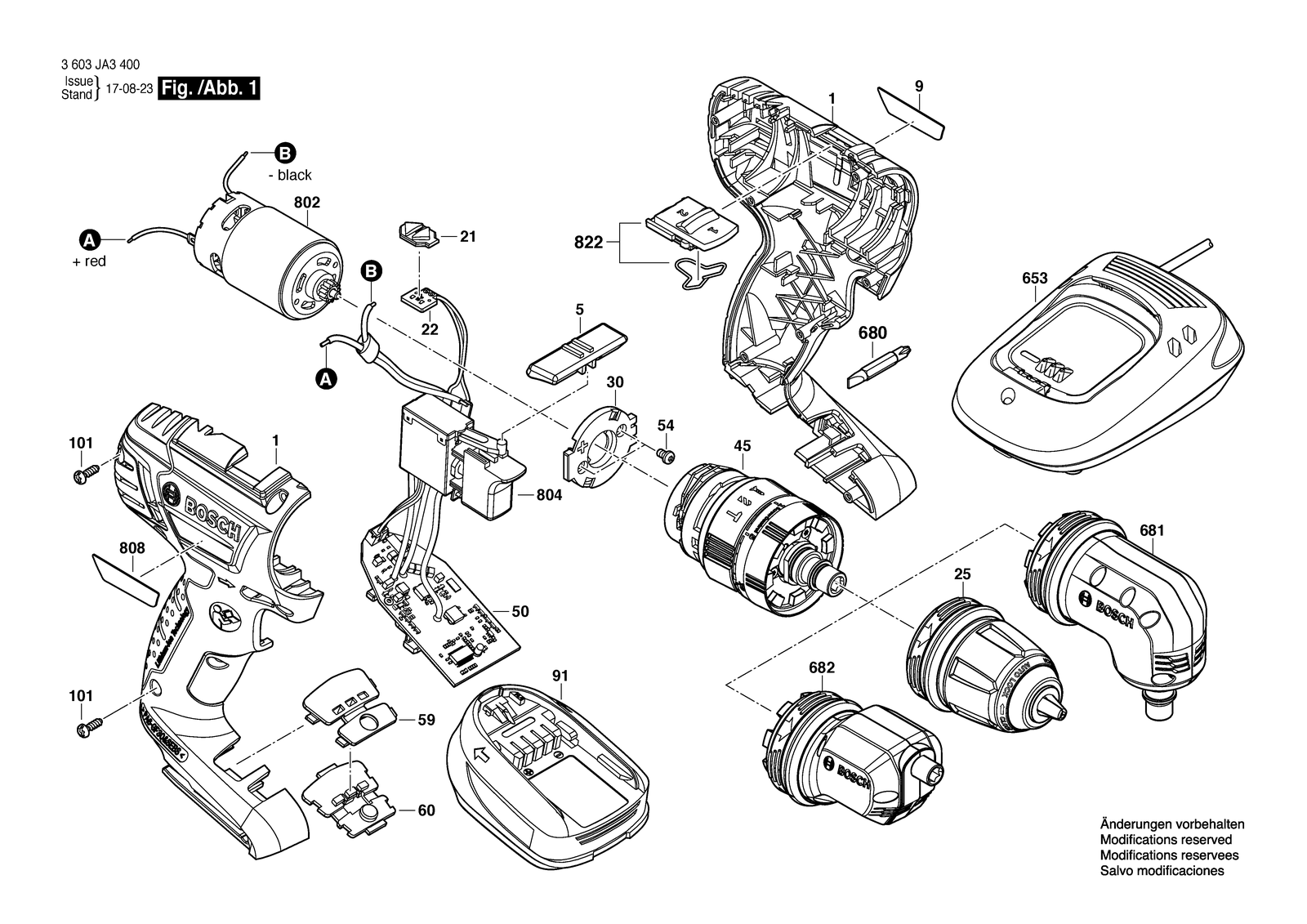

Bosch AdvancedImpact 18 Quick Snap parts diagram, sheet 1
No.Part numberPart name
12609007147Housing
1012603490017Torx Oval-Head Screw 3X10
212609002598Lens
222609005142Electronic Assembly
251600A003PWChuck attachment
302609005196Flange
451600A00HN8Gear Box
52609004983Lever
501600A004BSElectronic Assembly
501600A01PK9Electronic Assembly
542603414048Torx SH cap screw M3X5-8.8-Z
592609004985Cover
602609004984Lens
6532607225965Fast Charger EU AL 1830 CV 230/14,4-18V 1H
6532607226517Charger EU AL 18V-20 230V 2A
6802609006257Screwdriver Bit
6811600A003UACombi Angle Drive
6821600A0077FEccentric attachment
8021607000DM0DC motor 14,4V - 18V
8022609005257DC motor 14,4V - 18V
8042609005666Switch
808160111A59KNameplate
808160111A75HNameplate
8221600A00R9ESwitchover Unit
9160111C27BManufacturer's nameplate Advancedimpact 18
911607A350JMBattery Pack PBA 18V/1,5 Ah W-a
