Bosch AdvancedGrind 18

Bosch AdvancedGrind 18 cordless angle grinder: exploded parts diagram, 2 sheets, 30 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AdvancedGrind 18: 30 positions on 2 sheets

Bosch AdvancedGrind 18 parts list (2 sheets)

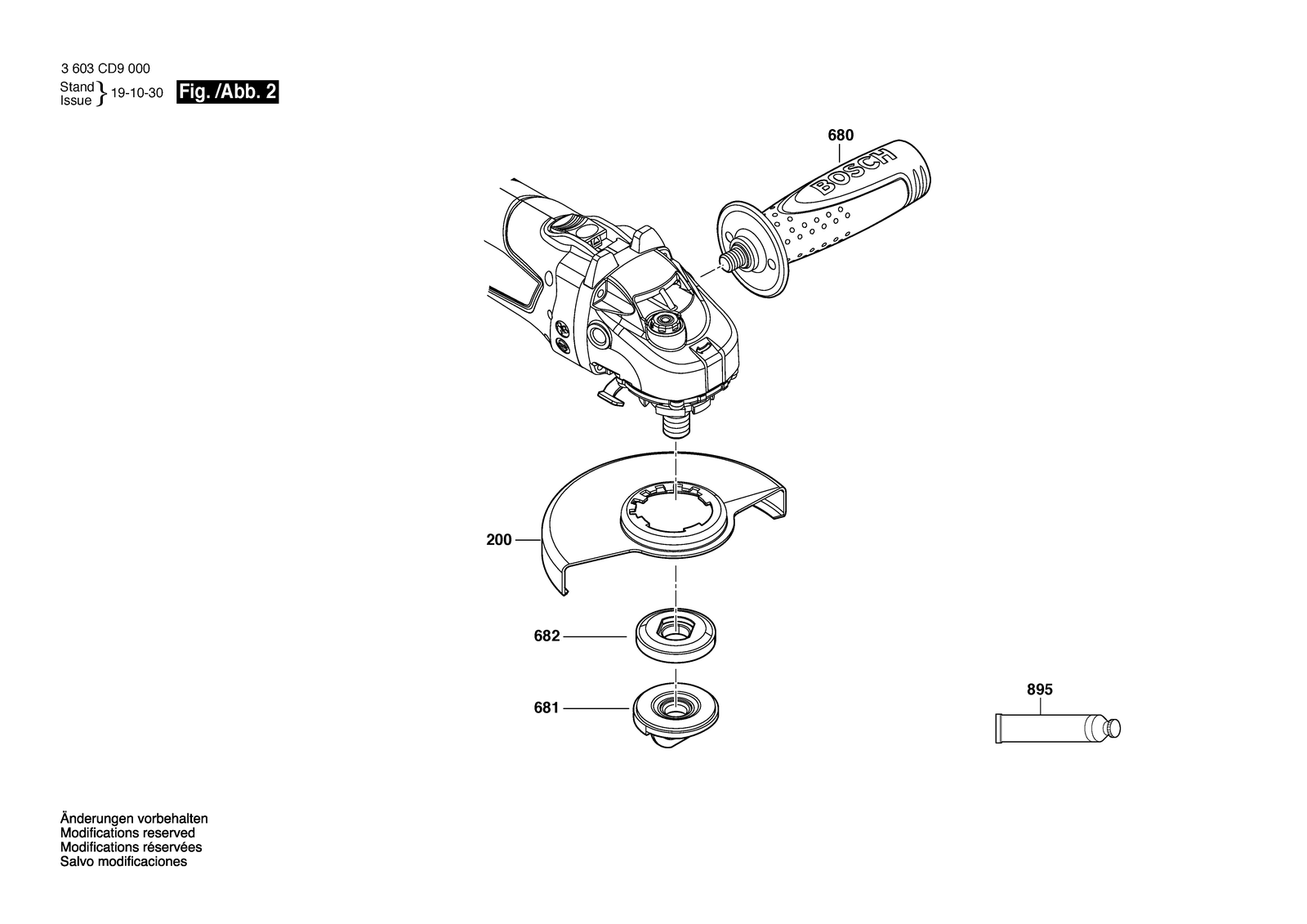

Bosch AdvancedGrind 18 parts diagram, sheet 1Bosch AdvancedGrind 18 parts diagram, sheet 2
No.Part numberPart name
1160580661MHousing
1072603490018Torx Oval-Head Screw 3X18
1172603490024Torx Oval-Head Screw 4X25
142600905078Groove ball bearing
2002609002204Protective Cover Ø125 MM
2012609002205Leaf Spring
221600A01U5NAdjusting Slide
231600A01Z4GSwitch Button
271600206025Rubber Ring
351600A00RE3Shim 1,5 MM
352609002208Shim 0,1 MM
352609002209Shim 0,2 MM
352609002210Shim 0,3 MM
402609007545Spring retaining ring
431606333633Bevel Gear Z=35
452915011007Hex Nut DIN 934-M6-8-A
461600A01TT9Lens
492610386516Torx Oval-Head Screw M4X12
6802609002199Handle
6811600A016DNQuick Acting Flange
6822605703014Clamping Flange Ø22,3XØ42 MM
802160702268LDC motor
8041600A01V4NElectronic Assembly
808160111A7CSNameplate
821160580661PGear Housing
8261600A01U69Drive Unit
82816058080CSBearing Flange
8491607000D6MSwitch
8951605430003Grease Tube 225 Ml
9160111C3BXManufacturer's nameplate Advancedgrind 18
