Bosch AdvancedDrill 18V-80

Bosch AdvancedDrill 18V-80 cordless drill driver: exploded parts diagram, 2 sheets, 25 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AdvancedDrill 18V-80: 25 positions on 2 sheets

Bosch AdvancedDrill 18V-80 parts list (2 sheets)

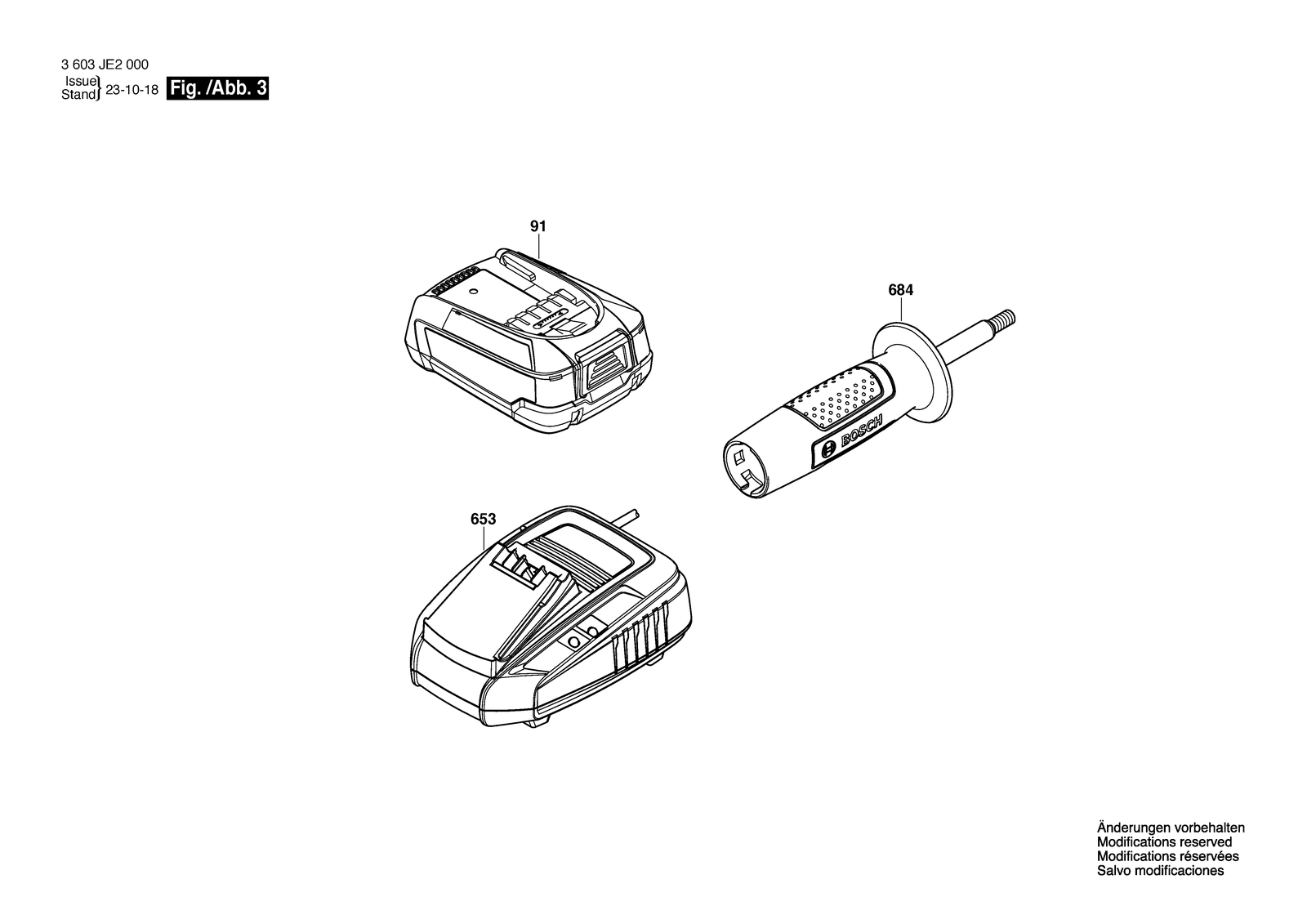

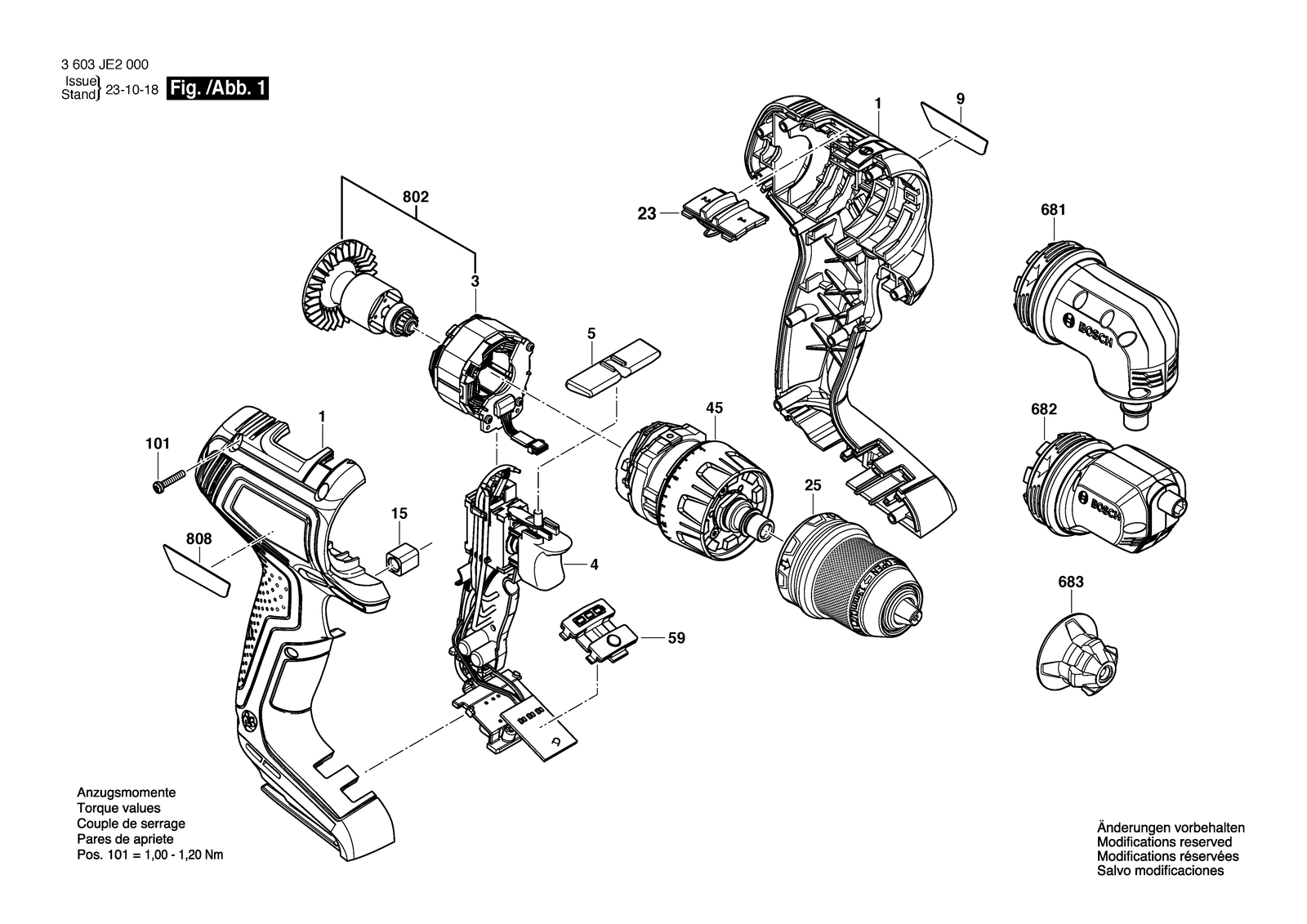

Bosch AdvancedDrill 18V-80 parts diagram, sheet 1Bosch AdvancedDrill 18V-80 parts diagram, sheet 3
No.Part numberPart name
116058066EBHousing
1012609110201Torx Flat-Head Screw 3X16
151600A02U73Square Nut
231600A02GS9Switchover Unit
251600A02GB5Chuck attachment
31619P17835Stator
42607202587Switch assembly
451600A02EV4Planetary Gear Train
51600A02GU7Changeover Lever
591600A02H3NCover
6532607226517Charger EU AL 18V-20 230V 2A
6532607226519Charger UK AL 18V-20 230V 2A
6532607226593Charger Aus AL 18V-20 220-240V 2A
6811600A02F5BCombi Angle Drive
6821600A02HD4Eccentric attachment
6831600A0130RHolding Device
68416020250B4Auxiliary Handle
80216070226BDRotor
808160111AB20Nameplate
9160111C5R0Manufacturer's nameplate Advanceddrill 18V-80
911607A350PBBattery Pack PBA 18V 4.0AH W-c
911607A350RPBattery Pack PBA 18V 2,0AH W-b
911607A350RUBattery Pack PBA 18V 2,5AH W-b 45WH
911607A350S2Battery Pack PBA 18V 4,0AH W-c
911607A351C9Battery Pack
